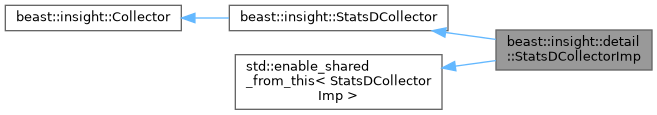

Inheritance diagram for beast::insight::detail::StatsDCollectorImp:

[legend]

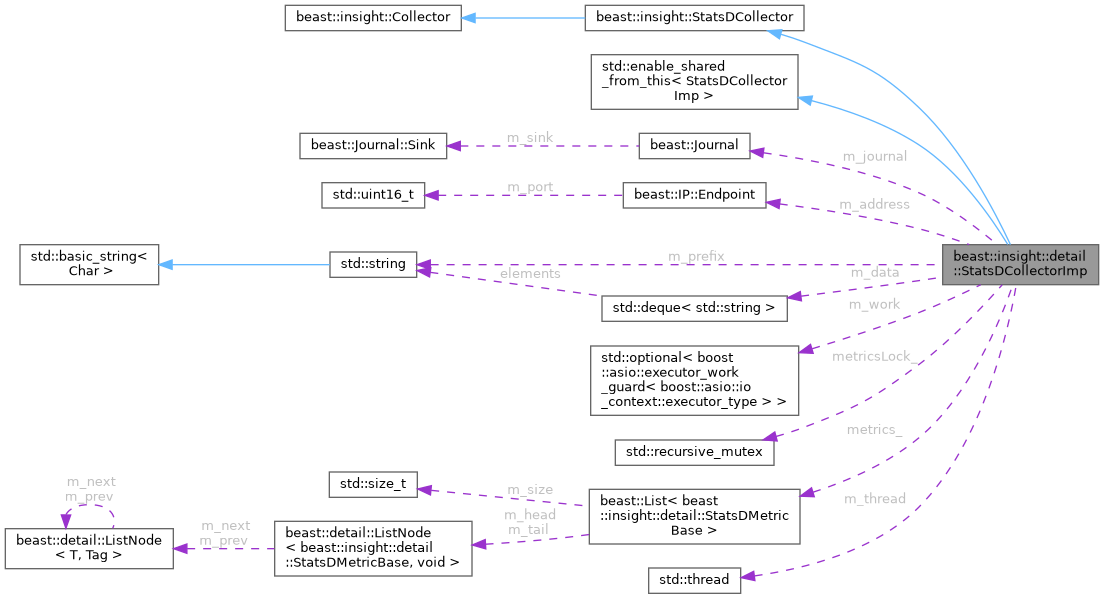

Collaboration diagram for beast::insight::detail::StatsDCollectorImp:

[legend]

Public Types
using	ptr = std::shared_ptr< Collector >

Public Member Functions
	StatsDCollectorImp (IP::Endpoint const &address, std::string const &prefix, Journal journal)

	~StatsDCollectorImp () override

Hook	make_hook (HookImpl::HandlerType const &handler) override

Counter	make_counter (std::string const &name) override
	Create a counter with the specified name.

Event	make_event (std::string const &name) override
	Create an event with the specified name.

Gauge	make_gauge (std::string const &name) override
	Create a gauge with the specified name.

Meter	make_meter (std::string const &name) override
	Create a meter with the specified name.

void	add (StatsDMetricBase &metric)

void	remove (StatsDMetricBase &metric)

boost::asio::io_context &	get_io_context ()

std::string const &	prefix () const

void	do_post_buffer (std::string const &buffer)

void	post_buffer (std::string &&buffer)

void	on_send (std::shared_ptr< std::deque< std::string > >, boost::system::error_code ec, std::size_t)

void	log (std::vector< boost::asio::const_buffer > const &buffers)

void	send_buffers ()

void	set_timer ()

void	on_timer (boost::system::error_code ec)

void	run ()

T	shared_from_this (T... args)

T	weak_from_this (T... args)


template<class Handler >
Hook	make_hook (Handler handler)
	Create a hook.


Counter	make_counter (std::string const &prefix, std::string const &name)


Event	make_event (std::string const &prefix, std::string const &name)


Gauge	make_gauge (std::string const &prefix, std::string const &name)


Meter	make_meter (std::string const &prefix, std::string const &name)

Static Public Member Functions
static std::shared_ptr< StatsDCollector >	New (IP::Endpoint const &address, std::string const &prefix, Journal journal)
	Create a StatsD collector.

Private Types
enum	{ max_packet_size = 1472 }

Static Private Member Functions
static boost::asio::ip::udp::endpoint	to_endpoint (IP::Endpoint const &ep)

Private Attributes
Journal	m_journal

IP::Endpoint	m_address

std::string	m_prefix

boost::asio::io_context	m_io_context

std::optional< boost::asio::executor_work_guard< boost::asio::io_context::executor_type > >	m_work

boost::asio::strand< boost::asio::io_context::executor_type >	m_strand

boost::asio::basic_waitable_timer< std::chrono::steady_clock >	m_timer

boost::asio::ip::udp::socket	m_socket

std::deque< std::string >	m_data

std::recursive_mutex	metricsLock_

List< StatsDMetricBase >	metrics_

std::thread	m_thread

Detailed Description

Definition at line 211 of file StatsDCollector.cpp.

Member Typedef Documentation

◆ ptr

using beast::insight::Collector::ptr = std::shared_ptr<Collector>

inherited

Definition at line 28 of file Collector.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

private

Enumerator
max_packet_size

Definition at line 216 of file StatsDCollector.cpp.

Constructor & Destructor Documentation

◆ StatsDCollectorImp()

beast::insight::detail::StatsDCollectorImp::StatsDCollectorImp	(	IP::Endpoint const &	address,
		std::string const &	prefix,
		Journal	journal
	)

Definition at line 245 of file StatsDCollector.cpp.

◆ ~StatsDCollectorImp()

beast::insight::detail::StatsDCollectorImp::~StatsDCollectorImp ( )

override

Definition at line 260 of file StatsDCollector.cpp.

Member Function Documentation

◆ to_endpoint()

static boost::asio::ip::udp::endpoint beast::insight::detail::StatsDCollectorImp::to_endpoint ( IP::Endpoint const & ep )

staticprivate

Definition at line 239 of file StatsDCollector.cpp.

◆ make_hook() [1/2]

Hook beast::insight::detail::StatsDCollectorImp::make_hook ( HookImpl::HandlerType const & handler )

overridevirtual

Implements beast::insight::Collector.

Definition at line 276 of file StatsDCollector.cpp.

◆ make_counter() [1/2]

Counter beast::insight::detail::StatsDCollectorImp::make_counter ( std::string const & name )

overridevirtual

Create a counter with the specified name.

See also: Counter

Implements beast::insight::Collector.

Definition at line 283 of file StatsDCollector.cpp.

◆ make_event() [1/2]

Event beast::insight::detail::StatsDCollectorImp::make_event ( std::string const & name )

overridevirtual

Create an event with the specified name.

See also: Event

Implements beast::insight::Collector.

Definition at line 290 of file StatsDCollector.cpp.

◆ make_gauge() [1/2]

Gauge beast::insight::detail::StatsDCollectorImp::make_gauge ( std::string const & name )

overridevirtual

Create a gauge with the specified name.

See also: Gauge

Implements beast::insight::Collector.

Definition at line 297 of file StatsDCollector.cpp.

◆ make_meter() [1/2]

Meter beast::insight::detail::StatsDCollectorImp::make_meter ( std::string const & name )

overridevirtual

Create a meter with the specified name.

See also: Meter

Implements beast::insight::Collector.

Definition at line 304 of file StatsDCollector.cpp.

◆ add()

void beast::insight::detail::StatsDCollectorImp::add ( StatsDMetricBase & metric )

Definition at line 313 of file StatsDCollector.cpp.

◆ remove()

void beast::insight::detail::StatsDCollectorImp::remove ( StatsDMetricBase & metric )

Definition at line 320 of file StatsDCollector.cpp.

◆ get_io_context()

boost::asio::io_context & beast::insight::detail::StatsDCollectorImp::get_io_context ( )

Definition at line 329 of file StatsDCollector.cpp.

◆ prefix()

std::string const & beast::insight::detail::StatsDCollectorImp::prefix ( ) const

Definition at line 335 of file StatsDCollector.cpp.

◆ do_post_buffer()

void beast::insight::detail::StatsDCollectorImp::do_post_buffer ( std::string const & buffer )

Definition at line 341 of file StatsDCollector.cpp.

◆ post_buffer()

void beast::insight::detail::StatsDCollectorImp::post_buffer ( std::string && buffer )

Definition at line 347 of file StatsDCollector.cpp.

◆ on_send()

void beast::insight::detail::StatsDCollectorImp::on_send	(	std::shared_ptr< std::deque< std::string > >	,
		boost::system::error_code	ec,
		std::size_t
	)

Definition at line 362 of file StatsDCollector.cpp.

◆ log()

void beast::insight::detail::StatsDCollectorImp::log ( std::vector< boost::asio::const_buffer > const & buffers )

Definition at line 379 of file StatsDCollector.cpp.

◆ send_buffers()

void beast::insight::detail::StatsDCollectorImp::send_buffers ( )

Definition at line 395 of file StatsDCollector.cpp.

◆ set_timer()

void beast::insight::detail::StatsDCollectorImp::set_timer ( )

Definition at line 452 of file StatsDCollector.cpp.

◆ on_timer()

void beast::insight::detail::StatsDCollectorImp::on_timer ( boost::system::error_code ec )

Definition at line 461 of file StatsDCollector.cpp.

◆ run()

void beast::insight::detail::StatsDCollectorImp::run ( )

Definition at line 484 of file StatsDCollector.cpp.

◆ New()

std::shared_ptr< StatsDCollector > beast::insight::StatsDCollector::New	(	IP::Endpoint const &	address,
		std::string const &	prefix,
		Journal	journal
	)

staticinherited

Create a StatsD collector.

Parameters

address	The IP address and port of the StatsD server.
prefix	A string pre-pended before each metric name.
journal	Destination for logging output.

Definition at line 760 of file StatsDCollector.cpp.

◆ make_hook() [2/2]

template<class Handler >

Hook beast::insight::Collector::make_hook ( Handler handler )

inherited

Create a hook.

A hook is called at each collection interval, on an implementation defined thread. This is a convenience facility for gathering metrics in the polling style. The typical usage is to update all the metrics of interest in the handler.

Handler will be called with this signature: void handler (void)

See also: Hook

Definition at line 47 of file Collector.h.

◆ make_counter() [2/2]

Counter beast::insight::Collector::make_counter	(	std::string const &	prefix,
		std::string const &	name
	)

inherited

Definition at line 64 of file Collector.h.

◆ make_event() [2/2]

Event beast::insight::Collector::make_event	(	std::string const &	prefix,
		std::string const &	name
	)

inherited

Definition at line 80 of file Collector.h.

◆ make_gauge() [2/2]

Gauge beast::insight::Collector::make_gauge	(	std::string const &	prefix,
		std::string const &	name
	)

inherited

Definition at line 96 of file Collector.h.

◆ make_meter() [2/2]

Meter beast::insight::Collector::make_meter	(	std::string const &	prefix,
		std::string const &	name
	)

inherited

Definition at line 112 of file Collector.h.

Member Data Documentation

◆ m_journal

Journal beast::insight::detail::StatsDCollectorImp::m_journal

private

Definition at line 221 of file StatsDCollector.cpp.

◆ m_address

IP::Endpoint beast::insight::detail::StatsDCollectorImp::m_address

private

Definition at line 222 of file StatsDCollector.cpp.

◆ m_prefix

std::string beast::insight::detail::StatsDCollectorImp::m_prefix

private

Definition at line 223 of file StatsDCollector.cpp.

◆ m_io_context

boost::asio::io_context beast::insight::detail::StatsDCollectorImp::m_io_context

private

Definition at line 224 of file StatsDCollector.cpp.

◆ m_work

std::optional<boost::asio::executor_work_guard< boost::asio::io_context::executor_type> > beast::insight::detail::StatsDCollectorImp::m_work

private

Definition at line 227 of file StatsDCollector.cpp.

◆ m_strand

boost::asio::strand<boost::asio::io_context::executor_type> beast::insight::detail::StatsDCollectorImp::m_strand

private

Definition at line 228 of file StatsDCollector.cpp.

◆ m_timer

boost::asio::basic_waitable_timer<std::chrono::steady_clock> beast::insight::detail::StatsDCollectorImp::m_timer

private

Definition at line 229 of file StatsDCollector.cpp.

◆ m_socket

boost::asio::ip::udp::socket beast::insight::detail::StatsDCollectorImp::m_socket

private

Definition at line 230 of file StatsDCollector.cpp.

◆ m_data

std::deque<std::string> beast::insight::detail::StatsDCollectorImp::m_data

private

Definition at line 231 of file StatsDCollector.cpp.

◆ metricsLock_

std::recursive_mutex beast::insight::detail::StatsDCollectorImp::metricsLock_

private

Definition at line 232 of file StatsDCollector.cpp.

◆ metrics_

List<StatsDMetricBase> beast::insight::detail::StatsDCollectorImp::metrics_

private

Definition at line 233 of file StatsDCollector.cpp.

◆ m_thread

std::thread beast::insight::detail::StatsDCollectorImp::m_thread

private

Definition at line 236 of file StatsDCollector.cpp.
