ripple::Door< Handler > Class Template Reference

A listening socket. More...

#include <Door.h>

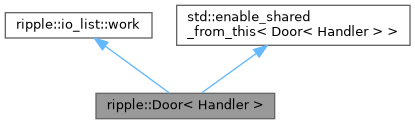

Inheritance diagram for ripple::Door< Handler >:

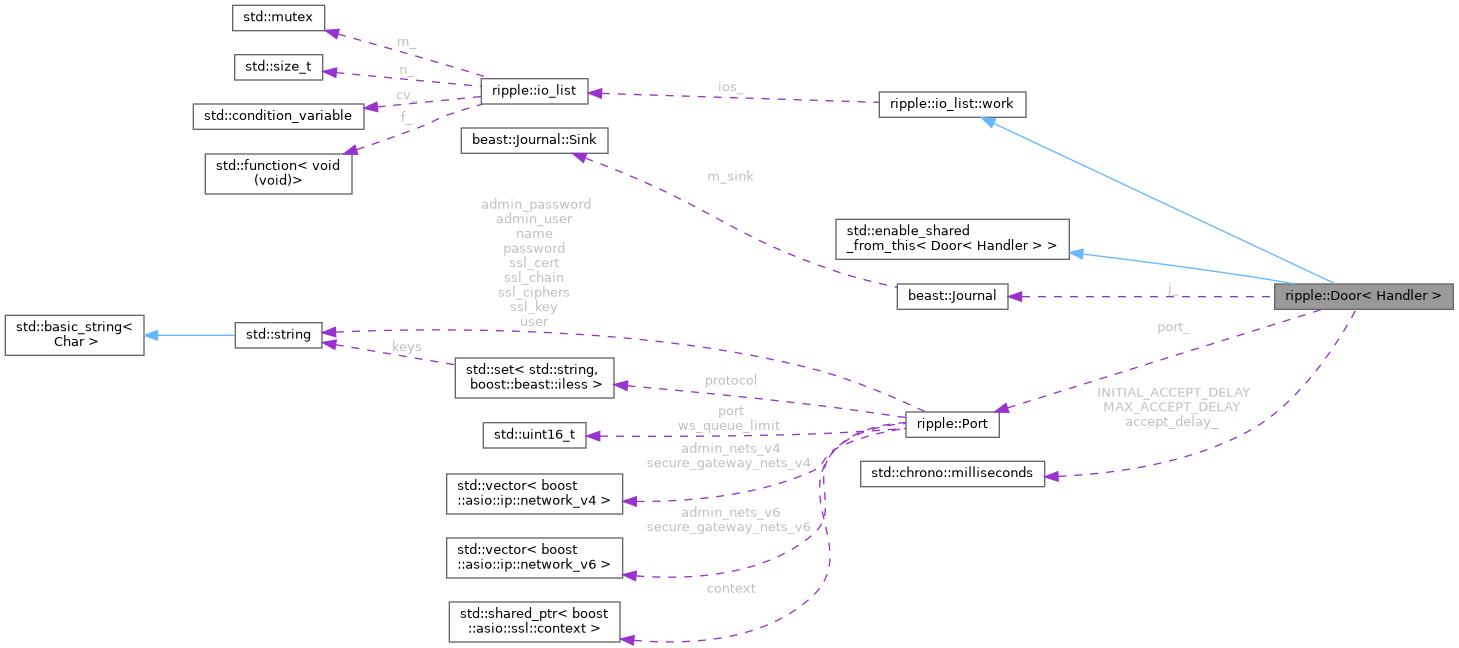

Collaboration diagram for ripple::Door< Handler >:

Classes
class	Detector
struct	FDStats

Public Member Functions
	Door (Handler &handler, boost::asio::io_context &io_context, Port const &port, beast::Journal j)
void	run ()
void	close () override
	Close the Door listening socket and connections.
endpoint_type	get_endpoint () const
io_list &	ios ()
	Return the io_list associated with the work.
T	shared_from_this (T... args)
T	weak_from_this (T... args)

Private Types
using	clock_type = std::chrono::steady_clock
using	timer_type = boost::asio::basic_waitable_timer< clock_type >
using	error_code = boost::system::error_code
using	yield_context = boost::asio::yield_context
using	protocol_type = boost::asio::ip::tcp
using	acceptor_type = protocol_type::acceptor
using	endpoint_type = protocol_type::endpoint
using	socket_type = boost::asio::ip::tcp::socket
using	stream_type = boost::beast::tcp_stream

Private Member Functions
void	reOpen ()
std::optional< FDStats >	query_fd_stats () const
bool	should_throttle_for_fds ()
template<class ConstBufferSequence >
void	create (bool ssl, ConstBufferSequence const &buffers, stream_type &&stream, endpoint_type remote_address)
void	do_accept (yield_context yield)
template<class = void>
void	destroy ()

Private Attributes
beast::Journal const	j_
Port const &	port_
Handler &	handler_
boost::asio::io_context &	ioc_
acceptor_type	acceptor_
boost::asio::strand< boost::asio::io_context::executor_type >	strand_
bool	ssl_
bool	plain_
std::chrono::milliseconds	accept_delay_ {INITIAL_ACCEPT_DELAY}
boost::asio::steady_timer	backoff_timer_
io_list *	ios_ = nullptr

Static Private Attributes
static constexpr std::chrono::milliseconds	INITIAL_ACCEPT_DELAY {50}
static constexpr std::chrono::milliseconds	MAX_ACCEPT_DELAY {2000}
static constexpr double	FREE_FD_THRESHOLD = 0.70

Detailed Description

template<class Handler>
class ripple::Door< Handler >

A listening socket.

Definition at line 61 of file Door.h.

Member Typedef Documentation

clock_type

template<class Handler >

using ripple::Door< Handler >::clock_type = std::chrono::steady_clock

private

Definition at line 65 of file Door.h.

timer_type

template<class Handler >

using ripple::Door< Handler >::timer_type = boost::asio::basic_waitable_timer<clock_type>

private

Definition at line 66 of file Door.h.

error_code

template<class Handler >

using ripple::Door< Handler >::error_code = boost::system::error_code

private

Definition at line 67 of file Door.h.

yield_context

template<class Handler >

using ripple::Door< Handler >::yield_context = boost::asio::yield_context

private

Definition at line 68 of file Door.h.

protocol_type

template<class Handler >

using ripple::Door< Handler >::protocol_type = boost::asio::ip::tcp

private

Definition at line 69 of file Door.h.

acceptor_type

template<class Handler >

using ripple::Door< Handler >::acceptor_type = protocol_type::acceptor

private

Definition at line 70 of file Door.h.

endpoint_type

template<class Handler >

using ripple::Door< Handler >::endpoint_type = protocol_type::endpoint

private

Definition at line 71 of file Door.h.

socket_type

template<class Handler >

using ripple::Door< Handler >::socket_type = boost::asio::ip::tcp::socket

private

Definition at line 72 of file Door.h.

stream_type

template<class Handler >

using ripple::Door< Handler >::stream_type = boost::beast::tcp_stream

private

Definition at line 73 of file Door.h.

Constructor & Destructor Documentation

Door()

template<class Handler >

ripple::Door< Handler >::Door	(	Handler &	handler,
		boost::asio::io_context &	io_context,
		Port const &	port,
		beast::Journal	j
	)

Definition at line 315 of file Door.h.

Member Function Documentation

reOpen()

template<class Handler >

void ripple::Door< Handler >::reOpen ( )

private

Definition at line 259 of file Door.h.

query_fd_stats()

template<class Handler >

std::optional< typename Door< Handler >::FDStats > ripple::Door< Handler >::query_fd_stats ( ) const

private

Definition at line 470 of file Door.h.

should_throttle_for_fds()

template<class Handler >

bool ripple::Door< Handler >::should_throttle_for_fds ( )

private

Definition at line 501 of file Door.h.

run()

template<class Handler >

void ripple::Door< Handler >::run

(

)

Definition at line 340 of file Door.h.

close()

template<class Handler >

void ripple::Door< Handler >::close ( )

overridevirtual

Close the Door listening socket and connections.

The listening socket is closed, and all open connections belonging to the Door are closed. Thread Safety: May be called concurrently

Implements ripple::io_list::work.

Definition at line 352 of file Door.h.

get_endpoint()

template<class Handler >

endpoint_type ripple::Door< Handler >::get_endpoint

(

)

const

Definition at line 157 of file Door.h.

create()

template<class Handler >

template<class ConstBufferSequence >

void ripple::Door< Handler >::create ( bool  ssl, ConstBufferSequence const &  buffers, stream_type &&  stream, endpoint_type  remote_address  )

private

Definition at line 368 of file Door.h.

do_accept()

template<class Handler >

void ripple::Door< Handler >::do_accept ( yield_context  yield )

private

Definition at line 400 of file Door.h.

destroy()

template<class = void>

void ripple::io_list::work::destroy ( )

privateinherited

Definition at line 182 of file io_list.h.

ios()

io_list & ripple::io_list::work::ios ( )

inherited

Return the io_list associated with the work.

Requirements: The call to io_list::emplace to create the work has already returned.

Definition at line 60 of file io_list.h.

Member Data Documentation

j_

template<class Handler >

beast::Journal const ripple::Door< Handler >::j_

private

Definition at line 107 of file Door.h.

port_

template<class Handler >

Port const& ripple::Door< Handler >::port_

private

Definition at line 108 of file Door.h.

handler_

template<class Handler >

Handler& ripple::Door< Handler >::handler_

private

Definition at line 109 of file Door.h.

ioc_

template<class Handler >

boost::asio::io_context& ripple::Door< Handler >::ioc_

private

Definition at line 110 of file Door.h.

acceptor_

template<class Handler >

acceptor_type ripple::Door< Handler >::acceptor_

private

Definition at line 111 of file Door.h.

strand_

template<class Handler >

boost::asio::strand<boost::asio::io_context::executor_type> ripple::Door< Handler >::strand_

private

Definition at line 112 of file Door.h.

ssl_

template<class Handler >

bool ripple::Door< Handler >::ssl_

private

Definition at line 113 of file Door.h.

plain_

template<class Handler >

bool ripple::Door< Handler >::plain_

private

Definition at line 114 of file Door.h.

INITIAL_ACCEPT_DELAY

template<class Handler >

constexpr std::chrono::milliseconds ripple::Door< Handler >::INITIAL_ACCEPT_DELAY {50}

staticconstexprprivate

Definition at line 115 of file Door.h.

MAX_ACCEPT_DELAY

template<class Handler >

constexpr std::chrono::milliseconds ripple::Door< Handler >::MAX_ACCEPT_DELAY {2000}

staticconstexprprivate

Definition at line 116 of file Door.h.

accept_delay_

template<class Handler >

std::chrono::milliseconds ripple::Door< Handler >::accept_delay_ {INITIAL_ACCEPT_DELAY}

private

Definition at line 117 of file Door.h.

backoff_timer_

template<class Handler >

boost::asio::steady_timer ripple::Door< Handler >::backoff_timer_

private

Definition at line 118 of file Door.h.

FREE_FD_THRESHOLD

template<class Handler >

constexpr double ripple::Door< Handler >::FREE_FD_THRESHOLD = 0.70

staticconstexprprivate

Definition at line 119 of file Door.h.

ios_

io_list* ripple::io_list::work::ios_ = nullptr

privateinherited

Definition at line 45 of file io_list.h.
