ripple::InboundTransactionsImp Class Reference

Inheritance diagram for ripple::InboundTransactionsImp:

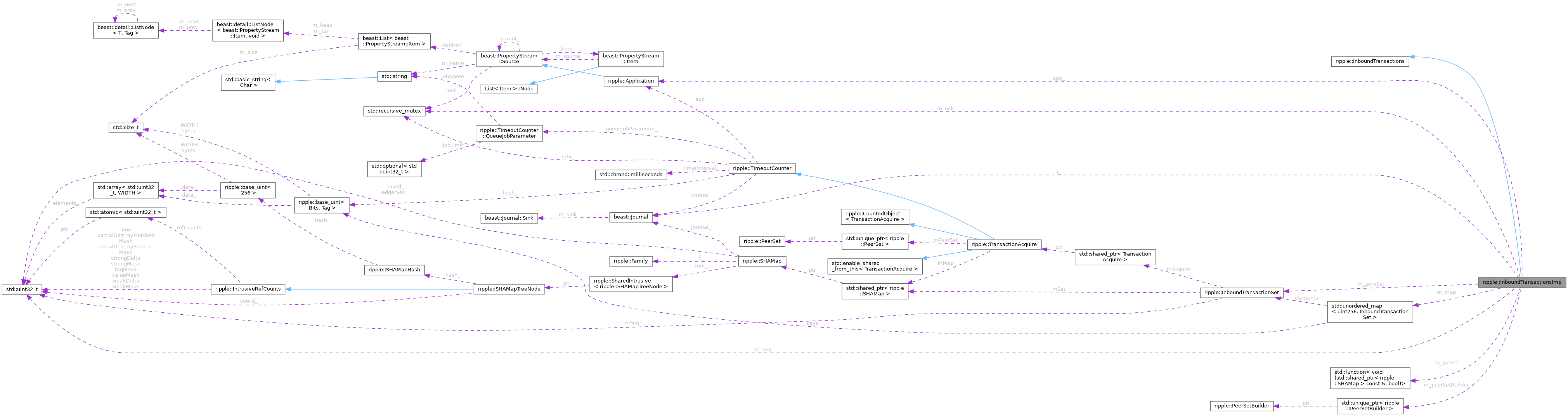

Collaboration diagram for ripple::InboundTransactionsImp:

Public Types
using	clock_type = beast::abstract_clock< std::chrono::steady_clock >

Public Member Functions
	InboundTransactionsImp (Application &app, beast::insight::Collector::ptr const &collector, std::function< void(std::shared_ptr< SHAMap > const &, bool)> gotSet, std::unique_ptr< PeerSetBuilder > peerSetBuilder)
TransactionAcquire::pointer	getAcquire (uint256 const &hash)
std::shared_ptr< SHAMap >	getSet (uint256 const &hash, bool acquire) override
	Find and return a transaction set, or nullptr if it is missing.
void	gotData (LedgerHash const &hash, std::shared_ptr< Peer > peer, std::shared_ptr< protocol::TMLedgerData > packet_ptr) override
	We received a TMLedgerData from a peer.
void	giveSet (uint256 const &hash, std::shared_ptr< SHAMap > const &set, bool fromAcquire) override
	Add a transaction set.
void	newRound (std::uint32_t seq) override
	Informs the container if a new consensus round.
void	stop () override
virtual void	gotData (uint256 const &setHash, std::shared_ptr< Peer > peer, std::shared_ptr< protocol::TMLedgerData > message)=0
	Add a transaction set from a LedgerData message.

Private Types
using	MapType = hash_map< uint256, InboundTransactionSet >

Private Attributes
Application &	app_
std::recursive_mutex	mLock
bool	stopping_ {false}
MapType	m_map
std::uint32_t	m_seq
InboundTransactionSet &	m_zeroSet
std::function< void(std::shared_ptr< SHAMap > const &, bool)>	m_gotSet
std::unique_ptr< PeerSetBuilder >	m_peerSetBuilder
beast::Journal	j_

Detailed Description

Definition at line 63 of file InboundTransactions.cpp.

Member Typedef Documentation

MapType

using ripple::InboundTransactionsImp::MapType = hash_map<uint256, InboundTransactionSet>

private

Definition at line 246 of file InboundTransactions.cpp.

clock_type

using ripple::InboundTransactions::clock_type = beast::abstract_clock<std::chrono::steady_clock>

inherited

Definition at line 40 of file InboundTransactions.h.

Constructor & Destructor Documentation

InboundTransactionsImp()

ripple::InboundTransactionsImp::InboundTransactionsImp	(	Application &	app,
		beast::insight::Collector::ptr const &	collector,
		std::function< void(std::shared_ptr< SHAMap > const &, bool)>	gotSet,
		std::unique_ptr< PeerSetBuilder >	peerSetBuilder
	)

Definition at line 66 of file InboundTransactions.cpp.

Member Function Documentation

getAcquire()

TransactionAcquire::pointer ripple::InboundTransactionsImp::getAcquire

(

uint256 const &

hash

)

Definition at line 84 of file InboundTransactions.cpp.

getSet()

std::shared_ptr< SHAMap > ripple::InboundTransactionsImp::getSet ( uint256 const &  setHash, bool  acquire  )

overridevirtual

Find and return a transaction set, or nullptr if it is missing.

Parameters

setHash	The transaction set ID (digest of the SHAMap root node).
acquire	Whether to fetch the transaction set from the network if it is missing.

Returns

The transaction set with ID setHash, or nullptr if it is missing.

Implements ripple::InboundTransactions.

Definition at line 98 of file InboundTransactions.cpp.

gotData() [1/2]

void ripple::InboundTransactionsImp::gotData ( LedgerHash const &  hash, std::shared_ptr< Peer >  peer, std::shared_ptr< protocol::TMLedgerData >  packet_ptr  )

override

We received a TMLedgerData from a peer.

Definition at line 137 of file InboundTransactions.cpp.

giveSet()

void ripple::InboundTransactionsImp::giveSet ( uint256 const &  setHash, std::shared_ptr< SHAMap > const &  set, bool  acquired  )

overridevirtual

Add a transaction set.

Parameters

setHash	The transaction set ID (should match set.getHash()).
set	The transaction set.
acquired	Whether this transaction set was acquired from a peer, or constructed by ourself during consensus.

Implements ripple::InboundTransactions.

Definition at line 182 of file InboundTransactions.cpp.

newRound()

void ripple::InboundTransactionsImp::newRound ( std::uint32_t  seq )

overridevirtual

Informs the container if a new consensus round.

Implements ripple::InboundTransactions.

Definition at line 210 of file InboundTransactions.cpp.

stop()

void ripple::InboundTransactionsImp::stop ( )

overridevirtual

Implements ripple::InboundTransactions.

Definition at line 238 of file InboundTransactions.cpp.

gotData() [2/2]

virtual void ripple::InboundTransactions::gotData ( uint256 const &  setHash, std::shared_ptr< Peer >  peer, std::shared_ptr< protocol::TMLedgerData >  message  )

pure virtualinherited

Add a transaction set from a LedgerData message.

Parameters

setHash	The transaction set ID (digest of the SHAMap root node).
peer	The peer that sent the message.
message	The LedgerData message.

Member Data Documentation

app_

Application& ripple::InboundTransactionsImp::app_

private

Definition at line 248 of file InboundTransactions.cpp.

mLock

std::recursive_mutex ripple::InboundTransactionsImp::mLock

private

Definition at line 250 of file InboundTransactions.cpp.

stopping_

bool ripple::InboundTransactionsImp::stopping_ {false}

private

Definition at line 252 of file InboundTransactions.cpp.

m_map

MapType ripple::InboundTransactionsImp::m_map

private

Definition at line 253 of file InboundTransactions.cpp.

m_seq

std::uint32_t ripple::InboundTransactionsImp::m_seq

private

Definition at line 254 of file InboundTransactions.cpp.

m_zeroSet

InboundTransactionSet& ripple::InboundTransactionsImp::m_zeroSet

private

Definition at line 257 of file InboundTransactions.cpp.

m_gotSet

std::function<void(std::shared_ptr<SHAMap> const&, bool)> ripple::InboundTransactionsImp::m_gotSet

private

Definition at line 259 of file InboundTransactions.cpp.

m_peerSetBuilder

std::unique_ptr<PeerSetBuilder> ripple::InboundTransactionsImp::m_peerSetBuilder

private

Definition at line 261 of file InboundTransactions.cpp.

j_

beast::Journal ripple::InboundTransactionsImp::j_

private

Definition at line 263 of file InboundTransactions.cpp.
