A pool of threads to perform work. More...

#include <JobQueue.h>

Inheritance diagram for ripple::JobQueue:

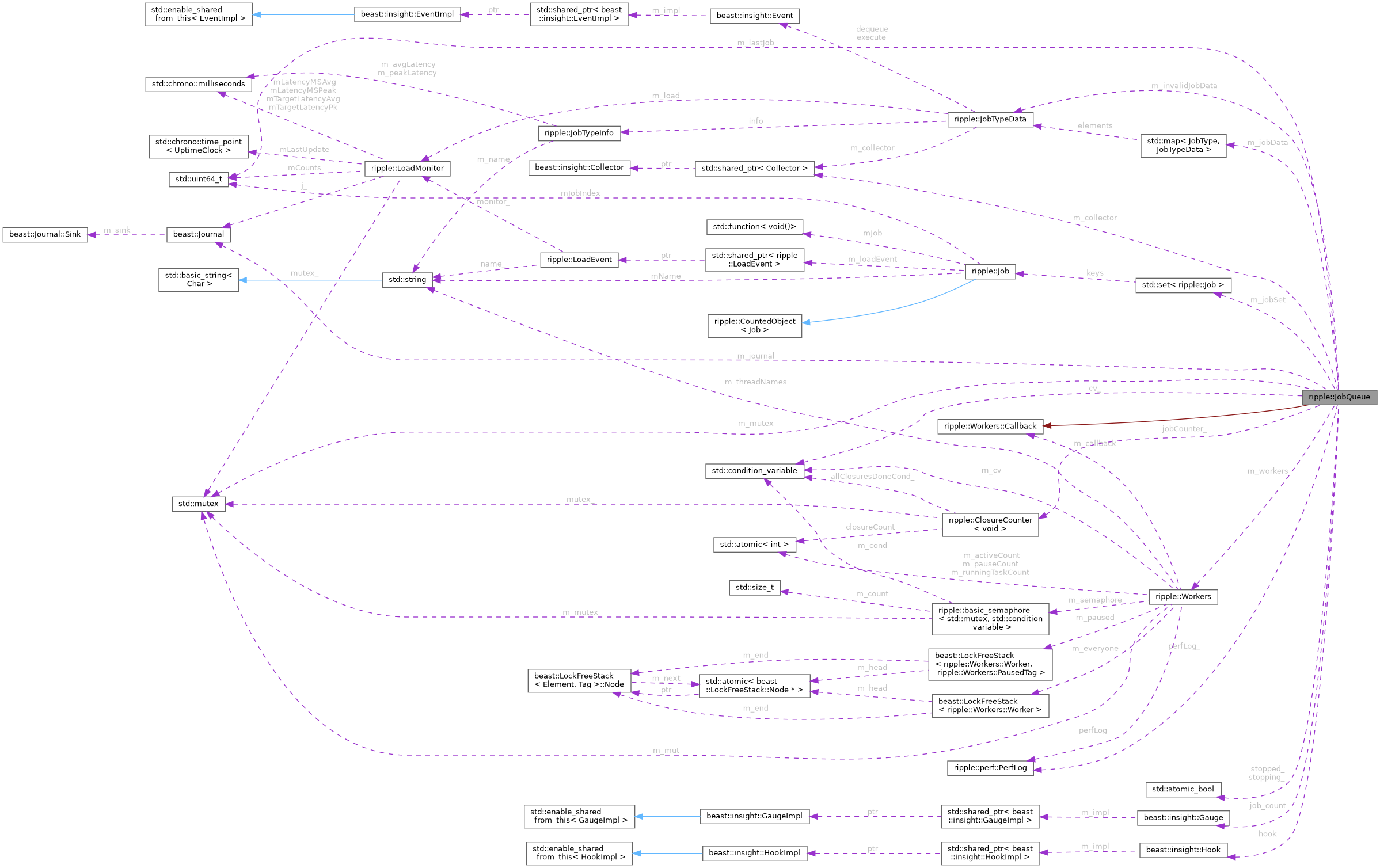

Collaboration diagram for ripple::JobQueue:

[legend]

Classes
class	Coro
	Coroutines must run to completion. More...

Public Types
using	JobFunction = std::function< void()>

Public Member Functions
	JobQueue (int threadCount, beast::insight::Collector::ptr const &collector, beast::Journal journal, Logs &logs, perf::PerfLog &perfLog)

	~JobQueue ()

template<typename JobHandler >
bool	addJob (JobType type, std::string const &name, JobHandler &&jobHandler)
	Adds a job to the JobQueue.

template<class F >
std::shared_ptr< Coro >	postCoro (JobType t, std::string const &name, F &&f)
	Creates a coroutine and adds a job to the queue which will run it.

int	getJobCount (JobType t) const
	Jobs waiting at this priority.

int	getJobCountTotal (JobType t) const
	Jobs waiting plus running at this priority.

int	getJobCountGE (JobType t) const
	All waiting jobs at or greater than this priority.

std::unique_ptr< LoadEvent >	makeLoadEvent (JobType t, std::string const &name)
	Return a scoped LoadEvent.

void	addLoadEvents (JobType t, int count, std::chrono::milliseconds elapsed)
	Add multiple load events.

bool	isOverloaded ()

Json::Value	getJson (int c=0)

void	rendezvous ()
	Block until no jobs running.

void	stop ()

bool	isStopping () const

bool	isStopped () const

Private Types
using	JobDataMap = std::map< JobType, JobTypeData >

Private Member Functions
void	collect ()

JobTypeData &	getJobTypeData (JobType type)

bool	addRefCountedJob (JobType type, std::string const &name, JobFunction const &func)

void	getNextJob (Job &job)

void	finishJob (JobType type)

void	processTask (int instance) override
	Perform a task.

int	getJobLimit (JobType type)

Private Attributes
beast::Journal	m_journal

std::mutex	m_mutex

std::uint64_t	m_lastJob

std::set< Job >	m_jobSet

JobCounter	jobCounter_

std::atomic_bool	stopping_ {false}

std::atomic_bool	stopped_ {false}

JobDataMap	m_jobData

JobTypeData	m_invalidJobData

int	m_processCount

int	nSuspend_ = 0

Workers	m_workers

perf::PerfLog &	perfLog_

beast::insight::Collector::ptr	m_collector

beast::insight::Gauge	job_count

beast::insight::Hook	hook

std::condition_variable	cv_

Friends
class	Coro

Detailed Description

A pool of threads to perform work.

A job posted will always run to completion.

Coroutines that are suspended must be resumed, and run to completion.

When the JobQueue stops, it waits for all jobs and coroutines to finish.

Definition at line 57 of file JobQueue.h.

Member Typedef Documentation

◆ JobFunction

using ripple::JobQueue::JobFunction = std::function<void()>

Definition at line 143 of file JobQueue.h.

◆ JobDataMap

using ripple::JobQueue::JobDataMap = std::map<JobType, JobTypeData>

private

Definition at line 245 of file JobQueue.h.

Constructor & Destructor Documentation

◆ JobQueue()

ripple::JobQueue::JobQueue	(	int	threadCount,
		beast::insight::Collector::ptr const &	collector,
		beast::Journal	journal,
		Logs &	logs,
		perf::PerfLog &	perfLog
	)

Definition at line 29 of file JobQueue.cpp.

◆ ~JobQueue()

ripple::JobQueue::~JobQueue ( )

Definition at line 68 of file JobQueue.cpp.

Member Function Documentation

◆ addJob()

template<typename JobHandler >

bool ripple::JobQueue::addJob	(	JobType	type,
		std::string const &	name,
		JobHandler &&	jobHandler
	)

Adds a job to the JobQueue.

Parameters

type	The type of job.
name	Name of the job.
jobHandler	Lambda with signature void (Job&). Called when the job is executed.

Returns: true if jobHandler added to queue.

Definition at line 168 of file JobQueue.h.

◆ postCoro()

template<class F >

std::shared_ptr< JobQueue::Coro > ripple::JobQueue::postCoro	(	JobType	t,
		std::string const &	name,
		F &&	f
	)

Creates a coroutine and adds a job to the queue which will run it.

Parameters

t	The type of job.
name	Name of the job.
f	Has a signature of void(std::shared_ptr<Coro>). Called when the job executes.

Returns: shared_ptr to posted Coro. nullptr if post was not successful.

Definition at line 413 of file JobQueue.h.

◆ getJobCount()

int ripple::JobQueue::getJobCount ( JobType t ) const

Jobs waiting at this priority.

Definition at line 142 of file JobQueue.cpp.

◆ getJobCountTotal()

int ripple::JobQueue::getJobCountTotal ( JobType t ) const

Jobs waiting plus running at this priority.

Definition at line 152 of file JobQueue.cpp.

◆ getJobCountGE()

int ripple::JobQueue::getJobCountGE ( JobType t ) const

All waiting jobs at or greater than this priority.

Definition at line 162 of file JobQueue.cpp.

◆ makeLoadEvent()

std::unique_ptr< LoadEvent > ripple::JobQueue::makeLoadEvent	(	JobType	t,
		std::string const &	name
	)

Return a scoped LoadEvent.

Definition at line 179 of file JobQueue.cpp.

◆ addLoadEvents()

void ripple::JobQueue::addLoadEvents	(	JobType	t,
		int	count,
		std::chrono::milliseconds	elapsed
	)

Add multiple load events.

Definition at line 193 of file JobQueue.cpp.

◆ isOverloaded()

bool ripple::JobQueue::isOverloaded ( )

Definition at line 206 of file JobQueue.cpp.

◆ getJson()

Json::Value ripple::JobQueue::getJson ( int c = 0 )

Definition at line 214 of file JobQueue.cpp.

◆ rendezvous()

void ripple::JobQueue::rendezvous ( )

Block until no jobs running.

Definition at line 273 of file JobQueue.cpp.

◆ stop()

void ripple::JobQueue::stop ( )

Definition at line 296 of file JobQueue.cpp.

◆ isStopping()

bool ripple::JobQueue::isStopping ( ) const

Definition at line 232 of file JobQueue.h.

◆ isStopped()

bool ripple::JobQueue::isStopped ( ) const

Definition at line 322 of file JobQueue.cpp.

◆ collect()

void ripple::JobQueue::collect ( )

private

Definition at line 75 of file JobQueue.cpp.

◆ getJobTypeData()

JobTypeData & ripple::JobQueue::getJobTypeData ( JobType type )

private

Definition at line 280 of file JobQueue.cpp.

◆ addRefCountedJob()

bool ripple::JobQueue::addRefCountedJob	(	JobType	type,
		std::string const &	name,
		JobFunction const &	func
	)

private

Definition at line 82 of file JobQueue.cpp.

◆ getNextJob()

void ripple::JobQueue::getNextJob ( Job & job )

private

Definition at line 328 of file JobQueue.cpp.

◆ finishJob()

void ripple::JobQueue::finishJob ( JobType type )

private

Definition at line 365 of file JobQueue.cpp.

◆ processTask()

void ripple::JobQueue::processTask ( int instance )

overrideprivatevirtual

Perform a task.

The call is made on a thread owned by Workers. It is important that you only process one task from inside your callback. Each call to addTask will result in exactly one call to processTask.

Parameters

instance The worker thread instance.

See also: Workers::addTask

Implements ripple::Workers::Callback.

Definition at line 388 of file JobQueue.cpp.

◆ getJobLimit()

int ripple::JobQueue::getJobLimit ( JobType type )

private

Definition at line 441 of file JobQueue.cpp.

Friends And Related Symbol Documentation

◆ Coro

friend class Coro

friend

Definition at line 243 of file JobQueue.h.

Member Data Documentation

◆ m_journal

beast::Journal ripple::JobQueue::m_journal

private

Definition at line 247 of file JobQueue.h.

◆ m_mutex

std::mutex ripple::JobQueue::m_mutex

mutableprivate

Definition at line 248 of file JobQueue.h.

◆ m_lastJob

std::uint64_t ripple::JobQueue::m_lastJob

private

Definition at line 249 of file JobQueue.h.

◆ m_jobSet

std::set<Job> ripple::JobQueue::m_jobSet

private

Definition at line 250 of file JobQueue.h.

◆ jobCounter_

JobCounter ripple::JobQueue::jobCounter_

private

Definition at line 251 of file JobQueue.h.

◆ stopping_

std::atomic_bool ripple::JobQueue::stopping_ {false}

private

Definition at line 252 of file JobQueue.h.

◆ stopped_

std::atomic_bool ripple::JobQueue::stopped_ {false}

private

Definition at line 253 of file JobQueue.h.

◆ m_jobData

JobDataMap ripple::JobQueue::m_jobData

private

Definition at line 254 of file JobQueue.h.

◆ m_invalidJobData

JobTypeData ripple::JobQueue::m_invalidJobData

private

Definition at line 255 of file JobQueue.h.

◆ m_processCount

int ripple::JobQueue::m_processCount

private

Definition at line 258 of file JobQueue.h.

◆ nSuspend_

int ripple::JobQueue::nSuspend_ = 0

private

Definition at line 261 of file JobQueue.h.

◆ m_workers

Workers ripple::JobQueue::m_workers

private

Definition at line 263 of file JobQueue.h.

◆ perfLog_

perf::PerfLog& ripple::JobQueue::perfLog_

private

Definition at line 266 of file JobQueue.h.

◆ m_collector

beast::insight::Collector::ptr ripple::JobQueue::m_collector

private

Definition at line 267 of file JobQueue.h.

◆ job_count

beast::insight::Gauge ripple::JobQueue::job_count

private

Definition at line 268 of file JobQueue.h.

◆ hook

beast::insight::Hook ripple::JobQueue::hook

private

Definition at line 269 of file JobQueue.h.

◆ cv_

std::condition_variable ripple::JobQueue::cv_

private

Definition at line 271 of file JobQueue.h.
