Remembers manifests with the highest sequence number. More...

#include <Manifest.h>

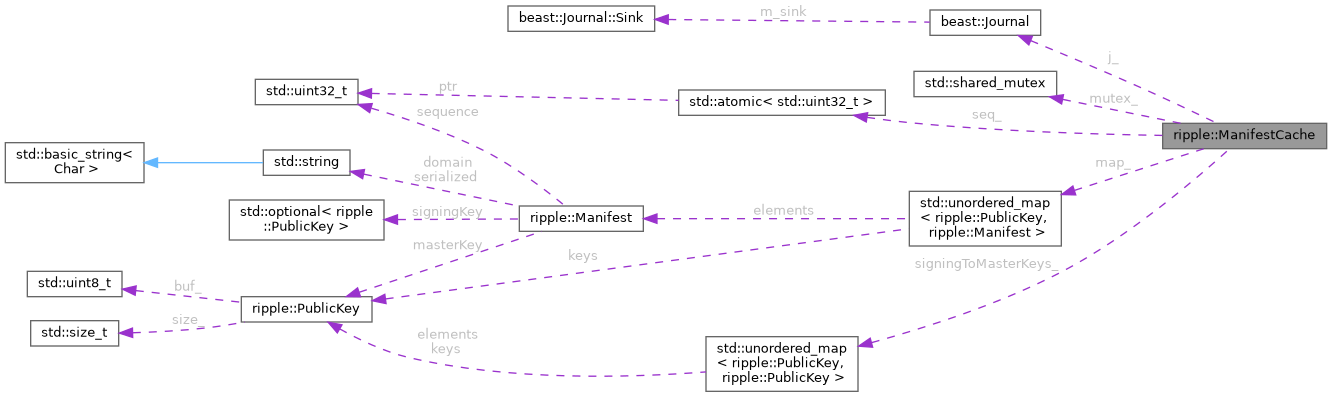

Collaboration diagram for ripple::ManifestCache:

[legend]

Public Member Functions
	ManifestCache (beast::Journal j=beast::Journal(beast::Journal::getNullSink()))

std::uint32_t	sequence () const
	A monotonically increasing number used to detect new manifests.

std::optional< PublicKey >	getSigningKey (PublicKey const &pk) const
	Returns master key's current signing key.

PublicKey	getMasterKey (PublicKey const &pk) const
	Returns ephemeral signing key's master public key.

std::optional< std::uint32_t >	getSequence (PublicKey const &pk) const
	Returns master key's current manifest sequence.

std::optional< std::string >	getDomain (PublicKey const &pk) const
	Returns domain claimed by a given public key.

std::optional< std::string >	getManifest (PublicKey const &pk) const
	Returns mainfest corresponding to a given public key.

bool	revoked (PublicKey const &pk) const
	Returns `true` if master key has been revoked in a manifest.

ManifestDisposition	applyManifest (Manifest m)
	Add manifest to cache.

bool	load (DatabaseCon &dbCon, std::string const &dbTable, std::string const &configManifest, std::vector< std::string > const &configRevocation)
	Populate manifest cache with manifests in database and config.

void	load (DatabaseCon &dbCon, std::string const &dbTable)
	Populate manifest cache with manifests in database.

void	save (DatabaseCon &dbCon, std::string const &dbTable, std::function< bool(PublicKey const &)> const &isTrusted)
	Save cached manifests to database.

template<class Function >
void	for_each_manifest (Function &&f) const
	Invokes the callback once for every populated manifest.

template<class PreFun , class EachFun >
void	for_each_manifest (PreFun &&pf, EachFun &&f) const
	Invokes the callback once for every populated manifest.

Private Attributes
beast::Journal	j_

std::shared_mutex	mutex_

hash_map< PublicKey, Manifest >	map_
	Active manifests stored by master public key.

hash_map< PublicKey, PublicKey >	signingToMasterKeys_
	Master public keys stored by current ephemeral public key.

std::atomic< std::uint32_t >	seq_ {0}

Detailed Description

Remembers manifests with the highest sequence number.

Definition at line 236 of file Manifest.h.

Constructor & Destructor Documentation

◆ ManifestCache()

ripple::ManifestCache::ManifestCache ( beast::Journal j = beast::Journal(beast::Journal::getNullSink()) )

explicit

Definition at line 251 of file Manifest.h.

Member Function Documentation

◆ sequence()

std::uint32_t ripple::ManifestCache::sequence ( ) const

A monotonically increasing number used to detect new manifests.

Definition at line 259 of file Manifest.h.

◆ getSigningKey()

std::optional< PublicKey > ripple::ManifestCache::getSigningKey ( PublicKey const & pk ) const

Returns master key's current signing key.

Parameters

pk	Master public key

Returns: pk if no known signing key from a manifest

Thread Safety

May be called concurrently

Definition at line 292 of file Manifest.cpp.

◆ getMasterKey()

PublicKey ripple::ManifestCache::getMasterKey ( PublicKey const & pk ) const

Returns ephemeral signing key's master public key.

Parameters

pk	Ephemeral signing public key

Returns: pk if signing key is not in a valid manifest

Thread Safety

May be called concurrently

Definition at line 304 of file Manifest.cpp.

◆ getSequence()

std::optional< std::uint32_t > ripple::ManifestCache::getSequence ( PublicKey const & pk ) const

Returns master key's current manifest sequence.

Returns: sequence corresponding to Master public key if configured or std::nullopt otherwise

Definition at line 316 of file Manifest.cpp.

◆ getDomain()

std::optional< std::string > ripple::ManifestCache::getDomain ( PublicKey const & pk ) const

Returns domain claimed by a given public key.

Returns: domain corresponding to Master public key if present, otherwise std::nullopt

Definition at line 328 of file Manifest.cpp.

◆ getManifest()

std::optional< std::string > ripple::ManifestCache::getManifest ( PublicKey const & pk ) const

Returns mainfest corresponding to a given public key.

Returns: manifest corresponding to Master public key if present, otherwise std::nullopt

Definition at line 340 of file Manifest.cpp.

◆ revoked()

bool ripple::ManifestCache::revoked ( PublicKey const & pk ) const

Returns true if master key has been revoked in a manifest.

Parameters

pk	Master public key

Thread Safety

May be called concurrently

Definition at line 352 of file Manifest.cpp.

◆ applyManifest()

ManifestDisposition ripple::ManifestCache::applyManifest ( Manifest m )

Add manifest to cache.

Parameters

m	Manifest to add

Returns: ManifestDisposition::accepted if successful, or stale or invalid otherwise

Thread Safety

May be called concurrently

Definition at line 364 of file Manifest.cpp.

◆ load() [1/2]

bool ripple::ManifestCache::load	(	DatabaseCon &	dbCon,
		std::string const &	dbTable,
		std::string const &	configManifest,
		std::vector< std::string > const &	configRevocation
	)

Populate manifest cache with manifests in database and config.

Parameters

dbCon	Database connection with dbTable
dbTable	Database table
configManifest	Base64 encoded manifest for local node's validator keys
configRevocation	Base64 encoded validator key revocation from the config

Thread Safety

May be called concurrently

Definition at line 532 of file Manifest.cpp.

◆ load() [2/2]

void ripple::ManifestCache::load	(	DatabaseCon &	dbCon,
		std::string const &	dbTable
	)

Populate manifest cache with manifests in database.

Parameters

dbCon	Database connection with dbTable
dbTable	Database table

Thread Safety

May be called concurrently

Definition at line 525 of file Manifest.cpp.

◆ save()

void ripple::ManifestCache::save	(	DatabaseCon &	dbCon,
		std::string const &	dbTable,
		std::function< bool(PublicKey const &)> const &	isTrusted
	)

Save cached manifests to database.

Parameters

dbCon	Database connection with `ValidatorManifests` table
isTrusted	Function that returns true if manifest is trusted

Thread Safety

May be called concurrently

Definition at line 589 of file Manifest.cpp.

◆ for_each_manifest() [1/2]

template<class Function >

void ripple::ManifestCache::for_each_manifest ( Function && f ) const

Invokes the callback once for every populated manifest.

Note: Do not call ManifestCache member functions from within the callback. This can re-lock the mutex from the same thread, which is UB.; Do not write ManifestCache member variables from within the callback. This can lead to data races.

Parameters

f	Function called for each manifest

Thread Safety

May be called concurrently

Definition at line 406 of file Manifest.h.

◆ for_each_manifest() [2/2]

template<class PreFun , class EachFun >

void ripple::ManifestCache::for_each_manifest	(	PreFun &&	pf,
		EachFun &&	f
	)		const

Invokes the callback once for every populated manifest.

Note: Do not call ManifestCache member functions from within the callback. This can re-lock the mutex from the same thread, which is UB.; Do not write ManifestCache member variables from within the callback. This can lead to data races.

Parameters

pf	Pre-function called with the maximum number of times f will be called (useful for memory allocations)
f	Function called for each manifest

Thread Safety

May be called concurrently

Definition at line 434 of file Manifest.h.

Member Data Documentation

◆ j_

beast::Journal ripple::ManifestCache::j_

private

Definition at line 239 of file Manifest.h.

◆ mutex_

std::shared_mutex ripple::ManifestCache::mutex_

mutableprivate

Definition at line 240 of file Manifest.h.

◆ map_

hash_map<PublicKey, Manifest> ripple::ManifestCache::map_

private

Active manifests stored by master public key.

Definition at line 243 of file Manifest.h.

◆ signingToMasterKeys_

hash_map<PublicKey, PublicKey> ripple::ManifestCache::signingToMasterKeys_

private

Master public keys stored by current ephemeral public key.

Definition at line 246 of file Manifest.h.

◆ seq_

std::atomic<std::uint32_t> ripple::ManifestCache::seq_ {0}

private

Definition at line 248 of file Manifest.h.
