ripple::NodeObject Class Reference

A simple object that the Ledger uses to store entries. More...

#include <NodeObject.h>

Inheritance diagram for ripple::NodeObject:

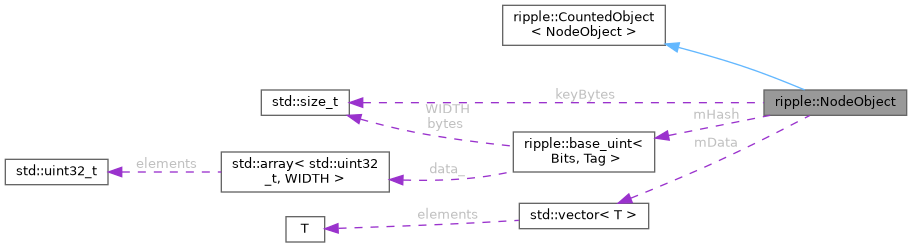

Collaboration diagram for ripple::NodeObject:

Classes
struct	PrivateAccess

Public Member Functions
	NodeObject (NodeObjectType type, Blob &&data, uint256 const &hash, PrivateAccess)
NodeObjectType	getType () const
	Returns the type of this object.
uint256 const &	getHash () const
	Returns the hash of the data.
Blob const &	getData () const
	Returns the underlying data.

Static Public Member Functions
static std::shared_ptr< NodeObject >	createObject (NodeObjectType type, Blob &&data, uint256 const &hash)
	Create an object from fields.

Static Public Attributes
static constexpr std::size_t	keyBytes = 32

Static Private Member Functions
static auto &	getCounter () noexcept

Private Attributes
NodeObjectType const	mType
uint256 const	mHash
Blob const	mData

Detailed Description

A simple object that the Ledger uses to store entries.

NodeObjects are comprised of a type, a hash, and a blob. They can be uniquely identified by the hash, which is a half-SHA512 of the blob. The blob is a variable length block of serialized data. The type identifies what the blob contains.

Note

No checking is performed to make sure the hash matches the data.

See also

SHAMap

Definition at line 49 of file NodeObject.h.

Constructor & Destructor Documentation

NodeObject()

ripple::NodeObject::NodeObject	(	NodeObjectType	type,
		Blob &&	data,
		uint256 const &	hash,
		PrivateAccess
	)

Definition at line 28 of file NodeObject.cpp.

Member Function Documentation

createObject()

std::shared_ptr< NodeObject > ripple::NodeObject::createObject ( NodeObjectType  type, Blob &&  data, uint256 const &  hash  )

static

Create an object from fields.

The caller's variable is modified during this call. The underlying storage for the Blob is taken over by the NodeObject.

Parameters

type	The type of object.
ledgerIndex	The ledger in which this object appears.
data	A buffer containing the payload. The caller's variable is overwritten.
hash	The 256-bit hash of the payload data.

Definition at line 38 of file NodeObject.cpp.

getType()

NodeObjectType ripple::NodeObject::getType

(

)

const

Returns the type of this object.

Definition at line 45 of file NodeObject.cpp.

getHash()

uint256 const & ripple::NodeObject::getHash

(

)

const

Returns the hash of the data.

Definition at line 51 of file NodeObject.cpp.

getData()

Blob const & ripple::NodeObject::getData

(

)

const

Returns the underlying data.

Definition at line 57 of file NodeObject.cpp.

getCounter()

static auto & ripple::CountedObject< NodeObject >::getCounter ( )

staticprivatenoexceptinherited

Definition at line 129 of file CountedObject.h.

Member Data Documentation

keyBytes

constexpr std::size_t ripple::NodeObject::keyBytes = 32

staticconstexpr

Definition at line 52 of file NodeObject.h.

mType

NodeObjectType const ripple::NodeObject::mType

private

Definition at line 98 of file NodeObject.h.

mHash

uint256 const ripple::NodeObject::mHash

private

Definition at line 99 of file NodeObject.h.

mData

Blob const ripple::NodeObject::mData

private

Definition at line 100 of file NodeObject.h.
