Writable ledger view that accumulates state and tx changes. More...

#include <OpenView.h>

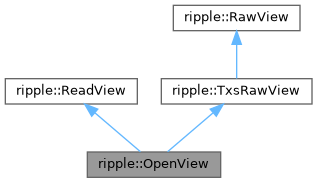

Inheritance diagram for ripple::OpenView:

[legend]

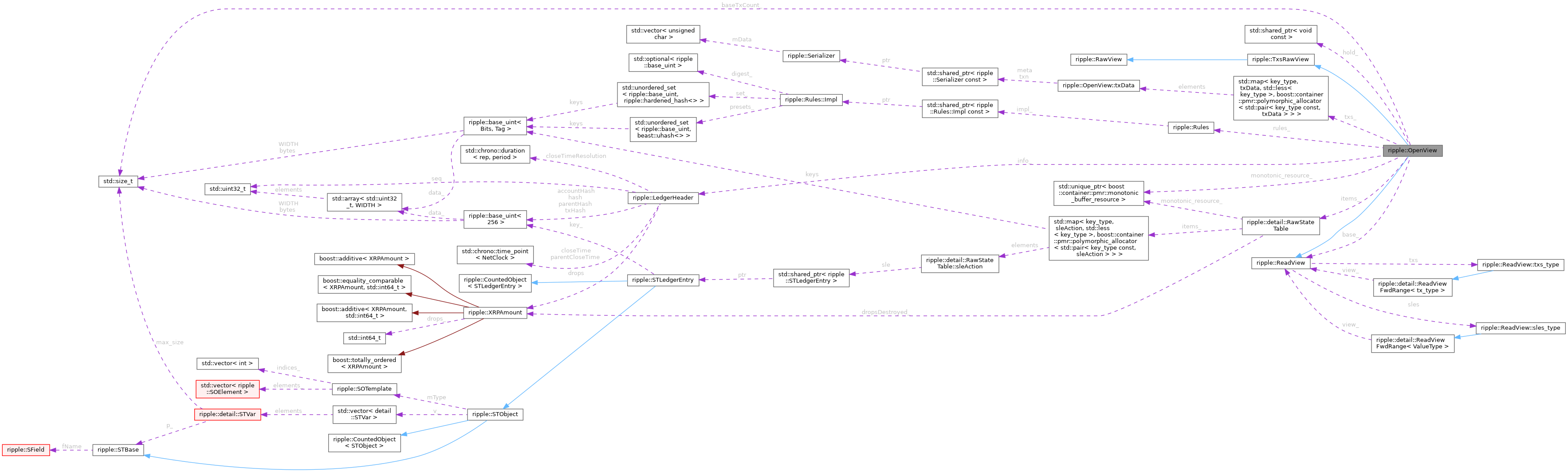

Collaboration diagram for ripple::OpenView:

[legend]

Classes
struct	txData

class	txs_iter_impl

Public Types
using	tx_type = std::pair< std::shared_ptr< STTx const >, std::shared_ptr< STObject const > >

using	key_type = uint256

using	mapped_type = std::shared_ptr< SLE const >

Public Member Functions
	OpenView ()=delete

OpenView &	operator= (OpenView &&)=delete

OpenView &	operator= (OpenView const &)=delete

	OpenView (OpenView &&)=default

	OpenView (OpenView const &)
	Construct a shallow copy.

	OpenView (open_ledger_t, ReadView const *base, Rules const &rules, std::shared_ptr< void const > hold=nullptr)
	Construct an open ledger view.

	OpenView (open_ledger_t, Rules const &rules, std::shared_ptr< ReadView const > const &base)

	OpenView (batch_view_t, OpenView &base)

	OpenView (ReadView const *base, std::shared_ptr< void const > hold=nullptr)
	Construct a new last closed ledger.

bool	open () const override
	Returns true if this reflects an open ledger.

std::size_t	txCount () const
	Return the number of tx inserted since creation.

void	apply (TxsRawView &to) const
	Apply changes.

LedgerInfo const &	info () const override
	Returns information about the ledger.

Fees const &	fees () const override
	Returns the fees for the base ledger.

Rules const &	rules () const override
	Returns the tx processing rules.

bool	exists (Keylet const &k) const override
	Determine if a state item exists.

std::optional< key_type >	succ (key_type const &key, std::optional< key_type > const &last=std::nullopt) const override
	Return the key of the next state item.

std::shared_ptr< SLE const >	read (Keylet const &k) const override
	Return the state item associated with a key.

std::unique_ptr< sles_type::iter_base >	slesBegin () const override

std::unique_ptr< sles_type::iter_base >	slesEnd () const override

std::unique_ptr< sles_type::iter_base >	slesUpperBound (uint256 const &key) const override

std::unique_ptr< txs_type::iter_base >	txsBegin () const override

std::unique_ptr< txs_type::iter_base >	txsEnd () const override

bool	txExists (key_type const &key) const override
	Returns `true` if a tx exists in the tx map.

tx_type	txRead (key_type const &key) const override
	Read a transaction from the tx map.

void	rawErase (std::shared_ptr< SLE > const &sle) override
	Delete an existing state item.

void	rawInsert (std::shared_ptr< SLE > const &sle) override
	Unconditionally insert a state item.

void	rawReplace (std::shared_ptr< SLE > const &sle) override
	Unconditionally replace a state item.

void	rawDestroyXRP (XRPAmount const &fee) override
	Destroy XRP.

void	rawTxInsert (key_type const &key, std::shared_ptr< Serializer const > const &txn, std::shared_ptr< Serializer const > const &metaData) override
	Add a transaction to the tx map.

NetClock::time_point	parentCloseTime () const
	Returns the close time of the previous ledger.

LedgerIndex	seq () const
	Returns the sequence number of the base ledger.

virtual STAmount	balanceHook (AccountID const &account, AccountID const &issuer, STAmount const &amount) const

virtual std::uint32_t	ownerCountHook (AccountID const &account, std::uint32_t count) const

virtual std::unique_ptr< sles_type::iter_base >	slesUpperBound (key_type const &key) const =0

Public Attributes
sles_type	sles
	Iterable range of ledger state items.

txs_type	txs

Private Types
using	txs_map = std::map< key_type, txData, std::less< key_type >, boost::container::pmr::polymorphic_allocator< std::pair< key_type const, txData > > >

Private Attributes
std::unique_ptr< boost::container::pmr::monotonic_buffer_resource >	monotonic_resource_

txs_map	txs_

Rules	rules_

LedgerInfo	info_

ReadView const *	base_

detail::RawStateTable	items_

std::shared_ptr< void const >	hold_

std::size_t	baseTxCount_ = 0
	In batch mode, the number of transactions already executed.

bool	open_ = true

Static Private Attributes
static constexpr size_t	initialBufferSize = kilobytes(256)

Detailed Description

Writable ledger view that accumulates state and tx changes.

Note: Presented as ReadView to clients.

Definition at line 64 of file OpenView.h.

Member Typedef Documentation

◆ txs_map

using ripple::OpenView::txs_map = std::map< key_type, txData, std::less<key_type>, boost::container::pmr::polymorphic_allocator< std::pair<key_type const, txData> >>

private

Definition at line 91 of file OpenView.h.

◆ tx_type

using ripple::ReadView::tx_type = std::pair<std::shared_ptr<STTx const>, std::shared_ptr<STObject const> >

inherited

Definition at line 53 of file ReadView.h.

◆ key_type

using ripple::ReadView::key_type = uint256

inherited

Definition at line 56 of file ReadView.h.

◆ mapped_type

using ripple::ReadView::mapped_type = std::shared_ptr<SLE const>

inherited

Definition at line 58 of file ReadView.h.

Constructor & Destructor Documentation

◆ OpenView() [1/7]

ripple::OpenView::OpenView ( )

delete

◆ OpenView() [2/7]

ripple::OpenView::OpenView ( OpenView && )

default

◆ OpenView() [3/7]

ripple::OpenView::OpenView ( OpenView const & rhs )

Construct a shallow copy.

Effects:

Creates a new object with a copy of
the modification state table.

The objects managed by shared pointers are not duplicated but shared between instances. Since the SLEs are immutable, calls on the RawView interface cannot break invariants.

Definition at line 76 of file OpenView.cpp.

◆ OpenView() [4/7]

ripple::OpenView::OpenView	(	open_ledger_t	,
		ReadView const *	base,
		Rules const &	rules,
		std::shared_ptr< void const >	hold = `nullptr`
	)

Construct an open ledger view.

Effects:

The sequence number is set to the
sequence number of parent plus one.

The parentCloseTime is set to the
closeTime of parent.

If `hold` is not nullptr, retains
ownership of a copy of `hold` until
the MetaView is destroyed.

Calls to rules() will return the
rules provided on construction.

The tx list starts empty and will contain all newly inserted tx.

Definition at line 89 of file OpenView.cpp.

◆ OpenView() [5/7]

ripple::OpenView::OpenView	(	open_ledger_t	,
		Rules const &	rules,
		std::shared_ptr< ReadView const > const &	base
	)

Definition at line 163 of file OpenView.h.

◆ OpenView() [6/7]

ripple::OpenView::OpenView	(	batch_view_t	,
		OpenView &	base
	)

Definition at line 171 of file OpenView.h.

◆ OpenView() [7/7]

ripple::OpenView::OpenView	(	ReadView const *	base,
		std::shared_ptr< void const >	hold = `nullptr`
	)

Construct a new last closed ledger.

Effects:

The LedgerInfo is copied from the base.

The rules are inherited from the base.

The tx list starts empty and will contain all newly inserted tx.

Definition at line 109 of file OpenView.cpp.

Member Function Documentation

◆ operator=() [1/2]

OpenView & ripple::OpenView::operator= ( OpenView && )

delete

◆ operator=() [2/2]

OpenView & ripple::OpenView::operator= ( OpenView const & )

delete

◆ open()

bool ripple::OpenView::open ( ) const

overridevirtual

Returns true if this reflects an open ledger.

Implements ripple::ReadView.

Definition at line 191 of file OpenView.h.

◆ txCount()

std::size_t ripple::OpenView::txCount ( ) const

Return the number of tx inserted since creation.

This is used to set the "apply ordinal" when calculating transaction metadata.

Definition at line 122 of file OpenView.cpp.

◆ apply()

void ripple::OpenView::apply ( TxsRawView & to ) const

Apply changes.

Definition at line 128 of file OpenView.cpp.

◆ info()

LedgerInfo const & ripple::OpenView::info ( ) const

overridevirtual

Returns information about the ledger.

Implements ripple::ReadView.

Definition at line 138 of file OpenView.cpp.

◆ fees()

Fees const & ripple::OpenView::fees ( ) const

overridevirtual

Returns the fees for the base ledger.

Implements ripple::ReadView.

Definition at line 144 of file OpenView.cpp.

◆ rules()

Rules const & ripple::OpenView::rules ( ) const

overridevirtual

Returns the tx processing rules.

Implements ripple::ReadView.

Definition at line 150 of file OpenView.cpp.

◆ exists()

bool ripple::OpenView::exists ( Keylet const & k ) const

overridevirtual

Determine if a state item exists.

Note: This can be more efficient than calling read.

Returns: true if a SLE is associated with the specified key.

Implements ripple::ReadView.

Definition at line 156 of file OpenView.cpp.

◆ succ()

auto ripple::OpenView::succ	(	key_type const &	key,
		std::optional< key_type > const &	last = `std::nullopt`
	)		const

overridevirtual

Return the key of the next state item.

This returns the key of the first state item whose key is greater than the specified key. If no such key is present, std::nullopt is returned.

If last is engaged, returns std::nullopt when the key returned would be outside the open interval (key, last).

Implements ripple::ReadView.

Definition at line 162 of file OpenView.cpp.

◆ read()

std::shared_ptr< SLE const > ripple::OpenView::read ( Keylet const & k ) const

overridevirtual

Return the state item associated with a key.

Effects: If the key exists, gives the caller ownership of the non-modifiable corresponding SLE.

Note: While the returned SLE is const from the perspective of the caller, it can be changed by other callers through raw operations.

Returns: nullptr if the key is not present or if the type does not match.

Implements ripple::ReadView.

Definition at line 169 of file OpenView.cpp.

◆ slesBegin()

auto ripple::OpenView::slesBegin ( ) const

overridevirtual

Implements ripple::ReadView.

Definition at line 175 of file OpenView.cpp.

◆ slesEnd()

auto ripple::OpenView::slesEnd ( ) const

overridevirtual

Implements ripple::ReadView.

Definition at line 181 of file OpenView.cpp.

◆ slesUpperBound() [1/2]

auto ripple::OpenView::slesUpperBound ( uint256 const & key ) const

override

Definition at line 187 of file OpenView.cpp.

◆ txsBegin()

auto ripple::OpenView::txsBegin ( ) const

overridevirtual

Implements ripple::ReadView.

Definition at line 194 of file OpenView.cpp.

◆ txsEnd()

auto ripple::OpenView::txsEnd ( ) const

overridevirtual

Implements ripple::ReadView.

Definition at line 200 of file OpenView.cpp.

◆ txExists()

bool ripple::OpenView::txExists ( key_type const & key ) const

overridevirtual

Returns true if a tx exists in the tx map.

A tx exists in the map if it is part of the base ledger, or if it is a newly inserted tx.

Implements ripple::ReadView.

Definition at line 206 of file OpenView.cpp.

◆ txRead()

auto ripple::OpenView::txRead ( key_type const & key ) const

overridevirtual

Read a transaction from the tx map.

If the view represents an open ledger, the metadata object will be empty.

Returns: A pair of nullptr if the key is not found in the tx map.

Implements ripple::ReadView.

Definition at line 212 of file OpenView.cpp.

◆ rawErase()

void ripple::OpenView::rawErase ( std::shared_ptr< SLE > const & sle )

overridevirtual

Delete an existing state item.

The SLE is provided so the implementation can calculate metadata.

Implements ripple::RawView.

Definition at line 231 of file OpenView.cpp.

◆ rawInsert()

void ripple::OpenView::rawInsert ( std::shared_ptr< SLE > const & sle )

overridevirtual

Unconditionally insert a state item.

Requirements: The key must not already exist.

Effects:

The key is associated with the SLE.

Note: The key is taken from the SLE

Implements ripple::RawView.

Definition at line 237 of file OpenView.cpp.

◆ rawReplace()

void ripple::OpenView::rawReplace ( std::shared_ptr< SLE > const & sle )

overridevirtual

Unconditionally replace a state item.

Requirements:

The key must exist.

Effects:

The key is associated with the SLE.

Note: The key is taken from the SLE

Implements ripple::RawView.

Definition at line 243 of file OpenView.cpp.

◆ rawDestroyXRP()

void ripple::OpenView::rawDestroyXRP ( XRPAmount const & fee )

overridevirtual

Destroy XRP.

This is used to pay for transaction fees.

Implements ripple::RawView.

Definition at line 249 of file OpenView.cpp.

◆ rawTxInsert()

void ripple::OpenView::rawTxInsert	(	key_type const &	key,
		std::shared_ptr< Serializer const > const &	txn,
		std::shared_ptr< Serializer const > const &	metaData
	)

overridevirtual

Add a transaction to the tx map.

Closed ledgers must have metadata, while open ledgers omit metadata.

Implements ripple::TxsRawView.

Definition at line 259 of file OpenView.cpp.

◆ parentCloseTime()

NetClock::time_point ripple::ReadView::parentCloseTime ( ) const

inherited

Returns the close time of the previous ledger.

Definition at line 111 of file ReadView.h.

◆ seq()

LedgerIndex ripple::ReadView::seq ( ) const

inherited

Returns the sequence number of the base ledger.

Definition at line 118 of file ReadView.h.

◆ balanceHook()

virtual STAmount ripple::ReadView::balanceHook	(	AccountID const &	account,
		AccountID const &	issuer,
		STAmount const &	amount
	)		const

virtualinherited

Reimplemented in ripple::PaymentSandbox.

Definition at line 178 of file ReadView.h.

◆ ownerCountHook()

virtual std::uint32_t ripple::ReadView::ownerCountHook	(	AccountID const &	account,
		std::uint32_t	count
	)		const

virtualinherited

Reimplemented in ripple::PaymentSandbox.

Definition at line 192 of file ReadView.h.

◆ slesUpperBound() [2/2]

virtual std::unique_ptr< sles_type::iter_base > ripple::ReadView::slesUpperBound ( key_type const & key ) const

pure virtualinherited

Member Data Documentation

◆ initialBufferSize

constexpr size_t ripple::OpenView::initialBufferSize = kilobytes(256)

staticconstexprprivate

Definition at line 70 of file OpenView.h.

◆ monotonic_resource_

std::unique_ptr<boost::container::pmr::monotonic_buffer_resource> ripple::OpenView::monotonic_resource_

private

Definition at line 101 of file OpenView.h.

◆ txs_

txs_map ripple::OpenView::txs_

private

Definition at line 102 of file OpenView.h.

◆ rules_

Rules ripple::OpenView::rules_

private

Definition at line 103 of file OpenView.h.

◆ info_

LedgerInfo ripple::OpenView::info_

private

Definition at line 104 of file OpenView.h.

◆ base_

ReadView const* ripple::OpenView::base_

private

Definition at line 105 of file OpenView.h.

◆ items_

detail::RawStateTable ripple::OpenView::items_

private

Definition at line 106 of file OpenView.h.

◆ hold_

std::shared_ptr<void const> ripple::OpenView::hold_

private

Definition at line 107 of file OpenView.h.

◆ baseTxCount_

std::size_t ripple::OpenView::baseTxCount_ = 0

private

In batch mode, the number of transactions already executed.

Definition at line 110 of file OpenView.h.

◆ open_

bool ripple::OpenView::open_ = true

private

Definition at line 112 of file OpenView.h.

◆ sles

sles_type ripple::ReadView::sles

inherited

Iterable range of ledger state items.

Note: Visiting each state entry in the ledger can become quite expensive as the ledger grows.

Definition at line 245 of file ReadView.h.

◆ txs

txs_type ripple::ReadView::txs

inherited

Definition at line 248 of file ReadView.h.

Classes

Public Types

Public Member Functions

Public Attributes

Private Types

Private Attributes

Static Private Attributes

Detailed Description

Member Typedef Documentation

◆ txs_map

◆ tx_type

◆ key_type

◆ mapped_type

Constructor & Destructor Documentation

◆ OpenView() [1/7]

◆ OpenView() [2/7]

◆ OpenView() [3/7]

◆ OpenView() [4/7]

◆ OpenView() [5/7]

◆ OpenView() [6/7]

◆ OpenView() [7/7]

Member Function Documentation

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ open()

◆ txCount()

◆ apply()

◆ info()

◆ fees()

◆ rules()

◆ exists()

◆ succ()

◆ read()

◆ slesBegin()

◆ slesEnd()

◆ slesUpperBound() [1/2]

◆ txsBegin()

◆ txsEnd()

◆ txExists()

◆ txRead()

◆ rawErase()

◆ rawInsert()

◆ rawReplace()

◆ rawDestroyXRP()

◆ rawTxInsert()

◆ parentCloseTime()

◆ seq()

◆ balanceHook()

◆ ownerCountHook()

◆ slesUpperBound() [2/2]

Member Data Documentation

◆ initialBufferSize

◆ monotonic_resource_

◆ txs_

◆ rules_

◆ info_

◆ base_

◆ items_

◆ hold_

◆ baseTxCount_

◆ open_

◆ sles

◆ txs
