Stores IP addresses useful for gaining initial connections. More...

#include <Bootcache.h>

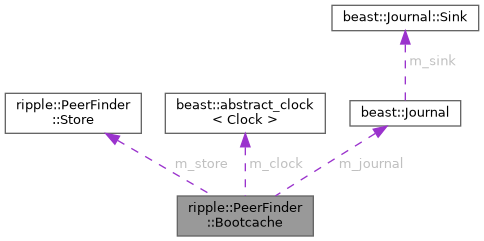

Collaboration diagram for ripple::PeerFinder::Bootcache:

[legend]

Classes
class	Entry

struct	Transform

Public Types
using	iterator = boost::transform_iterator< Transform, map_type::right_map::const_iterator >

using	const_iterator = iterator

Public Member Functions
	Bootcache (Store &store, clock_type &clock, beast::Journal journal)

	~Bootcache ()

bool	empty () const
	Returns `true` if the cache is empty.

map_type::size_type	size () const
	Returns the number of entries in the cache.

void	load ()
	Load the persisted data from the Store into the container.

bool	insert (beast::IP::Endpoint const &endpoint)
	Add a newly-learned address to the cache.

bool	insertStatic (beast::IP::Endpoint const &endpoint)
	Add a staticallyconfigured address to the cache.

void	on_success (beast::IP::Endpoint const &endpoint)
	Called when an outbound connection handshake completes.

void	on_failure (beast::IP::Endpoint const &endpoint)
	Called when an outbound connection attempt fails to handshake.

void	periodicActivity ()
	Stores the cache in the persistent database on a timer.

void	onWrite (beast::PropertyStream::Map &map)
	Write the cache state to the property stream.


const_iterator	begin () const
	IP::Endpoint iterators that traverse in decreasing valence.

const_iterator	cbegin () const

const_iterator	end () const

const_iterator	cend () const

void	clear ()

Static Public Attributes
static constexpr int	staticValence = 32

Private Types
using	left_t = boost::bimaps::unordered_set_of< beast::IP::Endpoint, boost::hash< beast::IP::Endpoint >, ripple::equal_to< beast::IP::Endpoint > >

using	right_t = boost::bimaps::multiset_of< Entry, ripple::less< Entry > >

using	map_type = boost::bimap< left_t, right_t >

using	value_type = map_type::value_type

Private Member Functions
void	prune ()

void	update ()

void	checkUpdate ()

void	flagForUpdate ()

Private Attributes
map_type	m_map

Store &	m_store

clock_type &	m_clock

beast::Journal	m_journal

clock_type::time_point	m_whenUpdate

bool	m_needsUpdate

Detailed Description

Stores IP addresses useful for gaining initial connections.

This is one of the caches that is consulted when additional outgoing connections are needed. Along with the address, each entry has this additional metadata:

Valence A signed integer which represents the number of successful consecutive connection attempts when positive, and the number of failed consecutive connection attempts when negative.

When choosing addresses from the boot cache for the purpose of establishing outgoing connections, addresses are ranked in decreasing order of high uptime, with valence as the tie breaker.

Definition at line 34 of file Bootcache.h.

Member Typedef Documentation

◆ left_t

using ripple::PeerFinder::Bootcache::left_t = boost::bimaps::unordered_set_of< beast::IP::Endpoint, boost::hash<beast::IP::Endpoint>, ripple::equal_to<beast::IP::Endpoint> >

private

Definition at line 68 of file Bootcache.h.

◆ right_t

using ripple::PeerFinder::Bootcache::right_t = boost::bimaps::multiset_of<Entry, ripple::less<Entry> >

private

Definition at line 72 of file Bootcache.h.

◆ map_type

using ripple::PeerFinder::Bootcache::map_type = boost::bimap<left_t, right_t>

private

Definition at line 73 of file Bootcache.h.

◆ value_type

using ripple::PeerFinder::Bootcache::value_type = map_type::value_type

private

Definition at line 74 of file Bootcache.h.

◆ iterator

using ripple::PeerFinder::Bootcache::iterator = boost:: transform_iterator<Transform, map_type::right_map::const_iterator>

Definition at line 108 of file Bootcache.h.

◆ const_iterator

using ripple::PeerFinder::Bootcache::const_iterator = iterator

Definition at line 111 of file Bootcache.h.

Constructor & Destructor Documentation

◆ Bootcache()

ripple::PeerFinder::Bootcache::Bootcache	(	Store &	store,
		clock_type &	clock,
		beast::Journal	journal
	)

Definition at line 10 of file Bootcache.cpp.

◆ ~Bootcache()

ripple::PeerFinder::Bootcache::~Bootcache ( )

Definition at line 19 of file Bootcache.cpp.

Member Function Documentation

◆ empty()

bool ripple::PeerFinder::Bootcache::empty ( ) const

Returns true if the cache is empty.

Definition at line 25 of file Bootcache.cpp.

◆ size()

Bootcache::map_type::size_type ripple::PeerFinder::Bootcache::size ( ) const

Returns the number of entries in the cache.

Definition at line 31 of file Bootcache.cpp.

◆ begin()

Bootcache::const_iterator ripple::PeerFinder::Bootcache::begin ( ) const

IP::Endpoint iterators that traverse in decreasing valence.

Definition at line 37 of file Bootcache.cpp.

◆ cbegin()

Bootcache::const_iterator ripple::PeerFinder::Bootcache::cbegin ( ) const

Definition at line 43 of file Bootcache.cpp.

◆ end()

Bootcache::const_iterator ripple::PeerFinder::Bootcache::end ( ) const

Definition at line 49 of file Bootcache.cpp.

◆ cend()

Bootcache::const_iterator ripple::PeerFinder::Bootcache::cend ( ) const

Definition at line 55 of file Bootcache.cpp.

◆ clear()

void ripple::PeerFinder::Bootcache::clear ( )

Definition at line 61 of file Bootcache.cpp.

◆ load()

void ripple::PeerFinder::Bootcache::load ( )

Load the persisted data from the Store into the container.

Definition at line 70 of file Bootcache.cpp.

◆ insert()

bool ripple::PeerFinder::Bootcache::insert ( beast::IP::Endpoint const & endpoint )

Add a newly-learned address to the cache.

Definition at line 93 of file Bootcache.cpp.

◆ insertStatic()

bool ripple::PeerFinder::Bootcache::insertStatic ( beast::IP::Endpoint const & endpoint )

Add a staticallyconfigured address to the cache.

Definition at line 107 of file Bootcache.cpp.

◆ on_success()

void ripple::PeerFinder::Bootcache::on_success ( beast::IP::Endpoint const & endpoint )

Called when an outbound connection handshake completes.

Definition at line 129 of file Bootcache.cpp.

◆ on_failure()

void ripple::PeerFinder::Bootcache::on_failure ( beast::IP::Endpoint const & endpoint )

Called when an outbound connection attempt fails to handshake.

Definition at line 157 of file Bootcache.cpp.

◆ periodicActivity()

void ripple::PeerFinder::Bootcache::periodicActivity ( )

Stores the cache in the persistent database on a timer.

Definition at line 185 of file Bootcache.cpp.

◆ onWrite()

void ripple::PeerFinder::Bootcache::onWrite ( beast::PropertyStream::Map & map )

Write the cache state to the property stream.

Definition at line 193 of file Bootcache.cpp.

◆ prune()

void ripple::PeerFinder::Bootcache::prune ( )

private

Definition at line 206 of file Bootcache.cpp.

◆ update()

void ripple::PeerFinder::Bootcache::update ( )

private

Definition at line 237 of file Bootcache.cpp.

◆ checkUpdate()

void ripple::PeerFinder::Bootcache::checkUpdate ( )

private

Definition at line 258 of file Bootcache.cpp.

◆ flagForUpdate()

void ripple::PeerFinder::Bootcache::flagForUpdate ( )

private

Definition at line 266 of file Bootcache.cpp.

Member Data Documentation

◆ m_map

map_type ripple::PeerFinder::Bootcache::m_map

private

Definition at line 93 of file Bootcache.h.

◆ m_store

Store& ripple::PeerFinder::Bootcache::m_store

private

Definition at line 95 of file Bootcache.h.

◆ m_clock

clock_type& ripple::PeerFinder::Bootcache::m_clock

private

Definition at line 96 of file Bootcache.h.

◆ m_journal

beast::Journal ripple::PeerFinder::Bootcache::m_journal

private

Definition at line 97 of file Bootcache.h.

◆ m_whenUpdate

clock_type::time_point ripple::PeerFinder::Bootcache::m_whenUpdate

private

Definition at line 100 of file Bootcache.h.

◆ m_needsUpdate

bool ripple::PeerFinder::Bootcache::m_needsUpdate

private

Definition at line 103 of file Bootcache.h.

◆ staticValence

constexpr int ripple::PeerFinder::Bootcache::staticValence = 32

staticconstexpr

Definition at line 106 of file Bootcache.h.
