ripple::PeerFinder::Livecache< Allocator > Class Template Reference

The Livecache holds the short-lived relayed Endpoint messages. More...

#include <Livecache.h>

Inheritance diagram for ripple::PeerFinder::Livecache< Allocator >:

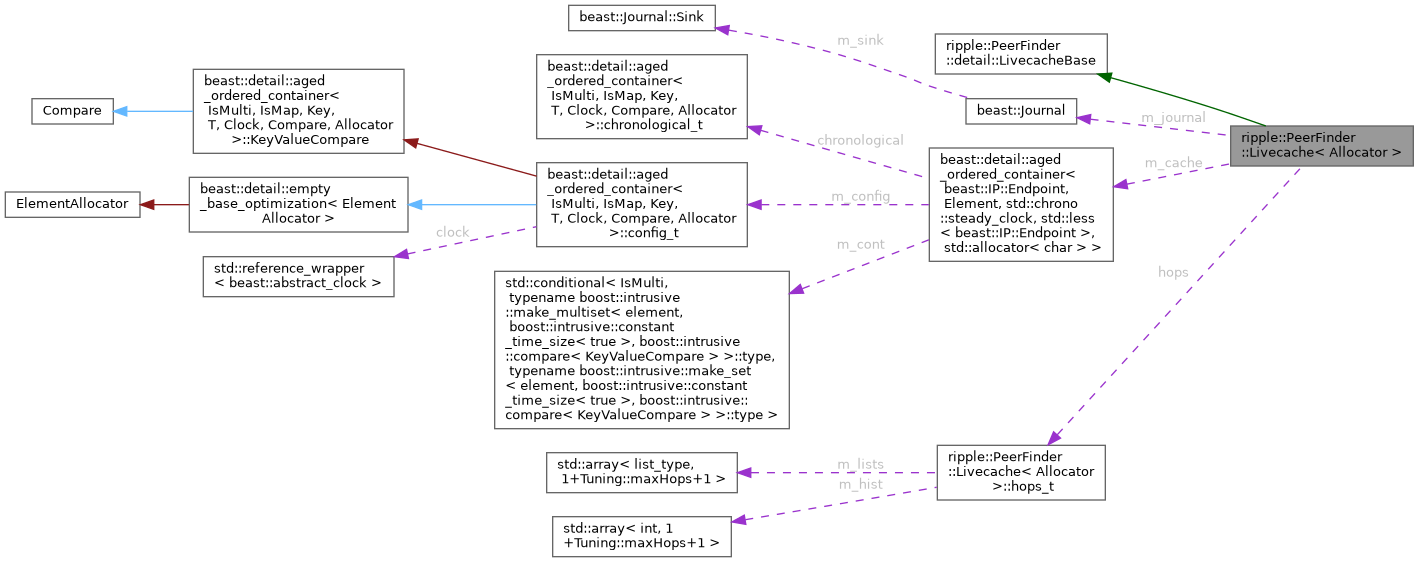

Collaboration diagram for ripple::PeerFinder::Livecache< Allocator >:

Classes
class	hops_t

Public Types
using	allocator_type = Allocator

Public Member Functions
	Livecache (clock_type &clock, beast::Journal journal, Allocator alloc=Allocator())
	Create the cache.
bool	empty () const
	Returns true if the cache is empty.
cache_type::size_type	size () const
	Returns the number of entries in the cache.
void	expire ()
	Erase entries whose time has expired.
void	insert (Endpoint const &ep)
	Creates or updates an existing Element based on a new message.
void	onWrite (beast::PropertyStream::Map &map)
	Output statistics.

Public Attributes
class ripple::PeerFinder::Livecache::hops_t	hops

Protected Types
using	list_type = boost::intrusive::make_list< Element, boost::intrusive::constant_time_size< false > >::type

Static Protected Member Functions
template<bool IsConst>
static Hop< IsConst >	make_hop (typename beast::maybe_const< IsConst, list_type >::type &list)

Private Types
using	cache_type = beast::aged_map< beast::IP::Endpoint, Element, std::chrono::steady_clock, std::less< beast::IP::Endpoint >, Allocator >

Private Attributes
beast::Journal	m_journal
cache_type	m_cache

Detailed Description

template<class Allocator = std::allocator<char>>
class ripple::PeerFinder::Livecache< Allocator >

The Livecache holds the short-lived relayed Endpoint messages.

Since peers only advertise themselves when they have open slots, we want these messags to expire rather quickly after the peer becomes full.

Addresses added to the cache are not connection-tested to see if they are connectible (with one small exception regarding neighbors). Therefore, these addresses are not suitable for persisting across launches or for bootstrapping, because they do not have verifiable and locally observed uptime and connectibility information.

Definition at line 178 of file Livecache.h.

Member Typedef Documentation

cache_type

template<class Allocator = std::allocator<char>>

using ripple::PeerFinder::Livecache< Allocator >::cache_type = beast::aged_map< beast::IP::Endpoint, Element, std::chrono::steady_clock, std::less<beast::IP::Endpoint>, Allocator>

private

Definition at line 181 of file Livecache.h.

allocator_type

template<class Allocator = std::allocator<char>>

using ripple::PeerFinder::Livecache< Allocator >::allocator_type = Allocator

Definition at line 192 of file Livecache.h.

list_type

using ripple::PeerFinder::detail::LivecacheBase::list_type = boost::intrusive:: make_list<Element, boost::intrusive::constant_time_size<false> >::type

protectedinherited

Definition at line 41 of file Livecache.h.

Constructor & Destructor Documentation

Livecache()

template<class Allocator >

ripple::PeerFinder::Livecache< Allocator >::Livecache	(	clock_type &	clock,
		beast::Journal	journal,
		Allocator	alloc = Allocator()
	)

Create the cache.

Definition at line 378 of file Livecache.h.

Member Function Documentation

empty()

template<class Allocator = std::allocator<char>>

bool ripple::PeerFinder::Livecache< Allocator >::empty

(

)

const

Returns true if the cache is empty.

Definition at line 350 of file Livecache.h.

size()

template<class Allocator = std::allocator<char>>

cache_type::size_type ripple::PeerFinder::Livecache< Allocator >::size

(

)

const

Returns the number of entries in the cache.

Definition at line 357 of file Livecache.h.

expire()

template<class Allocator >

void ripple::PeerFinder::Livecache< Allocator >::expire

(

)

Erase entries whose time has expired.

Definition at line 388 of file Livecache.h.

insert()

template<class Allocator >

void ripple::PeerFinder::Livecache< Allocator >::insert

(

Endpoint const &

ep

)

Creates or updates an existing Element based on a new message.

Definition at line 410 of file Livecache.h.

onWrite()

template<class Allocator >

void ripple::PeerFinder::Livecache< Allocator >::onWrite

(

beast::PropertyStream::Map &

map

)

Output statistics.

Definition at line 457 of file Livecache.h.

make_hop()

template<bool IsConst>

static Hop< IsConst > ripple::PeerFinder::detail::LivecacheBase::make_hop ( typename beast::maybe_const< IsConst, list_type >::type &  list )

staticprotectedinherited

Definition at line 155 of file Livecache.h.

Member Data Documentation

m_journal

template<class Allocator = std::allocator<char>>

beast::Journal ripple::PeerFinder::Livecache< Allocator >::m_journal

private

Definition at line 188 of file Livecache.h.

m_cache

template<class Allocator = std::allocator<char>>

cache_type ripple::PeerFinder::Livecache< Allocator >::m_cache

private

Definition at line 189 of file Livecache.h.

hops

template<class Allocator = std::allocator<char>>

class ripple::PeerFinder::Livecache::hops_t ripple::PeerFinder::Livecache< Allocator >::hops
