ripple::RCLCxPeerPos Class Reference

A peer's signed, proposed position for use in RCLConsensus. More...

#include <RCLCxPeerPos.h>

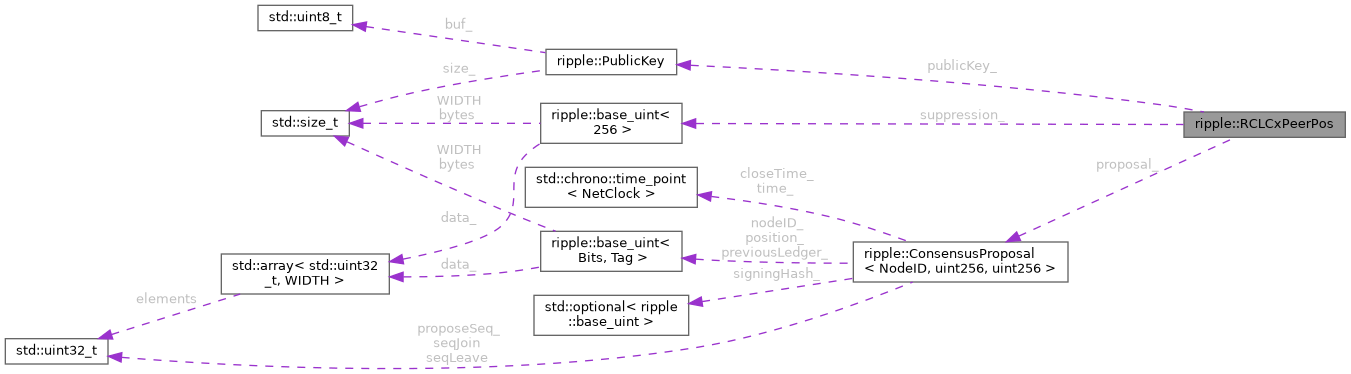

Collaboration diagram for ripple::RCLCxPeerPos:

Public Types
using	Proposal = ConsensusProposal< NodeID, uint256, uint256 >

Public Member Functions
	RCLCxPeerPos (PublicKey const &publicKey, Slice const &signature, uint256 const &suppress, Proposal &&proposal)
	Constructor.
bool	checkSign () const
	Verify the signing hash of the proposal.
Slice	signature () const
	Signature of the proposal (not necessarily verified)
PublicKey const &	publicKey () const
	Public key of peer that sent the proposal.
uint256 const &	suppressionID () const
	Unique id used by hash router to suppress duplicates.
Proposal const &	proposal () const
Json::Value	getJson () const
	JSON representation of proposal.
std::string	render () const

Private Member Functions
template<class Hasher >
void	hash_append (Hasher &h) const

Private Attributes
PublicKey	publicKey_
uint256	suppression_
Proposal	proposal_
boost::container::static_vector< std::uint8_t, 72 >	signature_

Detailed Description

A peer's signed, proposed position for use in RCLConsensus.

Carries a ConsensusProposal signed by a peer. Provides value semantics but manages shared storage of the peer position internally.

Definition at line 43 of file RCLCxPeerPos.h.

Member Typedef Documentation

Proposal

using ripple::RCLCxPeerPos::Proposal = ConsensusProposal<NodeID, uint256, uint256>

Definition at line 47 of file RCLCxPeerPos.h.

Constructor & Destructor Documentation

RCLCxPeerPos()

ripple::RCLCxPeerPos::RCLCxPeerPos	(	PublicKey const &	publicKey,
		Slice const &	signature,
		uint256 const &	suppress,
		Proposal &&	proposal
	)

Constructor.

Constructs a signed peer position.

Parameters

publicKey	Public key of the peer
signature	Signature provided with the proposal
suppress	Unique id used for hash router suppression
proposal	The consensus proposal

Definition at line 28 of file RCLCxPeerPos.cpp.

Member Function Documentation

checkSign()

bool ripple::RCLCxPeerPos::checkSign

(

)

const

Verify the signing hash of the proposal.

Definition at line 48 of file RCLCxPeerPos.cpp.

signature()

Slice ripple::RCLCxPeerPos::signature

(

)

const

Signature of the proposal (not necessarily verified)

Definition at line 71 of file RCLCxPeerPos.h.

publicKey()

PublicKey const & ripple::RCLCxPeerPos::publicKey

(

)

const

Public key of peer that sent the proposal.

Definition at line 78 of file RCLCxPeerPos.h.

suppressionID()

uint256 const & ripple::RCLCxPeerPos::suppressionID

(

)

const

Unique id used by hash router to suppress duplicates.

Definition at line 85 of file RCLCxPeerPos.h.

proposal()

Proposal const & ripple::RCLCxPeerPos::proposal

(

)

const

Definition at line 91 of file RCLCxPeerPos.h.

getJson()

Json::Value ripple::RCLCxPeerPos::getJson

(

)

const

JSON representation of proposal.

Definition at line 55 of file RCLCxPeerPos.cpp.

render()

std::string ripple::RCLCxPeerPos::render

(

)

const

Definition at line 101 of file RCLCxPeerPos.h.

hash_append()

template<class Hasher >

void ripple::RCLCxPeerPos::hash_append ( Hasher &  h ) const

private

Definition at line 114 of file RCLCxPeerPos.h.

Member Data Documentation

publicKey_

PublicKey ripple::RCLCxPeerPos::publicKey_

private

Definition at line 107 of file RCLCxPeerPos.h.

suppression_

uint256 ripple::RCLCxPeerPos::suppression_

private

Definition at line 108 of file RCLCxPeerPos.h.

proposal_

Proposal ripple::RCLCxPeerPos::proposal_

private

Definition at line 109 of file RCLCxPeerPos.h.

signature_

boost::container::static_vector<std::uint8_t, 72> ripple::RCLCxPeerPos::signature_

private

Definition at line 110 of file RCLCxPeerPos.h.
