ripple::Resource::Logic Class Reference

#include <Logic.h>

Inheritance diagram for ripple::Resource::Logic:

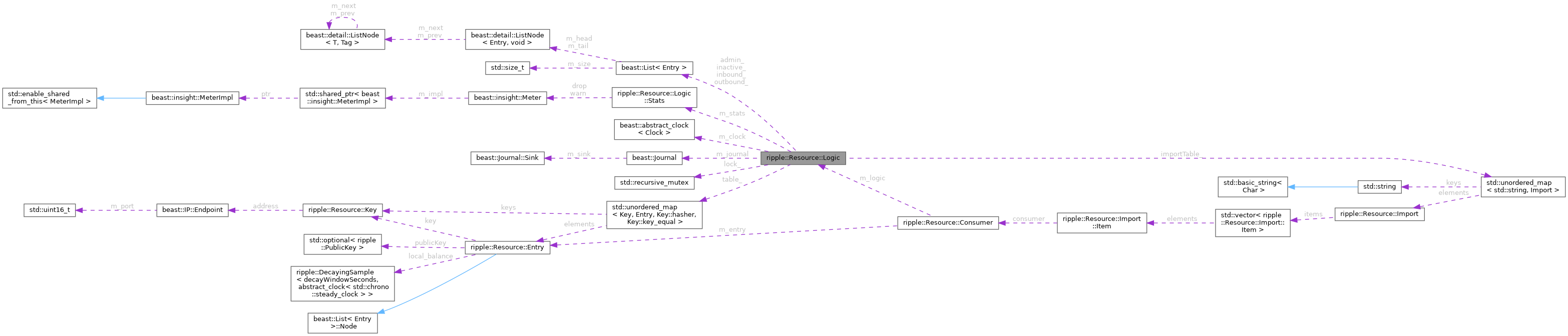

Collaboration diagram for ripple::Resource::Logic:

Classes
struct	Stats

Public Member Functions
	Logic (beast::insight::Collector::ptr const &collector, clock_type &clock, beast::Journal journal)
	~Logic ()
Consumer	newInboundEndpoint (beast::IP::Endpoint const &address)
Consumer	newOutboundEndpoint (beast::IP::Endpoint const &address)
Consumer	newUnlimitedEndpoint (beast::IP::Endpoint const &address)
	Create endpoint that should not have resource limits applied.
Json::Value	getJson ()
Json::Value	getJson (int threshold)
	Returns a Json::objectValue.
Gossip	exportConsumers ()
void	importConsumers (std::string const &origin, Gossip const &gossip)
void	periodicActivity ()
void	erase (Table::iterator iter)
void	acquire (Entry &entry)
void	release (Entry &entry)
Disposition	charge (Entry &entry, Charge const &fee, std::string context={})
bool	warn (Entry &entry)
bool	disconnect (Entry &entry)
int	balance (Entry &entry)
void	writeList (clock_type::time_point const now, beast::PropertyStream::Set &items, EntryIntrusiveList &list)
void	onWrite (beast::PropertyStream::Map &map)

Static Public Member Functions
static Disposition	disposition (int balance)

Private Types
using	clock_type = Stopwatch
using	Imports = hash_map< std::string, Import >
using	Table = hash_map< Key, Entry, Key::hasher, Key::key_equal >
using	EntryIntrusiveList = beast::List< Entry >

Private Attributes
Stats	m_stats
Stopwatch &	m_clock
beast::Journal	m_journal
std::recursive_mutex	lock_
Table	table_
EntryIntrusiveList	inbound_
EntryIntrusiveList	outbound_
EntryIntrusiveList	admin_
EntryIntrusiveList	inactive_
Imports	importTable_

Detailed Description

Definition at line 22 of file include/xrpl/resource/detail/Logic.h.

Member Typedef Documentation

clock_type

using ripple::Resource::Logic::clock_type = Stopwatch

private

Definition at line 25 of file include/xrpl/resource/detail/Logic.h.

Imports

using ripple::Resource::Logic::Imports = hash_map<std::string, Import>

private

Definition at line 26 of file include/xrpl/resource/detail/Logic.h.

Table

using ripple::Resource::Logic::Table = hash_map<Key, Entry, Key::hasher, Key::key_equal>

private

Definition at line 27 of file include/xrpl/resource/detail/Logic.h.

EntryIntrusiveList

using ripple::Resource::Logic::EntryIntrusiveList = beast::List<Entry>

private

Definition at line 28 of file include/xrpl/resource/detail/Logic.h.

Constructor & Destructor Documentation

Logic()

ripple::Resource::Logic::Logic	(	beast::insight::Collector::ptr const &	collector,
		clock_type &	clock,
		beast::Journal	journal
	)

Definition at line 72 of file include/xrpl/resource/detail/Logic.h.

~Logic()

ripple::Resource::Logic::~Logic

(

)

Definition at line 80 of file include/xrpl/resource/detail/Logic.h.

Member Function Documentation

newInboundEndpoint()

Consumer ripple::Resource::Logic::newInboundEndpoint

(

beast::IP::Endpoint const &

address

)

Definition at line 92 of file include/xrpl/resource/detail/Logic.h.

newOutboundEndpoint()

Consumer ripple::Resource::Logic::newOutboundEndpoint

(

beast::IP::Endpoint const &

address

)

Definition at line 122 of file include/xrpl/resource/detail/Logic.h.

newUnlimitedEndpoint()

Consumer ripple::Resource::Logic::newUnlimitedEndpoint

(

beast::IP::Endpoint const &

address

)

Create endpoint that should not have resource limits applied.

Other restrictions, such as permission to perform certain RPC calls, may be enabled.

Definition at line 155 of file include/xrpl/resource/detail/Logic.h.

getJson() [1/2]

Json::Value ripple::Resource::Logic::getJson

(

)

Definition at line 183 of file include/xrpl/resource/detail/Logic.h.

getJson() [2/2]

Json::Value ripple::Resource::Logic::getJson

(

int

threshold

)

Returns a Json::objectValue.

Definition at line 190 of file include/xrpl/resource/detail/Logic.h.

exportConsumers()

Gossip ripple::Resource::Logic::exportConsumers

(

)

Definition at line 238 of file include/xrpl/resource/detail/Logic.h.

importConsumers()

void ripple::Resource::Logic::importConsumers	(	std::string const &	origin,
		Gossip const &	gossip
	)

Definition at line 264 of file include/xrpl/resource/detail/Logic.h.

periodicActivity()

void ripple::Resource::Logic::periodicActivity

(

)

Definition at line 324 of file include/xrpl/resource/detail/Logic.h.

disposition()

static Disposition ripple::Resource::Logic::disposition ( int  balance )

static

Definition at line 370 of file include/xrpl/resource/detail/Logic.h.

erase()

void ripple::Resource::Logic::erase

(

Table::iterator

iter

)

Definition at line 382 of file include/xrpl/resource/detail/Logic.h.

acquire()

void ripple::Resource::Logic::acquire

(

Entry &

entry

)

Definition at line 394 of file include/xrpl/resource/detail/Logic.h.

release()

void ripple::Resource::Logic::release

(

Entry &

entry

)

Definition at line 401 of file include/xrpl/resource/detail/Logic.h.

charge()

Disposition ripple::Resource::Logic::charge	(	Entry &	entry,
		Charge const &	fee,
		std::string	context = {}
	)

Definition at line 433 of file include/xrpl/resource/detail/Logic.h.

warn()

bool ripple::Resource::Logic::warn

(

Entry &

entry

)

Definition at line 465 of file include/xrpl/resource/detail/Logic.h.

disconnect()

bool ripple::Resource::Logic::disconnect

(

Entry &

entry

)

Definition at line 489 of file include/xrpl/resource/detail/Logic.h.

balance()

int ripple::Resource::Logic::balance

(

Entry &

entry

)

Definition at line 515 of file include/xrpl/resource/detail/Logic.h.

writeList()

void ripple::Resource::Logic::writeList	(	clock_type::time_point const	now,
		beast::PropertyStream::Set &	items,
		EntryIntrusiveList &	list
	)

Definition at line 524 of file include/xrpl/resource/detail/Logic.h.

onWrite()

void ripple::Resource::Logic::onWrite

(

beast::PropertyStream::Map &

map

)

Definition at line 542 of file include/xrpl/resource/detail/Logic.h.

Member Data Documentation

m_stats

Stats ripple::Resource::Logic::m_stats

private

Definition at line 42 of file include/xrpl/resource/detail/Logic.h.

m_clock

Stopwatch& ripple::Resource::Logic::m_clock

private

Definition at line 43 of file include/xrpl/resource/detail/Logic.h.

m_journal

beast::Journal ripple::Resource::Logic::m_journal

private

Definition at line 44 of file include/xrpl/resource/detail/Logic.h.

lock_

std::recursive_mutex ripple::Resource::Logic::lock_

private

Definition at line 46 of file include/xrpl/resource/detail/Logic.h.

table_

Table ripple::Resource::Logic::table_

private

Definition at line 49 of file include/xrpl/resource/detail/Logic.h.

inbound_

EntryIntrusiveList ripple::Resource::Logic::inbound_

private

Definition at line 56 of file include/xrpl/resource/detail/Logic.h.

outbound_

EntryIntrusiveList ripple::Resource::Logic::outbound_

private

Definition at line 59 of file include/xrpl/resource/detail/Logic.h.

admin_

EntryIntrusiveList ripple::Resource::Logic::admin_

private

Definition at line 62 of file include/xrpl/resource/detail/Logic.h.

inactive_

EntryIntrusiveList ripple::Resource::Logic::inactive_

private

Definition at line 65 of file include/xrpl/resource/detail/Logic.h.

importTable_

Imports ripple::Resource::Logic::importTable_

private

Definition at line 68 of file include/xrpl/resource/detail/Logic.h.
