#include <SHAMapLeafNode.h>

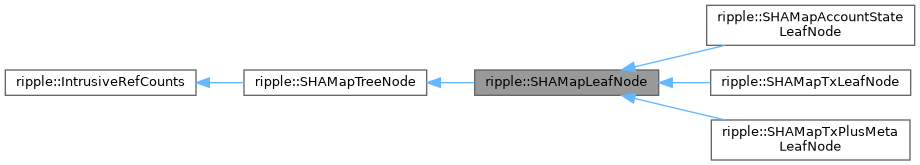

Inheritance diagram for ripple::SHAMapLeafNode:

[legend]

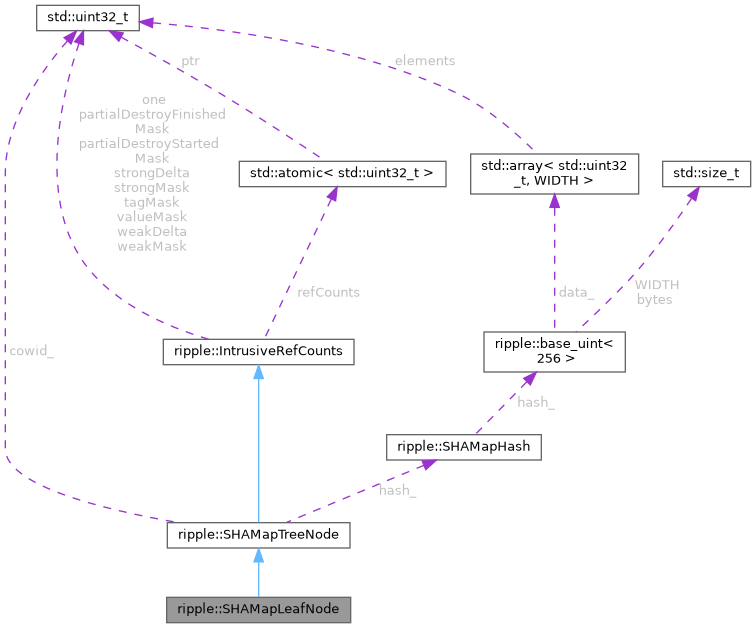

Collaboration diagram for ripple::SHAMapLeafNode:

[legend]

Public Member Functions
	SHAMapLeafNode (SHAMapLeafNode const &)=delete

SHAMapLeafNode &	operator= (SHAMapLeafNode const &)=delete

bool	isLeaf () const final override
	Determines if this is a leaf node.

bool	isInner () const final override
	Determines if this is an inner node.

void	invariants (bool is_root=false) const final override

boost::intrusive_ptr< SHAMapItem const > const &	peekItem () const

bool	setItem (boost::intrusive_ptr< SHAMapItem const > i)
	Set the item that this node points to and update the node's hash.

std::string	getString (SHAMapNodeID const &) const final override

virtual void	partialDestructor ()

std::uint32_t	cowid () const
	Returns the SHAMap that owns this node.

void	unshare ()
	If this node is shared with another map, mark it as no longer shared.

virtual intr_ptr::SharedPtr< SHAMapTreeNode >	clone (std::uint32_t cowid) const =0
	Make a copy of this node, setting the owner.

virtual void	updateHash ()=0
	Recalculate the hash of this node.

SHAMapHash const &	getHash () const
	Return the hash of this node.

virtual SHAMapNodeType	getType () const =0
	Determines the type of node.

virtual void	serializeForWire (Serializer &) const =0
	Serialize the node in a format appropriate for sending over the wire.

virtual void	serializeWithPrefix (Serializer &) const =0
	Serialize the node in a format appropriate for hashing.

void	addStrongRef () const noexcept

void	addWeakRef () const noexcept

ReleaseStrongRefAction	releaseStrongRef () const

ReleaseStrongRefAction	addWeakReleaseStrongRef () const

ReleaseWeakRefAction	releaseWeakRef () const

bool	checkoutStrongRefFromWeak () const noexcept

bool	expired () const noexcept

std::size_t	use_count () const noexcept

Static Public Member Functions
static intr_ptr::SharedPtr< SHAMapTreeNode >	makeFromPrefix (Slice rawNode, SHAMapHash const &hash)

static intr_ptr::SharedPtr< SHAMapTreeNode >	makeFromWire (Slice rawNode)

Protected Member Functions
	SHAMapLeafNode (boost::intrusive_ptr< SHAMapItem const > item, std::uint32_t cowid)

	SHAMapLeafNode (boost::intrusive_ptr< SHAMapItem const > item, std::uint32_t cowid, SHAMapHash const &hash)

Protected Attributes
boost::intrusive_ptr< SHAMapItem const >	item_

SHAMapHash	hash_

std::uint32_t	cowid_
	Determines the owning SHAMap, if any.

Private Types
using	CountType = std::uint16_t

using	FieldType = std::uint32_t

Static Private Member Functions
static intr_ptr::SharedPtr< SHAMapTreeNode >	makeTransaction (Slice data, SHAMapHash const &hash, bool hashValid)

static intr_ptr::SharedPtr< SHAMapTreeNode >	makeAccountState (Slice data, SHAMapHash const &hash, bool hashValid)

static intr_ptr::SharedPtr< SHAMapTreeNode >	makeTransactionWithMeta (Slice data, SHAMapHash const &hash, bool hashValid)

Private Attributes
std::atomic< FieldType >	refCounts {strongDelta}
	`refCounts` consists of four fields that are treated atomically:

Static Private Attributes
static constexpr size_t	StrongCountNumBits = sizeof(CountType) * 8

static constexpr size_t	WeakCountNumBits = StrongCountNumBits - 2

static constexpr size_t	FieldTypeBits = sizeof(FieldType) * 8

static constexpr FieldType	one = 1

static constexpr FieldType	strongDelta = 1
	Amount to change the strong count when adding or releasing a reference.

static constexpr FieldType	weakDelta = (one << StrongCountNumBits)
	Amount to change the weak count when adding or releasing a reference.

static constexpr FieldType	partialDestroyStartedMask
	Flag that is set when the partialDestroy function has started running (or is about to start running).

static constexpr FieldType	partialDestroyFinishedMask
	Flag that is set when the partialDestroy function has finished running.

static constexpr FieldType	tagMask
	Mask that will zero out all the `count` bits and leave the tag bits unchanged.

static constexpr FieldType	valueMask = ~tagMask
	Mask that will zero out the `tag` bits and leave the count bits unchanged.

static constexpr FieldType	strongMask
	Mask that will zero out everything except the strong count.

static constexpr FieldType	weakMask
	Mask that will zero out everything except the weak count.

Detailed Description

Definition at line 30 of file SHAMapLeafNode.h.

Member Typedef Documentation

◆ CountType

using ripple::IntrusiveRefCounts::CountType = std::uint16_t

privateinherited

Definition at line 120 of file IntrusiveRefCounts.h.

◆ FieldType

using ripple::IntrusiveRefCounts::FieldType = std::uint32_t

privateinherited

Definition at line 123 of file IntrusiveRefCounts.h.

Constructor & Destructor Documentation

◆ SHAMapLeafNode() [1/3]

ripple::SHAMapLeafNode::SHAMapLeafNode	(	boost::intrusive_ptr< SHAMapItem const >	item,
		std::uint32_t	cowid
	)

protected

Definition at line 24 of file SHAMapLeafNode.cpp.

◆ SHAMapLeafNode() [2/3]

ripple::SHAMapLeafNode::SHAMapLeafNode	(	boost::intrusive_ptr< SHAMapItem const >	item,
		std::uint32_t	cowid,
		SHAMapHash const &	hash
	)

protected

Definition at line 35 of file SHAMapLeafNode.cpp.

◆ SHAMapLeafNode() [3/3]

ripple::SHAMapLeafNode::SHAMapLeafNode ( SHAMapLeafNode const & )

delete

Member Function Documentation

◆ operator=()

SHAMapLeafNode & ripple::SHAMapLeafNode::operator= ( SHAMapLeafNode const & )

delete

◆ isLeaf()

bool ripple::SHAMapLeafNode::isLeaf ( ) const

finaloverridevirtual

Determines if this is a leaf node.

Implements ripple::SHAMapTreeNode.

Definition at line 50 of file SHAMapLeafNode.h.

◆ isInner()

bool ripple::SHAMapLeafNode::isInner ( ) const

finaloverridevirtual

Determines if this is an inner node.

Implements ripple::SHAMapTreeNode.

Definition at line 56 of file SHAMapLeafNode.h.

◆ invariants()

void ripple::SHAMapLeafNode::invariants ( bool is_root = false ) const

finaloverridevirtual

Implements ripple::SHAMapTreeNode.

Definition at line 93 of file SHAMapLeafNode.cpp.

◆ peekItem()

boost::intrusive_ptr< SHAMapItem const > const & ripple::SHAMapLeafNode::peekItem ( ) const

Definition at line 49 of file SHAMapLeafNode.cpp.

◆ setItem()

bool ripple::SHAMapLeafNode::setItem ( boost::intrusive_ptr< SHAMapItem const > i )

Set the item that this node points to and update the node's hash.

Parameters

i	the new item

Returns: false if the change was, effectively, a noop (that is, if the hash was unchanged); true otherwise.

Definition at line 55 of file SHAMapLeafNode.cpp.

◆ getString()

std::string ripple::SHAMapLeafNode::getString ( SHAMapNodeID const & id ) const

finaloverridevirtual

Reimplemented from ripple::SHAMapTreeNode.

Definition at line 68 of file SHAMapLeafNode.cpp.

◆ partialDestructor()

virtual void ripple::SHAMapTreeNode::partialDestructor ( )

virtualinherited

Reimplemented in ripple::SHAMapInnerNode.

Definition at line 91 of file SHAMapTreeNode.h.

◆ updateHash()

virtual void ripple::SHAMapTreeNode::updateHash ( )

pure virtualinherited

Recalculate the hash of this node.

Implemented in ripple::SHAMapAccountStateLeafNode, ripple::SHAMapTxLeafNode, ripple::SHAMapTxPlusMetaLeafNode, and ripple::SHAMapInnerNode.

◆ getHash()

SHAMapHash const & ripple::SHAMapTreeNode::getHash ( ) const

inherited

Return the hash of this node.

Definition at line 144 of file SHAMapTreeNode.h.

◆ getType()

virtual SHAMapNodeType ripple::SHAMapTreeNode::getType ( ) const

pure virtualinherited

Determines the type of node.

Implemented in ripple::SHAMapAccountStateLeafNode, ripple::SHAMapTxLeafNode, ripple::SHAMapInnerNode, and ripple::SHAMapTxPlusMetaLeafNode.

◆ serializeForWire()

virtual void ripple::SHAMapTreeNode::serializeForWire ( Serializer & ) const

pure virtualinherited

Serialize the node in a format appropriate for sending over the wire.

Implemented in ripple::SHAMapInnerNode, ripple::SHAMapAccountStateLeafNode, ripple::SHAMapTxLeafNode, and ripple::SHAMapTxPlusMetaLeafNode.

◆ serializeWithPrefix()

virtual void ripple::SHAMapTreeNode::serializeWithPrefix ( Serializer & ) const

pure virtualinherited

Serialize the node in a format appropriate for hashing.

Implemented in ripple::SHAMapInnerNode, ripple::SHAMapAccountStateLeafNode, ripple::SHAMapTxLeafNode, and ripple::SHAMapTxPlusMetaLeafNode.

◆ makeFromPrefix()

intr_ptr::SharedPtr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeFromPrefix	(	Slice	rawNode,
		SHAMapHash const &	hash
	)

staticinherited

Definition at line 145 of file SHAMapTreeNode.cpp.

◆ makeFromWire()

intr_ptr::SharedPtr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeFromWire ( Slice rawNode )

staticinherited

Definition at line 113 of file SHAMapTreeNode.cpp.

◆ makeTransaction()

intr_ptr::SharedPtr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeTransaction	(	Slice	data,
		SHAMapHash const &	hash,
		bool	hashValid
	)

staticprivateinherited

Definition at line 35 of file SHAMapTreeNode.cpp.

◆ makeAccountState()

intr_ptr::SharedPtr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeAccountState	(	Slice	data,
		SHAMapHash const &	hash,
		bool	hashValid
	)

staticprivateinherited

Definition at line 80 of file SHAMapTreeNode.cpp.

◆ makeTransactionWithMeta()

intr_ptr::SharedPtr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeTransactionWithMeta	(	Slice	data,
		SHAMapHash const &	hash,
		bool	hashValid
	)

staticprivateinherited

Definition at line 51 of file SHAMapTreeNode.cpp.

◆ addStrongRef()

void ripple::IntrusiveRefCounts::addStrongRef ( ) const

noexceptinherited

Definition at line 251 of file IntrusiveRefCounts.h.

◆ addWeakRef()

void ripple::IntrusiveRefCounts::addWeakRef ( ) const

noexceptinherited

Definition at line 257 of file IntrusiveRefCounts.h.

◆ releaseStrongRef()

ReleaseStrongRefAction ripple::IntrusiveRefCounts::releaseStrongRef ( ) const

inherited

Definition at line 263 of file IntrusiveRefCounts.h.

◆ addWeakReleaseStrongRef()

ReleaseStrongRefAction ripple::IntrusiveRefCounts::addWeakReleaseStrongRef ( ) const

inherited

Definition at line 312 of file IntrusiveRefCounts.h.

◆ releaseWeakRef()

ReleaseWeakRefAction ripple::IntrusiveRefCounts::releaseWeakRef ( ) const

inherited

Definition at line 366 of file IntrusiveRefCounts.h.

◆ checkoutStrongRefFromWeak()

bool ripple::IntrusiveRefCounts::checkoutStrongRefFromWeak ( ) const

noexceptinherited

Definition at line 393 of file IntrusiveRefCounts.h.

◆ expired()

bool ripple::IntrusiveRefCounts::expired ( ) const

noexceptinherited

Definition at line 411 of file IntrusiveRefCounts.h.

◆ use_count()

std::size_t ripple::IntrusiveRefCounts::use_count ( ) const

noexceptinherited

Definition at line 418 of file IntrusiveRefCounts.h.

Member Data Documentation

◆ item_

boost::intrusive_ptr<SHAMapItem const> ripple::SHAMapLeafNode::item_

protected

Definition at line 33 of file SHAMapLeafNode.h.

◆ hash_

SHAMapHash ripple::SHAMapTreeNode::hash_

protectedinherited

Definition at line 53 of file SHAMapTreeNode.h.

◆ cowid_

std::uint32_t ripple::SHAMapTreeNode::cowid_

protectedinherited

Determines the owning SHAMap, if any.

Used for copy-on-write semantics.

If this value is 0, the node is not dirty and does not need to be flushed. It is eligible for sharing and may be included multiple SHAMap instances.

Definition at line 61 of file SHAMapTreeNode.h.

◆ StrongCountNumBits

constexpr size_t ripple::IntrusiveRefCounts::StrongCountNumBits = sizeof(CountType) * 8

staticconstexprprivateinherited

Definition at line 121 of file IntrusiveRefCounts.h.

◆ WeakCountNumBits

constexpr size_t ripple::IntrusiveRefCounts::WeakCountNumBits = StrongCountNumBits - 2

staticconstexprprivateinherited

Definition at line 122 of file IntrusiveRefCounts.h.

◆ FieldTypeBits

constexpr size_t ripple::IntrusiveRefCounts::FieldTypeBits = sizeof(FieldType) * 8

staticconstexprprivateinherited

Definition at line 124 of file IntrusiveRefCounts.h.

◆ one

constexpr FieldType ripple::IntrusiveRefCounts::one = 1

staticconstexprprivateinherited

Definition at line 125 of file IntrusiveRefCounts.h.

◆ refCounts

std::atomic<FieldType> ripple::IntrusiveRefCounts::refCounts {strongDelta}

mutableprivateinherited

refCounts consists of four fields that are treated atomically:

Strong count. This is a count of the number of shared pointers that hold a reference to this object. When the strong counts goes to zero, if the weak count is zero, the destructor is run. If the weak count is non-zero when the strong count goes to zero then the partialDestructor is run.
Weak count. This is a count of the number of weak pointer that hold a reference to this object. When the weak count goes to zero and the strong count is also zero, then the destructor is run.
Partial destroy started bit. This bit is set if the partialDestructor function has been started (or is about to be started). This is used to prevent the destructor from running concurrently with the partial destructor. This can easily happen when the last strong pointer release its reference in one thread and starts the partialDestructor, while in another thread the last weak pointer goes out of scope and starts the destructor while the partialDestructor is still running. Both a start and finished bit is needed to handle a corner-case where the last strong pointer goes out of scope, then then last weakPointer goes out of scope, but this happens before the partialDestructor bit is set. It would be possible to use a single bit if it could also be set atomically when the strong count goes to zero and the weak count is non-zero, but that would add complexity (and likely slow down common cases as well).
Partial destroy finished bit. This bit is set when the partialDestructor has finished running. See (3) above for more information.

Definition at line 160 of file IntrusiveRefCounts.h.

◆ strongDelta

constexpr FieldType ripple::IntrusiveRefCounts::strongDelta = 1

staticconstexprprivateinherited

Amount to change the strong count when adding or releasing a reference.

Note: The strong count is stored in the low StrongCountNumBits bits of refCounts

Definition at line 167 of file IntrusiveRefCounts.h.

◆ weakDelta

constexpr FieldType ripple::IntrusiveRefCounts::weakDelta = (one << StrongCountNumBits)

staticconstexprprivateinherited

Amount to change the weak count when adding or releasing a reference.

Note: The weak count is stored in the high WeakCountNumBits bits of refCounts

Definition at line 174 of file IntrusiveRefCounts.h.

◆ partialDestroyStartedMask

constexpr FieldType ripple::IntrusiveRefCounts::partialDestroyStartedMask

staticconstexprprivateinherited

Initial value:

=

(one << (FieldTypeBits - 1))

ripple::IntrusiveRefCounts::FieldTypeBits

static constexpr size_t FieldTypeBits

Definition IntrusiveRefCounts.h:124

ripple::IntrusiveRefCounts::one

static constexpr FieldType one

Definition IntrusiveRefCounts.h:125

Flag that is set when the partialDestroy function has started running (or is about to start running).

See description of the refCounts field for a fuller description of this field.

Definition at line 182 of file IntrusiveRefCounts.h.

◆ partialDestroyFinishedMask

constexpr FieldType ripple::IntrusiveRefCounts::partialDestroyFinishedMask

staticconstexprprivateinherited

Initial value:

=

(one << (FieldTypeBits - 2))

Flag that is set when the partialDestroy function has finished running.

See description of the refCounts field for a fuller description of this field.

Definition at line 190 of file IntrusiveRefCounts.h.

◆ tagMask

constexpr FieldType ripple::IntrusiveRefCounts::tagMask

staticconstexprprivateinherited

Initial value:

=

partialDestroyStartedMask | partialDestroyFinishedMask

ripple::IntrusiveRefCounts::partialDestroyFinishedMask

static constexpr FieldType partialDestroyFinishedMask

Flag that is set when the partialDestroy function has finished running.

Definition IntrusiveRefCounts.h:190

ripple::IntrusiveRefCounts::partialDestroyStartedMask

static constexpr FieldType partialDestroyStartedMask

Flag that is set when the partialDestroy function has started running (or is about to start running).

Definition IntrusiveRefCounts.h:182

Mask that will zero out all the count bits and leave the tag bits unchanged.

Definition at line 196 of file IntrusiveRefCounts.h.

◆ valueMask

constexpr FieldType ripple::IntrusiveRefCounts::valueMask = ~tagMask

staticconstexprprivateinherited

Mask that will zero out the tag bits and leave the count bits unchanged.

Definition at line 202 of file IntrusiveRefCounts.h.

◆ strongMask

constexpr FieldType ripple::IntrusiveRefCounts::strongMask

staticconstexprprivateinherited

Initial value:

=

((one << StrongCountNumBits) - 1) & valueMask

ripple::IntrusiveRefCounts::StrongCountNumBits

static constexpr size_t StrongCountNumBits

Definition IntrusiveRefCounts.h:121

ripple::IntrusiveRefCounts::valueMask

static constexpr FieldType valueMask

Mask that will zero out the tag bits and leave the count bits unchanged.

Definition IntrusiveRefCounts.h:202

Mask that will zero out everything except the strong count.

Definition at line 206 of file IntrusiveRefCounts.h.

◆ weakMask

constexpr FieldType ripple::IntrusiveRefCounts::weakMask

staticconstexprprivateinherited

Initial value:

=

(((one << WeakCountNumBits) - 1) << StrongCountNumBits) & valueMask

ripple::IntrusiveRefCounts::WeakCountNumBits

static constexpr size_t WeakCountNumBits

Definition IntrusiveRefCounts.h:122

Mask that will zero out everything except the weak count.

Definition at line 211 of file IntrusiveRefCounts.h.

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Types

Static Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Typedef Documentation

◆ CountType

◆ FieldType

Constructor & Destructor Documentation

◆ SHAMapLeafNode() [1/3]

◆ SHAMapLeafNode() [2/3]

◆ SHAMapLeafNode() [3/3]

Member Function Documentation

◆ operator=()

◆ isLeaf()

◆ isInner()

◆ invariants()

◆ peekItem()

◆ setItem()

◆ getString()

◆ partialDestructor()

◆ updateHash()

◆ getHash()

◆ getType()

◆ serializeForWire()

◆ serializeWithPrefix()

◆ makeFromPrefix()

◆ makeFromWire()

◆ makeTransaction()

◆ makeAccountState()

◆ makeTransactionWithMeta()

◆ addStrongRef()

◆ addWeakRef()

◆ releaseStrongRef()

◆ addWeakReleaseStrongRef()

◆ releaseWeakRef()

◆ checkoutStrongRefFromWeak()

◆ expired()

◆ use_count()

Member Data Documentation

◆ item_

◆ hash_

◆ cowid_

◆ StrongCountNumBits

◆ WeakCountNumBits

◆ FieldTypeBits

◆ one

◆ refCounts

◆ strongDelta

◆ weakDelta

◆ partialDestroyStartedMask

◆ partialDestroyFinishedMask

◆ tagMask

◆ valueMask

◆ strongMask

◆ weakMask
