#include <SSLWSPeer.h>

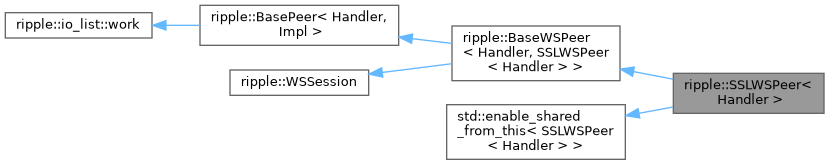

Inheritance diagram for ripple::SSLWSPeer< Handler >:

[legend]

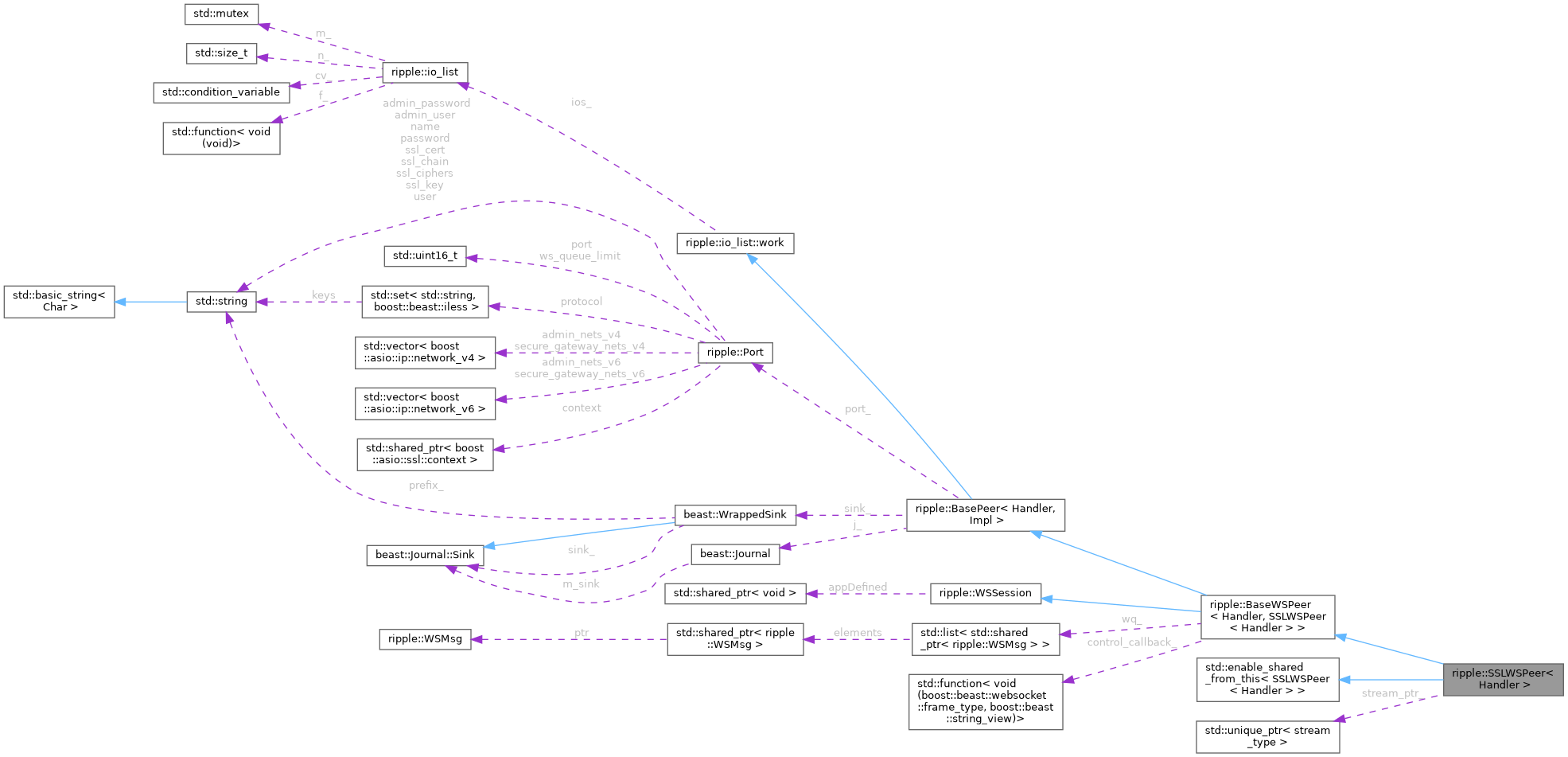

Collaboration diagram for ripple::SSLWSPeer< Handler >:

[legend]

Public Member Functions
template<class Body , class Headers >
	SSLWSPeer (Port const &port, Handler &handler, endpoint_type remote_endpoint, boost::beast::http::request< Body, Headers > &&request, std::unique_ptr< stream_type > &&stream_ptr, beast::Journal journal)

void	run () override

Port const &	port () const override

http_request_type const &	request () const override

boost::asio::ip::tcp::endpoint const &	remote_endpoint () const override

void	send (std::shared_ptr< WSMsg > w) override
	Send a WebSockets message.

void	close () override

void	close (boost::beast::websocket::close_reason const &reason) override

void	complete () override
	Indicate that the response is complete.

io_list &	ios ()
	Return the io_list associated with the work.

T	shared_from_this (T... args)

T	weak_from_this (T... args)

Public Attributes
std::shared_ptr< void >	appDefined

Protected Member Functions
SSLWSPeer< Handler > &	impl ()

void	on_ws_handshake (error_code const &ec)

void	do_write ()

void	on_write (error_code const &ec)

void	on_write_fin (error_code const &ec)

void	do_read ()

void	on_read (error_code const &ec)

void	on_close (error_code const &ec)

void	start_timer ()

void	cancel_timer ()

void	on_ping (error_code const &ec)

void	on_ping_pong (boost::beast::websocket::frame_type kind, boost::beast::string_view payload)

void	on_timer (error_code ec)

void	fail (error_code ec, String const &what)

Protected Attributes
Port const &	port_

Handler &	handler_

endpoint_type	remote_address_

beast::WrappedSink	sink_

beast::Journal const	j_

boost::asio::executor_work_guard< boost::asio::executor >	work_

boost::asio::strand< boost::asio::executor >	strand_

Private Types
using	clock_type = std::chrono::system_clock

using	error_code = boost::system::error_code

using	endpoint_type = boost::asio::ip::tcp::endpoint

using	socket_type = boost::beast::tcp_stream

using	stream_type = boost::beast::ssl_stream< socket_type >

using	waitable_timer = boost::asio::basic_waitable_timer< clock_type >

Private Member Functions
template<class = void>
void	destroy ()

Private Attributes
std::unique_ptr< stream_type >	stream_ptr_

boost::beast::websocket::stream< stream_type & >	ws_

http_request_type	request_

boost::beast::multi_buffer	rb_

boost::beast::multi_buffer	wb_

std::list< std::shared_ptr< WSMsg > >	wq_

bool	do_close_
	The socket has been closed, or will close after the next write finishes.

boost::beast::websocket::close_reason	cr_

waitable_timer	timer_

bool	close_on_timer_

bool	ping_active_

boost::beast::websocket::ping_data	payload_

error_code	ec_

std::function< void(boost::beast::websocket::frame_type, boost::beast::string_view)>	control_callback_

io_list *	ios_ = nullptr

Friends
class	BasePeer< Handler, SSLWSPeer >

class	BaseWSPeer< Handler, SSLWSPeer >

Detailed Description

template<class Handler>
class ripple::SSLWSPeer< Handler >

Definition at line 38 of file SSLWSPeer.h.

Member Typedef Documentation

◆ clock_type

template<class Handler >

using ripple::SSLWSPeer< Handler >::clock_type = std::chrono::system_clock

private

Definition at line 44 of file SSLWSPeer.h.

◆ error_code

template<class Handler >

using ripple::SSLWSPeer< Handler >::error_code = boost::system::error_code

private

Definition at line 45 of file SSLWSPeer.h.

◆ endpoint_type

template<class Handler >

using ripple::SSLWSPeer< Handler >::endpoint_type = boost::asio::ip::tcp::endpoint

private

Definition at line 46 of file SSLWSPeer.h.

◆ socket_type

template<class Handler >

using ripple::SSLWSPeer< Handler >::socket_type = boost::beast::tcp_stream

private

Definition at line 47 of file SSLWSPeer.h.

◆ stream_type

template<class Handler >

using ripple::SSLWSPeer< Handler >::stream_type = boost::beast::ssl_stream<socket_type>

private

Definition at line 48 of file SSLWSPeer.h.

◆ waitable_timer

template<class Handler >

using ripple::SSLWSPeer< Handler >::waitable_timer = boost::asio::basic_waitable_timer<clock_type>

private

Definition at line 49 of file SSLWSPeer.h.

Constructor & Destructor Documentation

◆ SSLWSPeer()

template<class Handler >

template<class Body , class Headers >

ripple::SSLWSPeer< Handler >::SSLWSPeer	(	Port const &	port,
		Handler &	handler,
		endpoint_type	remote_endpoint,
		boost::beast::http::request< Body, Headers > &&	request,
		std::unique_ptr< stream_type > &&	stream_ptr,
		beast::Journal	journal
	)

Definition at line 69 of file SSLWSPeer.h.

Member Function Documentation

◆ run()

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::run ( )

overridevirtualinherited

Implements ripple::WSSession.

Definition at line 87 of file BaseWSPeer.h.

◆ port()

Port const & ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::port ( ) const

overridevirtualinherited

Implements ripple::WSSession.

Definition at line 94 of file BaseWSPeer.h.

◆ request()

http_request_type const & ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::request ( ) const

overridevirtualinherited

Implements ripple::WSSession.

Definition at line 100 of file BaseWSPeer.h.

◆ remote_endpoint()

boost::asio::ip::tcp::endpoint const & ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::remote_endpoint ( ) const

overridevirtualinherited

Implements ripple::WSSession.

Definition at line 106 of file BaseWSPeer.h.

◆ send()

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::send ( std::shared_ptr< WSMsg > w )

overridevirtualinherited

Send a WebSockets message.

Implements ripple::WSSession.

Definition at line 112 of file BaseWSPeer.h.

◆ close() [1/2]

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::close ( )

overridevirtualinherited

Reimplemented from ripple::BasePeer< Handler, Impl >.

Definition at line 115 of file BaseWSPeer.h.

◆ close() [2/2]

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::close ( boost::beast::websocket::close_reason const & reason )

overridevirtualinherited

Implements ripple::WSSession.

Definition at line 118 of file BaseWSPeer.h.

◆ complete()

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::complete ( )

overridevirtualinherited

Indicate that the response is complete.

The handler should call this when it has completed writing the response.

Implements ripple::WSSession.

Definition at line 121 of file BaseWSPeer.h.

◆ impl()

SSLWSPeer< Handler > & ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::impl ( )

protectedinherited

Definition at line 125 of file BaseWSPeer.h.

◆ on_ws_handshake()

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::on_ws_handshake ( error_code const & ec )

protectedinherited

Definition at line 131 of file BaseWSPeer.h.

◆ do_write()

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::do_write ( )

protectedinherited

Definition at line 134 of file BaseWSPeer.h.

◆ on_write()

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::on_write ( error_code const & ec )

protectedinherited

Definition at line 137 of file BaseWSPeer.h.

◆ on_write_fin()

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::on_write_fin ( error_code const & ec )

protectedinherited

Definition at line 140 of file BaseWSPeer.h.

◆ do_read()

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::do_read ( )

protectedinherited

Definition at line 143 of file BaseWSPeer.h.

◆ on_read()

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::on_read ( error_code const & ec )

protectedinherited

Definition at line 146 of file BaseWSPeer.h.

◆ on_close()

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::on_close ( error_code const & ec )

protectedinherited

Definition at line 149 of file BaseWSPeer.h.

◆ start_timer()

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::start_timer ( )

protectedinherited

Definition at line 152 of file BaseWSPeer.h.

◆ cancel_timer()

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::cancel_timer ( )

protectedinherited

Definition at line 155 of file BaseWSPeer.h.

◆ on_ping()

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::on_ping ( error_code const & ec )

protectedinherited

Definition at line 158 of file BaseWSPeer.h.

◆ on_ping_pong()

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::on_ping_pong	(	boost::beast::websocket::frame_type	kind,
		boost::beast::string_view	payload
	)

protectedinherited

Definition at line 161 of file BaseWSPeer.h.

◆ on_timer()

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::on_timer ( error_code ec )

protectedinherited

Definition at line 166 of file BaseWSPeer.h.

◆ fail()

void ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::fail	(	error_code	ec,
		String const &	what
	)

protectedinherited

Definition at line 170 of file BaseWSPeer.h.

◆ destroy()

template<class = void>

void ripple::io_list::work::destroy ( )

privateinherited

Definition at line 182 of file io_list.h.

◆ ios()

io_list & ripple::io_list::work::ios ( )

inherited

Return the io_list associated with the work.

Requirements: The call to io_list::emplace to create the work has already returned.

Definition at line 60 of file io_list.h.

Friends And Related Symbol Documentation

◆ BasePeer< Handler, SSLWSPeer >

template<class Handler >

friend class BasePeer< Handler, SSLWSPeer >

friend

Definition at line 69 of file SSLWSPeer.h.

◆ BaseWSPeer< Handler, SSLWSPeer >

template<class Handler >

friend class BaseWSPeer< Handler, SSLWSPeer >

friend

Definition at line 69 of file SSLWSPeer.h.

Member Data Documentation

◆ stream_ptr_

template<class Handler >

std::unique_ptr<stream_type> ripple::SSLWSPeer< Handler >::stream_ptr_

private

Definition at line 51 of file SSLWSPeer.h.

◆ ws_

template<class Handler >

boost::beast::websocket::stream<stream_type&> ripple::SSLWSPeer< Handler >::ws_

private

Definition at line 52 of file SSLWSPeer.h.

◆ request_

http_request_type ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::request_

privateinherited

Definition at line 57 of file BaseWSPeer.h.

◆ rb_

boost::beast::multi_buffer ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::rb_

privateinherited

Definition at line 58 of file BaseWSPeer.h.

◆ wb_

boost::beast::multi_buffer ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::wb_

privateinherited

Definition at line 59 of file BaseWSPeer.h.

◆ wq_

std::list<std::shared_ptr<WSMsg> > ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::wq_

privateinherited

Definition at line 60 of file BaseWSPeer.h.

◆ do_close_

bool ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::do_close_

privateinherited

The socket has been closed, or will close after the next write finishes.

Do not do any more writes, and don't try to close again.

Definition at line 64 of file BaseWSPeer.h.

◆ cr_

boost::beast::websocket::close_reason ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::cr_

privateinherited

Definition at line 65 of file BaseWSPeer.h.

◆ timer_

waitable_timer ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::timer_

privateinherited

Definition at line 66 of file BaseWSPeer.h.

◆ close_on_timer_

bool ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::close_on_timer_

privateinherited

Definition at line 67 of file BaseWSPeer.h.

◆ ping_active_

bool ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::ping_active_

privateinherited

Definition at line 68 of file BaseWSPeer.h.

◆ payload_

boost::beast::websocket::ping_data ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::payload_

privateinherited

Definition at line 69 of file BaseWSPeer.h.

◆ ec_

error_code ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::ec_

privateinherited

Definition at line 70 of file BaseWSPeer.h.

◆ control_callback_

std::function< void(boost::beast::websocket::frame_type, boost::beast::string_view)> ripple::BaseWSPeer< Handler, SSLWSPeer< Handler > >::control_callback_

privateinherited

Definition at line 73 of file BaseWSPeer.h.
