Map/cache combination. More...

#include <TaggedCache.h>

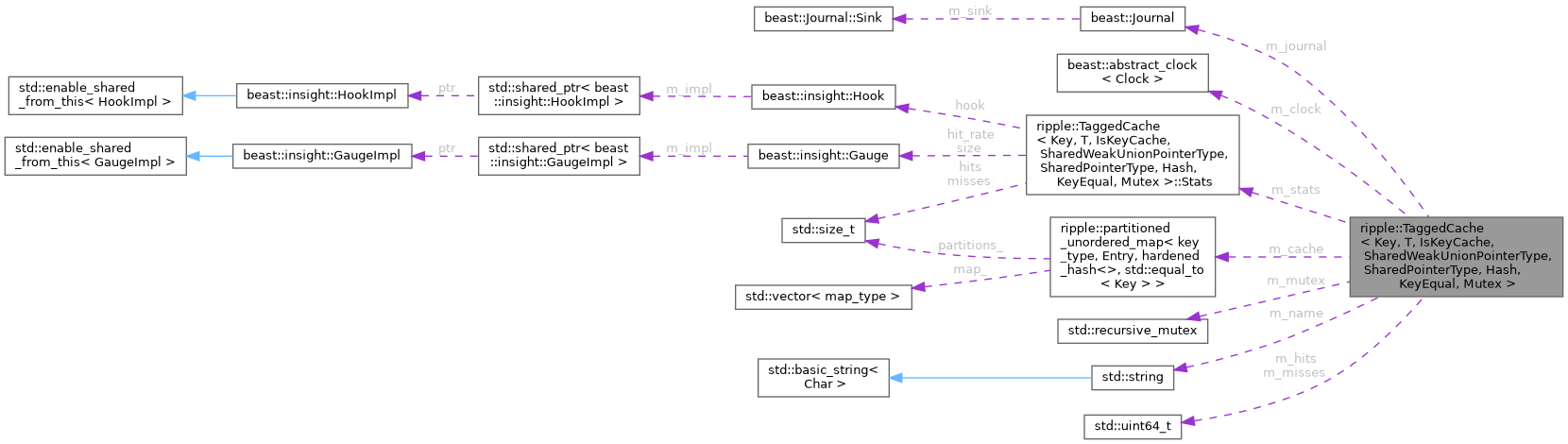

Collaboration diagram for ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >:

[legend]

Classes
class	KeyOnlyEntry

struct	Stats

class	ValueEntry

Public Types
using	mutex_type = Mutex

using	key_type = Key

using	mapped_type = T

using	clock_type = beast::abstract_clock< std::chrono::steady_clock >

using	shared_weak_combo_pointer_type = SharedWeakUnionPointerType

using	shared_pointer_type = SharedPointerType

using	SweptPointersVector = std::vector< SharedWeakUnionPointerType >

Public Member Functions
	TaggedCache (std::string const &name, int size, clock_type::duration expiration, clock_type &clock, beast::Journal journal, beast::insight::Collector::ptr const &collector=beast::insight::NullCollector::New())

clock_type &	clock ()
	Return the clock associated with the cache.

std::size_t	size () const
	Returns the number of items in the container.

int	getCacheSize () const

int	getTrackSize () const

float	getHitRate ()

void	clear ()

void	reset ()

template<class KeyComparable >
bool	touch_if_exists (KeyComparable const &key)
	Refresh the last access time on a key if present.

void	sweep ()

bool	del (key_type const &key, bool valid)

template<class R >
bool	canonicalize (key_type const &key, SharedPointerType &data, R &&replaceCallback)
	Replace aliased objects with originals.

bool	canonicalize_replace_cache (key_type const &key, SharedPointerType const &data)

bool	canonicalize_replace_client (key_type const &key, SharedPointerType &data)

SharedPointerType	fetch (key_type const &key)

template<class ReturnType = bool>
auto	insert (key_type const &key, T const &value) -> std::enable_if_t<!IsKeyCache, ReturnType >
	Insert the element into the container.

template<class ReturnType = bool>
auto	insert (key_type const &key) -> std::enable_if_t< IsKeyCache, ReturnType >

bool	retrieve (key_type const &key, T &data)

mutex_type &	peekMutex ()

std::vector< key_type >	getKeys () const

double	rate () const
	Returns the fraction of cache hits.

template<class Handler >
SharedPointerType	fetch (key_type const &digest, Handler const &h)
	Fetch an item from the cache.

Private Types
typedef std::conditional< IsKeyCache, KeyOnlyEntry, ValueEntry >::type	Entry

using	KeyOnlyCacheType = hardened_partitioned_hash_map< key_type, KeyOnlyEntry, Hash, KeyEqual >

using	KeyValueCacheType = hardened_partitioned_hash_map< key_type, ValueEntry, Hash, KeyEqual >

using	cache_type = hardened_partitioned_hash_map< key_type, Entry, Hash, KeyEqual >

Private Member Functions
SharedPointerType	initialFetch (key_type const &key, std::lock_guard< mutex_type > const &l)

void	collect_metrics ()

std::thread	sweepHelper (clock_type::time_point const &when_expire, clock_type::time_point const &now, typename KeyValueCacheType::map_type &partition, SweptPointersVector &stuffToSweep, std::atomic< int > &allRemovals, std::lock_guard< std::recursive_mutex > const &)

std::thread	sweepHelper (clock_type::time_point const &when_expire, clock_type::time_point const &now, typename KeyOnlyCacheType::map_type &partition, SweptPointersVector &, std::atomic< int > &allRemovals, std::lock_guard< std::recursive_mutex > const &)

Private Attributes
beast::Journal	m_journal

clock_type &	m_clock

Stats	m_stats

mutex_type	m_mutex

std::string	m_name

int const	m_target_size

clock_type::duration const	m_target_age

int	m_cache_count

cache_type	m_cache

std::uint64_t	m_hits

std::uint64_t	m_misses

Detailed Description

template<class Key, class T, bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>
class ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >

Map/cache combination.

This class implements a cache and a map. The cache keeps objects alive in the map. The map allows multiple code paths that reference objects with the same tag to get the same actual object.

So long as data is in the cache, it will stay in memory. If it stays in memory even after it is ejected from the cache, the map will track it.

Note: Callers must not modify data objects that are stored in the cache unless they hold their own lock over all cache operations.

Definition at line 61 of file TaggedCache.h.

Member Typedef Documentation

◆ mutex_type

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::mutex_type = Mutex

Definition at line 64 of file TaggedCache.h.

◆ key_type

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::key_type = Key

Definition at line 65 of file TaggedCache.h.

◆ mapped_type

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::mapped_type = T

Definition at line 66 of file TaggedCache.h.

◆ clock_type

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::clock_type = beast::abstract_clock<std::chrono::steady_clock>

Definition at line 67 of file TaggedCache.h.

◆ shared_weak_combo_pointer_type

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::shared_weak_combo_pointer_type = SharedWeakUnionPointerType

Definition at line 68 of file TaggedCache.h.

◆ shared_pointer_type

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::shared_pointer_type = SharedPointerType

Definition at line 69 of file TaggedCache.h.

◆ SweptPointersVector

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::SweptPointersVector = std::vector<SharedWeakUnionPointerType>

Definition at line 112 of file TaggedCache.h.

◆ Entry

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

typedef std::conditional<IsKeyCache,KeyOnlyEntry,ValueEntry>::type ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::Entry

private

Definition at line 286 of file TaggedCache.h.

◆ KeyOnlyCacheType

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::KeyOnlyCacheType = hardened_partitioned_hash_map<key_type, KeyOnlyEntry, Hash, KeyEqual>

private

Definition at line 288 of file TaggedCache.h.

◆ KeyValueCacheType

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::KeyValueCacheType = hardened_partitioned_hash_map<key_type, ValueEntry, Hash, KeyEqual>

private

Definition at line 291 of file TaggedCache.h.

◆ cache_type

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::cache_type = hardened_partitioned_hash_map<key_type, Entry, Hash, KeyEqual>

private

Definition at line 294 of file TaggedCache.h.

Constructor & Destructor Documentation

◆ TaggedCache()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::TaggedCache	(	std::string const &	name,
		int	size,
		clock_type::duration	expiration,
		clock_type &	clock,
		beast::Journal	journal,
		beast::insight::Collector::ptr const &	collector = `beast::insight::NullCollector::New()`
	)

Member Function Documentation

◆ clock()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

clock_type & ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::clock ( )

Return the clock associated with the cache.

◆ size()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

std::size_t ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::size ( ) const

Returns the number of items in the container.

◆ getCacheSize()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

int ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::getCacheSize ( ) const

◆ getTrackSize()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

int ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::getTrackSize ( ) const

◆ getHitRate()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

float ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::getHitRate ( )

◆ clear()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

void ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::clear ( )

◆ reset()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

void ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::reset ( )

◆ touch_if_exists()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

template<class KeyComparable >

bool ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::touch_if_exists ( KeyComparable const & key )

Refresh the last access time on a key if present.

Returns: true If the key was found.

◆ sweep()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

void ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::sweep ( )

◆ del()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

bool ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::del	(	key_type const &	key,
		bool	valid
	)

◆ canonicalize()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

template<class R >

bool ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::canonicalize	(	key_type const &	key,
		SharedPointerType &	data,
		R &&	replaceCallback
	)

Replace aliased objects with originals.

Due to concurrency it is possible for two separate objects with the same content and referring to the same unique "thing" to exist. This routine eliminates the duplicate and performs a replacement on the callers shared pointer if needed.

Parameters

key	The key corresponding to the object
data	A shared pointer to the data corresponding to the object.
replace	Function that decides if cache should be replaced

Returns: true If the key already existed.

◆ canonicalize_replace_cache()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

bool ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::canonicalize_replace_cache	(	key_type const &	key,
		SharedPointerType const &	data
	)

◆ canonicalize_replace_client()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

bool ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::canonicalize_replace_client	(	key_type const &	key,
		SharedPointerType &	data
	)

◆ fetch() [1/2]

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

SharedPointerType ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::fetch ( key_type const & key )

◆ insert() [1/2]

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

template<class ReturnType = bool>

auto ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::insert	(	key_type const &	key,
		T const &	value
	)		-> std::enable_if_t<!IsKeyCache, ReturnType >

Insert the element into the container.

If the key already exists, nothing happens.

Returns: true If the element was inserted

◆ insert() [2/2]

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

template<class ReturnType = bool>

auto ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::insert ( key_type const & key ) -> std::enable_if_t< IsKeyCache, ReturnType >

◆ retrieve()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

bool ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::retrieve	(	key_type const &	key,
		T &	data
	)

◆ peekMutex()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

mutex_type & ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::peekMutex ( )

◆ getKeys()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

std::vector< key_type > ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::getKeys ( ) const

◆ rate()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

double ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::rate ( ) const

Returns the fraction of cache hits.

◆ fetch() [2/2]

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

template<class Handler >

SharedPointerType ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::fetch	(	key_type const &	digest,
		Handler const &	h
	)

Fetch an item from the cache.

If the digest was not found, Handler will be called with this signature: std::shared_ptr<SLE const>(void)

◆ initialFetch()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

SharedPointerType ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::initialFetch	(	key_type const &	key,
		std::lock_guard< mutex_type > const &	l
	)

private

◆ collect_metrics()

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

void ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::collect_metrics ( )

private

◆ sweepHelper() [1/2]

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

std::thread ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::sweepHelper	(	clock_type::time_point const &	when_expire,
		clock_type::time_point const &	now,
		typename KeyValueCacheType::map_type &	partition,
		SweptPointersVector &	stuffToSweep,
		std::atomic< int > &	allRemovals,
		std::lock_guard< std::recursive_mutex > const &
	)

private

◆ sweepHelper() [2/2]

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

std::thread ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::sweepHelper	(	clock_type::time_point const &	when_expire,
		clock_type::time_point const &	now,
		typename KeyOnlyCacheType::map_type &	partition,
		SweptPointersVector &	,
		std::atomic< int > &	allRemovals,
		std::lock_guard< std::recursive_mutex > const &
	)

private

Member Data Documentation

◆ m_journal

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

beast::Journal ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::m_journal

private

Definition at line 315 of file TaggedCache.h.

◆ m_clock

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

clock_type& ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::m_clock

private

Definition at line 316 of file TaggedCache.h.

◆ m_stats

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

Stats ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::m_stats

private

Definition at line 317 of file TaggedCache.h.

◆ m_mutex

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

mutex_type ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::m_mutex

mutableprivate

Definition at line 319 of file TaggedCache.h.

◆ m_name

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

std::string ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::m_name

private

Definition at line 322 of file TaggedCache.h.

◆ m_target_size

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

int const ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::m_target_size

private

Definition at line 325 of file TaggedCache.h.

◆ m_target_age

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

clock_type::duration const ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::m_target_age

private

Definition at line 328 of file TaggedCache.h.

◆ m_cache_count

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

int ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::m_cache_count

private

Definition at line 331 of file TaggedCache.h.

◆ m_cache

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

cache_type ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::m_cache

private

Definition at line 332 of file TaggedCache.h.

◆ m_hits

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

std::uint64_t ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::m_hits

private

Definition at line 333 of file TaggedCache.h.

◆ m_misses

template<class Key , class T , bool IsKeyCache = false, class SharedWeakUnionPointerType = SharedWeakCachePointer<T>, class SharedPointerType = std::shared_ptr<T>, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

std::uint64_t ripple::TaggedCache< Key, T, IsKeyCache, SharedWeakUnionPointerType, SharedPointerType, Hash, KeyEqual, Mutex >::m_misses

private

Definition at line 334 of file TaggedCache.h.

Classes

Public Types

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ mutex_type

◆ key_type

◆ mapped_type

◆ clock_type

◆ shared_weak_combo_pointer_type

◆ shared_pointer_type

◆ SweptPointersVector

◆ Entry

◆ KeyOnlyCacheType

◆ KeyValueCacheType

◆ cache_type

Constructor & Destructor Documentation

◆ TaggedCache()

Member Function Documentation

◆ clock()

◆ size()

◆ getCacheSize()

◆ getTrackSize()

◆ getHitRate()

◆ clear()

◆ reset()

◆ touch_if_exists()

◆ sweep()

◆ del()

◆ canonicalize()

◆ canonicalize_replace_cache()

◆ canonicalize_replace_client()

◆ fetch() [1/2]

◆ insert() [1/2]

◆ insert() [2/2]

◆ retrieve()

◆ peekMutex()

◆ getKeys()

◆ rate()

◆ fetch() [2/2]

◆ initialFetch()

◆ collect_metrics()

◆ sweepHelper() [1/2]

◆ sweepHelper() [2/2]

Member Data Documentation

◆ m_journal

◆ m_clock

◆ m_stats

◆ m_mutex

◆ m_name

◆ m_target_size

◆ m_target_age

◆ m_cache_count

◆ m_cache

◆ m_hits

◆ m_misses
