ripple::TimeKeeper Class Reference

Manages various times used by the server. More...

#include <TimeKeeper.h>

Inheritance diagram for ripple::TimeKeeper:

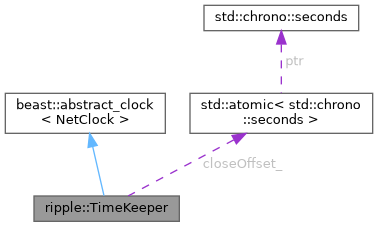

Collaboration diagram for ripple::TimeKeeper:

Public Types
using	rep = typename Clock::rep
using	period = typename Clock::period
using	duration = typename Clock::duration
using	time_point = typename Clock::time_point
using	clock_type = NetClock

Public Member Functions
virtual	~TimeKeeper ()=default
time_point	now () const override
	Returns the current time, using the server's clock.
time_point	closeTime () const
	Returns the predicted close time, in network time.
std::chrono::seconds	closeOffset () const
std::chrono::seconds	adjustCloseTime (std::chrono::seconds by)
	Adjust the close time, based on the network's view of time.

Static Public Attributes
static bool const	is_steady

Static Private Member Functions
static constexpr time_point	adjust (std::chrono::system_clock::time_point when)

Private Attributes
std::atomic< std::chrono::seconds >	closeOffset_ {}

Detailed Description

Manages various times used by the server.

Definition at line 31 of file TimeKeeper.h.

Member Typedef Documentation

rep

using beast::abstract_clock< NetClock >::rep = typename Clock::rep

inherited

Definition at line 57 of file abstract_clock.h.

period

using beast::abstract_clock< NetClock >::period = typename Clock::period

inherited

Definition at line 58 of file abstract_clock.h.

duration

using beast::abstract_clock< NetClock >::duration = typename Clock::duration

inherited

Definition at line 59 of file abstract_clock.h.

time_point

using beast::abstract_clock< NetClock >::time_point = typename Clock::time_point

inherited

Definition at line 60 of file abstract_clock.h.

clock_type

using beast::abstract_clock< NetClock >::clock_type = NetClock

inherited

Definition at line 61 of file abstract_clock.h.

Constructor & Destructor Documentation

~TimeKeeper()

virtual ripple::TimeKeeper::~TimeKeeper ( )

virtualdefault

Member Function Documentation

adjust()

static constexpr time_point ripple::TimeKeeper::adjust ( std::chrono::system_clock::time_point  when )

staticconstexprprivate

Definition at line 38 of file TimeKeeper.h.

now()

time_point ripple::TimeKeeper::now ( ) const

overridevirtual

Returns the current time, using the server's clock.

It's possible for servers to have a different value for network time, especially if they do not use some external mechanism for time synchronization (e.g. NTP or SNTP). This is fine.

This estimate is not directly visible to other servers over the protocol, but it is possible for them to make an educated guess if this server publishes proposals or validations.

Note

The network time is adjusted for the "Ripple epoch" which was arbitrarily defined as 2000-01-01T00:00:00Z by Arthur Britto and David Schwartz during early development of the code. No rationale has been provided for this curious and annoying, but otherwise unimportant, choice.

Implements beast::abstract_clock< NetClock >.

Definition at line 64 of file TimeKeeper.h.

closeTime()

time_point ripple::TimeKeeper::closeTime

(

)

const

Returns the predicted close time, in network time.

The predicted close time represents the notional "center" of the network. Each server assumes that its clock is correct and tries to pull the close time towards its measure of network time.

Definition at line 76 of file TimeKeeper.h.

closeOffset()

std::chrono::seconds ripple::TimeKeeper::closeOffset

(

)

const

Definition at line 83 of file TimeKeeper.h.

adjustCloseTime()

std::chrono::seconds ripple::TimeKeeper::adjustCloseTime

(

std::chrono::seconds

by

)

Adjust the close time, based on the network's view of time.

Definition at line 90 of file TimeKeeper.h.

Member Data Documentation

closeOffset_

std::atomic<std::chrono::seconds> ripple::TimeKeeper::closeOffset_ {}

private

Definition at line 34 of file TimeKeeper.h.

is_steady

bool const beast::abstract_clock< NetClock >::is_steady

staticinherited

Definition at line 63 of file abstract_clock.h.
