xrpl::BasePeer< Handler, Impl > Class Template Reference

#include <BasePeer.h>

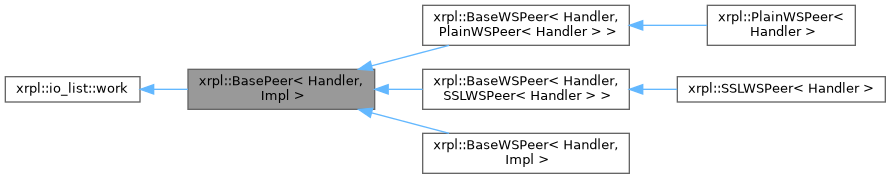

Inheritance diagram for xrpl::BasePeer< Handler, Impl >:

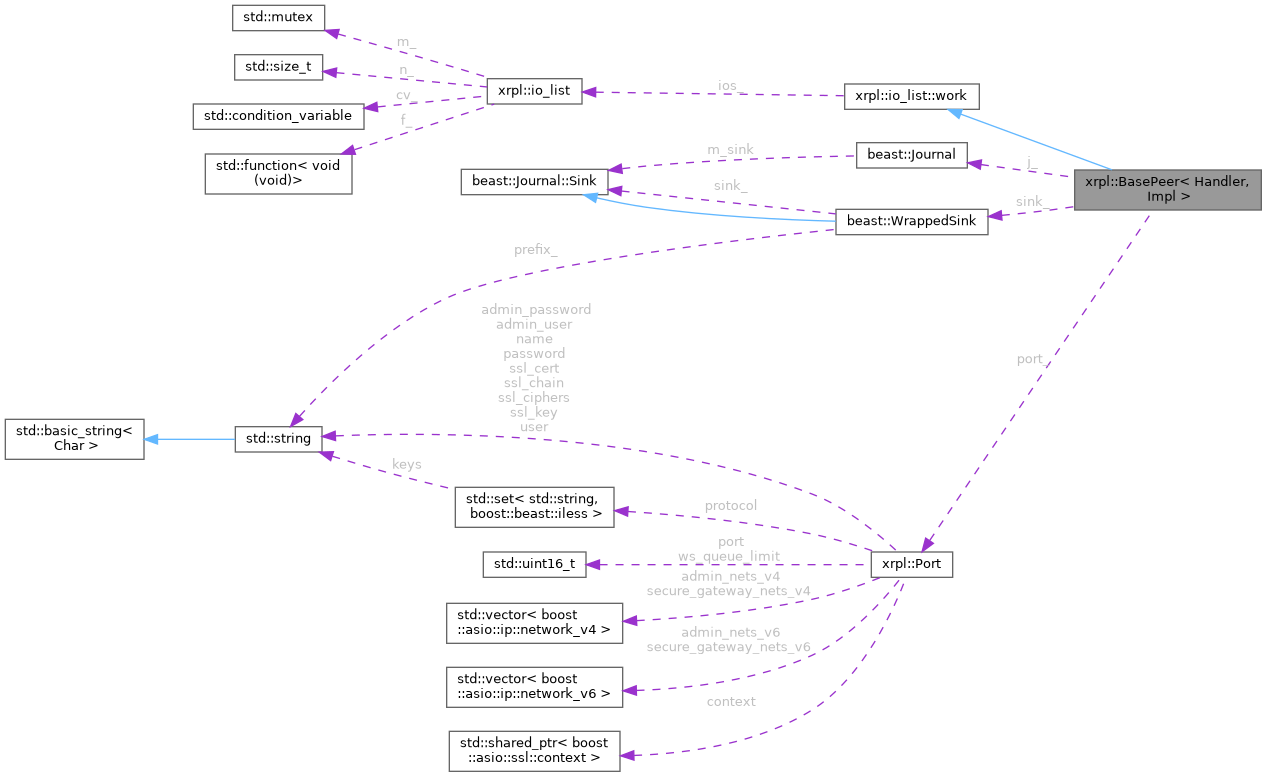

Collaboration diagram for xrpl::BasePeer< Handler, Impl >:

Public Member Functions
	BasePeer (Port const &port, Handler &handler, boost::asio::executor const &executor, endpoint_type remoteAddress, beast::Journal journal)
void	close () override
IOList &	ios ()
	Return the IOList associated with the work.

Protected Types
using	clock_type = std::chrono::system_clock
using	error_code = boost::system::error_code
using	endpoint_type = boost::asio::ip::tcp::endpoint
using	waitable_timer = boost::asio::basic_waitable_timer<clock_type>

Protected Attributes
Port const &	port_
Handler &	handler_
endpoint_type	remoteAddress_
beast::WrappedSink	sink_
beast::Journal const	j_
boost::asio::executor_work_guard< boost::asio::executor >	work_
boost::asio::strand< boost::asio::executor >	strand_

Private Member Functions
Impl &	impl ()
template<class = void>
void	destroy ()

Private Attributes
IOList *	ios_ = nullptr

Detailed Description

template<class Handler, class Impl>
class xrpl::BasePeer< Handler, Impl >

Definition at line 20 of file BasePeer.h.

Member Typedef Documentation

clock_type

template<class Handler, class Impl>

using xrpl::BasePeer< Handler, Impl >::clock_type = std::chrono::system_clock

protected

Definition at line 23 of file BasePeer.h.

error_code

template<class Handler, class Impl>

using xrpl::BasePeer< Handler, Impl >::error_code = boost::system::error_code

protected

Definition at line 24 of file BasePeer.h.

endpoint_type

template<class Handler, class Impl>

using xrpl::BasePeer< Handler, Impl >::endpoint_type = boost::asio::ip::tcp::endpoint

protected

Definition at line 25 of file BasePeer.h.

waitable_timer

template<class Handler, class Impl>

using xrpl::BasePeer< Handler, Impl >::waitable_timer = boost::asio::basic_waitable_timer<clock_type>

protected

Definition at line 26 of file BasePeer.h.

Constructor & Destructor Documentation

BasePeer()

template<class Handler, class Impl>

xrpl::BasePeer< Handler, Impl >::BasePeer	(	Port const &	port,
		Handler &	handler,
		boost::asio::executor const &	executor,
		endpoint_type	remoteAddress,
		beast::Journal	journal )

Definition at line 60 of file BasePeer.h.

Member Function Documentation

close()

template<class Handler, class Impl>

void xrpl::BasePeer< Handler, Impl >::close ( )

overridevirtual

Implements xrpl::IOList::Work.

Reimplemented in xrpl::BaseWSPeer< Handler, Impl >, xrpl::BaseWSPeer< Handler, PlainWSPeer< Handler > >, and xrpl::BaseWSPeer< Handler, SSLWSPeer< Handler > >.

Definition at line 83 of file BasePeer.h.

impl()

template<class Handler, class Impl>

Impl & xrpl::BasePeer< Handler, Impl >::impl ( )

private

Definition at line 51 of file BasePeer.h.

destroy()

template<class = void>

void xrpl::IOList::Work::destroy ( )

privateinherited

Definition at line 162 of file io_list.h.

ios()

IOList & xrpl::IOList::Work::ios ( )

inherited

Return the IOList associated with the work.

Requirements: The call to IOList::emplace to create the work has already returned.

Definition at line 40 of file io_list.h.

Member Data Documentation

port_

template<class Handler, class Impl>

Port const& xrpl::BasePeer< Handler, Impl >::port_

protected

Definition at line 28 of file BasePeer.h.

handler_

template<class Handler, class Impl>

Handler& xrpl::BasePeer< Handler, Impl >::handler_

protected

Definition at line 29 of file BasePeer.h.

remoteAddress_

template<class Handler, class Impl>

endpoint_type xrpl::BasePeer< Handler, Impl >::remoteAddress_

protected

Definition at line 30 of file BasePeer.h.

sink_

template<class Handler, class Impl>

beast::WrappedSink xrpl::BasePeer< Handler, Impl >::sink_

protected

Definition at line 31 of file BasePeer.h.

j_

template<class Handler, class Impl>

beast::Journal const xrpl::BasePeer< Handler, Impl >::j_

protected

Definition at line 32 of file BasePeer.h.

work_

template<class Handler, class Impl>

boost::asio::executor_work_guard<boost::asio::executor> xrpl::BasePeer< Handler, Impl >::work_

protected

Definition at line 34 of file BasePeer.h.

strand_

template<class Handler, class Impl>

boost::asio::strand<boost::asio::executor> xrpl::BasePeer< Handler, Impl >::strand_

protected

Definition at line 35 of file BasePeer.h.

ios_

IOList* xrpl::IOList::Work::ios_ = nullptr

privateinherited

Definition at line 25 of file io_list.h.
