Represents a proposed position taken during a round of consensus. More...

#include <ConsensusProposal.h>

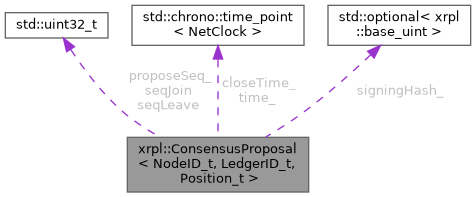

Collaboration diagram for xrpl::ConsensusProposal< NodeId, LedgerId, Position >:

[legend]

Public Types
using	NodeID = NodeId

Public Member Functions
	ConsensusProposal (LedgerId const &prevLedger, std::uint32_t seq, Position const &position, NetClock::time_point closeTime, NetClock::time_point now, NodeId const &nodeID)
	Constructor.
NodeId const &	nodeID () const
	Identifying which peer took this position.
Position const &	position () const
	Get the proposed position.
LedgerId const &	prevLedger () const
	Get the prior accepted ledger this position is based on.
std::uint32_t	proposeSeq () const
	Get the sequence number of this proposal.
NetClock::time_point const &	closeTime () const
	The current position on the consensus close time.
NetClock::time_point const &	seenTime () const
	Get when this position was taken.
bool	isInitial () const
	Whether this is the first position taken during the current consensus round.
bool	isBowOut () const
	Get whether this node left the consensus process.
bool	isStale (NetClock::time_point cutoff) const
	Get whether this position is stale relative to the provided cutoff.
void	changePosition (Position const &newPosition, NetClock::time_point newCloseTime, NetClock::time_point now)
	Update the position during the consensus process.
void	bowOut (NetClock::time_point now)
	Leave consensus.
std::string	render () const
json::Value	getJson () const
	Get JSON representation for debugging.
uint256 const &	signingHash () const
	The digest for this proposal, used for signing purposes.

Static Public Attributes
static std::uint32_t const	kSeqJoin = 0
static std::uint32_t const	kSeqLeave = 0xffffffff

Private Attributes
LedgerId	previousLedger_
	Unique identifier of prior ledger this proposal is based on.
Position	position_
	Unique identifier of the position this proposal is taking.
NetClock::time_point	closeTime_
	The ledger close time this position is taking.
NetClock::time_point	time_
std::uint32_t	proposeSeq_
	The sequence number of these positions taken by this node.
NodeId	nodeID_
	The identifier of the node taking this position.
std::optional< uint256 >	signingHash_
	The signing hash for this proposal.

Detailed Description

template<class NodeId, class LedgerId, class Position>
class xrpl::ConsensusProposal< NodeId, LedgerId, Position >

Represents a proposed position taken during a round of consensus.

During consensus, peers seek agreement on a set of transactions to apply to the prior ledger to generate the next ledger. Each peer takes a position on whether to include or exclude potential transactions. The position on the set of transactions is proposed to its peers as an instance of the ConsensusProposal class.

An instance of ConsensusProposal can be either our own proposal or one of our peer's.

As consensus proceeds, peers may change their position on the transaction, or choose to abstain. Each successive proposal includes a strictly monotonically increasing number (or, if a peer is choosing to abstain, the special value kSeqLeave).

Refer to Consensus for requirements of the template arguments.

Template Parameters

NodeId	Type used to uniquely identify nodes/peers
LedgerId	Type used to uniquely identify ledgers
Position	Type used to represent the position taken on transactions under consideration during this round of consensus

Definition at line 39 of file ConsensusProposal.h.

Member Typedef Documentation

◆ NodeID

template<class NodeId, class LedgerId, class Position>

using xrpl::ConsensusProposal< NodeId, LedgerId, Position >::NodeID = NodeId

Definition at line 42 of file ConsensusProposal.h.

Constructor & Destructor Documentation

◆ ConsensusProposal()

template<class NodeId, class LedgerId, class Position>

xrpl::ConsensusProposal< NodeId, LedgerId, Position >::ConsensusProposal	(	LedgerId const &	prevLedger,
		std::uint32_t	seq,
		Position const &	position,
		NetClock::time_point	closeTime,
		NetClock::time_point	now,
		NodeId const &	nodeID )

Constructor.

Parameters

prevLedger	The previous ledger this proposal is building on.
seq	The sequence number of this proposal.
position	The position taken on transactions in this round.
closeTime	Position of when this ledger closed.
now	Time when the proposal was taken.
nodeID	ID of node/peer taking this position.

Definition at line 59 of file ConsensusProposal.h.

Member Function Documentation

◆ nodeID()

template<class NodeId, class LedgerId, class Position>

NodeId const & xrpl::ConsensusProposal< NodeId, LedgerId, Position >::nodeID ( ) const

Identifying which peer took this position.

Definition at line 77 of file ConsensusProposal.h.

◆ position()

template<class NodeId, class LedgerId, class Position>

Position const & xrpl::ConsensusProposal< NodeId, LedgerId, Position >::position ( ) const

Get the proposed position.

Definition at line 84 of file ConsensusProposal.h.

◆ prevLedger()

template<class NodeId, class LedgerId, class Position>

LedgerId const & xrpl::ConsensusProposal< NodeId, LedgerId, Position >::prevLedger ( ) const

Get the prior accepted ledger this position is based on.

Definition at line 91 of file ConsensusProposal.h.

◆ proposeSeq()

template<class NodeId, class LedgerId, class Position>

std::uint32_t xrpl::ConsensusProposal< NodeId, LedgerId, Position >::proposeSeq ( ) const

Get the sequence number of this proposal.

Starting with an initial sequence number of kSeqJoin, successive proposals from a peer will increase the sequence number.

Returns: the sequence number

Definition at line 104 of file ConsensusProposal.h.

◆ closeTime()

template<class NodeId, class LedgerId, class Position>

NetClock::time_point const & xrpl::ConsensusProposal< NodeId, LedgerId, Position >::closeTime ( ) const

The current position on the consensus close time.

Definition at line 111 of file ConsensusProposal.h.

◆ seenTime()

template<class NodeId, class LedgerId, class Position>

NetClock::time_point const & xrpl::ConsensusProposal< NodeId, LedgerId, Position >::seenTime ( ) const

Get when this position was taken.

Definition at line 118 of file ConsensusProposal.h.

◆ isInitial()

template<class NodeId, class LedgerId, class Position>

bool xrpl::ConsensusProposal< NodeId, LedgerId, Position >::isInitial ( ) const

Whether this is the first position taken during the current consensus round.

Definition at line 127 of file ConsensusProposal.h.

◆ isBowOut()

template<class NodeId, class LedgerId, class Position>

bool xrpl::ConsensusProposal< NodeId, LedgerId, Position >::isBowOut ( ) const

Get whether this node left the consensus process.

Definition at line 134 of file ConsensusProposal.h.

◆ isStale()

template<class NodeId, class LedgerId, class Position>

bool xrpl::ConsensusProposal< NodeId, LedgerId, Position >::isStale ( NetClock::time_point cutoff ) const

Get whether this position is stale relative to the provided cutoff.

Definition at line 141 of file ConsensusProposal.h.

◆ changePosition()

template<class NodeId, class LedgerId, class Position>

void xrpl::ConsensusProposal< NodeId, LedgerId, Position >::changePosition	(	Position const &	newPosition,
		NetClock::time_point	newCloseTime,
		NetClock::time_point	now )

Update the position during the consensus process.

This will increment the proposal's sequence number if it has not already bowed out.

Parameters

newPosition	The new position taken.
newCloseTime	The new close time.
now	the time The new position was taken

Definition at line 154 of file ConsensusProposal.h.

◆ bowOut()

template<class NodeId, class LedgerId, class Position>

void xrpl::ConsensusProposal< NodeId, LedgerId, Position >::bowOut ( NetClock::time_point now )

Leave consensus.

Update position to indicate the node left consensus.

Parameters

now	Time when this node left consensus.

Definition at line 174 of file ConsensusProposal.h.

◆ render()

template<class NodeId, class LedgerId, class Position>

std::string xrpl::ConsensusProposal< NodeId, LedgerId, Position >::render ( ) const

Definition at line 182 of file ConsensusProposal.h.

◆ getJson()

template<class NodeId, class LedgerId, class Position>

json::Value xrpl::ConsensusProposal< NodeId, LedgerId, Position >::getJson ( ) const

Get JSON representation for debugging.

Definition at line 194 of file ConsensusProposal.h.

◆ signingHash()

template<class NodeId, class LedgerId, class Position>

uint256 const & xrpl::ConsensusProposal< NodeId, LedgerId, Position >::signingHash ( ) const

The digest for this proposal, used for signing purposes.

Definition at line 214 of file ConsensusProposal.h.

Member Data Documentation

◆ kSeqJoin

template<class NodeId, class LedgerId, class Position>

std::uint32_t const xrpl::ConsensusProposal< NodeId, LedgerId, Position >::kSeqJoin = 0

static

Definition at line 45 of file ConsensusProposal.h.

◆ kSeqLeave

template<class NodeId, class LedgerId, class Position>

std::uint32_t const xrpl::ConsensusProposal< NodeId, LedgerId, Position >::kSeqLeave = 0xffffffff

static

Definition at line 48 of file ConsensusProposal.h.

◆ previousLedger_

template<class NodeId, class LedgerId, class Position>

LedgerId xrpl::ConsensusProposal< NodeId, LedgerId, Position >::previousLedger_

private

Unique identifier of prior ledger this proposal is based on.

Definition at line 231 of file ConsensusProposal.h.

◆ position_

template<class NodeId, class LedgerId, class Position>

Position xrpl::ConsensusProposal< NodeId, LedgerId, Position >::position_

private

Unique identifier of the position this proposal is taking.

Definition at line 234 of file ConsensusProposal.h.

◆ closeTime_

template<class NodeId, class LedgerId, class Position>

NetClock::time_point xrpl::ConsensusProposal< NodeId, LedgerId, Position >::closeTime_

private

The ledger close time this position is taking.

Definition at line 237 of file ConsensusProposal.h.

◆ time_

template<class NodeId, class LedgerId, class Position>

NetClock::time_point xrpl::ConsensusProposal< NodeId, LedgerId, Position >::time_

private

Definition at line 240 of file ConsensusProposal.h.

◆ proposeSeq_

template<class NodeId, class LedgerId, class Position>

std::uint32_t xrpl::ConsensusProposal< NodeId, LedgerId, Position >::proposeSeq_

private

The sequence number of these positions taken by this node.

Definition at line 243 of file ConsensusProposal.h.

◆ nodeID_

template<class NodeId, class LedgerId, class Position>

NodeId xrpl::ConsensusProposal< NodeId, LedgerId, Position >::nodeID_

private

The identifier of the node taking this position.

Definition at line 246 of file ConsensusProposal.h.

◆ signingHash_

template<class NodeId, class LedgerId, class Position>

std::optional<uint256> xrpl::ConsensusProposal< NodeId, LedgerId, Position >::signingHash_

mutableprivate

The signing hash for this proposal.

Definition at line 249 of file ConsensusProposal.h.
