xrpl::GRPCServerImpl Class Reference

#include <GRPCServer.h>

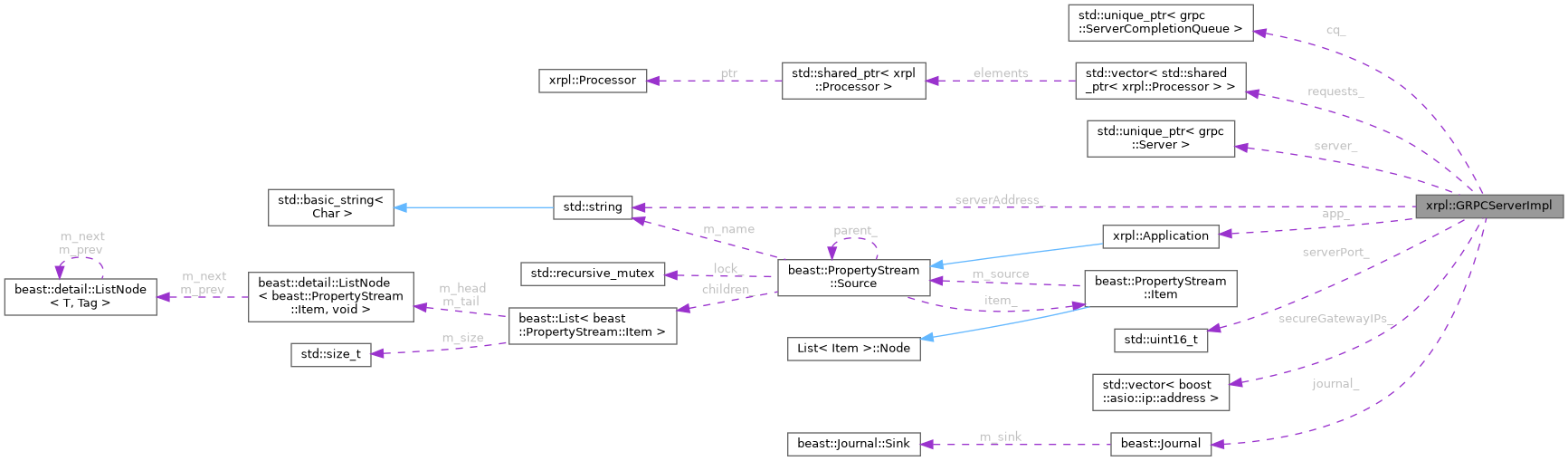

Collaboration diagram for xrpl::GRPCServerImpl:

Classes
class	CallData

Public Member Functions
	GRPCServerImpl (Application &app)
	GRPCServerImpl (GRPCServerImpl const &)=delete
GRPCServerImpl &	operator= (GRPCServerImpl const &)=delete
void	shutdown ()
bool	start ()
void	handleRpcs ()
std::vector< std::shared_ptr< Processor > >	setupListeners ()
boost::asio::ip::tcp::endpoint	getEndpoint () const

Private Types
template<class Request, class Response>
using	BindListener
template<class Request, class Response>
using	Handler = std::function<std::pair<Response, grpc::Status>(rpc::GRPCContext<Request>&)>
template<class Request, class Response>
using	Forward

Private Member Functions
std::shared_ptr< grpc::ServerCredentials >	createServerCredentials ()

Private Attributes
std::unique_ptr< grpc::ServerCompletionQueue >	cq_
std::vector< std::shared_ptr< Processor > >	requests_
org::xrpl::rpc::v1::XRPLedgerAPIService::AsyncService	service_
std::unique_ptr< grpc::Server >	server_
Application &	app_
std::string	serverAddress_
std::uint16_t	serverPort_ = 0
std::vector< boost::asio::ip::address >	secureGatewayIPs_
std::optional< std::string >	sslCertPath_
std::optional< std::string >	sslKeyPath_
std::optional< std::string >	sslCertChainPath_
std::optional< std::string >	sslClientCAPath_
beast::Journal	journal_

Static Private Attributes
static constexpr unsigned	kApiVersion = 1

Detailed Description

Definition at line 59 of file GRPCServer.h.

Member Typedef Documentation

BindListener

template<class Request, class Response>

using xrpl::GRPCServerImpl::BindListener

private

Initial value:

std::function<void(
       org::xrpl::rpc::v1::XRPLedgerAPIService::AsyncService&,
       grpc::ServerContext*,
       Request*,
       grpc::ServerAsyncResponseWriter<Response>*,
       grpc::CompletionQueue*,
       grpc::ServerCompletionQueue*,
       void*)>

Definition at line 93 of file GRPCServer.h.

Handler

template<class Request, class Response>

using xrpl::GRPCServerImpl::Handler = std::function<std::pair<Response, grpc::Status>(rpc::GRPCContext<Request>&)>

private

Definition at line 105 of file GRPCServer.h.

Forward

template<class Request, class Response>

using xrpl::GRPCServerImpl::Forward

private

Initial value:

std::function<grpc::Status(
       org::xrpl::rpc::v1::XRPLedgerAPIService::Stub*,
       grpc::ClientContext*,
       Request,
       Response*)>

Definition at line 110 of file GRPCServer.h.

Constructor & Destructor Documentation

GRPCServerImpl() [1/2]

xrpl::GRPCServerImpl::GRPCServerImpl ( Application & app )

explicit

Definition at line 336 of file GRPCServer.cpp.

GRPCServerImpl() [2/2]

xrpl::GRPCServerImpl::GRPCServerImpl ( GRPCServerImpl const & )

delete

Member Function Documentation

operator=()

GRPCServerImpl & xrpl::GRPCServerImpl::operator= ( GRPCServerImpl const & )

delete

shutdown()

void xrpl::GRPCServerImpl::shutdown

(

)

Definition at line 440 of file GRPCServer.cpp.

start()

bool xrpl::GRPCServerImpl::start

(

)

Definition at line 705 of file GRPCServer.cpp.

handleRpcs()

void xrpl::GRPCServerImpl::handleRpcs

(

)

Definition at line 462 of file GRPCServer.cpp.

setupListeners()

std::vector< std::shared_ptr< Processor > > xrpl::GRPCServerImpl::setupListeners

(

)

Definition at line 529 of file GRPCServer.cpp.

getEndpoint()

boost::asio::ip::tcp::endpoint xrpl::GRPCServerImpl::getEndpoint ( ) const

nodiscard

Definition at line 772 of file GRPCServer.cpp.

createServerCredentials()

std::shared_ptr< grpc::ServerCredentials > xrpl::GRPCServerImpl::createServerCredentials ( )

private

Definition at line 607 of file GRPCServer.cpp.

Member Data Documentation

cq_

std::unique_ptr<grpc::ServerCompletionQueue> xrpl::GRPCServerImpl::cq_

private

Definition at line 64 of file GRPCServer.h.

requests_

std::vector<std::shared_ptr<Processor> > xrpl::GRPCServerImpl::requests_

private

Definition at line 66 of file GRPCServer.h.

service_

org::xrpl::rpc::v1::XRPLedgerAPIService::AsyncService xrpl::GRPCServerImpl::service_

private

Definition at line 69 of file GRPCServer.h.

server_

std::unique_ptr<grpc::Server> xrpl::GRPCServerImpl::server_

private

Definition at line 71 of file GRPCServer.h.

app_

Application& xrpl::GRPCServerImpl::app_

private

Definition at line 73 of file GRPCServer.h.

serverAddress_

std::string xrpl::GRPCServerImpl::serverAddress_

private

Definition at line 75 of file GRPCServer.h.

serverPort_

std::uint16_t xrpl::GRPCServerImpl::serverPort_ = 0

private

Definition at line 76 of file GRPCServer.h.

secureGatewayIPs_

std::vector<boost::asio::ip::address> xrpl::GRPCServerImpl::secureGatewayIPs_

private

Definition at line 78 of file GRPCServer.h.

sslCertPath_

std::optional<std::string> xrpl::GRPCServerImpl::sslCertPath_

private

Definition at line 81 of file GRPCServer.h.

sslKeyPath_

std::optional<std::string> xrpl::GRPCServerImpl::sslKeyPath_

private

Definition at line 82 of file GRPCServer.h.

sslCertChainPath_

std::optional<std::string> xrpl::GRPCServerImpl::sslCertChainPath_

private

Definition at line 83 of file GRPCServer.h.

sslClientCAPath_

std::optional<std::string> xrpl::GRPCServerImpl::sslClientCAPath_

private

Definition at line 85 of file GRPCServer.h.

journal_

beast::Journal xrpl::GRPCServerImpl::journal_

private

Definition at line 87 of file GRPCServer.h.

kApiVersion

unsigned xrpl::GRPCServerImpl::kApiVersion = 1

staticconstexprprivate

Definition at line 107 of file GRPCServer.h.
