Inheritance diagram for xrpl::InboundLedgersImp:

Collaboration diagram for xrpl::InboundLedgersImp:

[legend]

Public Types
using	clock_type = beast::abstract_clock< std::chrono::steady_clock >

Public Member Functions
	InboundLedgersImp (Application &app, clock_type &clock, beast::insight::Collector::ptr const &collector, std::unique_ptr< PeerSetBuilder > peerSetBuilder)

std::shared_ptr< Ledger const >	acquire (uint256 const &hash, std::uint32_t seq, InboundLedger::Reason reason) override

void	acquireAsync (uint256 const &hash, std::uint32_t seq, InboundLedger::Reason reason) override

std::shared_ptr< InboundLedger >	find (uint256 const &hash) override

bool	gotLedgerData (LedgerHash const &hash, std::shared_ptr< Peer > peer, std::shared_ptr< protocol::TMLedgerData > packet) override
	We received a TMLedgerData from a peer.

void	logFailure (uint256 const &h, std::uint32_t seq) override

bool	isFailure (uint256 const &h) override

void	gotStaleData (std::shared_ptr< protocol::TMLedgerData > packet_ptr) override
	We got some data for a ledger we are no longer acquiring Since we paid the price to receive it, we might as well stash it in case we need it.

void	clearFailures () override

std::size_t	fetchRate () override
	Returns the rate of historical ledger fetches per minute.

void	onLedgerFetched () override
	Called when a complete ledger is obtained.

Json::Value	getInfo () override

void	gotFetchPack () override

void	sweep () override

void	stop () override

std::size_t	cacheSize () override

virtual std::shared_ptr< InboundLedger >	find (LedgerHash const &hash)=0

Static Public Attributes
static constexpr std::chrono::minutes const	kReacquireInterval {5}

Private Types
using	ScopedLockType = std::unique_lock< std::recursive_mutex >

using	MapType = hash_map< uint256, std::shared_ptr< InboundLedger > >

Private Attributes
Application &	app_

std::mutex	fetchRateMutex_

DecayWindow< 30, clock_type >	fetchRate_

beast::Journal const	j_

clock_type &	m_clock

std::recursive_mutex	mLock

bool	stopping_ = false

MapType	mLedgers

beast::aged_map< uint256, std::uint32_t >	mRecentFailures

beast::insight::Counter	mCounter

std::unique_ptr< PeerSetBuilder >	mPeerSetBuilder

std::set< uint256 >	pendingAcquires_

std::mutex	acquiresMutex_

Detailed Description

Definition at line 21 of file InboundLedgers.cpp.

Member Typedef Documentation

◆ ScopedLockType

using xrpl::InboundLedgersImp::ScopedLockType = std::unique_lock<std::recursive_mutex>

private

Definition at line 431 of file InboundLedgers.cpp.

◆ MapType

using xrpl::InboundLedgersImp::MapType = hash_map<uint256, std::shared_ptr<InboundLedger> >

private

Definition at line 435 of file InboundLedgers.cpp.

◆ clock_type

using xrpl::InboundLedgers::clock_type = beast::abstract_clock<std::chrono::steady_clock>

inherited

Definition at line 17 of file InboundLedgers.h.

Constructor & Destructor Documentation

◆ InboundLedgersImp()

xrpl::InboundLedgersImp::InboundLedgersImp	(	Application &	app,
		clock_type &	clock,
		beast::insight::Collector::ptr const &	collector,
		std::unique_ptr< PeerSetBuilder >	peerSetBuilder
	)

Definition at line 34 of file InboundLedgers.cpp.

Member Function Documentation

◆ acquire()

std::shared_ptr< Ledger const > xrpl::InboundLedgersImp::acquire	(	uint256 const &	hash,
		std::uint32_t	seq,
		InboundLedger::Reason	reason
	)

overridevirtual

Implements xrpl::InboundLedgers.

Definition at line 51 of file InboundLedgers.cpp.

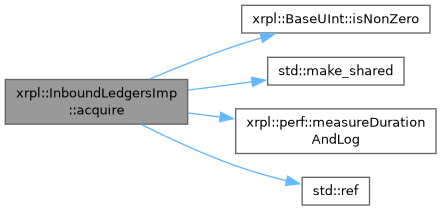

Here is the call graph for this function:

◆ acquireAsync()

void xrpl::InboundLedgersImp::acquireAsync	(	uint256 const &	hash,
		std::uint32_t	seq,
		InboundLedger::Reason	reason
	)

overridevirtual

Implements xrpl::InboundLedgers.

Definition at line 116 of file InboundLedgers.cpp.

◆ find() [1/2]

std::shared_ptr< InboundLedger > xrpl::InboundLedgersImp::find ( uint256 const & hash )

override

Definition at line 146 of file InboundLedgers.cpp.

◆ gotLedgerData()

bool xrpl::InboundLedgersImp::gotLedgerData	(	LedgerHash const &	hash,
		std::shared_ptr< Peer >	peer,
		std::shared_ptr< protocol::TMLedgerData >	packet
	)

overridevirtual

We received a TMLedgerData from a peer.

Implements xrpl::InboundLedgers.

Definition at line 181 of file InboundLedgers.cpp.

◆ logFailure()

void xrpl::InboundLedgersImp::logFailure	(	uint256 const &	h,
		std::uint32_t	seq
	)

overridevirtual

Implements xrpl::InboundLedgers.

Definition at line 219 of file InboundLedgers.cpp.

◆ isFailure()

bool xrpl::InboundLedgersImp::isFailure ( uint256 const & h )

overridevirtual

Implements xrpl::InboundLedgers.

Definition at line 227 of file InboundLedgers.cpp.

◆ gotStaleData()

void xrpl::InboundLedgersImp::gotStaleData ( std::shared_ptr< protocol::TMLedgerData > packet_ptr )

overridevirtual

We got some data for a ledger we are no longer acquiring Since we paid the price to receive it, we might as well stash it in case we need it.

Nodes are received in wire format and must be stashed/hashed in prefix format

Implements xrpl::InboundLedgers.

Definition at line 242 of file InboundLedgers.cpp.

◆ clearFailures()

void xrpl::InboundLedgersImp::clearFailures ( )

overridevirtual

Implements xrpl::InboundLedgers.

Definition at line 274 of file InboundLedgers.cpp.

◆ fetchRate()

std::size_t xrpl::InboundLedgersImp::fetchRate ( )

overridevirtual

Returns the rate of historical ledger fetches per minute.

Implements xrpl::InboundLedgers.

Definition at line 283 of file InboundLedgers.cpp.

◆ onLedgerFetched()

void xrpl::InboundLedgersImp::onLedgerFetched ( )

overridevirtual

Called when a complete ledger is obtained.

Implements xrpl::InboundLedgers.

Definition at line 292 of file InboundLedgers.cpp.

◆ getInfo()

Json::Value xrpl::InboundLedgersImp::getInfo ( )

overridevirtual

Implements xrpl::InboundLedgers.

Definition at line 299 of file InboundLedgers.cpp.

◆ gotFetchPack()

void xrpl::InboundLedgersImp::gotFetchPack ( )

overridevirtual

Implements xrpl::InboundLedgers.

Definition at line 339 of file InboundLedgers.cpp.

◆ sweep()

void xrpl::InboundLedgersImp::sweep ( )

overridevirtual

Implements xrpl::InboundLedgers.

Definition at line 363 of file InboundLedgers.cpp.

◆ stop()

void xrpl::InboundLedgersImp::stop ( )

overridevirtual

Implements xrpl::InboundLedgers.

Definition at line 413 of file InboundLedgers.cpp.

◆ cacheSize()

std::size_t xrpl::InboundLedgersImp::cacheSize ( )

overridevirtual

Implements xrpl::InboundLedgers.

Definition at line 422 of file InboundLedgers.cpp.

◆ find() [2/2]

virtual std::shared_ptr< InboundLedger > xrpl::InboundLedgers::find ( LedgerHash const & hash )

pure virtualinherited

Implemented in xrpl::test::MagicInboundLedgers.

Member Data Documentation

◆ app_

Application& xrpl::InboundLedgersImp::app_

private

Definition at line 24 of file InboundLedgers.cpp.

◆ fetchRateMutex_

std::mutex xrpl::InboundLedgersImp::fetchRateMutex_

private

Definition at line 25 of file InboundLedgers.cpp.

◆ fetchRate_

DecayWindow<30, clock_type> xrpl::InboundLedgersImp::fetchRate_

private

Definition at line 27 of file InboundLedgers.cpp.

◆ j_

beast::Journal const xrpl::InboundLedgersImp::j_

private

Definition at line 28 of file InboundLedgers.cpp.

◆ kReacquireInterval

constexpr std::chrono::minutes const xrpl::InboundLedgersImp::kReacquireInterval {5}

staticconstexpr

Definition at line 32 of file InboundLedgers.cpp.

◆ m_clock

clock_type& xrpl::InboundLedgersImp::m_clock

private

Definition at line 429 of file InboundLedgers.cpp.

◆ mLock

std::recursive_mutex xrpl::InboundLedgersImp::mLock

private

Definition at line 432 of file InboundLedgers.cpp.

◆ stopping_

bool xrpl::InboundLedgersImp::stopping_ = false

private

Definition at line 434 of file InboundLedgers.cpp.

◆ mLedgers

MapType xrpl::InboundLedgersImp::mLedgers

private

Definition at line 436 of file InboundLedgers.cpp.

◆ mRecentFailures

beast::aged_map<uint256, std::uint32_t> xrpl::InboundLedgersImp::mRecentFailures

private

Definition at line 438 of file InboundLedgers.cpp.

◆ mCounter

beast::insight::Counter xrpl::InboundLedgersImp::mCounter

private

Definition at line 440 of file InboundLedgers.cpp.

◆ mPeerSetBuilder

std::unique_ptr<PeerSetBuilder> xrpl::InboundLedgersImp::mPeerSetBuilder

private

Definition at line 442 of file InboundLedgers.cpp.

◆ pendingAcquires_

std::set<uint256> xrpl::InboundLedgersImp::pendingAcquires_

private

Definition at line 444 of file InboundLedgers.cpp.

◆ acquiresMutex_

std::mutex xrpl::InboundLedgersImp::acquiresMutex_

private

Definition at line 445 of file InboundLedgers.cpp.
