xrpl::InboundTransactionsImp Class Reference

Inheritance diagram for xrpl::InboundTransactionsImp:

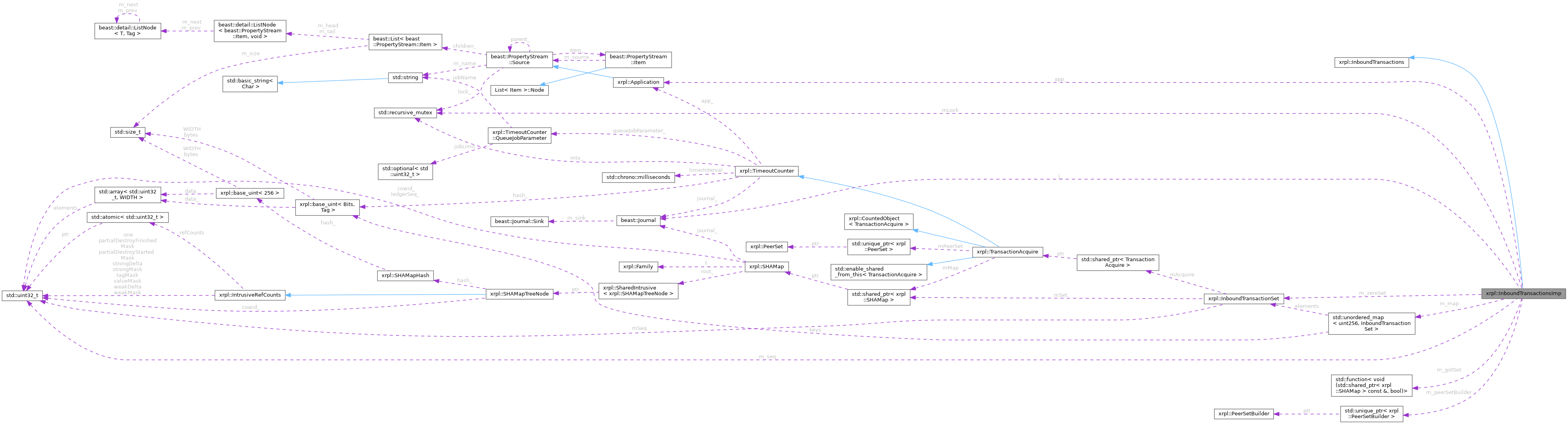

Collaboration diagram for xrpl::InboundTransactionsImp:

Public Types
using	clock_type = beast::AbstractClock<std::chrono::steady_clock>

Public Member Functions
	InboundTransactionsImp (Application &app, beast::insight::Collector::ptr const &collector, std::function< void(std::shared_ptr< SHAMap > const &, bool)> gotSet, std::unique_ptr< PeerSetBuilder > peerSetBuilder)
TransactionAcquire::pointer	getAcquire (uint256 const &hash)
std::shared_ptr< SHAMap >	getSet (uint256 const &hash, bool acquire) override
	Find and return a transaction set, or nullptr if it is missing.
void	gotData (LedgerHash const &hash, std::shared_ptr< Peer > peer, std::shared_ptr< protocol::TMLedgerData > packetPtr) override
	We received a TMLedgerData from a peer.
void	giveSet (uint256 const &hash, std::shared_ptr< SHAMap > const &set, bool fromAcquire) override
	Add a transaction set.
void	newRound (std::uint32_t seq) override
	Informs the container if a new consensus round.
void	stop () override
virtual void	gotData (uint256 const &setHash, std::shared_ptr< Peer > peer, std::shared_ptr< protocol::TMLedgerData > message)=0
	Add a transaction set from a LedgerData message.

Private Types
using	MapType = hash_map<uint256, InboundTransactionSet>

Private Attributes
Application &	app_
std::recursive_mutex	lock_
bool	stopping_ {false}
MapType	map_
std::uint32_t	seq_ {0}
InboundTransactionSet &	zeroSet_
std::function< void(std::shared_ptr< SHAMap > const &, bool)>	gotSet_
std::unique_ptr< PeerSetBuilder >	peerSetBuilder_
beast::Journal	j_

Detailed Description

Definition at line 53 of file InboundTransactions.cpp.

Member Typedef Documentation

MapType

using xrpl::InboundTransactionsImp::MapType = hash_map<uint256, InboundTransactionSet>

private

Definition at line 237 of file InboundTransactions.cpp.

clock_type

using xrpl::InboundTransactions::clock_type = beast::AbstractClock<std::chrono::steady_clock>

inherited

Definition at line 20 of file InboundTransactions.h.

Constructor & Destructor Documentation

InboundTransactionsImp()

xrpl::InboundTransactionsImp::InboundTransactionsImp	(	Application &	app,
		beast::insight::Collector::ptr const &	collector,
		std::function< void(std::shared_ptr< SHAMap > const &, bool)>	gotSet,
		std::unique_ptr< PeerSetBuilder >	peerSetBuilder )

Definition at line 56 of file InboundTransactions.cpp.

Member Function Documentation

getAcquire()

TransactionAcquire::pointer xrpl::InboundTransactionsImp::getAcquire

(

uint256 const &

hash

)

Definition at line 73 of file InboundTransactions.cpp.

getSet()

std::shared_ptr< SHAMap > xrpl::InboundTransactionsImp::getSet ( uint256 const & setHash, bool acquire )

overridevirtual

Find and return a transaction set, or nullptr if it is missing.

Parameters

setHash	The transaction set ID (digest of the SHAMap root node).
acquire	Whether to fetch the transaction set from the network if it is missing.

Returns

The transaction set with ID setHash, or nullptr if it is missing.

Implements xrpl::InboundTransactions.

Definition at line 87 of file InboundTransactions.cpp.

gotData() [1/2]

void xrpl::InboundTransactionsImp::gotData ( LedgerHash const & hash, std::shared_ptr< Peer > peer, std::shared_ptr< protocol::TMLedgerData > packetPtr )

override

We received a TMLedgerData from a peer.

Definition at line 125 of file InboundTransactions.cpp.

giveSet()

void xrpl::InboundTransactionsImp::giveSet ( uint256 const & setHash, std::shared_ptr< SHAMap > const & set, bool acquired )

overridevirtual

Add a transaction set.

Parameters

setHash	The transaction set ID (should match set.getHash()).
set	The transaction set.
acquired	Whether this transaction set was acquired from a peer, or constructed by ourself during consensus.

Implements xrpl::InboundTransactions.

Definition at line 170 of file InboundTransactions.cpp.

newRound()

void xrpl::InboundTransactionsImp::newRound ( std::uint32_t seq )

overridevirtual

Informs the container if a new consensus round.

Implements xrpl::InboundTransactions.

Definition at line 198 of file InboundTransactions.cpp.

stop()

void xrpl::InboundTransactionsImp::stop ( )

overridevirtual

Implements xrpl::InboundTransactions.

Definition at line 229 of file InboundTransactions.cpp.

gotData() [2/2]

virtual void xrpl::InboundTransactions::gotData ( uint256 const & setHash, std::shared_ptr< Peer > peer, std::shared_ptr< protocol::TMLedgerData > message )

pure virtualinherited

Add a transaction set from a LedgerData message.

Parameters

setHash	The transaction set ID (digest of the SHAMap root node).
peer	The peer that sent the message.
message	The LedgerData message.

Member Data Documentation

app_

Application& xrpl::InboundTransactionsImp::app_

private

Definition at line 239 of file InboundTransactions.cpp.

lock_

std::recursive_mutex xrpl::InboundTransactionsImp::lock_

private

Definition at line 241 of file InboundTransactions.cpp.

stopping_

bool xrpl::InboundTransactionsImp::stopping_ {false}

private

Definition at line 243 of file InboundTransactions.cpp.

map_

MapType xrpl::InboundTransactionsImp::map_

private

Definition at line 244 of file InboundTransactions.cpp.

seq_

std::uint32_t xrpl::InboundTransactionsImp::seq_ {0}

private

Definition at line 245 of file InboundTransactions.cpp.

zeroSet_

InboundTransactionSet& xrpl::InboundTransactionsImp::zeroSet_

private

Definition at line 248 of file InboundTransactions.cpp.

gotSet_

std::function<void(std::shared_ptr<SHAMap> const&, bool)> xrpl::InboundTransactionsImp::gotSet_

private

Definition at line 250 of file InboundTransactions.cpp.

peerSetBuilder_

std::unique_ptr<PeerSetBuilder> xrpl::InboundTransactionsImp::peerSetBuilder_

private

Definition at line 252 of file InboundTransactions.cpp.

j_

beast::Journal xrpl::InboundTransactionsImp::j_

private

Definition at line 254 of file InboundTransactions.cpp.
