xrpl::LedgerHistory Class Reference

Retains historical ledgers. More...

#include <LedgerHistory.h>

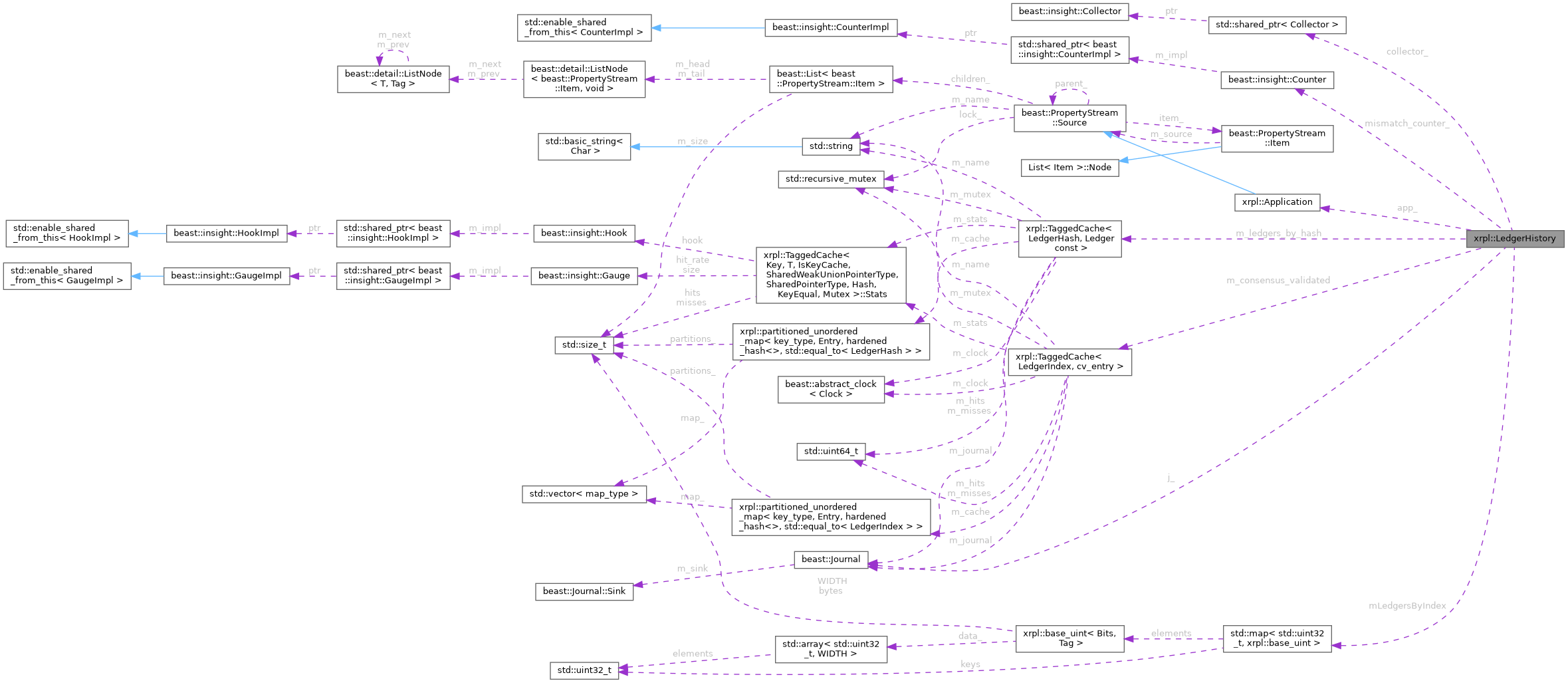

Collaboration diagram for xrpl::LedgerHistory:

Classes
struct	cv_entry

Public Member Functions
	LedgerHistory (beast::insight::Collector::ptr const &collector, Application &app)
bool	insert (std::shared_ptr< Ledger const > const &ledger, bool validated)
	Track a ledger.
float	getCacheHitRate ()
	Get the ledgers_by_hash cache hit rate.
std::shared_ptr< Ledger const >	getLedgerBySeq (LedgerIndex ledgerIndex)
	Get a ledger given its sequence number.
std::shared_ptr< Ledger const >	getLedgerByHash (LedgerHash const &ledgerHash)
	Retrieve a ledger given its hash.
LedgerHash	getLedgerHash (LedgerIndex ledgerIndex)
	Get a ledger's hash given its sequence number.
void	sweep ()
	Remove stale cache entries.
void	builtLedger (std::shared_ptr< Ledger const > const &, uint256 const &consensusHash, Json::Value)
	Report that we have locally built a particular ledger.
void	validatedLedger (std::shared_ptr< Ledger const > const &, std::optional< uint256 > const &consensusHash)
	Report that we have validated a particular ledger.
bool	fixIndex (LedgerIndex ledgerIndex, LedgerHash const &ledgerHash)
	Repair a hash to index mapping.
void	clearLedgerCachePrior (LedgerIndex seq)

Private Types
using	LedgersByHash = TaggedCache< LedgerHash, Ledger const >
using	ConsensusValidated = TaggedCache< LedgerIndex, cv_entry >

Private Member Functions
void	handleMismatch (LedgerHash const &built, LedgerHash const &valid, std::optional< uint256 > const &builtConsensusHash, std::optional< uint256 > const &validatedConsensusHash, Json::Value const &consensus)
	Log details in the case where we build one ledger but validate a different one.

Private Attributes
Application &	app_
beast::insight::Collector::ptr	collector_
beast::insight::Counter	mismatch_counter_
LedgersByHash	m_ledgers_by_hash
ConsensusValidated	m_consensus_validated
std::map< LedgerIndex, LedgerHash >	mLedgersByIndex
beast::Journal	j_

Detailed Description

Retains historical ledgers.

Definition at line 16 of file LedgerHistory.h.

Member Typedef Documentation

LedgersByHash

using xrpl::LedgerHistory::LedgersByHash = TaggedCache<LedgerHash, Ledger const>

private

Definition at line 102 of file LedgerHistory.h.

ConsensusValidated

using xrpl::LedgerHistory::ConsensusValidated = TaggedCache<LedgerIndex, cv_entry>

private

Definition at line 121 of file LedgerHistory.h.

Constructor & Destructor Documentation

LedgerHistory()

xrpl::LedgerHistory::LedgerHistory	(	beast::insight::Collector::ptr const &	collector,
		Application &	app
	)

Definition at line 13 of file LedgerHistory.cpp.

Member Function Documentation

insert()

bool xrpl::LedgerHistory::insert	(	std::shared_ptr< Ledger const > const &	ledger,
		bool	validated
	)

Track a ledger.

Returns

true if the ledger was already tracked

Definition at line 29 of file LedgerHistory.cpp.

getCacheHitRate()

float xrpl::LedgerHistory::getCacheHitRate

(

)

Get the ledgers_by_hash cache hit rate.

Returns

the hit rate

Definition at line 31 of file LedgerHistory.h.

getLedgerBySeq()

std::shared_ptr< Ledger const > xrpl::LedgerHistory::getLedgerBySeq

(

LedgerIndex

ledgerIndex

)

Get a ledger given its sequence number.

Definition at line 55 of file LedgerHistory.cpp.

getLedgerByHash()

std::shared_ptr< Ledger const > xrpl::LedgerHistory::getLedgerByHash

(

LedgerHash const &

ledgerHash

)

Retrieve a ledger given its hash.

Definition at line 88 of file LedgerHistory.cpp.

getLedgerHash()

LedgerHash xrpl::LedgerHistory::getLedgerHash

(

LedgerIndex

ledgerIndex

)

Get a ledger's hash given its sequence number.

Parameters

ledgerIndex

The sequence number of the desired ledger

Returns

The hash of the specified ledger

Definition at line 46 of file LedgerHistory.cpp.

sweep()

void xrpl::LedgerHistory::sweep

(

)

Remove stale cache entries.

Definition at line 54 of file LedgerHistory.h.

builtLedger()

void xrpl::LedgerHistory::builtLedger	(	std::shared_ptr< Ledger const > const &	ledger,
		uint256 const &	consensusHash,
		Json::Value	consensus
	)

Report that we have locally built a particular ledger.

Definition at line 367 of file LedgerHistory.cpp.

validatedLedger()

void xrpl::LedgerHistory::validatedLedger	(	std::shared_ptr< Ledger const > const &	ledger,
		std::optional< uint256 > const &	consensusHash
	)

Report that we have validated a particular ledger.

Definition at line 402 of file LedgerHistory.cpp.

fixIndex()

bool xrpl::LedgerHistory::fixIndex	(	LedgerIndex	ledgerIndex,
		LedgerHash const &	ledgerHash
	)

Repair a hash to index mapping.

Ensure m_ledgers_by_hash doesn't have the wrong hash for a particular index.

Parameters

ledgerIndex	The index whose mapping is to be repaired
ledgerHash	The hash it is to be mapped to

Returns

false if the mapping was repaired

Definition at line 435 of file LedgerHistory.cpp.

clearLedgerCachePrior()

void xrpl::LedgerHistory::clearLedgerCachePrior

(

LedgerIndex

seq

)

Definition at line 449 of file LedgerHistory.cpp.

handleMismatch()

void xrpl::LedgerHistory::handleMismatch ( LedgerHash const &  built, LedgerHash const &  valid, std::optional< uint256 > const &  builtConsensusHash, std::optional< uint256 > const &  validatedConsensusHash, Json::Value const &  consensus  )

private

Log details in the case where we build one ledger but validate a different one.

Parameters

built	The hash of the ledger we built
valid	The hash of the ledger we deemed fully valid
builtConsensusHash	The hash of the consensus transaction for the ledger we built
validatedConsensusHash	The hash of the validated ledger's consensus transaction set
consensus	The status of the consensus round

Definition at line 263 of file LedgerHistory.cpp.

Member Data Documentation

app_

Application& xrpl::LedgerHistory::app_

private

Definition at line 98 of file LedgerHistory.h.

collector_

beast::insight::Collector::ptr xrpl::LedgerHistory::collector_

private

Definition at line 99 of file LedgerHistory.h.

mismatch_counter_

beast::insight::Counter xrpl::LedgerHistory::mismatch_counter_

private

Definition at line 100 of file LedgerHistory.h.

m_ledgers_by_hash

LedgersByHash xrpl::LedgerHistory::m_ledgers_by_hash

private

Definition at line 104 of file LedgerHistory.h.

m_consensus_validated

ConsensusValidated xrpl::LedgerHistory::m_consensus_validated

private

Definition at line 122 of file LedgerHistory.h.

mLedgersByIndex

std::map<LedgerIndex, LedgerHash> xrpl::LedgerHistory::mLedgersByIndex

private

Definition at line 125 of file LedgerHistory.h.

j_

beast::Journal xrpl::LedgerHistory::j_

private

Definition at line 127 of file LedgerHistory.h.
