Remembers manifests with the highest sequence number. More...

#include <Manifest.h>

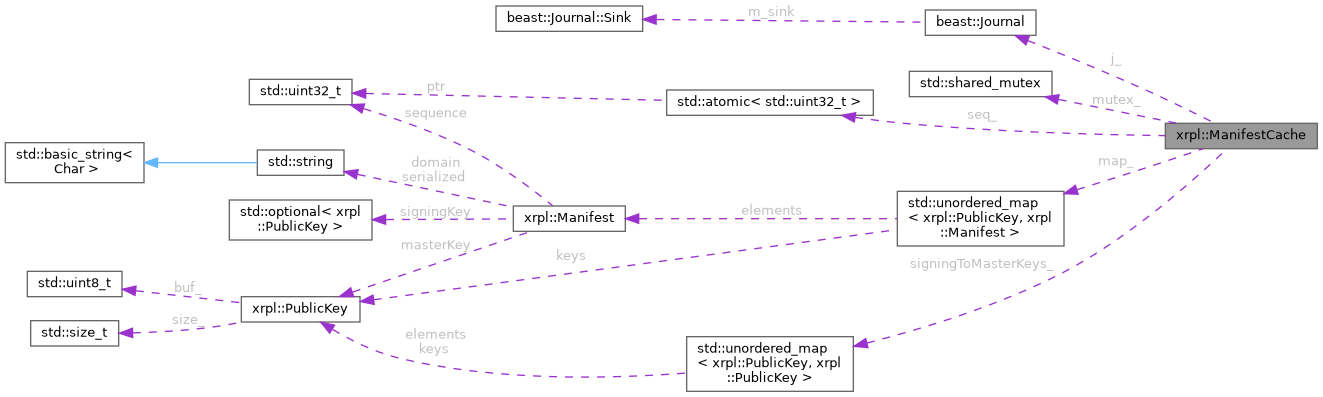

Collaboration diagram for xrpl::ManifestCache:

[legend]

Public Member Functions
	ManifestCache (beast::Journal j=beast::Journal(beast::Journal::getNullSink()), std::size_t maxUntrustedCount=kMaxUntrustedCount)
std::uint32_t	sequence () const
	A monotonically increasing number used to detect new manifests.
std::optional< PublicKey >	getSigningKey (PublicKey const &pk) const
	Returns master key's current signing key.
PublicKey	getMasterKey (PublicKey const &pk) const
	Returns ephemeral signing key's master public key.
std::optional< std::uint32_t >	getSequence (PublicKey const &pk) const
	Returns master key's current manifest sequence.
std::optional< std::string >	getDomain (PublicKey const &pk) const
	Returns domain claimed by a given public key.
std::optional< std::string >	getManifest (PublicKey const &pk) const
	Returns manifest corresponding to a given public key.
bool	revoked (PublicKey const &pk) const
	Returns true if master key has been revoked in a manifest.
ManifestDisposition	applyManifest (Manifest m, ManifestRateLimitCapPolicy cap)
	Add manifest to cache.
void	promoteToTrusted (PublicKey const &pk)
	Stop counting a master key against the untrusted cap.
bool	load (DatabaseCon &dbCon, std::string const &dbTable, std::string const &configManifest, std::vector< std::string > const &configRevocation)
	Populate manifest cache with manifests in database and config.
void	load (DatabaseCon &dbCon, std::string const &dbTable)
	Populate manifest cache with manifests in database.
void	save (DatabaseCon &dbCon, std::string const &dbTable, std::function< bool(PublicKey const &)> const &isTrusted)
	Save cached manifests to database.
template<class Function>
void	forEachManifest (Function &&f) const
	Invokes the callback once for every populated manifest.
template<class PreFun, class EachFun>
void	forEachManifest (PreFun &&pf, EachFun &&f) const
	Invokes the callback once for every populated manifest.

Private Attributes
beast::Journal	j_
std::shared_mutex	mutex_
hash_map< PublicKey, Manifest >	map_
	Active manifests stored by master public key.
hash_map< PublicKey, PublicKey >	signingToMasterKeys_
	Master public keys stored by current ephemeral public key.
std::atomic< std::uint32_t >	seq_ {0}
hash_set< PublicKey >	untrustedKeys_
	Master keys of cached manifests for validators this node does not list.
std::size_t const	maxUntrustedCount_
	Maximum number of untrusted master keys kept in the cache.
std::atomic< std::uint64_t >	untrustedRejectCount_ {0}
	Running count of manifests rejected because the untrusted cap was full.

Static Private Attributes
static constexpr std::uint64_t	kUntrustedRejectCount = 10000
	Number of cap rejections between summary warnings.

Detailed Description

Remembers manifests with the highest sequence number.

Definition at line 373 of file Manifest.h.

Constructor & Destructor Documentation

◆ ManifestCache()

xrpl::ManifestCache::ManifestCache	(	beast::Journal	j = beast::Journal(beast::Journal::getNullSink()),
		std::size_t	maxUntrustedCount = kMaxUntrustedCount )

explicit

Parameters

j	Journal for logging.
maxUntrustedCount	Untrusted master keys to keep. Pass the configured value; defaults to kMaxUntrustedCount. Taken as a parameter because this module cannot depend on the config.

Definition at line 432 of file Manifest.h.

Member Function Documentation

◆ sequence()

std::uint32_t xrpl::ManifestCache::sequence ( ) const

A monotonically increasing number used to detect new manifests.

Definition at line 443 of file Manifest.h.

◆ getSigningKey()

std::optional< PublicKey > xrpl::ManifestCache::getSigningKey ( PublicKey const & pk ) const

Returns master key's current signing key.

Parameters

pk	Master public key

Returns: pk if no known signing key from a manifest

Thread Safety

May be called concurrently

Definition at line 312 of file libxrpl/server/Manifest.cpp.

◆ getMasterKey()

PublicKey xrpl::ManifestCache::getMasterKey ( PublicKey const & pk ) const

Returns ephemeral signing key's master public key.

Parameters

pk	Ephemeral signing public key

Returns: pk if signing key is not in a valid manifest

Thread Safety

May be called concurrently

Definition at line 324 of file libxrpl/server/Manifest.cpp.

◆ getSequence()

std::optional< std::uint32_t > xrpl::ManifestCache::getSequence ( PublicKey const & pk ) const

Returns master key's current manifest sequence.

Returns: sequence corresponding to Master public key if configured or std::nullopt otherwise

Definition at line 335 of file libxrpl/server/Manifest.cpp.

◆ getDomain()

std::optional< std::string > xrpl::ManifestCache::getDomain ( PublicKey const & pk ) const

Returns domain claimed by a given public key.

Returns: domain corresponding to Master public key if present, otherwise std::nullopt

Definition at line 347 of file libxrpl/server/Manifest.cpp.

◆ getManifest()

std::optional< std::string > xrpl::ManifestCache::getManifest ( PublicKey const & pk ) const

Returns manifest corresponding to a given public key.

Returns: manifest corresponding to Master public key if present, otherwise std::nullopt

Definition at line 359 of file libxrpl/server/Manifest.cpp.

◆ revoked()

bool xrpl::ManifestCache::revoked ( PublicKey const & pk ) const

Returns true if master key has been revoked in a manifest.

Parameters

pk	Master public key

Thread Safety

May be called concurrently

Definition at line 371 of file libxrpl/server/Manifest.cpp.

◆ applyManifest()

ManifestDisposition xrpl::ManifestCache::applyManifest	(	Manifest	m,
		ManifestRateLimitCapPolicy	cap )

Add manifest to cache.

A brand-new unlisted key is rejected once the untrusted cap is full; updates to a cached key and Uncapped manifests bypass the cap. The caller decides cap before calling so the cache lock is not held while consulting the validator list, which would risk a lock-ordering deadlock.

Parameters

m	Manifest to add
cap	Uncapped skips the untrusted cap; use it for keys that are listed, configured, or loaded from the DB. Note Uncapped does not assert the key is currently trusted (a DB entry may predate a de-listing). Callers must state this explicitly so a manifest is never left uncapped by omission.

Returns: Accepted if stored, Stale if superseded, Invalid/ BadEphemeralKey if malformed, or UntrustedCapacity if the untrusted cap is full.

Thread Safety

May be called concurrently

Definition at line 383 of file libxrpl/server/Manifest.cpp.

◆ promoteToTrusted()

void xrpl::ManifestCache::promoteToTrusted ( PublicKey const & pk )

Stop counting a master key against the untrusted cap.

Called when a cached untrusted key becomes listed, freeing its slot. Idempotent and a no-op for keys that were never counted.

Parameters

pk	Master public key that is now listed/trusted

Thread Safety

May be called concurrently

Definition at line 596 of file libxrpl/server/Manifest.cpp.

◆ load() [1/2]

bool xrpl::ManifestCache::load	(	DatabaseCon &	dbCon,
		std::string const &	dbTable,
		std::string const &	configManifest,
		std::vector< std::string > const &	configRevocation )

Populate manifest cache with manifests in database and config.

Parameters

dbCon	Database connection with dbTable
dbTable	Database table
configManifest	Base64 encoded manifest for local node's validator keys
configRevocation	Base64 encoded validator key revocation from the config

Thread Safety

May be called concurrently

Definition at line 613 of file libxrpl/server/Manifest.cpp.

◆ load() [2/2]

void xrpl::ManifestCache::load	(	DatabaseCon &	dbCon,
		std::string const &	dbTable )

Populate manifest cache with manifests in database.

Parameters

dbCon	Database connection with dbTable
dbTable	Database table

Thread Safety

May be called concurrently

Definition at line 606 of file libxrpl/server/Manifest.cpp.

◆ save()

void xrpl::ManifestCache::save	(	DatabaseCon &	dbCon,
		std::string const &	dbTable,
		std::function< bool(PublicKey const &)> const &	isTrusted )

Save cached manifests to database.

Parameters

dbCon	Database connection with ValidatorManifests table
isTrusted	Function that returns true if manifest is trusted

Thread Safety

May be called concurrently

Definition at line 671 of file libxrpl/server/Manifest.cpp.

◆ forEachManifest() [1/2]

template<class Function>

void xrpl::ManifestCache::forEachManifest ( Function && f ) const

Invokes the callback once for every populated manifest.

Note: Do not call ManifestCache member functions from within the callback. This can re-lock the mutex from the same thread, which is UB.; Do not write ManifestCache member variables from within the callback. This can lead to data races.

Parameters

f	Function called for each manifest

Thread Safety

May be called concurrently

Definition at line 628 of file Manifest.h.

◆ forEachManifest() [2/2]

template<class PreFun, class EachFun>

void xrpl::ManifestCache::forEachManifest	(	PreFun &&	pf,
		EachFun &&	f ) const

Invokes the callback once for every populated manifest.

Note: Do not call ManifestCache member functions from within the callback. This can re-lock the mutex from the same thread, which is UB.; Do not write ManifestCache member variables from within the callback. This can lead to data races.

Parameters

pf	Pre-function called with the maximum number of times f will be called (useful for memory allocations)
f	Function called for each manifest

Thread Safety

May be called concurrently

Definition at line 657 of file Manifest.h.

Member Data Documentation

◆ j_

beast::Journal xrpl::ManifestCache::j_

private

Definition at line 376 of file Manifest.h.

◆ mutex_

std::shared_mutex xrpl::ManifestCache::mutex_

mutableprivate

Definition at line 377 of file Manifest.h.

◆ map_

hash_map<PublicKey, Manifest> xrpl::ManifestCache::map_

private

Active manifests stored by master public key.

Definition at line 382 of file Manifest.h.

◆ signingToMasterKeys_

hash_map<PublicKey, PublicKey> xrpl::ManifestCache::signingToMasterKeys_

private

Master public keys stored by current ephemeral public key.

Definition at line 387 of file Manifest.h.

◆ seq_

std::atomic<std::uint32_t> xrpl::ManifestCache::seq_ {0}

private

Definition at line 389 of file Manifest.h.

◆ untrustedKeys_

hash_set<PublicKey> xrpl::ManifestCache::untrustedKeys_

private

Master keys of cached manifests for validators this node does not list.

One entry per capped key in map_; its size enforces the cap below. A key is added when first cached under Capped and removed when it becomes listed (see promoteToTrusted) or an Uncapped update arrives, never re-added on de-listing. Uncapped keys are not tracked here.

Definition at line 399 of file Manifest.h.

◆ maxUntrustedCount_

std::size_t const xrpl::ManifestCache::maxUntrustedCount_

private

Maximum number of untrusted master keys kept in the cache.

Once reached, a manifest for a brand-new unlisted key is rejected. Set from the config, defaulting to kMaxUntrustedCount.

Definition at line 407 of file Manifest.h.

◆ untrustedRejectCount_

std::atomic<std::uint64_t> xrpl::ManifestCache::untrustedRejectCount_ {0}

private

Running count of manifests rejected because the untrusted cap was full.

Drives throttled logging (see kUntrustedRejectCount). Atomic because applyManifest may run concurrently.

Definition at line 415 of file Manifest.h.

◆ kUntrustedRejectCount

std::uint64_t xrpl::ManifestCache::kUntrustedRejectCount = 10000

staticconstexprprivate

Number of cap rejections between summary warnings.

See also: untrustedRejectCount_

Definition at line 422 of file Manifest.h.
