xrpl::NodeObject Class Reference

A simple object that the Ledger uses to store entries. More...

#include <NodeObject.h>

Inheritance diagram for xrpl::NodeObject:

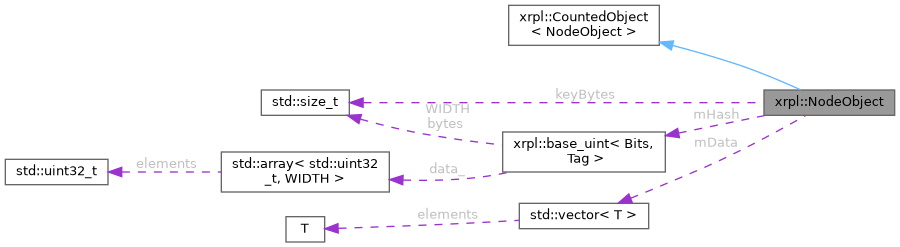

Collaboration diagram for xrpl::NodeObject:

Classes
struct	PrivateAccess

Public Member Functions
	NodeObject (NodeObjectType type, Blob &&data, uint256 const &hash, PrivateAccess)
NodeObjectType	getType () const
	Returns the type of this object.
uint256 const &	getHash () const
	Returns the hash of the data.
Blob const &	getData () const
	Returns the underlying data.

Static Public Member Functions
static std::shared_ptr< NodeObject >	createObject (NodeObjectType type, Blob &&data, uint256 const &hash)
	Create an object from fields.

Public Attributes
friend	Object

Static Public Attributes
static constexpr std::size_t	kKeyBytes = 32

Static Private Member Functions
static auto &	getCounter () noexcept

Private Attributes
NodeObjectType const	type_
uint256 const	hash_
Blob const	data_

Detailed Description

A simple object that the Ledger uses to store entries.

NodeObjects are comprised of a type, a hash, and a blob. They can be uniquely identified by the hash, which is a half-SHA512 of the blob. The blob is a variable length block of serialized data. The type identifies what the blob contains.

Note

No checking is performed to make sure the hash matches the data.

See also

SHAMap

Definition at line 29 of file NodeObject.h.

Constructor & Destructor Documentation

NodeObject()

xrpl::NodeObject::NodeObject	(	NodeObjectType	type,
		Blob &&	data,
		uint256 const &	hash,
		PrivateAccess	)

Definition at line 13 of file NodeObject.cpp.

Member Function Documentation

createObject()

std::shared_ptr< NodeObject > xrpl::NodeObject::createObject ( NodeObjectType type, Blob && data, uint256 const & hash )

static

Create an object from fields.

The caller's variable is modified during this call. The underlying storage for the Blob is taken over by the NodeObject.

Parameters

type	The type of object.
ledgerIndex	The ledger in which this object appears.
data	A buffer containing the payload. The caller's variable is overwritten.
hash	The 256-bit hash of the payload data.

Definition at line 19 of file NodeObject.cpp.

getType()

NodeObjectType xrpl::NodeObject::getType ( ) const

nodiscard

Returns the type of this object.

Definition at line 25 of file NodeObject.cpp.

getHash()

uint256 const & xrpl::NodeObject::getHash ( ) const

nodiscard

Returns the hash of the data.

Definition at line 31 of file NodeObject.cpp.

getData()

Blob const & xrpl::NodeObject::getData ( ) const

nodiscard

Returns the underlying data.

Definition at line 37 of file NodeObject.cpp.

getCounter()

auto & xrpl::CountedObject< NodeObject >::getCounter ( )

staticprivatenoexceptinherited

Definition at line 109 of file CountedObject.h.

Member Data Documentation

kKeyBytes

std::size_t xrpl::NodeObject::kKeyBytes = 32

staticconstexpr

Definition at line 32 of file NodeObject.h.

type_

NodeObjectType const xrpl::NodeObject::type_

private

Definition at line 74 of file NodeObject.h.

hash_

uint256 const xrpl::NodeObject::hash_

private

Definition at line 75 of file NodeObject.h.

data_

Blob const xrpl::NodeObject::data_

private

Definition at line 76 of file NodeObject.h.

Object

friend xrpl::CountedObject< NodeObject >::NodeObject

inherited

Definition at line 134 of file CountedObject.h.
