xrpl::PeerFinder::Bootcache Class Reference

Stores IP addresses useful for gaining initial connections. More...

#include <Bootcache.h>

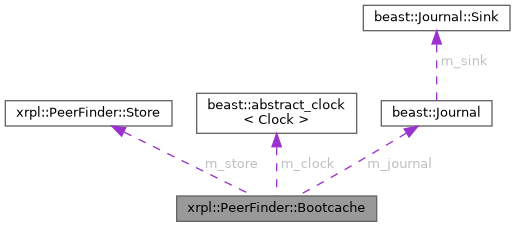

Collaboration diagram for xrpl::PeerFinder::Bootcache:

Classes
class	Entry
struct	Transform

Public Types
using	iterator = boost::transform_iterator< Transform, map_type::right_map::const_iterator >
using	const_iterator = iterator

Public Member Functions
	Bootcache (Store &store, clock_type &clock, beast::Journal journal)
	~Bootcache ()
bool	empty () const
	Returns true if the cache is empty.
map_type::size_type	size () const
	Returns the number of entries in the cache.
void	load ()
	Load the persisted data from the Store into the container.
bool	insert (beast::IP::Endpoint const &endpoint)
	Add a newly-learned address to the cache.
bool	insertStatic (beast::IP::Endpoint const &endpoint)
	Add a staticallyconfigured address to the cache.
void	on_success (beast::IP::Endpoint const &endpoint)
	Called when an outbound connection handshake completes.
void	on_failure (beast::IP::Endpoint const &endpoint)
	Called when an outbound connection attempt fails to handshake.
void	periodicActivity ()
	Stores the cache in the persistent database on a timer.
void	onWrite (beast::PropertyStream::Map &map)
	Write the cache state to the property stream.
const_iterator	begin () const
	IP::Endpoint iterators that traverse in decreasing valence.
const_iterator	cbegin () const
const_iterator	end () const
const_iterator	cend () const
void	clear ()

Static Public Attributes
static constexpr int	staticValence = 32

Private Types
using	left_t = boost::bimaps::unordered_set_of< beast::IP::Endpoint, boost::hash< beast::IP::Endpoint >, xrpl::equal_to< beast::IP::Endpoint > >
using	right_t = boost::bimaps::multiset_of< Entry, xrpl::less< Entry > >
using	map_type = boost::bimap< left_t, right_t >
using	value_type = map_type::value_type

Private Member Functions
void	prune ()
void	update ()
void	checkUpdate ()
void	flagForUpdate ()

Private Attributes
map_type	m_map
Store &	m_store
clock_type &	m_clock
beast::Journal	m_journal
clock_type::time_point	m_whenUpdate
bool	m_needsUpdate {false}

Detailed Description

Stores IP addresses useful for gaining initial connections.

This is one of the caches that is consulted when additional outgoing connections are needed. Along with the address, each entry has this additional metadata:

Valence A signed integer which represents the number of successful consecutive connection attempts when positive, and the number of failed consecutive connection attempts when negative.

When choosing addresses from the boot cache for the purpose of establishing outgoing connections, addresses are ranked in decreasing order of high uptime, with valence as the tie breaker.

Definition at line 33 of file Bootcache.h.

Member Typedef Documentation

left_t

using xrpl::PeerFinder::Bootcache::left_t = boost::bimaps::unordered_set_of< beast::IP::Endpoint, boost::hash<beast::IP::Endpoint>, xrpl::equal_to<beast::IP::Endpoint> >

private

Definition at line 67 of file Bootcache.h.

right_t

using xrpl::PeerFinder::Bootcache::right_t = boost::bimaps::multiset_of<Entry, xrpl::less<Entry> >

private

Definition at line 71 of file Bootcache.h.

map_type

using xrpl::PeerFinder::Bootcache::map_type = boost::bimap<left_t, right_t>

private

Definition at line 72 of file Bootcache.h.

value_type

using xrpl::PeerFinder::Bootcache::value_type = map_type::value_type

private

Definition at line 73 of file Bootcache.h.

iterator

using xrpl::PeerFinder::Bootcache::iterator = boost::transform_iterator<Transform, map_type::right_map::const_iterator>

Definition at line 105 of file Bootcache.h.

const_iterator

using xrpl::PeerFinder::Bootcache::const_iterator = iterator

Definition at line 107 of file Bootcache.h.

Constructor & Destructor Documentation

Bootcache()

xrpl::PeerFinder::Bootcache::Bootcache	(	Store &	store,
		clock_type &	clock,
		beast::Journal	journal
	)

Definition at line 12 of file Bootcache.cpp.

~Bootcache()

xrpl::PeerFinder::Bootcache::~Bootcache

(

)

Definition at line 18 of file Bootcache.cpp.

Member Function Documentation

empty()

bool xrpl::PeerFinder::Bootcache::empty

(

)

const

Returns true if the cache is empty.

Definition at line 24 of file Bootcache.cpp.

size()

Bootcache::map_type::size_type xrpl::PeerFinder::Bootcache::size

(

)

const

Returns the number of entries in the cache.

Definition at line 30 of file Bootcache.cpp.

begin()

Bootcache::const_iterator xrpl::PeerFinder::Bootcache::begin

(

)

const

IP::Endpoint iterators that traverse in decreasing valence.

Definition at line 36 of file Bootcache.cpp.

cbegin()

Bootcache::const_iterator xrpl::PeerFinder::Bootcache::cbegin

(

)

const

Definition at line 42 of file Bootcache.cpp.

end()

Bootcache::const_iterator xrpl::PeerFinder::Bootcache::end

(

)

const

Definition at line 48 of file Bootcache.cpp.

cend()

Bootcache::const_iterator xrpl::PeerFinder::Bootcache::cend

(

)

const

Definition at line 54 of file Bootcache.cpp.

clear()

void xrpl::PeerFinder::Bootcache::clear

(

)

Definition at line 60 of file Bootcache.cpp.

load()

void xrpl::PeerFinder::Bootcache::load

(

)

Load the persisted data from the Store into the container.

Definition at line 69 of file Bootcache.cpp.

insert()

bool xrpl::PeerFinder::Bootcache::insert

(

beast::IP::Endpoint const &

endpoint

)

Add a newly-learned address to the cache.

Definition at line 89 of file Bootcache.cpp.

insertStatic()

bool xrpl::PeerFinder::Bootcache::insertStatic

(

beast::IP::Endpoint const &

endpoint

)

Add a staticallyconfigured address to the cache.

Definition at line 102 of file Bootcache.cpp.

on_success()

void xrpl::PeerFinder::Bootcache::on_success

(

beast::IP::Endpoint const &

endpoint

)

Called when an outbound connection handshake completes.

Definition at line 123 of file Bootcache.cpp.

on_failure()

void xrpl::PeerFinder::Bootcache::on_failure

(

beast::IP::Endpoint const &

endpoint

)

Called when an outbound connection attempt fails to handshake.

Definition at line 147 of file Bootcache.cpp.

periodicActivity()

void xrpl::PeerFinder::Bootcache::periodicActivity

(

)

Stores the cache in the persistent database on a timer.

Definition at line 171 of file Bootcache.cpp.

onWrite()

void xrpl::PeerFinder::Bootcache::onWrite

(

beast::PropertyStream::Map &

map

)

Write the cache state to the property stream.

Definition at line 179 of file Bootcache.cpp.

prune()

void xrpl::PeerFinder::Bootcache::prune ( )

private

Definition at line 192 of file Bootcache.cpp.

update()

void xrpl::PeerFinder::Bootcache::update ( )

private

Definition at line 220 of file Bootcache.cpp.

checkUpdate()

void xrpl::PeerFinder::Bootcache::checkUpdate ( )

private

Definition at line 241 of file Bootcache.cpp.

flagForUpdate()

void xrpl::PeerFinder::Bootcache::flagForUpdate ( )

private

Definition at line 249 of file Bootcache.cpp.

Member Data Documentation

m_map

map_type xrpl::PeerFinder::Bootcache::m_map

private

Definition at line 90 of file Bootcache.h.

m_store

Store& xrpl::PeerFinder::Bootcache::m_store

private

Definition at line 92 of file Bootcache.h.

m_clock

clock_type& xrpl::PeerFinder::Bootcache::m_clock

private

Definition at line 93 of file Bootcache.h.

m_journal

beast::Journal xrpl::PeerFinder::Bootcache::m_journal

private

Definition at line 94 of file Bootcache.h.

m_whenUpdate

clock_type::time_point xrpl::PeerFinder::Bootcache::m_whenUpdate

private

Definition at line 97 of file Bootcache.h.

m_needsUpdate

bool xrpl::PeerFinder::Bootcache::m_needsUpdate {false}

private

Definition at line 100 of file Bootcache.h.

staticValence

constexpr int xrpl::PeerFinder::Bootcache::staticValence = 32

staticconstexpr

Definition at line 103 of file Bootcache.h.
