xrpl::PeerFinder::Livecache< Allocator > Class Template Reference

The Livecache holds the short-lived relayed Endpoint messages. More...

#include <Livecache.h>

Inheritance diagram for xrpl::PeerFinder::Livecache< Allocator >:

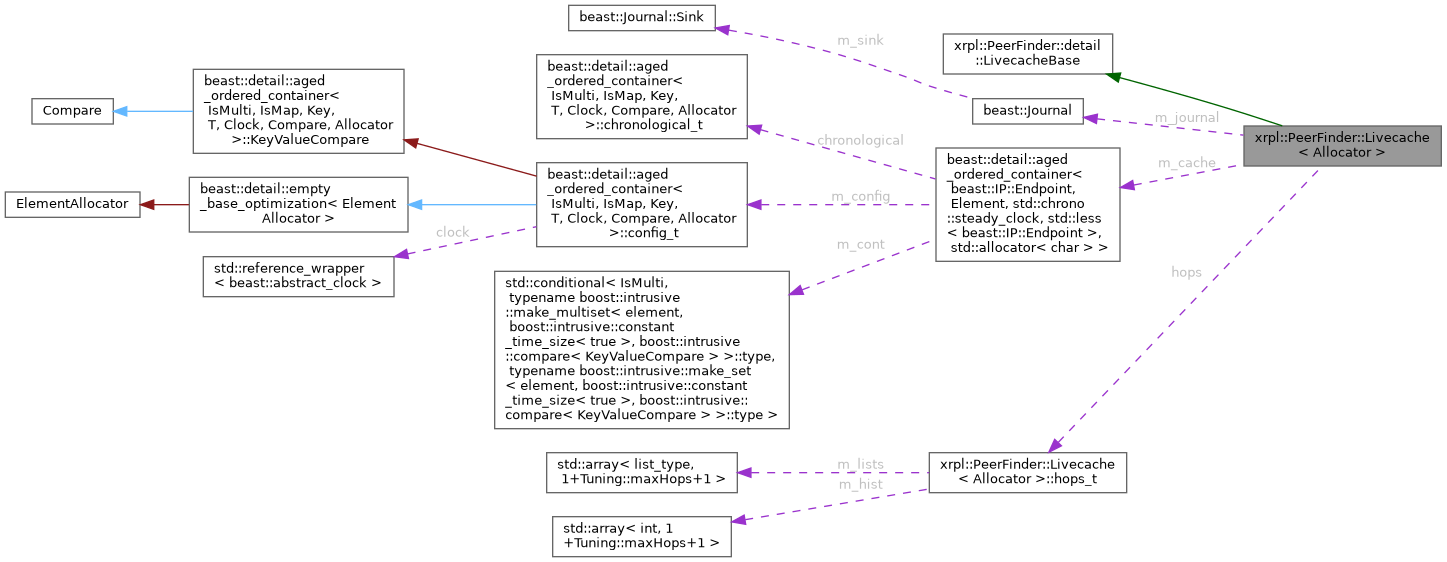

Collaboration diagram for xrpl::PeerFinder::Livecache< Allocator >:

Classes
class	hops_t

Public Types
using	allocator_type = Allocator

Public Member Functions
	Livecache (clock_type &clock, beast::Journal journal, Allocator alloc=Allocator())
	Create the cache.
bool	empty () const
	Returns true if the cache is empty.
cache_type::size_type	size () const
	Returns the number of entries in the cache.
void	expire ()
	Erase entries whose time has expired.
void	insert (Endpoint const &ep)
	Creates or updates an existing Element based on a new message.
void	onWrite (beast::PropertyStream::Map &map)
	Output statistics.

Public Attributes
class xrpl::PeerFinder::Livecache::hops_t	hops

Protected Types
using	list_type = boost::intrusive::make_list< Element, boost::intrusive::constant_time_size< false > >::type

Static Protected Member Functions
template<bool IsConst>
static Hop< IsConst >	make_hop (typename beast::maybe_const< IsConst, list_type >::type &list)

Private Types
using	cache_type = beast::aged_map< beast::IP::Endpoint, Element, std::chrono::steady_clock, std::less< beast::IP::Endpoint >, Allocator >

Private Attributes
beast::Journal	m_journal
cache_type	m_cache

Detailed Description

template<class Allocator = std::allocator<char>>
class xrpl::PeerFinder::Livecache< Allocator >

The Livecache holds the short-lived relayed Endpoint messages.

Since peers only advertise themselves when they have open slots, we want these messages to expire rather quickly after the peer becomes full.

Addresses added to the cache are not connection-tested to see if they are connectable (with one small exception regarding neighbors). Therefore, these addresses are not suitable for persisting across launches or for bootstrapping, because they do not have verifiable and locally observed uptime and connectability information.

Definition at line 169 of file Livecache.h.

Member Typedef Documentation

cache_type

template<class Allocator = std::allocator<char>>

using xrpl::PeerFinder::Livecache< Allocator >::cache_type = beast:: aged_map<beast::IP::Endpoint, Element, std::chrono::steady_clock, std::less<beast::IP::Endpoint>, Allocator>

private

Definition at line 172 of file Livecache.h.

allocator_type

template<class Allocator = std::allocator<char>>

using xrpl::PeerFinder::Livecache< Allocator >::allocator_type = Allocator

Definition at line 179 of file Livecache.h.

list_type

using xrpl::PeerFinder::detail::LivecacheBase::list_type = boost::intrusive::make_list<Element, boost::intrusive::constant_time_size<false> >::type

protectedinherited

Definition at line 40 of file Livecache.h.

Constructor & Destructor Documentation

Livecache()

template<class Allocator >

xrpl::PeerFinder::Livecache< Allocator >::Livecache	(	clock_type &	clock,
		beast::Journal	journal,
		Allocator	alloc = Allocator()
	)

Create the cache.

Definition at line 354 of file Livecache.h.

Member Function Documentation

empty()

template<class Allocator = std::allocator<char>>

bool xrpl::PeerFinder::Livecache< Allocator >::empty

(

)

const

Returns true if the cache is empty.

Definition at line 326 of file Livecache.h.

size()

template<class Allocator = std::allocator<char>>

cache_type::size_type xrpl::PeerFinder::Livecache< Allocator >::size

(

)

const

Returns the number of entries in the cache.

Definition at line 333 of file Livecache.h.

expire()

template<class Allocator >

void xrpl::PeerFinder::Livecache< Allocator >::expire

(

)

Erase entries whose time has expired.

Definition at line 361 of file Livecache.h.

insert()

template<class Allocator >

void xrpl::PeerFinder::Livecache< Allocator >::insert

(

Endpoint const &

ep

)

Creates or updates an existing Element based on a new message.

Definition at line 380 of file Livecache.h.

onWrite()

template<class Allocator >

void xrpl::PeerFinder::Livecache< Allocator >::onWrite

(

beast::PropertyStream::Map &

map

)

Output statistics.

Definition at line 421 of file Livecache.h.

make_hop()

template<bool IsConst>

static Hop< IsConst > xrpl::PeerFinder::detail::LivecacheBase::make_hop ( typename beast::maybe_const< IsConst, list_type >::type &  list )

staticprotectedinherited

Definition at line 146 of file Livecache.h.

Member Data Documentation

m_journal

template<class Allocator = std::allocator<char>>

beast::Journal xrpl::PeerFinder::Livecache< Allocator >::m_journal

private

Definition at line 175 of file Livecache.h.

m_cache

template<class Allocator = std::allocator<char>>

cache_type xrpl::PeerFinder::Livecache< Allocator >::m_cache

private

Definition at line 176 of file Livecache.h.

hops

template<class Allocator = std::allocator<char>>

class xrpl::PeerFinder::Livecache::hops_t xrpl::PeerFinder::Livecache< Allocator >::hops
