xrpl::PeerFinder::SlotImp Class Reference

#include <SlotImp.h>

Inheritance diagram for xrpl::PeerFinder::SlotImp:

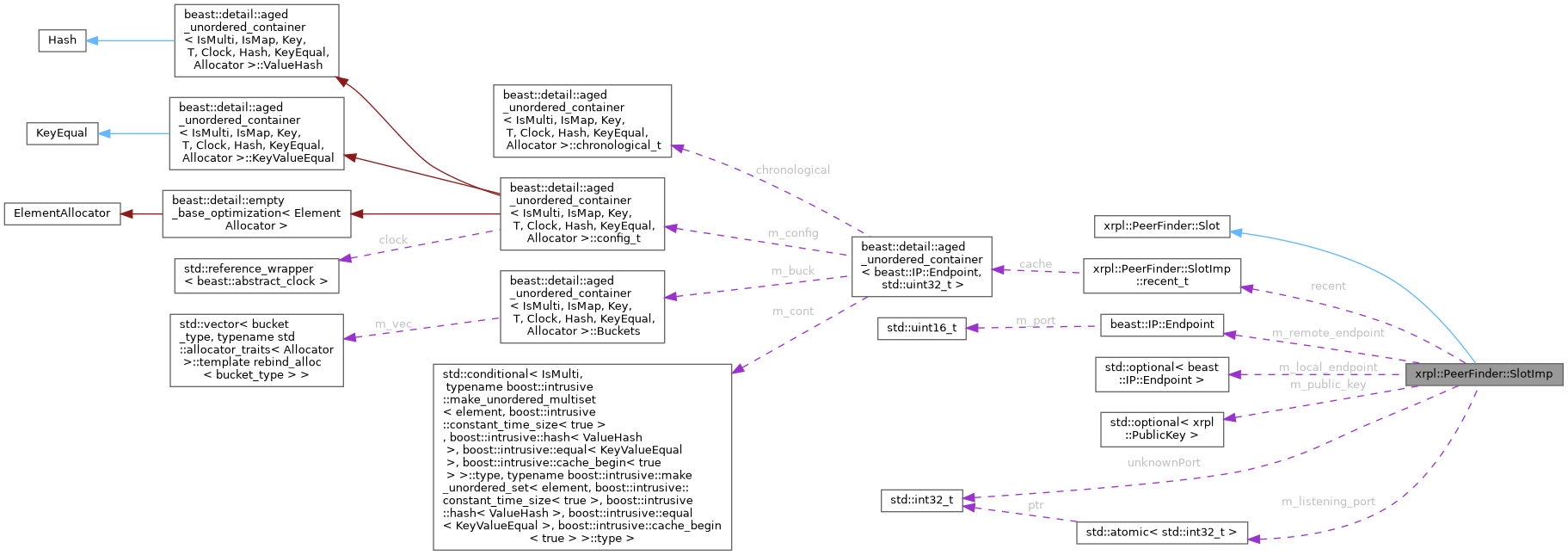

Collaboration diagram for xrpl::PeerFinder::SlotImp:

Classes
class	RecentT

Public Types
using	ptr = std::shared_ptr<SlotImp>
enum class	State {   Accept , Connect , Connected , Active ,   Closing }

Public Member Functions
	SlotImp (beast::IP::Endpoint const &localEndpoint, beast::IP::Endpoint remoteEndpoint, bool fixed, clock_type &clock)
	SlotImp (beast::IP::Endpoint remoteEndpoint, bool fixed, clock_type &clock)
bool	inbound () const override
	Returns true if this is an inbound connection.
bool	fixed () const override
	Returns true if this is a fixed connection.
bool	reserved () const override
	Returns true if this is a reserved connection.
State	state () const override
	Returns the state of the connection.
beast::IP::Endpoint const &	remoteEndpoint () const override
	The remote endpoint of socket.
std::optional< beast::IP::Endpoint > const &	localEndpoint () const override
	The local endpoint of the socket, when known.
std::optional< PublicKey > const &	publicKey () const override
	The peer's public key, when known.
std::string	prefix () const
std::optional< std::uint16_t >	listeningPort () const override
void	setListeningPort (std::uint16_t port)
void	localEndpoint (beast::IP::Endpoint const &endpoint)
void	remoteEndpoint (beast::IP::Endpoint const &endpoint)
void	publicKey (PublicKey const &key)
void	reserved (bool reserved)
void	state (State state)
void	activate (clock_type::time_point const &now)
void	expire ()

Public Attributes
class xrpl::PeerFinder::SlotImp::RecentT	recent
bool	checked
bool	canAccept
bool	connectivityCheckInProgress
clock_type::time_point	whenAcceptEndpoints

Private Attributes
bool const	inbound_
bool const	fixed_
bool	reserved_
State	state_
beast::IP::Endpoint	remoteEndpoint_
std::optional< beast::IP::Endpoint >	localEndpoint_
std::optional< PublicKey >	publicKey_
std::atomic< std::int32_t >	listeningPort_

Static Private Attributes
static constexpr std::int32_t	kUnknownPort = -1

Detailed Description

Definition at line 13 of file SlotImp.h.

Member Typedef Documentation

ptr

using xrpl::PeerFinder::SlotImp::ptr = std::shared_ptr<SlotImp>

Definition at line 16 of file SlotImp.h.

Member Enumeration Documentation

State

enum class xrpl::PeerFinder::Slot::State

stronginherited

Enumerator
Accept
Connect
Connected
Active
Closing

Definition at line 16 of file peerfinder/Slot.h.

Constructor & Destructor Documentation

SlotImp() [1/2]

xrpl::PeerFinder::SlotImp::SlotImp	(	beast::IP::Endpoint const &	localEndpoint,
		beast::IP::Endpoint	remoteEndpoint,
		bool	fixed,
		clock_type &	clock )

Definition at line 16 of file SlotImp.cpp.

SlotImp() [2/2]

xrpl::PeerFinder::SlotImp::SlotImp	(	beast::IP::Endpoint	remoteEndpoint,
		bool	fixed,
		clock_type &	clock )

Definition at line 35 of file SlotImp.cpp.

Member Function Documentation

inbound()

bool xrpl::PeerFinder::SlotImp::inbound ( ) const

overridevirtual

Returns true if this is an inbound connection.

Implements xrpl::PeerFinder::Slot.

Definition at line 29 of file SlotImp.h.

fixed()

bool xrpl::PeerFinder::SlotImp::fixed ( ) const

overridevirtual

Returns true if this is a fixed connection.

A connection is fixed if its remote endpoint is in the list of remote endpoints for fixed connections.

Implements xrpl::PeerFinder::Slot.

Definition at line 35 of file SlotImp.h.

reserved() [1/2]

bool xrpl::PeerFinder::SlotImp::reserved ( ) const

overridevirtual

Returns true if this is a reserved connection.

It might be a cluster peer, or a peer with a reservation. This is only known after then handshake completes.

Implements xrpl::PeerFinder::Slot.

Definition at line 41 of file SlotImp.h.

state() [1/2]

State xrpl::PeerFinder::SlotImp::state ( ) const

overridevirtual

Returns the state of the connection.

Implements xrpl::PeerFinder::Slot.

Definition at line 47 of file SlotImp.h.

remoteEndpoint() [1/2]

beast::IP::Endpoint const & xrpl::PeerFinder::SlotImp::remoteEndpoint ( ) const

overridevirtual

The remote endpoint of socket.

Implements xrpl::PeerFinder::Slot.

Definition at line 53 of file SlotImp.h.

localEndpoint() [1/2]

std::optional< beast::IP::Endpoint > const & xrpl::PeerFinder::SlotImp::localEndpoint ( ) const

overridevirtual

The local endpoint of the socket, when known.

Implements xrpl::PeerFinder::Slot.

Definition at line 59 of file SlotImp.h.

publicKey() [1/2]

std::optional< PublicKey > const & xrpl::PeerFinder::SlotImp::publicKey ( ) const

overridevirtual

The peer's public key, when known.

The public key is established when the handshake is complete.

Implements xrpl::PeerFinder::Slot.

Definition at line 65 of file SlotImp.h.

prefix()

std::string xrpl::PeerFinder::SlotImp::prefix

(

)

const

Definition at line 71 of file SlotImp.h.

listeningPort()

std::optional< std::uint16_t > xrpl::PeerFinder::SlotImp::listeningPort ( ) const

overridevirtual

Implements xrpl::PeerFinder::Slot.

Definition at line 77 of file SlotImp.h.

setListeningPort()

void xrpl::PeerFinder::SlotImp::setListeningPort

(

std::uint16_t

port

)

Definition at line 86 of file SlotImp.h.

localEndpoint() [2/2]

void xrpl::PeerFinder::SlotImp::localEndpoint

(

beast::IP::Endpoint const &

endpoint

)

Definition at line 92 of file SlotImp.h.

remoteEndpoint() [2/2]

void xrpl::PeerFinder::SlotImp::remoteEndpoint

(

beast::IP::Endpoint const &

endpoint

)

Definition at line 98 of file SlotImp.h.

publicKey() [2/2]

void xrpl::PeerFinder::SlotImp::publicKey

(

PublicKey const &

key

)

Definition at line 104 of file SlotImp.h.

reserved() [2/2]

void xrpl::PeerFinder::SlotImp::reserved

(

bool

reserved

)

Definition at line 110 of file SlotImp.h.

state() [2/2]

void xrpl::PeerFinder::SlotImp::state

(

State

state

)

Definition at line 50 of file SlotImp.cpp.

activate()

void xrpl::PeerFinder::SlotImp::activate

(

clock_type::time_point const &

now

)

Definition at line 83 of file SlotImp.cpp.

expire()

void xrpl::PeerFinder::SlotImp::expire

(

)

Definition at line 153 of file SlotImp.h.

Member Data Documentation

recent

class xrpl::PeerFinder::SlotImp::RecentT xrpl::PeerFinder::SlotImp::recent

inbound_

bool const xrpl::PeerFinder::SlotImp::inbound_

private

Definition at line 159 of file SlotImp.h.

fixed_

bool const xrpl::PeerFinder::SlotImp::fixed_

private

Definition at line 160 of file SlotImp.h.

reserved_

bool xrpl::PeerFinder::SlotImp::reserved_

private

Definition at line 161 of file SlotImp.h.

state_

State xrpl::PeerFinder::SlotImp::state_

private

Definition at line 162 of file SlotImp.h.

remoteEndpoint_

beast::IP::Endpoint xrpl::PeerFinder::SlotImp::remoteEndpoint_

private

Definition at line 163 of file SlotImp.h.

localEndpoint_

std::optional<beast::IP::Endpoint> xrpl::PeerFinder::SlotImp::localEndpoint_

private

Definition at line 164 of file SlotImp.h.

publicKey_

std::optional<PublicKey> xrpl::PeerFinder::SlotImp::publicKey_

private

Definition at line 165 of file SlotImp.h.

kUnknownPort

std::int32_t xrpl::PeerFinder::SlotImp::kUnknownPort = -1

staticconstexprprivate

Definition at line 167 of file SlotImp.h.

listeningPort_

std::atomic<std::int32_t> xrpl::PeerFinder::SlotImp::listeningPort_

private

Definition at line 168 of file SlotImp.h.

checked

bool xrpl::PeerFinder::SlotImp::checked

Definition at line 175 of file SlotImp.h.

canAccept

bool xrpl::PeerFinder::SlotImp::canAccept

Definition at line 179 of file SlotImp.h.

connectivityCheckInProgress

bool xrpl::PeerFinder::SlotImp::connectivityCheckInProgress

Definition at line 183 of file SlotImp.h.

whenAcceptEndpoints

clock_type::time_point xrpl::PeerFinder::SlotImp::whenAcceptEndpoints

Definition at line 189 of file SlotImp.h.
