xrpl::RCLConsensus Class Reference

Manages the generic consensus algorithm for use by the RCL. More...

#include <RCLConsensus.h>

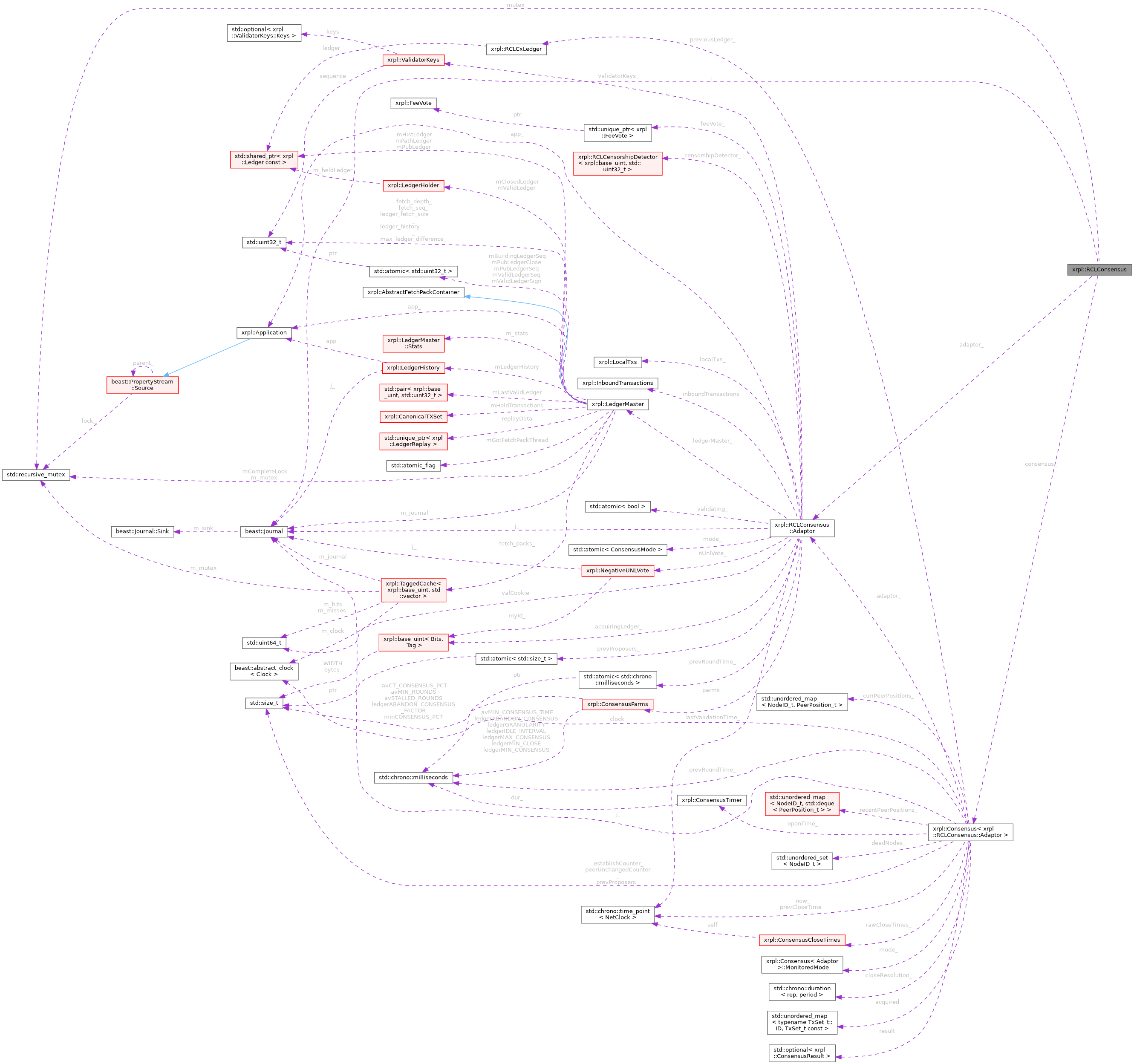

Collaboration diagram for xrpl::RCLConsensus:

Classes
class	Adaptor

Public Member Functions
	RCLConsensus (Application &app, std::unique_ptr< FeeVote > &&feeVote, LedgerMaster &ledgerMaster, LocalTxs &localTxs, InboundTransactions &inboundTransactions, Consensus< Adaptor >::clock_type const &clock, ValidatorKeys const &validatorKeys, beast::Journal journal)
	Constructor.
	RCLConsensus (RCLConsensus const &)=delete
RCLConsensus &	operator= (RCLConsensus const &)=delete
bool	validating () const
	Whether we are validating consensus ledgers.
std::size_t	prevProposers () const
	Get the number of proposing peers that participated in the previous round.
std::chrono::milliseconds	prevRoundTime () const
	Get duration of the previous round.
ConsensusMode	mode () const
ConsensusPhase	phase () const
json::Value	getJson (bool full) const
void	startRound (NetClock::time_point const &now, RCLCxLedger::ID const &prevLgrId, RCLCxLedger const &prevLgr, hash_set< NodeID > const &nowUntrusted, hash_set< NodeID > const &nowTrusted, std::unique_ptr< std::stringstream > const &clog)
	Adjust the set of trusted validators and kick-off the next round of consensus.
void	timerEntry (NetClock::time_point const &now, std::unique_ptr< std::stringstream > const &clog={})
void	gotTxSet (NetClock::time_point const &now, RCLTxSet const &txSet)
RCLCxLedger::ID	prevLedgerID () const
void	simulate (NetClock::time_point const &now, std::optional< std::chrono::milliseconds > consensusDelay)
bool	peerProposal (NetClock::time_point const &now, RCLCxPeerPos const &newProposal)
ConsensusParms const &	parms () const

Private Attributes
std::recursive_mutex	mutex_
Adaptor	adaptor_
Consensus< Adaptor >	consensus_
beast::Journal const	j_

Static Private Attributes
static constexpr unsigned int	kCensorshipWarnInternal = 15
	Warn for transactions that haven't been included every so many ledgers.

Detailed Description

Manages the generic consensus algorithm for use by the RCL.

Definition at line 49 of file RCLConsensus.h.

Constructor & Destructor Documentation

RCLConsensus() [1/2]

xrpl::RCLConsensus::RCLConsensus	(	Application &	app,
		std::unique_ptr< FeeVote > &&	feeVote,
		LedgerMaster &	ledgerMaster,
		LocalTxs &	localTxs,
		InboundTransactions &	inboundTransactions,
		Consensus< Adaptor >::clock_type const &	clock,
		ValidatorKeys const &	validatorKeys,
		beast::Journal	journal )

Constructor.

Definition at line 89 of file RCLConsensus.cpp.

RCLConsensus() [2/2]

xrpl::RCLConsensus::RCLConsensus ( RCLConsensus const & )

delete

Member Function Documentation

operator=()

RCLConsensus & xrpl::RCLConsensus::operator= ( RCLConsensus const & )

delete

validating()

bool xrpl::RCLConsensus::validating

(

)

const

Whether we are validating consensus ledgers.

Definition at line 450 of file RCLConsensus.h.

prevProposers()

std::size_t xrpl::RCLConsensus::prevProposers

(

)

const

Get the number of proposing peers that participated in the previous round.

Definition at line 460 of file RCLConsensus.h.

prevRoundTime()

std::chrono::milliseconds xrpl::RCLConsensus::prevRoundTime

(

)

const

Get duration of the previous round.

The duration of the round is the establish phase, measured from closing the open ledger to accepting the consensus result.

Returns

Last round duration in milliseconds

Definition at line 474 of file RCLConsensus.h.

mode()

ConsensusMode xrpl::RCLConsensus::mode

(

)

const

See also

Consensus::mode

Definition at line 483 of file RCLConsensus.h.

phase()

ConsensusPhase xrpl::RCLConsensus::phase

(

)

const

Definition at line 489 of file RCLConsensus.h.

getJson()

json::Value xrpl::RCLConsensus::getJson

(

bool

full

)

const

See also

Consensus::getJson

Definition at line 899 of file RCLConsensus.cpp.

startRound()

void xrpl::RCLConsensus::startRound	(	NetClock::time_point const &	now,
		RCLCxLedger::ID const &	prevLgrId,
		RCLCxLedger const &	prevLgr,
		hash_set< NodeID > const &	nowUntrusted,
		hash_set< NodeID > const &	nowTrusted,
		std::unique_ptr< std::stringstream > const &	clog )

Adjust the set of trusted validators and kick-off the next round of consensus.

For more details,

See also

Consensus::startRound

Definition at line 1054 of file RCLConsensus.cpp.

timerEntry()

void xrpl::RCLConsensus::timerEntry	(	NetClock::time_point const &	now,
		std::unique_ptr< std::stringstream > const &	clog = {} )

See also

Consensus::timerEntry

Definition at line 911 of file RCLConsensus.cpp.

gotTxSet()

void xrpl::RCLConsensus::gotTxSet	(	NetClock::time_point const &	now,
		RCLTxSet const &	txSet )

See also

Consensus::gotTxSet

Definition at line 932 of file RCLConsensus.cpp.

prevLedgerID()

RCLCxLedger::ID xrpl::RCLConsensus::prevLedgerID

(

)

const

See also

Consensus::prevLedgerID

Definition at line 531 of file RCLConsensus.h.

simulate()

void xrpl::RCLConsensus::simulate	(	NetClock::time_point const &	now,
		std::optional< std::chrono::milliseconds >	consensusDelay )

See also

Consensus::simulate

Definition at line 952 of file RCLConsensus.cpp.

peerProposal()

bool xrpl::RCLConsensus::peerProposal	(	NetClock::time_point const &	now,
		RCLCxPeerPos const &	newProposal )

See also

Consensus::proposal

Definition at line 961 of file RCLConsensus.cpp.

parms()

ConsensusParms const & xrpl::RCLConsensus::parms

(

)

const

Definition at line 552 of file RCLConsensus.h.

Member Data Documentation

kCensorshipWarnInternal

unsigned int xrpl::RCLConsensus::kCensorshipWarnInternal = 15

staticconstexprprivate

Warn for transactions that haven't been included every so many ledgers.

Definition at line 54 of file RCLConsensus.h.

mutex_

std::recursive_mutex xrpl::RCLConsensus::mutex_

mutableprivate

Definition at line 561 of file RCLConsensus.h.

adaptor_

Adaptor xrpl::RCLConsensus::adaptor_

private

Definition at line 563 of file RCLConsensus.h.

consensus_

Consensus<Adaptor> xrpl::RCLConsensus::consensus_

private

Definition at line 564 of file RCLConsensus.h.

j_

beast::Journal const xrpl::RCLConsensus::j_

private

Definition at line 565 of file RCLConsensus.h.
