A view into a ledger. More...

#include <ReadView.h>

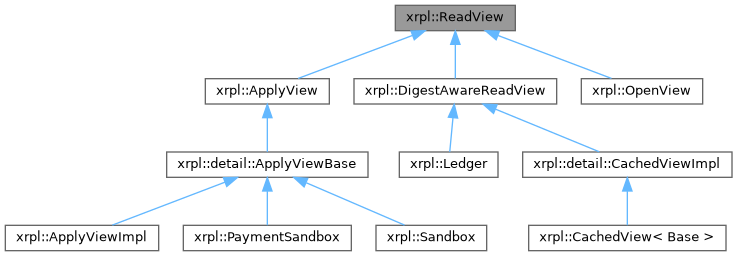

Inheritance diagram for xrpl::ReadView:

[legend]

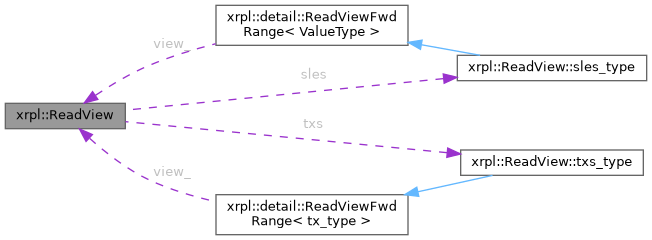

Collaboration diagram for xrpl::ReadView:

[legend]

Classes
struct	SlesType
struct	TxsType

Public Types
using	tx_type = std::pair<std::shared_ptr<STTx const>, std::shared_ptr<STObject const>>
using	key_type = uint256
using	mapped_type = SLE::const_pointer

Public Member Functions
virtual	~ReadView ()=default
ReadView &	operator= (ReadView &&other)=delete
ReadView &	operator= (ReadView const &other)=delete
	ReadView ()
	ReadView (ReadView const &other)
	ReadView (ReadView &&other)
virtual LedgerHeader const &	header () const =0
	Returns information about the ledger.
virtual bool	open () const =0
	Returns true if this reflects an open ledger.
NetClock::time_point	parentCloseTime () const
	Returns the close time of the previous ledger.
LedgerIndex	seq () const
	Returns the sequence number of the base ledger.
virtual Fees const &	fees () const =0
	Returns the fees for the base ledger.
virtual Rules const &	rules () const =0
	Returns the tx processing rules.
virtual bool	exists (Keylet const &k) const =0
	Determine if a state item exists.
virtual std::optional< key_type >	succ (key_type const &key, std::optional< key_type > const &last=std::nullopt) const =0
	Return the key of the next state item.
virtual SLE::const_pointer	read (Keylet const &k) const =0
	Return the state item associated with a key.
virtual STAmount	balanceHookIOU (AccountID const &account, AccountID const &issuer, STAmount const &amount) const
virtual STAmount	balanceHookMPT (AccountID const &account, MPTIssue const &issue, std::int64_t amount) const
virtual STAmount	balanceHookSelfIssueMPT (MPTIssue const &issue, std::int64_t amount) const
virtual std::uint32_t	ownerCountHook (AccountID const &account, std::uint32_t count) const
virtual std::unique_ptr< SlesType::iter_base >	slesBegin () const =0
virtual std::unique_ptr< SlesType::iter_base >	slesEnd () const =0
virtual std::unique_ptr< SlesType::iter_base >	slesUpperBound (key_type const &key) const =0
virtual std::unique_ptr< TxsType::iter_base >	txsBegin () const =0
virtual std::unique_ptr< TxsType::iter_base >	txsEnd () const =0
virtual bool	txExists (key_type const &key) const =0
	Returns true if a tx exists in the tx map.
virtual tx_type	txRead (key_type const &key) const =0
	Read a transaction from the tx map.

Public Attributes
SlesType	sles
	Iterable range of ledger state items.
TxsType	txs

Detailed Description

A view into a ledger.

This interface provides read access to state and transaction items. There is no checkpointing or calculation of metadata.

Definition at line 30 of file ReadView.h.

Member Typedef Documentation

◆ tx_type

using xrpl::ReadView::tx_type = std::pair<std::shared_ptr<STTx const>, std::shared_ptr<STObject const>>

Definition at line 33 of file ReadView.h.

◆ key_type

using xrpl::ReadView::key_type = uint256

Definition at line 35 of file ReadView.h.

◆ mapped_type

using xrpl::ReadView::mapped_type = SLE::const_pointer

Definition at line 37 of file ReadView.h.

Constructor & Destructor Documentation

◆ ~ReadView()

virtual xrpl::ReadView::~ReadView ( )

virtualdefault

◆ ReadView() [1/3]

xrpl::ReadView::ReadView ( )

Definition at line 68 of file ReadView.h.

◆ ReadView() [2/3]

xrpl::ReadView::ReadView ( ReadView const & other )

Definition at line 72 of file ReadView.h.

◆ ReadView() [3/3]

xrpl::ReadView::ReadView ( ReadView && other )

Definition at line 76 of file ReadView.h.

Member Function Documentation

◆ operator=() [1/2]

ReadView & xrpl::ReadView::operator= ( ReadView && other )

delete

◆ operator=() [2/2]

ReadView & xrpl::ReadView::operator= ( ReadView const & other )

delete

◆ header()

virtual LedgerHeader const & xrpl::ReadView::header ( ) const

nodiscardpure virtual

Returns information about the ledger.

Implemented in xrpl::detail::ApplyViewBase, xrpl::detail::CachedViewImpl, xrpl::Ledger, and xrpl::OpenView.

◆ open()

virtual bool xrpl::ReadView::open ( ) const

nodiscardpure virtual

Returns true if this reflects an open ledger.

Implemented in xrpl::detail::ApplyViewBase, xrpl::detail::CachedViewImpl, xrpl::Ledger, and xrpl::OpenView.

◆ parentCloseTime()

NetClock::time_point xrpl::ReadView::parentCloseTime ( ) const

nodiscard

Returns the close time of the previous ledger.

Definition at line 90 of file ReadView.h.

◆ seq()

LedgerIndex xrpl::ReadView::seq ( ) const

nodiscard

Returns the sequence number of the base ledger.

Definition at line 97 of file ReadView.h.

◆ fees()

virtual Fees const & xrpl::ReadView::fees ( ) const

nodiscardpure virtual

Returns the fees for the base ledger.

Implemented in xrpl::detail::ApplyViewBase, xrpl::detail::CachedViewImpl, xrpl::Ledger, and xrpl::OpenView.

◆ rules()

virtual Rules const & xrpl::ReadView::rules ( ) const

nodiscardpure virtual

Returns the tx processing rules.

Implemented in xrpl::detail::ApplyViewBase, xrpl::detail::CachedViewImpl, xrpl::Ledger, and xrpl::OpenView.

◆ exists()

virtual bool xrpl::ReadView::exists ( Keylet const & k ) const

nodiscardpure virtual

Determine if a state item exists.

Note: This can be more efficient than calling read.

Returns: true if a SLE is associated with the specified key.

Implemented in xrpl::detail::ApplyViewBase, xrpl::detail::CachedViewImpl, xrpl::Ledger, and xrpl::OpenView.

◆ succ()

virtual std::optional< key_type > xrpl::ReadView::succ	(	key_type const &	key,
		std::optional< key_type > const &	last = std::nullopt ) const

nodiscardpure virtual

Return the key of the next state item.

This returns the key of the first state item whose key is greater than the specified key. If no such key is present, std::nullopt is returned.

If last is engaged, returns std::nullopt when the key returned would be outside the open interval (key, last).

Implemented in xrpl::detail::ApplyViewBase, xrpl::detail::CachedViewImpl, and xrpl::OpenView.

◆ read()

virtual SLE::const_pointer xrpl::ReadView::read ( Keylet const & k ) const

nodiscardpure virtual

Return the state item associated with a key.

Effects: If the key exists, gives the caller ownership of the non-modifiable corresponding SLE.

Note: While the returned SLE is const from the perspective of the caller, it can be changed by other callers through raw operations.

Returns: nullptr if the key is not present or if the type does not match.

Implemented in xrpl::detail::ApplyViewBase, xrpl::detail::CachedViewImpl, xrpl::Ledger, and xrpl::OpenView.

◆ balanceHookIOU()

virtual STAmount xrpl::ReadView::balanceHookIOU	(	AccountID const &	account,
		AccountID const &	issuer,
		STAmount const &	amount ) const

nodiscardvirtual

Reimplemented in xrpl::PaymentSandbox.

Definition at line 155 of file ReadView.h.

◆ balanceHookMPT()

virtual STAmount xrpl::ReadView::balanceHookMPT	(	AccountID const &	account,
		MPTIssue const &	issue,
		std::int64_t	amount ) const

nodiscardvirtual

Reimplemented in xrpl::PaymentSandbox.

Definition at line 165 of file ReadView.h.

◆ balanceHookSelfIssueMPT()

virtual STAmount xrpl::ReadView::balanceHookSelfIssueMPT	(	MPTIssue const &	issue,
		std::int64_t	amount ) const

nodiscardvirtual

Reimplemented in xrpl::PaymentSandbox.

Definition at line 175 of file ReadView.h.

◆ ownerCountHook()

virtual std::uint32_t xrpl::ReadView::ownerCountHook	(	AccountID const &	account,
		std::uint32_t	count ) const

nodiscardvirtual

Reimplemented in xrpl::PaymentSandbox.

Definition at line 186 of file ReadView.h.

◆ slesBegin()

virtual std::unique_ptr< SlesType::iter_base > xrpl::ReadView::slesBegin ( ) const

nodiscardpure virtual

Implemented in xrpl::detail::ApplyViewBase, xrpl::detail::CachedViewImpl, xrpl::Ledger, and xrpl::OpenView.

◆ slesEnd()

virtual std::unique_ptr< SlesType::iter_base > xrpl::ReadView::slesEnd ( ) const

nodiscardpure virtual

Implemented in xrpl::detail::ApplyViewBase, xrpl::detail::CachedViewImpl, xrpl::Ledger, and xrpl::OpenView.

◆ slesUpperBound()

virtual std::unique_ptr< SlesType::iter_base > xrpl::ReadView::slesUpperBound ( key_type const & key ) const

nodiscardpure virtual

◆ txsBegin()

virtual std::unique_ptr< TxsType::iter_base > xrpl::ReadView::txsBegin ( ) const

nodiscardpure virtual

Implemented in xrpl::detail::ApplyViewBase, xrpl::detail::CachedViewImpl, xrpl::Ledger, and xrpl::OpenView.

◆ txsEnd()

virtual std::unique_ptr< TxsType::iter_base > xrpl::ReadView::txsEnd ( ) const

nodiscardpure virtual

Implemented in xrpl::detail::ApplyViewBase, xrpl::detail::CachedViewImpl, xrpl::Ledger, and xrpl::OpenView.

◆ txExists()

virtual bool xrpl::ReadView::txExists ( key_type const & key ) const

nodiscardpure virtual

Returns true if a tx exists in the tx map.

A tx exists in the map if it is part of the base ledger, or if it is a newly inserted tx.

Implemented in xrpl::detail::ApplyViewBase, xrpl::detail::CachedViewImpl, and xrpl::OpenView.

◆ txRead()

virtual tx_type xrpl::ReadView::txRead ( key_type const & key ) const

nodiscardpure virtual

Read a transaction from the tx map.

If the view represents an open ledger, the metadata object will be empty.

Returns: A pair of nullptr if the key is not found in the tx map.

Implemented in xrpl::detail::ApplyViewBase, xrpl::detail::CachedViewImpl, xrpl::Ledger, and xrpl::OpenView.

Member Data Documentation

◆ sles

SlesType xrpl::ReadView::sles

Iterable range of ledger state items.

Note: Visiting each state entry in the ledger can become quite expensive as the ledger grows.

Definition at line 239 of file ReadView.h.

◆ txs

TxsType xrpl::ReadView::txs

Definition at line 242 of file ReadView.h.
