TrafficCount is used to count ingress and egress wire bytes and number of messages. More...

#include <TrafficCount.h>

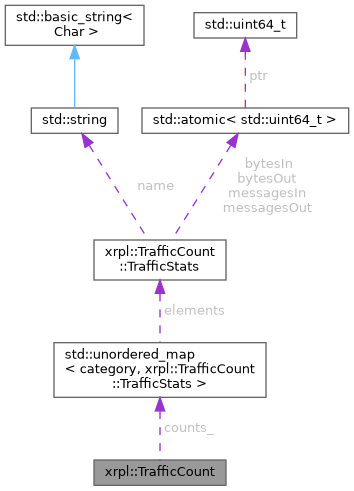

Collaboration diagram for xrpl::TrafficCount:

[legend]

Classes
class	TrafficStats

Public Types
enum class	Category : std::size_t { Base , Cluster , Overlay , Manifests , Transaction , TransactionDuplicate , Proposal , ProposalUntrusted , ProposalDuplicate , Validation , ValidationUntrusted , ValidationDuplicate , Validatorlist , Squelch , SquelchSuppressed , SquelchIgnored , GetSet , ShareSet , LdTscGet , LdTscShare , LdTxnGet , LdTxnShare , LdAsnGet , LdAsnShare , LdGet , LdShare , GlTscShare , GlTscGet , GlTxnShare , GlTxnGet , GlAsnShare , GlAsnGet , GlShare , GlGet , ShareHashLedger , GetHashLedger , ShareHashTx , GetHashTx , ShareHashTxnode , GetHashTxnode , ShareHashAsnode , GetHashAsnode , ShareCasObject , GetCasObject , ShareFetchPack , GetFetchPack , GetTransactions , ShareHash , GetHash , ProofPathRequest , ProofPathResponse , ReplayDeltaRequest , ReplayDeltaResponse , HaveTransactions , RequestedTransactions , Total , Unknown }
enum class	IsFromCluster : bool { No = false , Yes }
	Whether a message's sender is a configured cluster member. More...

Public Member Functions
	TrafficCount ()=default
void	addCount (Category cat, bool inbound, int bytes)
	Account for traffic associated with the given category.
auto const &	getCounts () const
	An up-to-date copy of all the counters.

Static Public Member Functions
static Category	categorize (::google::protobuf::Message const &message, protocol::MessageType type, bool inbound)
	Given a protocol message, determine which traffic category it belongs to.
static Category	attribute (Category cat, IsFromCluster isFromCluster)
	Limits a category to what the sender can report.
static std::string	toString (Category cat)

Protected Attributes
std::unordered_map< Category, TrafficStats >	counts_

Detailed Description

TrafficCount is used to count ingress and egress wire bytes and number of messages.

The general intended usage is as follows:

Determine the message category by callin TrafficCount::categorize
Increment the counters for incoming or outgoing traffic by calling TrafficCount::addCount
Optionally, TrafficCount::addCount can be called at any time to increment additional traffic categories, not captured by TrafficCount::categorize.

There are two special categories:

category::total - this category is used to report the total traffic amount. It should be incremented once just after receiving a new message, and once just before sending a message to a peer. Messages whose category is not in TrafficCount::categorize are not included in the total.
category::unknown - this category is used to report traffic for messages of unknown type.

Definition at line 35 of file TrafficCount.h.

Member Enumeration Documentation

◆ Category

enum class xrpl::TrafficCount::Category : std::size_t

strong

Enumerator
Base
Cluster
Overlay
Manifests
Transaction
TransactionDuplicate
Proposal
ProposalUntrusted
ProposalDuplicate
Validation
ValidationUntrusted
ValidationDuplicate
Validatorlist
Squelch
SquelchSuppressed
SquelchIgnored
GetSet
ShareSet
LdTscGet
LdTscShare
LdTxnGet
LdTxnShare
LdAsnGet
LdAsnShare
LdGet
LdShare
GlTscShare
GlTscGet
GlTxnShare
GlTxnGet
GlAsnShare
GlAsnGet
GlShare
GlGet
ShareHashLedger
GetHashLedger
ShareHashTx
GetHashTx
ShareHashTxnode
GetHashTxnode
ShareHashAsnode
GetHashAsnode
ShareCasObject
GetCasObject
ShareFetchPack
GetFetchPack
GetTransactions
ShareHash
GetHash
ProofPathRequest
ProofPathResponse
ReplayDeltaRequest
ReplayDeltaResponse
HaveTransactions
RequestedTransactions
Total
Unknown

Definition at line 72 of file TrafficCount.h.

◆ IsFromCluster

enum class xrpl::TrafficCount::IsFromCluster : bool

strong

Whether a message's sender is a configured cluster member.

Enumerator
No
Yes

Definition at line 201 of file TrafficCount.h.

Constructor & Destructor Documentation

◆ TrafficCount()

xrpl::TrafficCount::TrafficCount ( )

default

Member Function Documentation

◆ categorize()

TrafficCount::Category xrpl::TrafficCount::categorize	(	::google::protobuf::Message const &	message,
		protocol::MessageType	type,
		bool	inbound )

static

Given a protocol message, determine which traffic category it belongs to.

Definition at line 31 of file TrafficCount.cpp.

◆ attribute()

TrafficCount::Category xrpl::TrafficCount::attribute	(	Category	cat,
		IsFromCluster	isFromCluster )

staticnodiscard

Limits a category to what the sender can report.

categorize reads the message and its type, which is all an outbound message can be judged by. Inbound, the sender is also known, and one category means more than the type it was derived from: Cluster is read as traffic between configured cluster members. Any peer can send that type, so a peer outside the cluster is held to Unknown instead, leaving the category to mean what an operator reads it to mean.

Parameters

cat	The category the message's type belongs to.
isFromCluster	Whether the sender is a configured cluster member.

Returns: The category to account the message under.

Definition at line 139 of file TrafficCount.cpp.

◆ addCount()

void xrpl::TrafficCount::addCount	(	Category	cat,
		bool	inbound,
		int	bytes )

Account for traffic associated with the given category.

Definition at line 224 of file TrafficCount.h.

◆ getCounts()

auto const & xrpl::TrafficCount::getCounts ( ) const

nodiscard

An up-to-date copy of all the counters.

Returns: an object which satisfies the requirements of Container

Definition at line 253 of file TrafficCount.h.

◆ toString()

std::string xrpl::TrafficCount::toString ( Category cat )

static

Definition at line 259 of file TrafficCount.h.

Member Data Documentation

◆ counts_

std::unordered_map<Category, TrafficStats> xrpl::TrafficCount::counts_

protected

Definition at line 326 of file TrafficCount.h.
