xrpl::detail::BasicFullBelowCache Class Reference

Remembers which tree keys have all descendants resident. More...

#include <FullBelowCache.h>

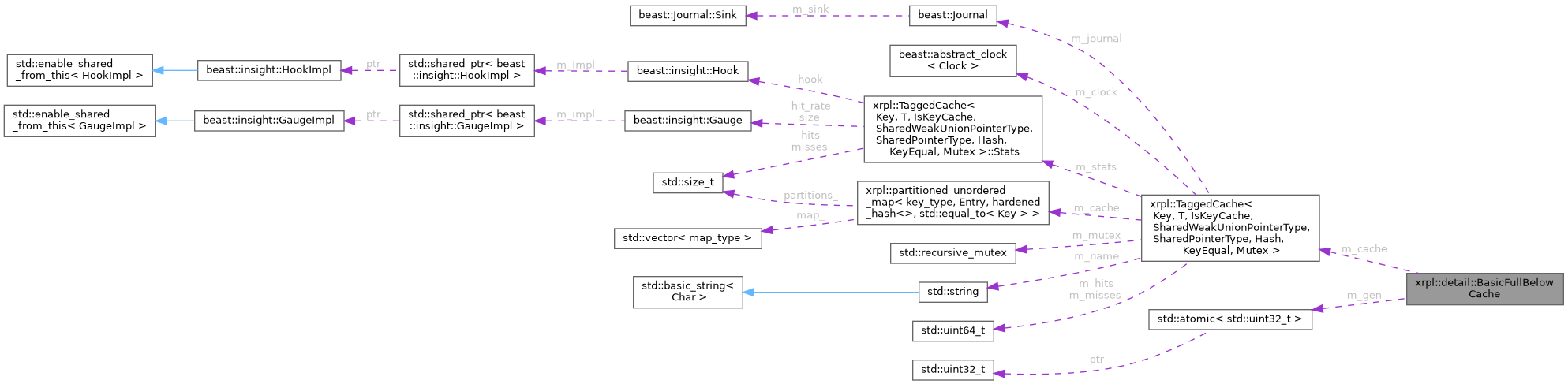

Collaboration diagram for xrpl::detail::BasicFullBelowCache:

Public Types
using	key_type = uint256
using	clock_type = CacheType::clock_type

Public Member Functions
	BasicFullBelowCache (std::string const &name, clock_type &clock, beast::Journal j, beast::insight::Collector::ptr const &collector=beast::insight::NullCollector::make(), std::size_t targetSize=kDefaultCacheTargetSize, std::chrono::seconds expiration=std::chrono::minutes{2})
	Construct the cache.
clock_type &	clock ()
	Return the clock associated with the cache.
std::size_t	size () const
	Return the number of elements in the cache.
void	sweep ()
	Remove expired cache items.
bool	touchIfExists (key_type const &key)
	Refresh the last access time of an item, if it exists.
void	insert (key_type const &key)
	Insert a key into the cache.
std::uint32_t	getGeneration (void) const
	generation determines whether cached entry is valid
void	clear ()
void	reset ()

Static Public Attributes
static constexpr auto	kDefaultCacheTargetSize = 0

Private Types
using	CacheType = KeyCache

Private Attributes
CacheType	cache_
std::atomic< std::uint32_t >	gen_

Detailed Description

Remembers which tree keys have all descendants resident.

This optimizes the process of acquiring a complete tree.

Definition at line 19 of file FullBelowCache.h.

Member Typedef Documentation

CacheType

using xrpl::detail::BasicFullBelowCache::CacheType = KeyCache

private

Definition at line 22 of file FullBelowCache.h.

key_type

using xrpl::detail::BasicFullBelowCache::key_type = uint256

Definition at line 27 of file FullBelowCache.h.

clock_type

using xrpl::detail::BasicFullBelowCache::clock_type = CacheType::clock_type

Definition at line 28 of file FullBelowCache.h.

Constructor & Destructor Documentation

BasicFullBelowCache()

xrpl::detail::BasicFullBelowCache::BasicFullBelowCache	(	std::string const &	name,
		clock_type &	clock,
		beast::Journal	j,
		beast::insight::Collector::ptr const &	collector = beast::insight::NullCollector::make(),
		std::size_t	targetSize = kDefaultCacheTargetSize,
		std::chrono::seconds	expiration = std::chrono::minutes{2} )

Construct the cache.

Parameters

name	A label for diagnostics and stats reporting.
collector	The collector to use for reporting stats.
targetSize	The cache target size.
targetExpirationSeconds	The expiration time for items.

Definition at line 37 of file FullBelowCache.h.

Member Function Documentation

clock()

clock_type & xrpl::detail::BasicFullBelowCache::clock

(

)

Return the clock associated with the cache.

Definition at line 50 of file FullBelowCache.h.

size()

std::size_t xrpl::detail::BasicFullBelowCache::size

(

)

const

Return the number of elements in the cache.

Thread safety: Safe to call from any thread.

Definition at line 60 of file FullBelowCache.h.

sweep()

void xrpl::detail::BasicFullBelowCache::sweep

(

)

Remove expired cache items.

Thread safety: Safe to call from any thread.

Definition at line 70 of file FullBelowCache.h.

touchIfExists()

bool xrpl::detail::BasicFullBelowCache::touchIfExists

(

key_type const &

key

)

Refresh the last access time of an item, if it exists.

Thread safety: Safe to call from any thread.

Parameters

key	The key to refresh.

Returns

true If the key exists.

Definition at line 82 of file FullBelowCache.h.

insert()

void xrpl::detail::BasicFullBelowCache::insert

(

key_type const &

key

)

Insert a key into the cache.

If the key already exists, the last access time will still be refreshed. Thread safety: Safe to call from any thread.

Parameters

key	The key to insert.

Definition at line 95 of file FullBelowCache.h.

getGeneration()

std::uint32_t xrpl::detail::BasicFullBelowCache::getGeneration

(

void

)

const

generation determines whether cached entry is valid

Definition at line 102 of file FullBelowCache.h.

clear()

void xrpl::detail::BasicFullBelowCache::clear

(

)

Definition at line 108 of file FullBelowCache.h.

reset()

void xrpl::detail::BasicFullBelowCache::reset

(

)

Definition at line 115 of file FullBelowCache.h.

Member Data Documentation

kDefaultCacheTargetSize

auto xrpl::detail::BasicFullBelowCache::kDefaultCacheTargetSize = 0

staticconstexpr

Definition at line 25 of file FullBelowCache.h.

cache_

CacheType xrpl::detail::BasicFullBelowCache::cache_

private

Definition at line 122 of file FullBelowCache.h.

gen_

std::atomic<std::uint32_t> xrpl::detail::BasicFullBelowCache::gen_

private

Definition at line 123 of file FullBelowCache.h.
