xrpl::peer_finder::Livecache< Allocator > Class Template Reference

The Livecache holds the short-lived relayed Endpoint messages. More...

#include <Livecache.h>

Inheritance diagram for xrpl::peer_finder::Livecache< Allocator >:

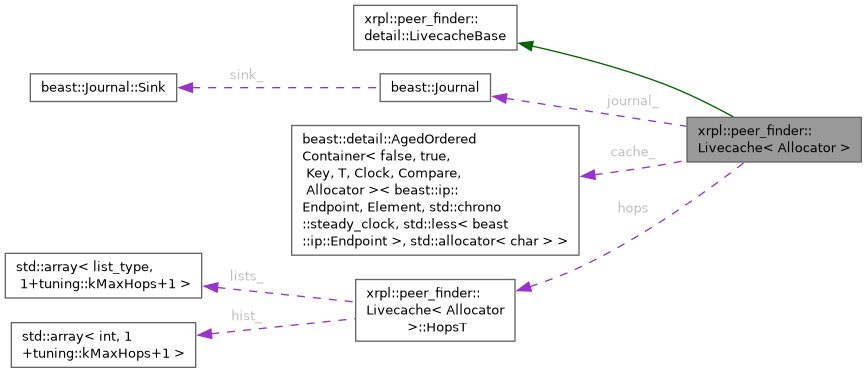

Collaboration diagram for xrpl::peer_finder::Livecache< Allocator >:

Classes
class	HopsT

Public Types
using	allocator_type = Allocator

Public Member Functions
	Livecache (clock_type &clock, beast::Journal journal, Allocator alloc=Allocator())
	Create the cache.
bool	empty () const
	Returns true if the cache is empty.
cache_type::size_type	size () const
	Returns the number of entries in the cache.
void	expire ()
	Erase entries whose time has expired.
void	insert (Endpoint const &ep)
	Creates or updates an existing Element based on a new message.
void	onWrite (beast::PropertyStream::Map &map)
	Output statistics.

Public Attributes
class xrpl::peer_finder::Livecache::HopsT	hops

Protected Types
using	list_type

Static Protected Member Functions
template<bool IsConst>
static Hop< IsConst >	makeHop (beast::MaybeConst< IsConst, list_type >::type &list)

Private Types
using	cache_type

Private Attributes
beast::Journal	journal_
cache_type	cache_

Detailed Description

template<class Allocator = std::allocator<char>>
class xrpl::peer_finder::Livecache< Allocator >

The Livecache holds the short-lived relayed Endpoint messages.

Since peers only advertise themselves when they have open slots, we want these messages to expire rather quickly after the peer becomes full.

Addresses added to the cache are not connection-tested to see if they are connectable (with one small exception regarding neighbors). Therefore, these addresses are not suitable for persisting across launches or for bootstrapping, because they do not have verifiable and locally observed uptime and connectability information.

Definition at line 187 of file Livecache.h.

Member Typedef Documentation

cache_type

template<class Allocator = std::allocator<char>>

using xrpl::peer_finder::Livecache< Allocator >::cache_type

private

Initial value:

beast::aged_map<
       beast::ip::Endpoint,
       Element,
       std::chrono::steady_clock,
       std::less<beast::ip::Endpoint>,
       Allocator>

Definition at line 190 of file Livecache.h.

allocator_type

template<class Allocator = std::allocator<char>>

using xrpl::peer_finder::Livecache< Allocator >::allocator_type = Allocator

Definition at line 201 of file Livecache.h.

list_type

using xrpl::peer_finder::detail::LivecacheBase::list_type

protectedinherited

Initial value:


boost::intrusive::make_list<Element, boost::intrusive::constant_time_size<false>>::type

Definition at line 54 of file Livecache.h.

Constructor & Destructor Documentation

Livecache()

template<class Allocator>

xrpl::peer_finder::Livecache< Allocator >::Livecache	(	clock_type &	clock,
		beast::Journal	journal,
		Allocator	alloc = Allocator() )

Create the cache.

Definition at line 392 of file Livecache.h.

Member Function Documentation

empty()

template<class Allocator = std::allocator<char>>

bool xrpl::peer_finder::Livecache< Allocator >::empty ( ) const

nodiscard

Returns true if the cache is empty.

Definition at line 356 of file Livecache.h.

size()

template<class Allocator = std::allocator<char>>

cache_type::size_type xrpl::peer_finder::Livecache< Allocator >::size

(

)

const

Returns the number of entries in the cache.

Definition at line 365 of file Livecache.h.

expire()

template<class Allocator>

void xrpl::peer_finder::Livecache< Allocator >::expire

(

)

Erase entries whose time has expired.

Definition at line 399 of file Livecache.h.

insert()

template<class Allocator>

void xrpl::peer_finder::Livecache< Allocator >::insert

(

Endpoint const &

ep

)

Creates or updates an existing Element based on a new message.

Definition at line 421 of file Livecache.h.

onWrite()

template<class Allocator>

void xrpl::peer_finder::Livecache< Allocator >::onWrite

(

beast::PropertyStream::Map &

map

)

Output statistics.

Definition at line 468 of file Livecache.h.

makeHop()

template<bool IsConst>

Hop< IsConst > xrpl::peer_finder::detail::LivecacheBase::makeHop ( beast::MaybeConst< IsConst, list_type >::type & list )

staticprotectedinherited

Definition at line 163 of file Livecache.h.

Member Data Documentation

journal_

template<class Allocator = std::allocator<char>>

beast::Journal xrpl::peer_finder::Livecache< Allocator >::journal_

private

Definition at line 197 of file Livecache.h.

cache_

template<class Allocator = std::allocator<char>>

cache_type xrpl::peer_finder::Livecache< Allocator >::cache_

private

Definition at line 198 of file Livecache.h.

hops

template<class Allocator = std::allocator<char>>

class xrpl::peer_finder::Livecache::HopsT xrpl::peer_finder::Livecache< Allocator >::hops
