Slot is associated with a specific validator via validator's public key. More...

#include <Slot.h>

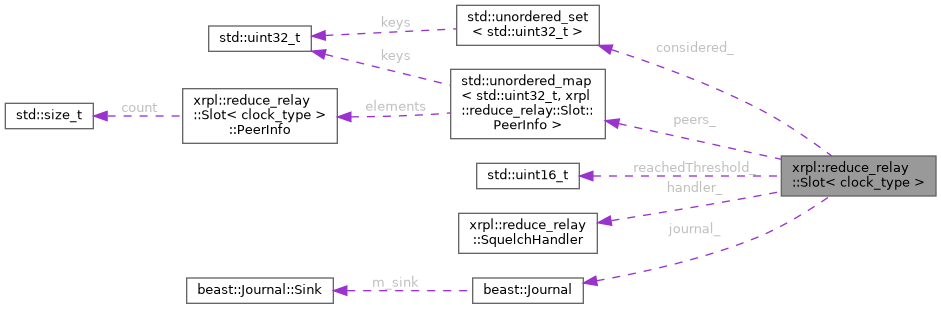

Collaboration diagram for xrpl::reduce_relay::Slot< ClockType >:

[legend]

Classes
struct	PeerInfo
	Data maintained for each peer. More...

Private Types
using	id_t = Peer::id_t
using	time_point = ClockType::time_point
using	ignored_squelch_callback = std::function<void()>

Private Member Functions
	Slot (SquelchHandler const &handler, beast::Journal journal, uint16_t maxSelectedPeers)
	Constructor.
void	update (PublicKey const &validator, id_t id, protocol::MessageType type, ignored_squelch_callback callback)
	Update peer info.
void	deletePeer (PublicKey const &validator, id_t id, bool erase)
	Handle peer deletion when a peer disconnects.
time_point const &	getLastSelected () const
	Get the time of the last peer selection round.
std::uint16_t	inState (PeerState state) const
	Return number of peers in state.
std::uint16_t	notInState (PeerState state) const
	Return number of peers not in state.
SlotState	getState () const
	Return Slot's state.
std::set< id_t >	getSelected () const
	Return selected peers.
std::unordered_map< id_t, std::tuple< PeerState, uint16_t, uint32_t, uint32_t > >	getPeers () const
	Get peers info.
void	deleteIdlePeer (PublicKey const &validator)
	Check if peers stopped relaying messages.
std::chrono::seconds	getSquelchDuration (std::size_t npeers)
	Get random squelch duration between kMinUnsquelchExpire and min(max(kMaxUnsquelchExpireDefault, kSquelchPerPeer * npeers), kMaxUnsquelchExpirePeers).
void	resetCounts ()
	Reset counts of peers in Selected or Counting state.
void	initCounting ()
	Initialize slot to Counting state.

Private Attributes
std::unordered_map< id_t, PeerInfo >	peers_
std::unordered_set< id_t >	considered_
std::uint16_t	reachedThreshold_ {0}
ClockType::time_point	lastSelected_
SlotState	state_ {SlotState::Counting}
SquelchHandler const &	handler_
beast::Journal const	journal_
uint16_t const	maxSelectedPeers_

Friends
class	Slots< ClockType >

Detailed Description

template<typename ClockType>
class xrpl::reduce_relay::Slot< ClockType >

Slot is associated with a specific validator via validator's public key.

Slot counts messages from a validator, selects peers to be the source of the messages, and communicates the peers to be squelched. Slot can be in the following states: 1) Counting. This is the peer selection state when Slot counts the messages and selects the peers; 2) Selected. Slot doesn't count messages in Selected state. A message received from unsquelched, disconnected peer, or idling peer may transition Slot to Counting state.

Definition at line 102 of file src/xrpld/overlay/Slot.h.

Member Typedef Documentation

◆ id_t

template<typename ClockType>

using xrpl::reduce_relay::Slot< ClockType >::id_t = Peer::id_t

private

Definition at line 106 of file src/xrpld/overlay/Slot.h.

◆ time_point

template<typename ClockType>

using xrpl::reduce_relay::Slot< ClockType >::time_point = ClockType::time_point

private

Definition at line 107 of file src/xrpld/overlay/Slot.h.

◆ ignored_squelch_callback

template<typename ClockType>

using xrpl::reduce_relay::Slot< ClockType >::ignored_squelch_callback = std::function<void()>

private

Definition at line 110 of file src/xrpld/overlay/Slot.h.

Constructor & Destructor Documentation

◆ Slot()

template<typename ClockType>

xrpl::reduce_relay::Slot< ClockType >::Slot	(	SquelchHandler const &	handler,
		beast::Journal	journal,
		uint16_t	maxSelectedPeers )

private

Constructor.

Parameters

handler	Squelch/Unsquelch implementation
journal	Journal for logging
maxSelectedPeers	the maximum number of peers to be selected as validator message source

Definition at line 119 of file src/xrpld/overlay/Slot.h.

Member Function Documentation

◆ update()

template<typename ClockType>

void xrpl::reduce_relay::Slot< ClockType >::update	(	PublicKey const &	validator,
		id_t	id,
		protocol::MessageType	type,
		ignored_squelch_callback	callback )

private

Update peer info.

If the message is from a new peer or from a previously expired squelched peer then switch the peer's and slot's state to Counting. If time of last selection round is > 2 * kMaxUnsquelchExpireDefault then switch the slot's state to Counting. If the number of messages for the peer is > kMinMessageThreshold then add peer to considered peers pool. If the number of considered peers who reached kMaxMessageThreshold is maxSelectedPeers_ then randomly select maxSelectedPeers_ from considered peers, and call squelch handler for each peer, which is not selected and not already in Squelched state. Set the state for those peers to Squelched and reset the count of all peers. Set slot's state to Selected. Message count is not updated when the slot is in Selected state.

Parameters

validator	Public key of the source validator
id	Peer id which received the message
type	Message type (Validation and Propose Set only, others are ignored, future use)
callback	A callback to report ignored squelches

Definition at line 299 of file src/xrpld/overlay/Slot.h.

◆ deletePeer()

template<typename ClockType>

void xrpl::reduce_relay::Slot< ClockType >::deletePeer	(	PublicKey const &	validator,
		id_t	id,
		bool	erase )

private

Handle peer deletion when a peer disconnects.

If the peer is in Selected state then call unsquelch handler for every peer in squelched state and reset every peer's state to Counting. Switch Slot's state to Counting.

Parameters

validator	Public key of the source validator
id	Deleted peer id
erase	If true then erase the peer. The peer is not erased when the peer when is idled. The peer is deleted when it disconnects

Definition at line 447 of file src/xrpld/overlay/Slot.h.

◆ getLastSelected()

template<typename ClockType>

time_point const & xrpl::reduce_relay::Slot< ClockType >::getLastSelected ( ) const

nodiscardprivate

Get the time of the last peer selection round.

Definition at line 172 of file src/xrpld/overlay/Slot.h.

◆ inState()

template<typename ClockType>

std::uint16_t xrpl::reduce_relay::Slot< ClockType >::inState ( PeerState state ) const

nodiscardprivate

Return number of peers in state.

Definition at line 515 of file src/xrpld/overlay/Slot.h.

◆ notInState()

template<typename ClockType>

std::uint16_t xrpl::reduce_relay::Slot< ClockType >::notInState ( PeerState state ) const

nodiscardprivate

Return number of peers not in state.

Definition at line 523 of file src/xrpld/overlay/Slot.h.

◆ getState()

template<typename ClockType>

SlotState xrpl::reduce_relay::Slot< ClockType >::getState ( ) const

nodiscardprivate

Return Slot's state.

Definition at line 193 of file src/xrpld/overlay/Slot.h.

◆ getSelected()

template<typename ClockType>

std::set< Peer::id_t > xrpl::reduce_relay::Slot< ClockType >::getSelected ( ) const

nodiscardprivate

Return selected peers.

Definition at line 531 of file src/xrpld/overlay/Slot.h.

◆ getPeers()

template<typename ClockType>

std::unordered_map< Peer::id_t, std::tuple< PeerState, uint16_t, uint32_t, uint32_t > > xrpl::reduce_relay::Slot< ClockType >::getPeers ( ) const

nodiscardprivate

Get peers info.

Return map of peer's state, count, squelch expiration milsec, and last message time milsec.

Definition at line 544 of file src/xrpld/overlay/Slot.h.

◆ deleteIdlePeer()

template<typename ClockType>

void xrpl::reduce_relay::Slot< ClockType >::deleteIdlePeer ( PublicKey const & validator )

private

Check if peers stopped relaying messages.

If a peer is selected peer then call unsquelch handler for all currently squelched peers and switch the slot to Counting state.

Parameters

validator Public key of the source validator

Definition at line 277 of file src/xrpld/overlay/Slot.h.

◆ getSquelchDuration()

template<typename ClockType>

std::chrono::seconds xrpl::reduce_relay::Slot< ClockType >::getSquelchDuration ( std::size_t npeers )

private

Get random squelch duration between kMinUnsquelchExpire and min(max(kMaxUnsquelchExpireDefault, kSquelchPerPeer * npeers), kMaxUnsquelchExpirePeers).

Parameters

npeers number of peers that can be squelched in the Slot

Definition at line 433 of file src/xrpld/overlay/Slot.h.

◆ resetCounts()

template<typename ClockType>

void xrpl::reduce_relay::Slot< ClockType >::resetCounts ( )

private

Reset counts of peers in Selected or Counting state.

Definition at line 494 of file src/xrpld/overlay/Slot.h.

◆ initCounting()

template<typename ClockType>

void xrpl::reduce_relay::Slot< ClockType >::initCounting ( )

private

Initialize slot to Counting state.

Definition at line 505 of file src/xrpld/overlay/Slot.h.

◆ Slots< ClockType >

template<typename ClockType>

friend class Slots< ClockType >

friend

Definition at line 88 of file src/xrpld/overlay/Slot.h.

Member Data Documentation

◆ peers_

template<typename ClockType>

std::unordered_map<id_t, PeerInfo> xrpl::reduce_relay::Slot< ClockType >::peers_

private

Definition at line 254 of file src/xrpld/overlay/Slot.h.

◆ considered_

template<typename ClockType>

std::unordered_set<id_t> xrpl::reduce_relay::Slot< ClockType >::considered_

private

Definition at line 258 of file src/xrpld/overlay/Slot.h.

◆ reachedThreshold_

template<typename ClockType>

std::uint16_t xrpl::reduce_relay::Slot< ClockType >::reachedThreshold_ {0}

private

Definition at line 261 of file src/xrpld/overlay/Slot.h.

◆ lastSelected_

template<typename ClockType>

ClockType::time_point xrpl::reduce_relay::Slot< ClockType >::lastSelected_

private

Definition at line 264 of file src/xrpld/overlay/Slot.h.

◆ state_

template<typename ClockType>

SlotState xrpl::reduce_relay::Slot< ClockType >::state_ {SlotState::Counting}

private

Definition at line 266 of file src/xrpld/overlay/Slot.h.

◆ handler_

template<typename ClockType>

SquelchHandler const& xrpl::reduce_relay::Slot< ClockType >::handler_

private

Definition at line 267 of file src/xrpld/overlay/Slot.h.

◆ journal_

template<typename ClockType>

beast::Journal const xrpl::reduce_relay::Slot< ClockType >::journal_

private

Definition at line 268 of file src/xrpld/overlay/Slot.h.

◆ maxSelectedPeers_

template<typename ClockType>

uint16_t const xrpl::reduce_relay::Slot< ClockType >::maxSelectedPeers_

private

Definition at line 272 of file src/xrpld/overlay/Slot.h.
