xrpl::test::TestFamily Class Reference

Test implementation of Family for unit tests. More...

#include <TestFamily.h>

Inheritance diagram for xrpl::test::TestFamily:

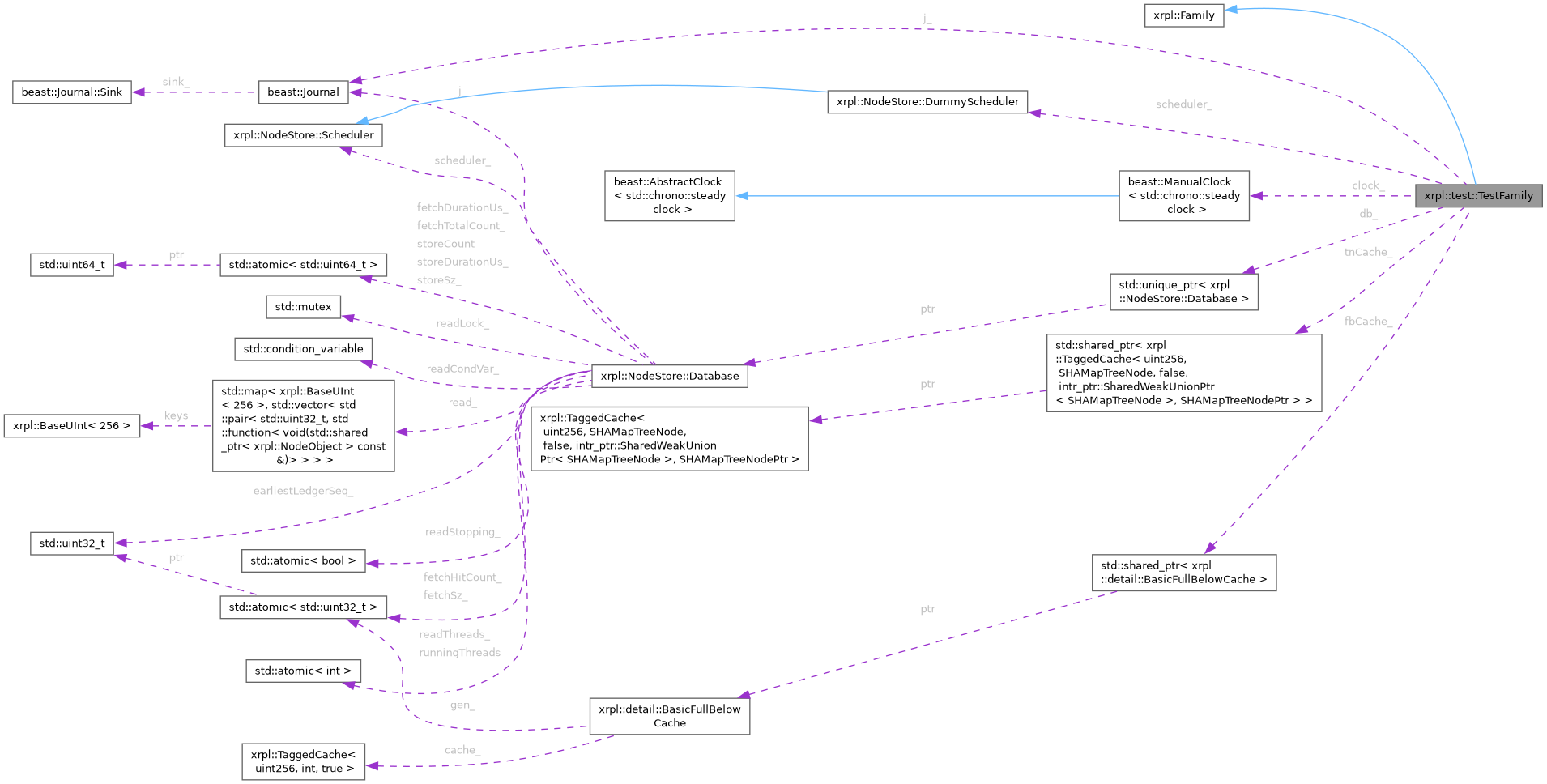

Collaboration diagram for xrpl::test::TestFamily:

Public Member Functions
	TestFamily (beast::Journal j)
NodeStore::Database &	db () override
NodeStore::Database const &	db () const override
beast::Journal const &	journal () override
std::shared_ptr< FullBelowCache >	getFullBelowCache () override
	Return a pointer to the Family Full Below Cache.
std::shared_ptr< TreeNodeCache >	getTreeNodeCache () override
	Return a pointer to the Family Tree Node Cache.
void	sweep () override
void	missingNodeAcquireBySeq (std::uint32_t refNum, uint256 const &nodeHash) override
	Acquire ledger that has a missing node by ledger sequence.
void	missingNodeAcquireByHash (uint256 const &refHash, std::uint32_t refNum) override
	Acquire ledger that has a missing node by ledger hash.
void	reset () override
TestStopwatch &	clock ()
	Access the test clock for time manipulation in tests.

Private Attributes
std::unique_ptr< NodeStore::Database >	db_
TestStopwatch	clock_
std::shared_ptr< FullBelowCache >	fbCache_
std::shared_ptr< TreeNodeCache >	tnCache_
NodeStore::DummyScheduler	scheduler_
beast::Journal	j_

Detailed Description

Test implementation of Family for unit tests.

Uses an in-memory NodeStore database and simple caches. The missingNode methods throw since tests shouldn't encounter missing nodes.

Definition at line 19 of file TestFamily.h.

Constructor & Destructor Documentation

TestFamily()

xrpl::test::TestFamily::TestFamily ( beast::Journal j )

explicit

Definition at line 30 of file TestFamily.h.

Member Function Documentation

db() [1/2]

NodeStore::Database & xrpl::test::TestFamily::db ( )

overridevirtual

Implements xrpl::Family.

Definition at line 48 of file TestFamily.h.

db() [2/2]

NodeStore::Database const & xrpl::test::TestFamily::db ( ) const

nodiscardoverridevirtual

Implements xrpl::Family.

Definition at line 54 of file TestFamily.h.

journal()

beast::Journal const & xrpl::test::TestFamily::journal ( )

overridevirtual

Implements xrpl::Family.

Definition at line 60 of file TestFamily.h.

getFullBelowCache()

std::shared_ptr< FullBelowCache > xrpl::test::TestFamily::getFullBelowCache ( )

overridevirtual

Return a pointer to the Family Full Below Cache.

Implements xrpl::Family.

Definition at line 66 of file TestFamily.h.

getTreeNodeCache()

std::shared_ptr< TreeNodeCache > xrpl::test::TestFamily::getTreeNodeCache ( )

overridevirtual

Return a pointer to the Family Tree Node Cache.

Implements xrpl::Family.

Definition at line 72 of file TestFamily.h.

sweep()

void xrpl::test::TestFamily::sweep ( )

overridevirtual

Implements xrpl::Family.

Definition at line 78 of file TestFamily.h.

missingNodeAcquireBySeq()

void xrpl::test::TestFamily::missingNodeAcquireBySeq ( std::uint32_t refNum, uint256 const & nodeHash )

overridevirtual

Acquire ledger that has a missing node by ledger sequence.

Parameters

refNum	Sequence of ledger to acquire.
nodeHash	Hash of missing node to report in throw.

Implements xrpl::Family.

Definition at line 85 of file TestFamily.h.

missingNodeAcquireByHash()

void xrpl::test::TestFamily::missingNodeAcquireByHash ( uint256 const & refHash, std::uint32_t refNum )

overridevirtual

Acquire ledger that has a missing node by ledger hash.

Parameters

refHash	Hash of ledger to acquire.
refNum	Ledger sequence with missing node.

Implements xrpl::Family.

Definition at line 91 of file TestFamily.h.

reset()

void xrpl::test::TestFamily::reset ( )

overridevirtual

Implements xrpl::Family.

Definition at line 97 of file TestFamily.h.

clock()

TestStopwatch & xrpl::test::TestFamily::clock

(

)

Access the test clock for time manipulation in tests.

Definition at line 105 of file TestFamily.h.

Member Data Documentation

db_

std::unique_ptr<NodeStore::Database> xrpl::test::TestFamily::db_

private

Definition at line 22 of file TestFamily.h.

clock_

TestStopwatch xrpl::test::TestFamily::clock_

private

Definition at line 23 of file TestFamily.h.

fbCache_

std::shared_ptr<FullBelowCache> xrpl::test::TestFamily::fbCache_

private

Definition at line 24 of file TestFamily.h.

tnCache_

std::shared_ptr<TreeNodeCache> xrpl::test::TestFamily::tnCache_

private

Definition at line 25 of file TestFamily.h.

scheduler_

NodeStore::DummyScheduler xrpl::test::TestFamily::scheduler_

private

Definition at line 26 of file TestFamily.h.

j_

beast::Journal xrpl::test::TestFamily::j_

private

Definition at line 27 of file TestFamily.h.
