xrpl::test::csf::Ledger Class Reference

A ledger is a set of observed transactions and a sequence number identifying the ledger. More...

#include <ledgers.h>

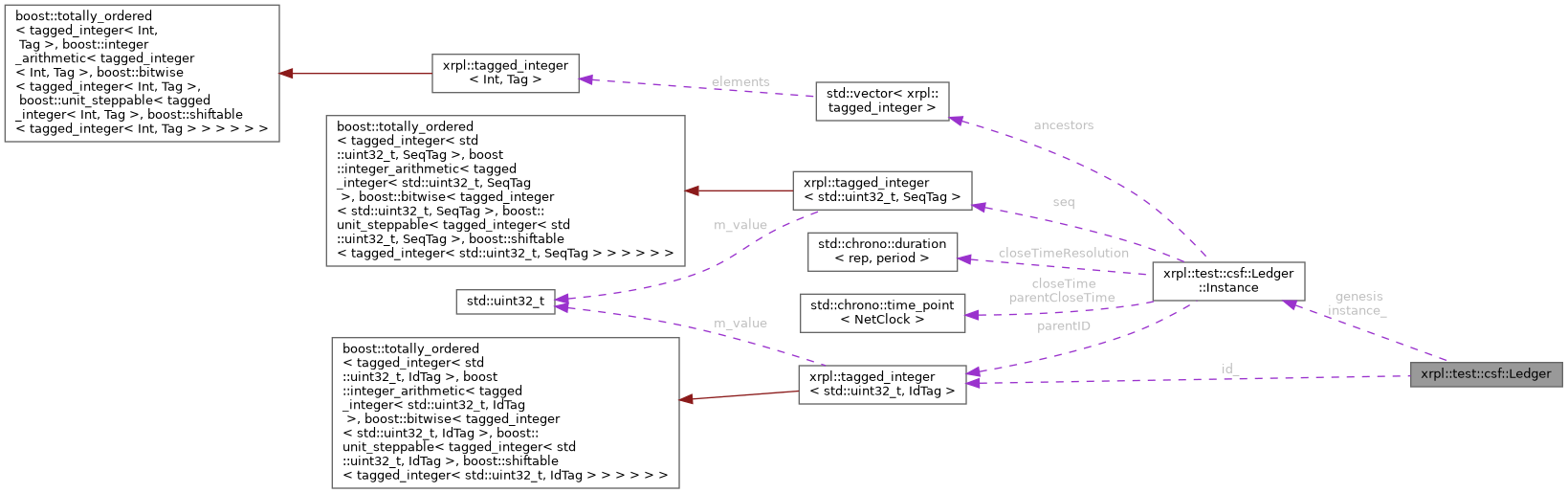

Collaboration diagram for xrpl::test::csf::Ledger:

Classes
struct	MakeGenesis
struct	Instance

Public Types
using	Seq = TaggedInteger<std::uint32_t, SeqTag>
using	ID = TaggedInteger<std::uint32_t, IdTag>

Public Member Functions
	Ledger (MakeGenesis)
	Ledger ()
ID	id () const
Seq	seq () const
NetClock::duration	closeTimeResolution () const
bool	closeAgree () const
NetClock::time_point	closeTime () const
NetClock::time_point	parentCloseTime () const
ID	parentID () const
TxSetType const &	txs () const
bool	isAncestor (Ledger const &ancestor) const
	Determine whether ancestor is really an ancestor of this ledger.
ID	operator[] (Seq seq) const
	Return the id of the ancestor with the given seq (if exists/known).
json::Value	getJson () const

Private Member Functions
	Ledger (ID id, Instance const *i)

Private Attributes
ID	id_ {0}
Instance const *	instance_

Static Private Attributes
static Instance const	kGenesis

Friends
class	LedgerOracle
Ledger::Seq	mismatch (Ledger const &a, Ledger const &o)
	Return the sequence number of the first mismatching ancestor.
bool	operator< (Ledger const &a, Ledger const &b)

Detailed Description

A ledger is a set of observed transactions and a sequence number identifying the ledger.

Peers in the consensus process are trying to agree on a set of transactions to include in a ledger. For simulation, each transaction is a single integer and the ledger is the set of observed integers. This means future ledgers have prior ledgers as subsets, e.g.

Ledger 0 :  {}
Ledger 1 :  {1,4,5}
Ledger 2 :  {1,2,4,5,10}
....

Ledgers are immutable value types. All ledgers with the same sequence number, transactions, close time, etc. will have the same ledger ID. The LedgerOracle class below manages ID assignments for a simulation and is the only way to close and create a new ledger. Since the parent ledger ID is part of type, this also means ledgers with distinct histories will have distinct ids, even if they have the same set of transactions, sequence number and close time.

Definition at line 47 of file ledgers.h.

Member Typedef Documentation

Seq

using xrpl::test::csf::Ledger::Seq = TaggedInteger<std::uint32_t, SeqTag>

Definition at line 53 of file ledgers.h.

ID

using xrpl::test::csf::Ledger::ID = TaggedInteger<std::uint32_t, IdTag>

Definition at line 56 of file ledgers.h.

Constructor & Destructor Documentation

Ledger() [1/3]

xrpl::test::csf::Ledger::Ledger ( ID id, Instance const * i )

private

Definition at line 150 of file ledgers.h.

Ledger() [2/3]

xrpl::test::csf::Ledger::Ledger

(

MakeGenesis

)

Definition at line 155 of file ledgers.h.

Ledger() [3/3]

xrpl::test::csf::Ledger::Ledger

(

)

Definition at line 161 of file ledgers.h.

Member Function Documentation

id()

ID xrpl::test::csf::Ledger::id ( ) const

nodiscard

Definition at line 166 of file ledgers.h.

seq()

Seq xrpl::test::csf::Ledger::seq ( ) const

nodiscard

Definition at line 172 of file ledgers.h.

closeTimeResolution()

NetClock::duration xrpl::test::csf::Ledger::closeTimeResolution ( ) const

nodiscard

Definition at line 178 of file ledgers.h.

closeAgree()

bool xrpl::test::csf::Ledger::closeAgree ( ) const

nodiscard

Definition at line 184 of file ledgers.h.

closeTime()

NetClock::time_point xrpl::test::csf::Ledger::closeTime ( ) const

nodiscard

Definition at line 190 of file ledgers.h.

parentCloseTime()

NetClock::time_point xrpl::test::csf::Ledger::parentCloseTime ( ) const

nodiscard

Definition at line 196 of file ledgers.h.

parentID()

ID xrpl::test::csf::Ledger::parentID ( ) const

nodiscard

Definition at line 202 of file ledgers.h.

txs()

TxSetType const & xrpl::test::csf::Ledger::txs ( ) const

nodiscard

Definition at line 208 of file ledgers.h.

isAncestor()

bool xrpl::test::csf::Ledger::isAncestor ( Ledger const & ancestor ) const

nodiscard

Determine whether ancestor is really an ancestor of this ledger.

Definition at line 30 of file ledgers.cpp.

operator[]()

Ledger::ID xrpl::test::csf::Ledger::operator[]

(

Seq

seq

)

const

Return the id of the ancestor with the given seq (if exists/known).

Definition at line 38 of file ledgers.cpp.

getJson()

json::Value xrpl::test::csf::Ledger::getJson ( ) const

nodiscard

Definition at line 21 of file ledgers.cpp.

Friends And Related Symbol Documentation

LedgerOracle

friend class LedgerOracle

friend

Definition at line 49 of file ledgers.h.

mismatch

Ledger::Seq mismatch ( Ledger const & a, Ledger const & o )

friend

Return the sequence number of the first mismatching ancestor.

Definition at line 48 of file ledgers.cpp.

operator<

bool operator< ( Ledger const & a, Ledger const & b )

friend

Definition at line 234 of file ledgers.h.

Member Data Documentation

kGenesis

Ledger::Instance const xrpl::test::csf::Ledger::kGenesis

staticprivate

Definition at line 148 of file ledgers.h.

id_

ID xrpl::test::csf::Ledger::id_ {0}

private

Definition at line 241 of file ledgers.h.

instance_

Instance const* xrpl::test::csf::Ledger::instance_

private

Definition at line 242 of file ledgers.h.
