xrpl::test::csf::Submitter< Distribution, Generator, Selector > Class Template Reference

Submits transactions to a specified peer. More...

#include <submitters.h>

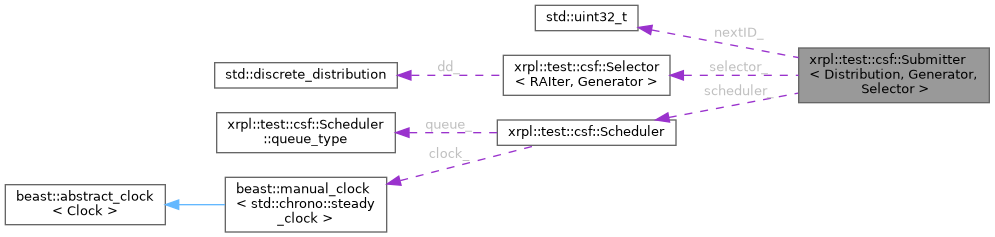

Collaboration diagram for xrpl::test::csf::Submitter< Distribution, Generator, Selector >:

Public Member Functions
	Submitter (Distribution dist, SimTime start, SimTime end, Selector &selector, Scheduler &s, Generator &g)

Private Member Functions
void	submit ()

Static Private Member Functions
static SimDuration	asDuration (SimDuration d)
template<class T>
static std::enable_if_t< std::is_arithmetic_v< T >, SimDuration >	asDuration (T t)

Private Attributes
Distribution	dist_
SimTime	stop_
std::uint32_t	nextID_ = 0
Selector	selector_
Scheduler &	scheduler_
Generator &	g_

Detailed Description

template<class Distribution, class Generator, class Selector>
class xrpl::test::csf::Submitter< Distribution, Generator, Selector >

Submits transactions to a specified peer.

Submits successive transactions beginning at start, then spaced according to successive calls of distribution(), until stop.

Template Parameters

Distribution	is a UniformRandomBitGenerator from the STL that is used by random distributions to generate random samples
Generator	is an object with member T operator()(Generator &g) which generates the delay T in SimDuration units to the next transaction. For the current definition of SimDuration, this is currently the number of nanoseconds. Submitter internally casts arithmetic T to SimDuration::rep units to allow using standard library distributions as a Distribution.

Definition at line 46 of file submitters.h.

Constructor & Destructor Documentation

Submitter()

template<class Distribution, class Generator, class Selector>

xrpl::test::csf::Submitter< Distribution, Generator, Selector >::Submitter	(	Distribution	dist,
		SimTime	start,
		SimTime	end,
		Selector &	selector,
		Scheduler &	s,
		Generator &	g )

Definition at line 80 of file submitters.h.

Member Function Documentation

asDuration() [1/2]

template<class Distribution, class Generator, class Selector>

SimDuration xrpl::test::csf::Submitter< Distribution, Generator, Selector >::asDuration ( SimDuration d )

staticprivate

Definition at line 57 of file submitters.h.

asDuration() [2/2]

template<class Distribution, class Generator, class Selector>

template<class T>

std::enable_if_t< std::is_arithmetic_v< T >, SimDuration > xrpl::test::csf::Submitter< Distribution, Generator, Selector >::asDuration ( T t )

staticprivate

Definition at line 64 of file submitters.h.

submit()

template<class Distribution, class Generator, class Selector>

void xrpl::test::csf::Submitter< Distribution, Generator, Selector >::submit ( )

private

Definition at line 70 of file submitters.h.

Member Data Documentation

dist_

template<class Distribution, class Generator, class Selector>

Distribution xrpl::test::csf::Submitter< Distribution, Generator, Selector >::dist_

private

Definition at line 48 of file submitters.h.

stop_

template<class Distribution, class Generator, class Selector>

SimTime xrpl::test::csf::Submitter< Distribution, Generator, Selector >::stop_

private

Definition at line 49 of file submitters.h.

nextID_

template<class Distribution, class Generator, class Selector>

std::uint32_t xrpl::test::csf::Submitter< Distribution, Generator, Selector >::nextID_ = 0

private

Definition at line 50 of file submitters.h.

selector_

template<class Distribution, class Generator, class Selector>

Selector xrpl::test::csf::Submitter< Distribution, Generator, Selector >::selector_

private

Definition at line 51 of file submitters.h.

scheduler_

template<class Distribution, class Generator, class Selector>

Scheduler& xrpl::test::csf::Submitter< Distribution, Generator, Selector >::scheduler_

private

Definition at line 52 of file submitters.h.

g_

template<class Distribution, class Generator, class Selector>

Generator& xrpl::test::csf::Submitter< Distribution, Generator, Selector >::g_

private

Definition at line 53 of file submitters.h.
