Base class for all transaction builders. More...

#include <TransactionBuilderBase.h>

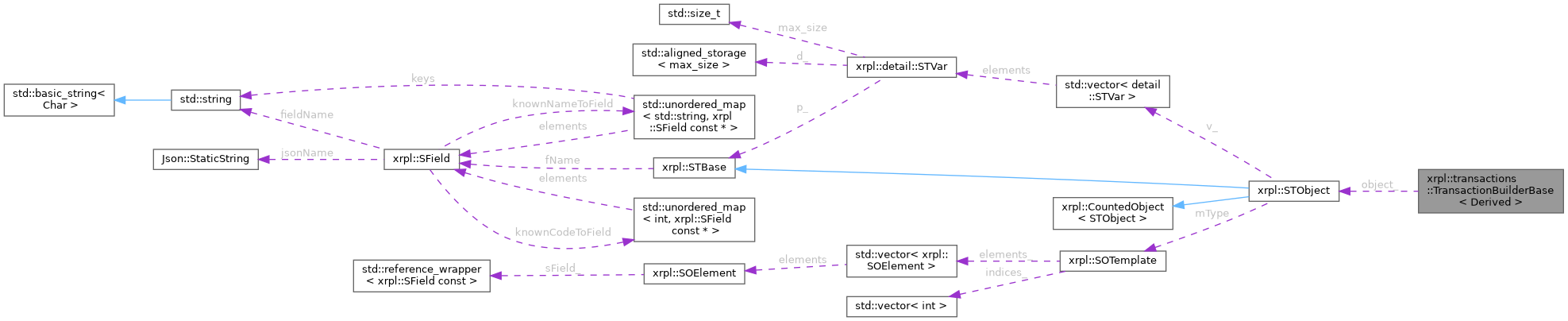

Collaboration diagram for xrpl::transactions::TransactionBuilderBase< Derived >:

[legend]

Public Member Functions
	TransactionBuilderBase ()=default

	TransactionBuilderBase (SF_UINT16::type::value_type transactionType, SF_ACCOUNT::type::value_type account, std::optional< SF_UINT32::type::value_type > sequence, std::optional< SF_AMOUNT::type::value_type > fee)

Derived &	setAccount (AccountID const &value)
	Set the account that is sending the transaction.

Derived &	setFee (STAmount const &value)
	Set the transaction fee.

Derived &	setSequence (std::uint32_t const &value)
	Set the sequence number.

Derived &	setTicketSequence (std::uint32_t const &value)
	Set the ticket sequence to use for this transaction.

Derived &	setFlags (std::uint32_t const &value)
	Set transaction flags.

Derived &	setSourceTag (std::uint32_t const &value)
	Set the source tag.

Derived &	setLastLedgerSequence (std::uint32_t const &value)
	Set the last ledger sequence.

Derived &	setAccountTxnID (uint256 const &value)
	Set the account transaction ID.

Derived &	setPreviousTxnID (uint256 const &value)
	Set the previous transaction ID.

Derived &	setOperationLimit (std::uint32_t const &value)
	Set the operation limit.

Derived &	setMemos (STArray const &value)
	Set the memos array.

Derived &	setSigners (STArray const &value)
	Set the signers array for multi-signing.

Derived &	setNetworkID (std::uint32_t const &value)
	Set the network ID.

Derived &	setDelegate (AccountID const &value)
	Set the delegate account for delegated transactions.

STObject const &	getSTObject () const
	Get the underlying STObject.

Protected Member Functions
Derived &	sign (PublicKey const &publicKey, SecretKey const &secretKey)
	Sign the transaction with the given keys.

Protected Attributes
STObject	object_ {sfTransaction}

Detailed Description

template<typename Derived>
class xrpl::transactions::TransactionBuilderBase< Derived >

Base class for all transaction builders.

Provides common field setters that are available for all transaction types.

Definition at line 26 of file TransactionBuilderBase.h.

Constructor & Destructor Documentation

◆ TransactionBuilderBase() [1/2]

template<typename Derived >

xrpl::transactions::TransactionBuilderBase< Derived >::TransactionBuilderBase ( )

default

◆ TransactionBuilderBase() [2/2]

template<typename Derived >

xrpl::transactions::TransactionBuilderBase< Derived >::TransactionBuilderBase	(	SF_UINT16::type::value_type	transactionType,
		SF_ACCOUNT::type::value_type	account,
		std::optional< SF_UINT32::type::value_type >	sequence,
		std::optional< SF_AMOUNT::type::value_type >	fee
	)

Definition at line 31 of file TransactionBuilderBase.h.

Member Function Documentation

◆ setAccount()

template<typename Derived >

Derived & xrpl::transactions::TransactionBuilderBase< Derived >::setAccount ( AccountID const & value )

Set the account that is sending the transaction.

Parameters

value Account address (typically as a string)

Returns: Reference to the derived builder for method chaining.

Definition at line 62 of file TransactionBuilderBase.h.

◆ setFee()

template<typename Derived >

Derived & xrpl::transactions::TransactionBuilderBase< Derived >::setFee ( STAmount const & value )

Set the transaction fee.

Parameters

value Fee in drops (typically as a string or number)

Returns: Reference to the derived builder for method chaining.

Definition at line 74 of file TransactionBuilderBase.h.

◆ setSequence()

template<typename Derived >

Derived & xrpl::transactions::TransactionBuilderBase< Derived >::setSequence ( std::uint32_t const & value )

Set the sequence number.

Parameters

value Sequence number

Returns: Reference to the derived builder for method chaining.

Definition at line 86 of file TransactionBuilderBase.h.

◆ setTicketSequence()

template<typename Derived >

Derived & xrpl::transactions::TransactionBuilderBase< Derived >::setTicketSequence ( std::uint32_t const & value )

Set the ticket sequence to use for this transaction.

When using a ticket, the regular sequence number is set to 0.

Parameters

value Ticket sequence number

Returns: Reference to the derived builder for method chaining.

Definition at line 99 of file TransactionBuilderBase.h.

◆ setFlags()

template<typename Derived >

Derived & xrpl::transactions::TransactionBuilderBase< Derived >::setFlags ( std::uint32_t const & value )

Set transaction flags.

Parameters

value Flags value

Returns: Reference to the derived builder for method chaining.

Definition at line 112 of file TransactionBuilderBase.h.

◆ setSourceTag()

template<typename Derived >

Derived & xrpl::transactions::TransactionBuilderBase< Derived >::setSourceTag ( std::uint32_t const & value )

Set the source tag.

Parameters

value Source tag

Returns: Reference to the derived builder for method chaining.

Definition at line 124 of file TransactionBuilderBase.h.

◆ setLastLedgerSequence()

template<typename Derived >

Derived & xrpl::transactions::TransactionBuilderBase< Derived >::setLastLedgerSequence ( std::uint32_t const & value )

Set the last ledger sequence.

Parameters

value Last ledger sequence number

Returns: Reference to the derived builder for method chaining.

Definition at line 136 of file TransactionBuilderBase.h.

◆ setAccountTxnID()

template<typename Derived >

Derived & xrpl::transactions::TransactionBuilderBase< Derived >::setAccountTxnID ( uint256 const & value )

Set the account transaction ID.

Parameters

value Account transaction ID (typically as a hex string)

Returns: Reference to the derived builder for method chaining.

Definition at line 148 of file TransactionBuilderBase.h.

◆ setPreviousTxnID()

template<typename Derived >

Derived & xrpl::transactions::TransactionBuilderBase< Derived >::setPreviousTxnID ( uint256 const & value )

Set the previous transaction ID.

Used for emulate027 compatibility.

Parameters

value Previous transaction ID

Returns: Reference to the derived builder for method chaining.

Definition at line 161 of file TransactionBuilderBase.h.

◆ setOperationLimit()

template<typename Derived >

Derived & xrpl::transactions::TransactionBuilderBase< Derived >::setOperationLimit ( std::uint32_t const & value )

Set the operation limit.

Parameters

value Operation limit

Returns: Reference to the derived builder for method chaining.

Definition at line 173 of file TransactionBuilderBase.h.

◆ setMemos()

template<typename Derived >

Derived & xrpl::transactions::TransactionBuilderBase< Derived >::setMemos ( STArray const & value )

Set the memos array.

Parameters

value Array of memo objects

Returns: Reference to the derived builder for method chaining.

Definition at line 185 of file TransactionBuilderBase.h.

◆ setSigners()

template<typename Derived >

Derived & xrpl::transactions::TransactionBuilderBase< Derived >::setSigners ( STArray const & value )

Set the signers array for multi-signing.

Parameters

value Array of signer objects

Returns: Reference to the derived builder for method chaining.

Definition at line 197 of file TransactionBuilderBase.h.

◆ setNetworkID()

template<typename Derived >

Derived & xrpl::transactions::TransactionBuilderBase< Derived >::setNetworkID ( std::uint32_t const & value )

Set the network ID.

Parameters

value Network ID

Returns: Reference to the derived builder for method chaining.

Definition at line 209 of file TransactionBuilderBase.h.

◆ setDelegate()

template<typename Derived >

Derived & xrpl::transactions::TransactionBuilderBase< Derived >::setDelegate ( AccountID const & value )

Set the delegate account for delegated transactions.

Parameters

value Delegate account ID

Returns: Reference to the derived builder for method chaining.

Definition at line 221 of file TransactionBuilderBase.h.

◆ getSTObject()

template<typename Derived >

STObject const & xrpl::transactions::TransactionBuilderBase< Derived >::getSTObject ( ) const

Get the underlying STObject.

Returns: The STObject

Definition at line 232 of file TransactionBuilderBase.h.

◆ sign()

template<typename Derived >

Derived & xrpl::transactions::TransactionBuilderBase< Derived >::sign	(	PublicKey const &	publicKey,
		SecretKey const &	secretKey
	)

protected

Sign the transaction with the given keys.

This sets the SigningPubKey field and computes the TxnSignature.

Parameters

publicKey	The public key for signing
secretKey	The secret key for signing

Returns: Reference to the derived builder for method chaining.

Definition at line 248 of file TransactionBuilderBase.h.

Member Data Documentation

◆ object_

template<typename Derived >

STObject xrpl::transactions::TransactionBuilderBase< Derived >::object_ {sfTransaction}

protected

Definition at line 266 of file TransactionBuilderBase.h.
