#include <XChainClaim.h>

Inheritance diagram for xrpl::transactions::XChainClaim:

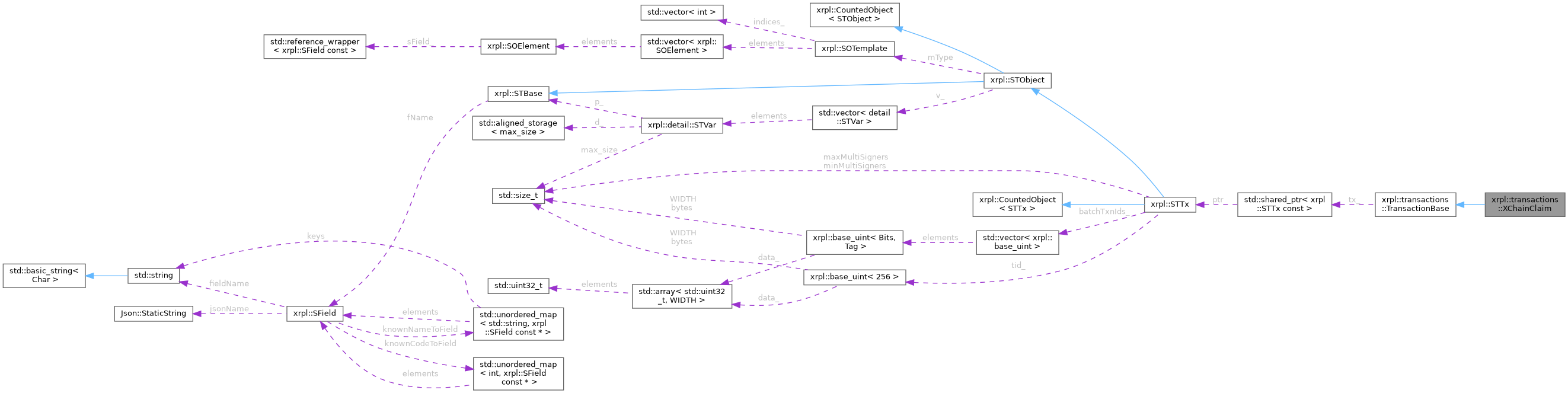

Collaboration diagram for xrpl::transactions::XChainClaim:

[legend]

Public Member Functions
	XChainClaim (std::shared_ptr< STTx const > tx)
	Construct a XChainClaim transaction wrapper from an existing STTx object.

SF_XCHAIN_BRIDGE::type::value_type	getXChainBridge () const
	Get sfXChainBridge (soeREQUIRED)

SF_UINT64::type::value_type	getXChainClaimID () const
	Get sfXChainClaimID (soeREQUIRED)

SF_ACCOUNT::type::value_type	getDestination () const
	Get sfDestination (soeREQUIRED)

protocol_autogen::Optional< SF_UINT32::type::value_type >	getDestinationTag () const
	Get sfDestinationTag (soeOPTIONAL)

bool	hasDestinationTag () const
	Check if sfDestinationTag is present.

SF_AMOUNT::type::value_type	getAmount () const
	Get sfAmount (soeREQUIRED)

bool	validate (std::string &reason) const
	Validate the transaction.

xrpl::TxType	getTransactionType () const
	Get the transaction type.

AccountID	getAccount () const
	Get the account initiating the transaction (sfAccount).

std::uint32_t	getSequence () const
	Get the sequence number of the transaction (sfSequence).

STAmount	getFee () const
	Get the transaction fee (sfFee).

Blob	getSigningPubKey () const
	Get the signing public key (sfSigningPubKey).

std::optional< uint32_t >	getFlags () const
	Get the transaction flags (sfFlags).

bool	hasFlags () const
	Check if the transaction has flags set.

std::optional< uint32_t >	getSourceTag () const
	Get the source tag (sfSourceTag).

bool	hasSourceTag () const
	Check if the transaction has a source tag.

std::optional< uint256 >	getPreviousTxnID () const
	Get the previous transaction ID (sfPreviousTxnID).

bool	hasPreviousTxnID () const
	Check if the transaction has a previous transaction ID.

std::optional< uint32_t >	getLastLedgerSequence () const
	Get the last ledger sequence (sfLastLedgerSequence).

bool	hasLastLedgerSequence () const
	Check if the transaction has a last ledger sequence.

std::optional< uint256 >	getAccountTxnID () const
	Get the account transaction ID (sfAccountTxnID).

bool	hasAccountTxnID () const
	Check if the transaction has an account transaction ID.

std::optional< uint32_t >	getOperationLimit () const
	Get the operation limit (sfOperationLimit).

bool	hasOperationLimit () const
	Check if the transaction has an operation limit.

std::optional< std::reference_wrapper< STArray const > >	getMemos () const
	Get the memos array (sfMemos).

bool	hasMemos () const
	Check if the transaction has memos.

std::optional< uint32_t >	getTicketSequence () const
	Get the ticket sequence (sfTicketSequence).

bool	hasTicketSequence () const
	Check if the transaction has a ticket sequence.

std::optional< Blob >	getTxnSignature () const
	Get the transaction signature (sfTxnSignature).

bool	hasTxnSignature () const
	Check if the transaction has a transaction signature.

std::optional< std::reference_wrapper< STArray const > >	getSigners () const
	Get the signers array (sfSigners).

bool	hasSigners () const
	Check if the transaction has signers.

std::optional< uint32_t >	getNetworkID () const
	Get the network ID (sfNetworkID).

bool	hasNetworkID () const
	Check if the transaction has a network ID.

std::optional< AccountID >	getDelegate () const
	Get the delegate account (sfDelegate).

bool	hasDelegate () const
	Check if the transaction has a delegate account.

std::shared_ptr< STTx const >	getSTTx () const
	Get the underlying STTx object.

Static Public Attributes
static constexpr xrpl::TxType	txType = ttXCHAIN_CLAIM

Protected Attributes
std::shared_ptr< STTx const >	tx_
	The underlying transaction object being wrapped.

Detailed Description

Transaction: XChainClaim.

Type: ttXCHAIN_CLAIM (43) Delegable: Delegation::delegable Amendment: featureXChainBridge Privileges: noPriv

Immutable wrapper around STTx providing type-safe field access. Use XChainClaimBuilder to construct new transactions.

Definition at line 29 of file XChainClaim.h.

Constructor & Destructor Documentation

◆ XChainClaim()

xrpl::transactions::XChainClaim::XChainClaim ( std::shared_ptr< STTx const > tx )

explicit

Construct a XChainClaim transaction wrapper from an existing STTx object.

Exceptions

std::runtime_error if the transaction type doesn't match.

Definition at line 38 of file XChainClaim.h.

Member Function Documentation

◆ getXChainBridge()

SF_XCHAIN_BRIDGE::type::value_type xrpl::transactions::XChainClaim::getXChainBridge ( ) const

Get sfXChainBridge (soeREQUIRED)

Returns: The field value.

Definition at line 56 of file XChainClaim.h.

◆ getXChainClaimID()

SF_UINT64::type::value_type xrpl::transactions::XChainClaim::getXChainClaimID ( ) const

Get sfXChainClaimID (soeREQUIRED)

Returns: The field value.

Definition at line 67 of file XChainClaim.h.

◆ getDestination()

SF_ACCOUNT::type::value_type xrpl::transactions::XChainClaim::getDestination ( ) const

Get sfDestination (soeREQUIRED)

Returns: The field value.

Definition at line 78 of file XChainClaim.h.

◆ getDestinationTag()

protocol_autogen::Optional< SF_UINT32::type::value_type > xrpl::transactions::XChainClaim::getDestinationTag ( ) const

Get sfDestinationTag (soeOPTIONAL)

Returns: The field value, or std::nullopt if not present.

Definition at line 89 of file XChainClaim.h.

◆ hasDestinationTag()

bool xrpl::transactions::XChainClaim::hasDestinationTag ( ) const

Check if sfDestinationTag is present.

Returns: True if the field is present, false otherwise.

Definition at line 104 of file XChainClaim.h.

◆ getAmount()

SF_AMOUNT::type::value_type xrpl::transactions::XChainClaim::getAmount ( ) const

Get sfAmount (soeREQUIRED)

Returns: The field value.

Definition at line 115 of file XChainClaim.h.

◆ validate()

bool xrpl::transactions::TransactionBase::validate ( std::string & reason ) const

inherited

Validate the transaction.

Returns: true if validation passes, false otherwise

Definition at line 41 of file TransactionBase.h.

◆ getTransactionType()

xrpl::TxType xrpl::transactions::TransactionBase::getTransactionType ( ) const

inherited

Get the transaction type.

Returns: The type of this transaction

Definition at line 66 of file TransactionBase.h.

◆ getAccount()

AccountID xrpl::transactions::TransactionBase::getAccount ( ) const

inherited

Get the account initiating the transaction (sfAccount).

This field is REQUIRED for all transactions.

Returns: The account ID of the transaction sender

Definition at line 79 of file TransactionBase.h.

◆ getSequence()

std::uint32_t xrpl::transactions::TransactionBase::getSequence ( ) const

inherited

Get the sequence number of the transaction (sfSequence).

This field is REQUIRED for all transactions.

Returns: The sequence number

Definition at line 92 of file TransactionBase.h.

◆ getFee()

STAmount xrpl::transactions::TransactionBase::getFee ( ) const

inherited

Get the transaction fee (sfFee).

This field is REQUIRED for all transactions.

Returns: The fee amount

Definition at line 105 of file TransactionBase.h.

◆ getSigningPubKey()

Blob xrpl::transactions::TransactionBase::getSigningPubKey ( ) const

inherited

Get the signing public key (sfSigningPubKey).

This field is REQUIRED for all transactions.

Returns: The public key used for signing as a blob

Definition at line 118 of file TransactionBase.h.

◆ getFlags()

std::optional< uint32_t > xrpl::transactions::TransactionBase::getFlags ( ) const

inherited

Get the transaction flags (sfFlags).

This field is OPTIONAL.

Returns: The flags value if present, std::nullopt otherwise

Definition at line 131 of file TransactionBase.h.

◆ hasFlags()

bool xrpl::transactions::TransactionBase::hasFlags ( ) const

inherited

Check if the transaction has flags set.

Returns: true if sfFlags is present, false otherwise

Definition at line 144 of file TransactionBase.h.

◆ getSourceTag()

std::optional< uint32_t > xrpl::transactions::TransactionBase::getSourceTag ( ) const

inherited

Get the source tag (sfSourceTag).

This field is OPTIONAL and used to identify the source of a payment.

Returns: The source tag value if present, std::nullopt otherwise

Definition at line 157 of file TransactionBase.h.

◆ hasSourceTag()

bool xrpl::transactions::TransactionBase::hasSourceTag ( ) const

inherited

Check if the transaction has a source tag.

Returns: true if sfSourceTag is present, false otherwise

Definition at line 170 of file TransactionBase.h.

◆ getPreviousTxnID()

std::optional< uint256 > xrpl::transactions::TransactionBase::getPreviousTxnID ( ) const

inherited

Get the previous transaction ID (sfPreviousTxnID).

This field is OPTIONAL and used for transaction chaining.

Returns: The previous transaction ID if present, std::nullopt otherwise

Definition at line 183 of file TransactionBase.h.

◆ hasPreviousTxnID()

bool xrpl::transactions::TransactionBase::hasPreviousTxnID ( ) const

inherited

Check if the transaction has a previous transaction ID.

Returns: true if sfPreviousTxnID is present, false otherwise

Definition at line 196 of file TransactionBase.h.

◆ getLastLedgerSequence()

std::optional< uint32_t > xrpl::transactions::TransactionBase::getLastLedgerSequence ( ) const

inherited

Get the last ledger sequence (sfLastLedgerSequence).

This field is OPTIONAL and specifies the latest ledger sequence in which this transaction can be included.

Returns: The last ledger sequence if present, std::nullopt otherwise

Definition at line 210 of file TransactionBase.h.

◆ hasLastLedgerSequence()

bool xrpl::transactions::TransactionBase::hasLastLedgerSequence ( ) const

inherited

Check if the transaction has a last ledger sequence.

Returns: true if sfLastLedgerSequence is present, false otherwise

Definition at line 223 of file TransactionBase.h.

◆ getAccountTxnID()

std::optional< uint256 > xrpl::transactions::TransactionBase::getAccountTxnID ( ) const

inherited

Get the account transaction ID (sfAccountTxnID).

This field is OPTIONAL and used to track transaction sequences.

Returns: The account transaction ID if present, std::nullopt otherwise

Definition at line 236 of file TransactionBase.h.

◆ hasAccountTxnID()

bool xrpl::transactions::TransactionBase::hasAccountTxnID ( ) const

inherited

Check if the transaction has an account transaction ID.

Returns: true if sfAccountTxnID is present, false otherwise

Definition at line 249 of file TransactionBase.h.

◆ getOperationLimit()

std::optional< uint32_t > xrpl::transactions::TransactionBase::getOperationLimit ( ) const

inherited

Get the operation limit (sfOperationLimit).

This field is OPTIONAL and limits the number of operations in a transaction.

Returns: The operation limit if present, std::nullopt otherwise

Definition at line 262 of file TransactionBase.h.

◆ hasOperationLimit()

bool xrpl::transactions::TransactionBase::hasOperationLimit ( ) const

inherited

Check if the transaction has an operation limit.

Returns: true if sfOperationLimit is present, false otherwise

Definition at line 275 of file TransactionBase.h.

◆ getMemos()

std::optional< std::reference_wrapper< STArray const > > xrpl::transactions::TransactionBase::getMemos ( ) const

inherited

Get the memos array (sfMemos).

This field is OPTIONAL and contains arbitrary data attached to the transaction.

Note: This is an untyped field (STArray).

Returns: A reference wrapper to the memos array if present, std::nullopt otherwise

Definition at line 289 of file TransactionBase.h.

◆ hasMemos()

bool xrpl::transactions::TransactionBase::hasMemos ( ) const

inherited

Check if the transaction has memos.

Returns: true if sfMemos is present, false otherwise

Definition at line 302 of file TransactionBase.h.

◆ getTicketSequence()

std::optional< uint32_t > xrpl::transactions::TransactionBase::getTicketSequence ( ) const

inherited

Get the ticket sequence (sfTicketSequence).

This field is OPTIONAL and used when consuming a ticket instead of a sequence number.

Returns: The ticket sequence if present, std::nullopt otherwise

Definition at line 315 of file TransactionBase.h.

◆ hasTicketSequence()

bool xrpl::transactions::TransactionBase::hasTicketSequence ( ) const

inherited

Check if the transaction has a ticket sequence.

Returns: true if sfTicketSequence is present, false otherwise

Definition at line 328 of file TransactionBase.h.

◆ getTxnSignature()

std::optional< Blob > xrpl::transactions::TransactionBase::getTxnSignature ( ) const

inherited

Get the transaction signature (sfTxnSignature).

This field is OPTIONAL and contains the signature for single-signed transactions.

Returns: The transaction signature as a blob if present, std::nullopt otherwise

Definition at line 341 of file TransactionBase.h.

◆ hasTxnSignature()

bool xrpl::transactions::TransactionBase::hasTxnSignature ( ) const

inherited

Check if the transaction has a transaction signature.

Returns: true if sfTxnSignature is present, false otherwise

Definition at line 354 of file TransactionBase.h.

◆ getSigners()

std::optional< std::reference_wrapper< STArray const > > xrpl::transactions::TransactionBase::getSigners ( ) const

inherited

Get the signers array (sfSigners).

This field is OPTIONAL and contains the list of signers for multi-signed transactions.

Note: This is an untyped field (STArray).

Returns: A reference wrapper to the signers array if present, std::nullopt otherwise

Definition at line 368 of file TransactionBase.h.

◆ hasSigners()

bool xrpl::transactions::TransactionBase::hasSigners ( ) const

inherited

Check if the transaction has signers.

Returns: true if sfSigners is present, false otherwise

Definition at line 381 of file TransactionBase.h.

◆ getNetworkID()

std::optional< uint32_t > xrpl::transactions::TransactionBase::getNetworkID ( ) const

inherited

Get the network ID (sfNetworkID).

This field is OPTIONAL and identifies the network this transaction is intended for.

Returns: The network ID if present, std::nullopt otherwise

Definition at line 394 of file TransactionBase.h.

◆ hasNetworkID()

bool xrpl::transactions::TransactionBase::hasNetworkID ( ) const

inherited

Check if the transaction has a network ID.

Returns: true if sfNetworkID is present, false otherwise

Definition at line 407 of file TransactionBase.h.

◆ getDelegate()

std::optional< AccountID > xrpl::transactions::TransactionBase::getDelegate ( ) const

inherited

Get the delegate account (sfDelegate).

This field is OPTIONAL and specifies a delegate account for the transaction.

Returns: The delegate account ID if present, std::nullopt otherwise

Definition at line 420 of file TransactionBase.h.

◆ hasDelegate()

bool xrpl::transactions::TransactionBase::hasDelegate ( ) const

inherited

Check if the transaction has a delegate account.

Returns: true if sfDelegate is present, false otherwise

Definition at line 433 of file TransactionBase.h.

◆ getSTTx()

std::shared_ptr< STTx const > xrpl::transactions::TransactionBase::getSTTx ( ) const

inherited

Get the underlying STTx object.

Provides direct access to the wrapped transaction object for cases where the type-safe accessors are insufficient.

Returns: A constant reference to the underlying STTx object

Definition at line 447 of file TransactionBase.h.

Member Data Documentation

◆ txType

constexpr xrpl::TxType xrpl::transactions::XChainClaim::txType = ttXCHAIN_CLAIM

staticconstexpr

Definition at line 32 of file XChainClaim.h.

◆ tx_

std::shared_ptr<STTx const> xrpl::transactions::TransactionBase::tx_

protectedinherited

The underlying transaction object being wrapped.

Definition at line 454 of file TransactionBase.h.

Public Member Functions

Static Public Attributes

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ XChainClaim()

Member Function Documentation

◆ getXChainBridge()

◆ getXChainClaimID()

◆ getDestination()

◆ getDestinationTag()

◆ hasDestinationTag()

◆ getAmount()

◆ validate()

◆ getTransactionType()

◆ getAccount()

◆ getSequence()

◆ getFee()

◆ getSigningPubKey()

◆ getFlags()

◆ hasFlags()

◆ getSourceTag()

◆ hasSourceTag()

◆ getPreviousTxnID()

◆ hasPreviousTxnID()

◆ getLastLedgerSequence()

◆ hasLastLedgerSequence()

◆ getAccountTxnID()

◆ hasAccountTxnID()

◆ getOperationLimit()

◆ hasOperationLimit()

◆ getMemos()

◆ hasMemos()

◆ getTicketSequence()

◆ hasTicketSequence()

◆ getTxnSignature()

◆ hasTxnSignature()

◆ getSigners()

◆ hasSigners()

◆ getNetworkID()

◆ hasNetworkID()

◆ getDelegate()

◆ hasDelegate()

◆ getSTTx()

Member Data Documentation

◆ txType

◆ tx_
