PeerFinder configuration settings. More...

#include <PeerfinderManager.h>

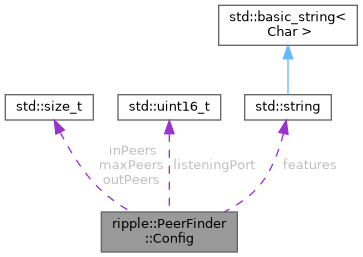

Collaboration diagram for ripple::PeerFinder::Config:

[legend]

Public Member Functions
	Config ()
	Create a configuration with default values.

std::size_t	calcOutPeers () const
	Returns a suitable value for outPeers according to the rules.

void	applyTuning ()
	Adjusts the values so they follow the business rules.

void	onWrite (beast::PropertyStream::Map &map)
	Write the configuration into a property stream.

Static Public Member Functions
static Config	makeConfig (ripple::Config const &config, std::uint16_t port, bool validationPublicKey, int ipLimit)
	Make PeerFinder::Config from configuration parameters.

Public Attributes
std::size_t	maxPeers
	The largest number of public peer slots to allow.

std::size_t	outPeers
	The number of automatic outbound connections to maintain.

std::size_t	inPeers
	The number of automatic inbound connections to maintain.

bool	peerPrivate = true
	`true` if we want our IP address kept private.

bool	wantIncoming
	`true` if we want to accept incoming connections.

bool	autoConnect
	`true` if we want to establish connections automatically

std::uint16_t	listeningPort
	The listening port number.

std::string	features
	The set of features we advertise.

int	ipLimit
	Limit how many incoming connections we allow per IP.

Friends
bool	operator== (Config const &lhs, Config const &rhs)

Detailed Description

PeerFinder configuration settings.

Definition at line 25 of file PeerfinderManager.h.

Constructor & Destructor Documentation

◆ Config()

ripple::PeerFinder::Config::Config ( )

Create a configuration with default values.

Definition at line 7 of file PeerfinderConfig.cpp.

Member Function Documentation

◆ calcOutPeers()

std::size_t ripple::PeerFinder::Config::calcOutPeers ( ) const

Returns a suitable value for outPeers according to the rules.

Definition at line 30 of file PeerfinderConfig.cpp.

◆ applyTuning()

void ripple::PeerFinder::Config::applyTuning ( )

Adjusts the values so they follow the business rules.

Definition at line 38 of file PeerfinderConfig.cpp.

◆ onWrite()

void ripple::PeerFinder::Config::onWrite ( beast::PropertyStream::Map & map )

Write the configuration into a property stream.

Definition at line 58 of file PeerfinderConfig.cpp.

◆ makeConfig()

Config ripple::PeerFinder::Config::makeConfig	(	ripple::Config const &	config,
		std::uint16_t	port,
		bool	validationPublicKey,
		int	ipLimit
	)

static

Make PeerFinder::Config from configuration parameters.

Parameters

config	server's configuration
port	server's listening port
validationPublicKey	true if validation public key is not empty
ipLimit	limit of incoming connections per IP

Returns: PeerFinder::Config

Definition at line 70 of file PeerfinderConfig.cpp.

Friends And Related Symbol Documentation

◆ operator==

bool operator==	(	Config const &	lhs,
		Config const &	rhs
	)

friend

Definition at line 19 of file PeerfinderConfig.cpp.

Member Data Documentation

◆ maxPeers

std::size_t ripple::PeerFinder::Config::maxPeers

The largest number of public peer slots to allow.

This includes both inbound and outbound, but does not include fixed peers.

Definition at line 31 of file PeerfinderManager.h.

◆ outPeers

std::size_t ripple::PeerFinder::Config::outPeers

The number of automatic outbound connections to maintain.

Outbound connections are only maintained if autoConnect is true.

Definition at line 37 of file PeerfinderManager.h.

◆ inPeers

std::size_t ripple::PeerFinder::Config::inPeers

The number of automatic inbound connections to maintain.

Inbound connections are only maintained if wantIncoming is true.

Definition at line 43 of file PeerfinderManager.h.

◆ peerPrivate

bool ripple::PeerFinder::Config::peerPrivate = true

true if we want our IP address kept private.

Definition at line 46 of file PeerfinderManager.h.

◆ wantIncoming

bool ripple::PeerFinder::Config::wantIncoming

true if we want to accept incoming connections.

Definition at line 49 of file PeerfinderManager.h.

◆ autoConnect

bool ripple::PeerFinder::Config::autoConnect

true if we want to establish connections automatically

Definition at line 52 of file PeerfinderManager.h.

◆ listeningPort

std::uint16_t ripple::PeerFinder::Config::listeningPort

The listening port number.

Definition at line 55 of file PeerfinderManager.h.

◆ features

std::string ripple::PeerFinder::Config::features

The set of features we advertise.

Definition at line 58 of file PeerfinderManager.h.

◆ ipLimit

int ripple::PeerFinder::Config::ipLimit

Limit how many incoming connections we allow per IP.

Definition at line 61 of file PeerfinderManager.h.
