Context needed to build Strand Steps and for error checking. More...

#include <Steps.h>

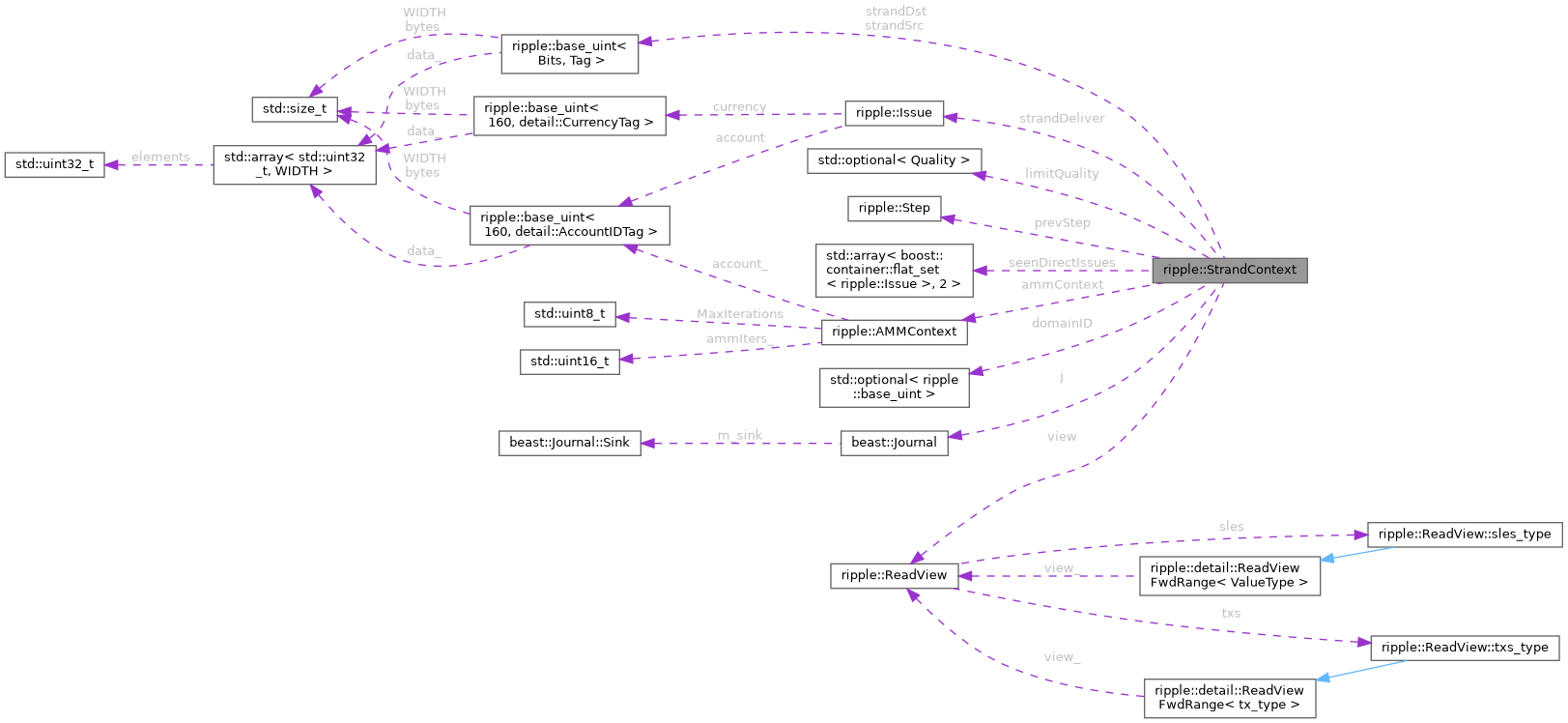

Collaboration diagram for ripple::StrandContext:

[legend]

Public Member Functions
	StrandContext (ReadView const &view_, std::vector< std::unique_ptr< Step > > const &strand_, AccountID const &strandSrc_, AccountID const &strandDst_, Issue const &strandDeliver_, std::optional< Quality > const &limitQuality_, bool isLast_, bool ownerPaysTransferFee_, OfferCrossing offerCrossing_, bool isDefaultPath_, std::array< boost::container::flat_set< Issue >, 2 > &seenDirectIssues_, boost::container::flat_set< Issue > &seenBookOuts_, AMMContext &ammContext_, std::optional< uint256 > const &domainID, beast::Journal j_)
	StrandContext constructor.

Public Attributes
ReadView const &	view
	Current ReadView.

AccountID const	strandSrc
	Strand source account.

AccountID const	strandDst
	Strand destination account.

Issue const	strandDeliver
	Issue strand delivers.

std::optional< Quality > const	limitQuality
	Worst accepted quality.

bool const	isFirst
	true if Step is first in Strand

bool const	isLast = false
	true if Step is last in Strand

bool const	ownerPaysTransferFee
	true if owner, not sender, pays fee

OfferCrossing const	offerCrossing
	Yes/Sell if offer crossing, not payment.

bool const	isDefaultPath
	true if Strand is default path

size_t const	strandSize
	Length of Strand.

Step const *const	prevStep = nullptr
	The previous step in the strand.

std::array< boost::container::flat_set< Issue >, 2 > &	seenDirectIssues
	A strand may not include the same account node more than once in the same currency.

boost::container::flat_set< Issue > &	seenBookOuts
	A strand may not include an offer that output the same issue more than once.

AMMContext &	ammContext

std::optional< uint256 >	domainID

beast::Journal const	j

Detailed Description

Context needed to build Strand Steps and for error checking.

Definition at line 532 of file Steps.h.

Constructor & Destructor Documentation

◆ StrandContext()

ripple::StrandContext::StrandContext	(	ReadView const &	view_,
		std::vector< std::unique_ptr< Step > > const &	strand_,
		AccountID const &	strandSrc_,
		AccountID const &	strandDst_,
		Issue const &	strandDeliver_,
		std::optional< Quality > const &	limitQuality_,
		bool	isLast_,
		bool	ownerPaysTransferFee_,
		OfferCrossing	offerCrossing_,
		bool	isDefaultPath_,
		std::array< boost::container::flat_set< Issue >, 2 > &	seenDirectIssues_,
		boost::container::flat_set< Issue > &	seenBookOuts_,
		AMMContext &	ammContext_,
		std::optional< uint256 > const &	domainID,
		beast::Journal	j_
	)

StrandContext constructor.

Journal for logging

Parameters

seenDirectIssues_	For detecting currency loops
seenBookOuts_	For detecting book loops

Definition at line 590 of file PaySteps.cpp.

Member Data Documentation

◆ view

ReadView const& ripple::StrandContext::view

Current ReadView.

Definition at line 534 of file Steps.h.

◆ strandSrc

AccountID const ripple::StrandContext::strandSrc

Strand source account.

Definition at line 535 of file Steps.h.

◆ strandDst

AccountID const ripple::StrandContext::strandDst

Strand destination account.

Definition at line 536 of file Steps.h.

◆ strandDeliver

Issue const ripple::StrandContext::strandDeliver

Issue strand delivers.

Definition at line 537 of file Steps.h.

◆ limitQuality

std::optional<Quality> const ripple::StrandContext::limitQuality

Worst accepted quality.

Definition at line 538 of file Steps.h.

◆ isFirst

bool const ripple::StrandContext::isFirst

true if Step is first in Strand

Definition at line 539 of file Steps.h.

◆ isLast

bool const ripple::StrandContext::isLast = false

true if Step is last in Strand

Definition at line 540 of file Steps.h.

◆ ownerPaysTransferFee

bool const ripple::StrandContext::ownerPaysTransferFee

true if owner, not sender, pays fee

Definition at line 541 of file Steps.h.

◆ offerCrossing

OfferCrossing const ripple::StrandContext::offerCrossing

Yes/Sell if offer crossing, not payment.

Definition at line 543 of file Steps.h.

◆ isDefaultPath

bool const ripple::StrandContext::isDefaultPath

true if Strand is default path

Definition at line 544 of file Steps.h.

◆ strandSize

size_t const ripple::StrandContext::strandSize

Length of Strand.

Definition at line 545 of file Steps.h.

◆ prevStep

Step const* const ripple::StrandContext::prevStep = nullptr

The previous step in the strand.

Needed to check the no ripple constraint

Definition at line 549 of file Steps.h.

◆ seenDirectIssues

std::array<boost::container::flat_set<Issue>, 2>& ripple::StrandContext::seenDirectIssues

A strand may not include the same account node more than once in the same currency.

In a direct step, an account will show up at most twice: once as a src and once as a dst (hence the two element array). The strandSrc and strandDst will only show up once each.

Definition at line 555 of file Steps.h.

◆ seenBookOuts

boost::container::flat_set<Issue>& ripple::StrandContext::seenBookOuts

A strand may not include an offer that output the same issue more than once.

Definition at line 559 of file Steps.h.

◆ ammContext

AMMContext& ripple::StrandContext::ammContext

Definition at line 560 of file Steps.h.

◆ domainID

std::optional<uint256> ripple::StrandContext::domainID

Definition at line 561 of file Steps.h.

◆ j

beast::Journal const ripple::StrandContext::j

Definition at line 562 of file Steps.h.
