#include <ProtocolMessage.h>

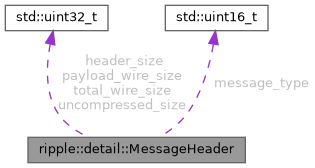

Collaboration diagram for ripple::detail::MessageHeader:
Public Attributes | |
| std::uint32_t | total_wire_size = 0 |
| The size of the message on the wire. | |
| std::uint32_t | header_size = 0 |
| The size of the header associated with this message. | |
| std::uint32_t | payload_wire_size = 0 |
| The size of the payload on the wire. | |
| std::uint32_t | uncompressed_size = 0 |
| Uncompressed message size if the message is compressed. | |
| std::uint16_t | message_type = 0 |
| The type of the message. | |
| compression::Algorithm | algorithm = compression::Algorithm::None |
| Indicates which compression algorithm the payload is compressed with. | |
Detailed Description
Definition at line 96 of file ProtocolMessage.h.
Member Data Documentation
◆ total_wire_size
| std::uint32_t ripple::detail::MessageHeader::total_wire_size = 0 |
The size of the message on the wire.
- Note
- This is the sum of sizes of the header and the payload.
Definition at line 102 of file ProtocolMessage.h.
◆ header_size
| std::uint32_t ripple::detail::MessageHeader::header_size = 0 |
The size of the header associated with this message.
Definition at line 105 of file ProtocolMessage.h.
◆ payload_wire_size
| std::uint32_t ripple::detail::MessageHeader::payload_wire_size = 0 |
The size of the payload on the wire.
Definition at line 108 of file ProtocolMessage.h.
◆ uncompressed_size
| std::uint32_t ripple::detail::MessageHeader::uncompressed_size = 0 |
Uncompressed message size if the message is compressed.
Definition at line 111 of file ProtocolMessage.h.
◆ message_type
| std::uint16_t ripple::detail::MessageHeader::message_type = 0 |
The type of the message.
Definition at line 114 of file ProtocolMessage.h.
◆ algorithm
| compression::Algorithm ripple::detail::MessageHeader::algorithm = compression::Algorithm::None |
Indicates which compression algorithm the payload is compressed with.
Currenly only lz4 is supported. If None then the message is not compressed.
Definition at line 120 of file ProtocolMessage.h.
