A single peer in the simulation. More...

#include <Peer.h>

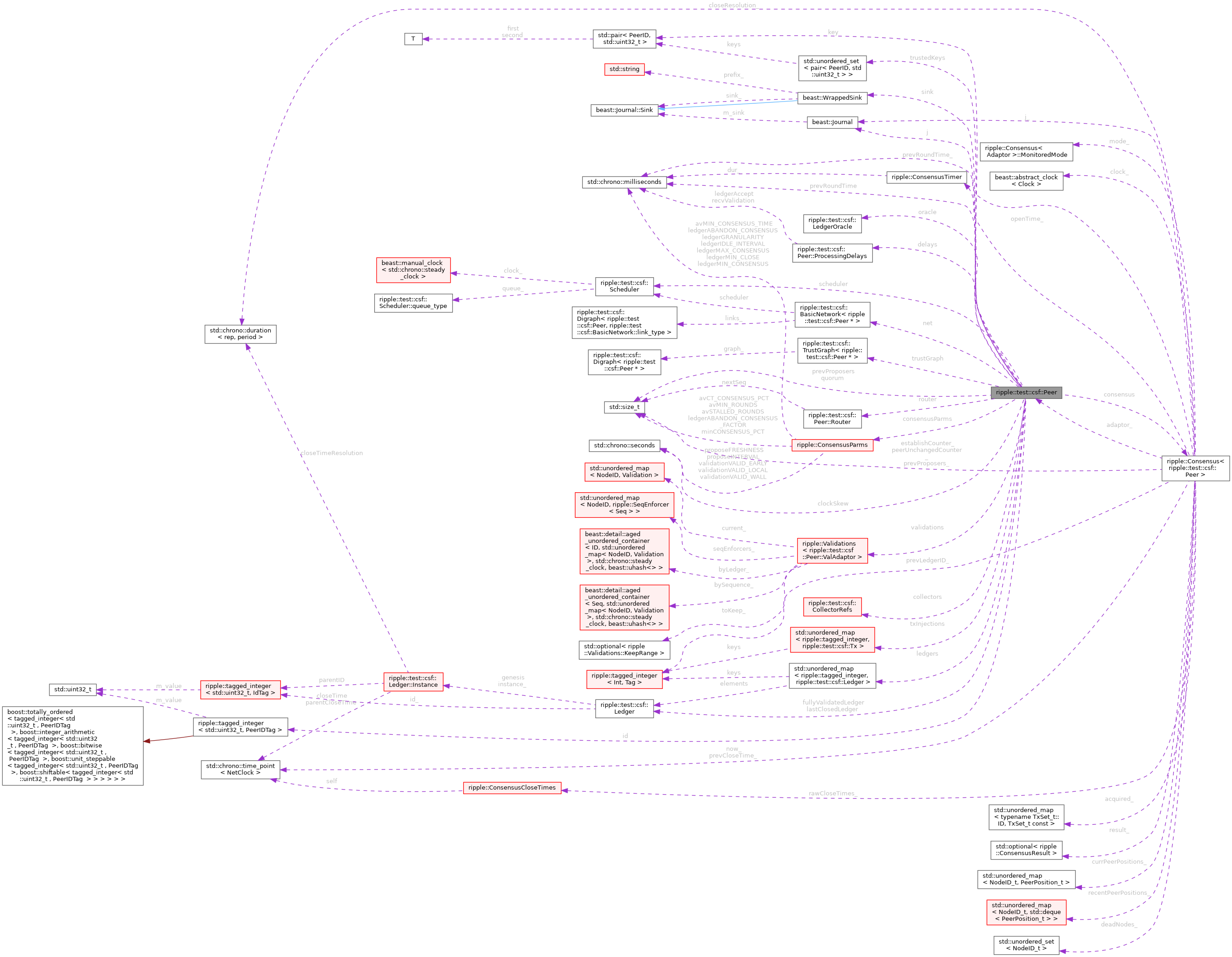

Collaboration diagram for ripple::test::csf::Peer:

[legend]

Classes
struct	BroadcastMesg

class	Position
	Basic wrapper of a proposed position taken by a peer. More...

struct	ProcessingDelays
	Simulated delays in internal peer processing. More...

struct	Router

class	TestConsensusLogger

class	ValAdaptor
	Generic Validations adaptor that simply ignores recently stale validations. More...

Public Types
using	Ledger_t = Ledger
	Type definitions for generic consensus.

using	NodeID_t = PeerID

using	NodeKey_t = PeerKey

using	TxSet_t = TxSet

using	PeerPosition_t = Position

using	Result = ConsensusResult< Peer >

using	NodeKey = Validation::NodeKey

Public Member Functions
	Peer (PeerID i, Scheduler &s, LedgerOracle &o, BasicNetwork< Peer * > &n, TrustGraph< Peer * > &tg, CollectorRefs &c, beast::Journal jIn)
	Constructor.

template<class T >
void	schedule (std::chrono::nanoseconds when, T &&what)
	Schedule the provided callback in `when` duration, but if `when` is 0, call immediately.

template<class E >
void	issue (E const &event)

void	trust (Peer &o)

void	untrust (Peer &o)

bool	trusts (Peer &o)

bool	trusts (PeerID const &oId)

bool	connect (Peer &o, SimDuration dur)
	Create network connection.

bool	disconnect (Peer &o)
	Remove a network connection.

Ledger const *	acquireLedger (Ledger::ID const &ledgerID)

TxSet const *	acquireTxSet (TxSet::ID const &setId)

bool	hasOpenTransactions () const

std::size_t	proposersValidated (Ledger::ID const &prevLedger)

std::size_t	proposersFinished (Ledger const &prevLedger, Ledger::ID const &prevLedgerID)

Result	onClose (Ledger const &prevLedger, NetClock::time_point closeTime, ConsensusMode mode)

void	onForceAccept (Result const &result, Ledger const &prevLedger, NetClock::duration const &closeResolution, ConsensusCloseTimes const &rawCloseTimes, ConsensusMode const &mode, Json::Value &&consensusJson)

void	onAccept (Result const &result, Ledger const &prevLedger, NetClock::duration const &closeResolution, ConsensusCloseTimes const &rawCloseTimes, ConsensusMode const &mode, Json::Value &&consensusJson, bool const validating)

Ledger::Seq	earliestAllowedSeq () const

Ledger::ID	getPrevLedger (Ledger::ID const &ledgerID, Ledger const &ledger, ConsensusMode mode)

void	propose (Proposal const &pos)

ConsensusParms const &	parms () const

void	onModeChange (ConsensusMode, ConsensusMode)

template<class M >
void	share (M const &m)

void	share (Position const &p)

bool	addTrustedValidation (Validation v)
	Add a trusted validation and return true if it is worth forwarding.

void	checkFullyValidated (Ledger const &ledger)
	Check if a new ledger can be deemed fully validated.

template<class M >
void	send (BroadcastMesg< M > const &bm, PeerID from)

template<class M >
void	receive (BroadcastMesg< M > const &bm, PeerID from)

bool	handle (Proposal const &p)

bool	handle (TxSet const &txs)

bool	handle (Tx const &tx)

bool	handle (Validation const &v)

bool	haveValidated () const

Ledger::Seq	getValidLedgerIndex () const

std::pair< std::size_t, hash_set< NodeKey_t > >	getQuorumKeys ()

std::size_t	laggards (Ledger::Seq const seq, hash_set< NodeKey_t > &trusted)

bool	validator () const

void	updateOperatingMode (std::size_t const positions) const

bool	validating () const

void	submit (Tx const &tx)

void	timerEntry ()
	Heartbeat timer call.

void	startRound ()

void	start ()

NetClock::time_point	now () const

Ledger::ID	prevLedgerID () const

TxSet	injectTxs (Ledger prevLedger, TxSet const &src)
	Inject non-consensus Tx.

Public Attributes
beast::WrappedSink	sink
	Logging support that prefixes messages with the peer ID.

beast::Journal	j

Consensus< Peer >	consensus
	Generic consensus.

PeerID	id
	Our unique ID.

PeerKey	key
	Current signing key.

LedgerOracle &	oracle
	The oracle that manages unique ledgers.

Scheduler &	scheduler
	Scheduler of events.

BasicNetwork< Peer * > &	net
	Handle to network for sending messages.

TrustGraph< Peer * > &	trustGraph
	Handle to Trust graph of network.

TxSetType	openTxs
	openTxs that haven't been closed in a ledger yet

Ledger	lastClosedLedger
	The last ledger closed by this node.

hash_map< Ledger::ID, Ledger >	ledgers
	Ledgers this node has closed or loaded from the network.

Validations< ValAdaptor >	validations
	Validations from trusted nodes.

Ledger	fullyValidatedLedger
	The most recent ledger that has been fully validated by the network from the perspective of this Peer.

bc::flat_map< Ledger::ID, std::vector< Proposal > >	peerPositions
	Map from Ledger::ID to vector of Positions with that ledger as the prior ledger.

bc::flat_map< TxSet::ID, TxSet >	txSets
	TxSet associated with a TxSet::ID.

bc::flat_map< Ledger::ID, SimTime >	acquiringLedgers

bc::flat_map< TxSet::ID, SimTime >	acquiringTxSets

int	completedLedgers = 0
	The number of ledgers this peer has completed.

int	targetLedgers = std::numeric_limits<int>::max()
	The number of ledgers this peer should complete before stopping to run.

std::chrono::seconds	clockSkew {0}
	Skew of time relative to the common scheduler clock.

ProcessingDelays	delays
	Simulated delays to use for internal processing.

bool	runAsValidator = true
	Whether to simulate running as validator or a tracking node.

std::size_t	prevProposers = 0

std::chrono::milliseconds	prevRoundTime

std::size_t	quorum = 0

hash_set< NodeKey_t >	trustedKeys

ConsensusParms	consensusParms

CollectorRefs &	collectors
	The collectors to report events to.

Router	router

hash_map< Ledger::Seq, Tx >	txInjections

Detailed Description

A single peer in the simulation.

This is the main work-horse of the consensus simulation framework and is where many other components are integrated. The peer

Implements the Callbacks required by Consensus
Manages trust & network connections with other peers
Issues events back to the simulation based on its actions for analysis by Collectors
Exposes most internal state for forcibly simulating arbitrary scenarios

Definition at line 40 of file test/csf/Peer.h.

Member Typedef Documentation

◆ Ledger_t

using ripple::test::csf::Peer::Ledger_t = Ledger

Type definitions for generic consensus.

Definition at line 153 of file test/csf/Peer.h.

◆ NodeID_t

using ripple::test::csf::Peer::NodeID_t = PeerID

Definition at line 154 of file test/csf/Peer.h.

◆ NodeKey_t

using ripple::test::csf::Peer::NodeKey_t = PeerKey

Definition at line 155 of file test/csf/Peer.h.

◆ TxSet_t

using ripple::test::csf::Peer::TxSet_t = TxSet

Definition at line 156 of file test/csf/Peer.h.

◆ PeerPosition_t

using ripple::test::csf::Peer::PeerPosition_t = Position

Definition at line 157 of file test/csf/Peer.h.

◆ Result

using ripple::test::csf::Peer::Result = ConsensusResult<Peer>

Definition at line 158 of file test/csf/Peer.h.

◆ NodeKey

using ripple::test::csf::Peer::NodeKey = Validation::NodeKey

Definition at line 159 of file test/csf/Peer.h.

Constructor & Destructor Documentation

◆ Peer()

ripple::test::csf::Peer::Peer	(	PeerID	i,
		Scheduler &	s,
		LedgerOracle &	o,
		BasicNetwork< Peer * > &	n,
		TrustGraph< Peer * > &	tg,
		CollectorRefs &	c,
		beast::Journal	jIn
	)

Constructor.

Parameters

i	Unique PeerID
s	Simulation Scheduler
o	Simulation Oracle
n	Simulation network
tg	Simulation trust graph
c	Simulation collectors
jIn	Simulation journal

Definition at line 260 of file test/csf/Peer.h.

Member Function Documentation

◆ schedule()

template<class T >

void ripple::test::csf::Peer::schedule	(	std::chrono::nanoseconds	when,
		T &&	what
	)

Schedule the provided callback in when duration, but if when is 0, call immediately.

Definition at line 294 of file test/csf/Peer.h.

◆ issue()

template<class E >

void ripple::test::csf::Peer::issue ( E const & event )

Definition at line 307 of file test/csf/Peer.h.

◆ trust()

void ripple::test::csf::Peer::trust ( Peer & o )

Definition at line 320 of file test/csf/Peer.h.

◆ untrust()

void ripple::test::csf::Peer::untrust ( Peer & o )

Definition at line 327 of file test/csf/Peer.h.

◆ trusts() [1/2]

bool ripple::test::csf::Peer::trusts ( Peer & o )

Definition at line 334 of file test/csf/Peer.h.

◆ trusts() [2/2]

bool ripple::test::csf::Peer::trusts ( PeerID const & oId )

Definition at line 341 of file test/csf/Peer.h.

◆ connect()

bool ripple::test::csf::Peer::connect	(	Peer &	o,
		SimDuration	dur
	)

Create network connection.

Creates a new outbound connection to another Peer if none exists

Parameters

o	The peer with the inbound connection
dur	The fixed delay for messages between the two Peers

Returns: Whether the connection was created.

Definition at line 359 of file test/csf/Peer.h.

◆ disconnect()

bool ripple::test::csf::Peer::disconnect ( Peer & o )

Remove a network connection.

Removes a connection between peers if one exists

Parameters

o	The peer we disconnect from

Returns: Whether the connection was removed

Definition at line 372 of file test/csf/Peer.h.

◆ acquireLedger()

Ledger const * ripple::test::csf::Peer::acquireLedger ( Ledger::ID const & ledgerID )

Definition at line 382 of file test/csf/Peer.h.

◆ acquireTxSet()

TxSet const * ripple::test::csf::Peer::acquireTxSet ( TxSet::ID const & setId )

Definition at line 429 of file test/csf/Peer.h.

◆ hasOpenTransactions()

bool ripple::test::csf::Peer::hasOpenTransactions ( ) const

Definition at line 474 of file test/csf/Peer.h.

◆ proposersValidated()

std::size_t ripple::test::csf::Peer::proposersValidated ( Ledger::ID const & prevLedger )

Definition at line 480 of file test/csf/Peer.h.

◆ proposersFinished()

std::size_t ripple::test::csf::Peer::proposersFinished	(	Ledger const &	prevLedger,
		Ledger::ID const &	prevLedgerID
	)

Definition at line 486 of file test/csf/Peer.h.

◆ onClose()

Result ripple::test::csf::Peer::onClose	(	Ledger const &	prevLedger,
		NetClock::time_point	closeTime,
		ConsensusMode	mode
	)

Definition at line 492 of file test/csf/Peer.h.

◆ onForceAccept()

void ripple::test::csf::Peer::onForceAccept	(	Result const &	result,
		Ledger const &	prevLedger,
		NetClock::duration const &	closeResolution,
		ConsensusCloseTimes const &	rawCloseTimes,
		ConsensusMode const &	mode,
		Json::Value &&	consensusJson
	)

Definition at line 511 of file test/csf/Peer.h.

◆ onAccept()

void ripple::test::csf::Peer::onAccept	(	Result const &	result,
		Ledger const &	prevLedger,
		NetClock::duration const &	closeResolution,
		ConsensusCloseTimes const &	rawCloseTimes,
		ConsensusMode const &	mode,
		Json::Value &&	consensusJson,
		bool const	validating
	)

Definition at line 530 of file test/csf/Peer.h.

◆ earliestAllowedSeq()

Ledger::Seq ripple::test::csf::Peer::earliestAllowedSeq ( ) const

Definition at line 605 of file test/csf/Peer.h.

◆ getPrevLedger()

Ledger::ID ripple::test::csf::Peer::getPrevLedger	(	Ledger::ID const &	ledgerID,
		Ledger const &	ledger,
		ConsensusMode	mode
	)

Definition at line 611 of file test/csf/Peer.h.

◆ propose()

void ripple::test::csf::Peer::propose ( Proposal const & pos )

Definition at line 633 of file test/csf/Peer.h.

◆ parms()

ConsensusParms const & ripple::test::csf::Peer::parms ( ) const

Definition at line 639 of file test/csf/Peer.h.

◆ onModeChange()

void ripple::test::csf::Peer::onModeChange	(	ConsensusMode	,
		ConsensusMode
	)

Definition at line 646 of file test/csf/Peer.h.

◆ share() [1/2]

template<class M >

void ripple::test::csf::Peer::share ( M const & m )

Definition at line 653 of file test/csf/Peer.h.

◆ share() [2/2]

void ripple::test::csf::Peer::share ( Position const & p )

Definition at line 661 of file test/csf/Peer.h.

◆ addTrustedValidation()

bool ripple::test::csf::Peer::addTrustedValidation ( Validation v )

Add a trusted validation and return true if it is worth forwarding.

Definition at line 671 of file test/csf/Peer.h.

◆ checkFullyValidated()

void ripple::test::csf::Peer::checkFullyValidated ( Ledger const & ledger )

Check if a new ledger can be deemed fully validated.

Definition at line 688 of file test/csf/Peer.h.

◆ send()

template<class M >

void ripple::test::csf::Peer::send	(	BroadcastMesg< M > const &	bm,
		PeerID	from
	)

Definition at line 741 of file test/csf/Peer.h.

◆ receive()

template<class M >

void ripple::test::csf::Peer::receive	(	BroadcastMesg< M > const &	bm,
		PeerID	from
	)

Definition at line 766 of file test/csf/Peer.h.

◆ handle() [1/4]

bool ripple::test::csf::Peer::handle ( Proposal const & p )

Definition at line 782 of file test/csf/Peer.h.

◆ handle() [2/4]

bool ripple::test::csf::Peer::handle ( TxSet const & txs )

Definition at line 801 of file test/csf/Peer.h.

◆ handle() [3/4]

bool ripple::test::csf::Peer::handle ( Tx const & tx )

Definition at line 812 of file test/csf/Peer.h.

◆ handle() [4/4]

bool ripple::test::csf::Peer::handle ( Validation const & v )

Definition at line 824 of file test/csf/Peer.h.

◆ haveValidated()

bool ripple::test::csf::Peer::haveValidated ( ) const

Definition at line 835 of file test/csf/Peer.h.

◆ getValidLedgerIndex()

Ledger::Seq ripple::test::csf::Peer::getValidLedgerIndex ( ) const

Definition at line 841 of file test/csf/Peer.h.

◆ getQuorumKeys()

std::pair< std::size_t, hash_set< NodeKey_t > > ripple::test::csf::Peer::getQuorumKeys ( )

Definition at line 847 of file test/csf/Peer.h.

◆ laggards()

std::size_t ripple::test::csf::Peer::laggards	(	Ledger::Seq const	seq,
		hash_set< NodeKey_t > &	trusted
	)

Definition at line 856 of file test/csf/Peer.h.

◆ validator()

bool ripple::test::csf::Peer::validator ( ) const

Definition at line 862 of file test/csf/Peer.h.

◆ updateOperatingMode()

void ripple::test::csf::Peer::updateOperatingMode ( std::size_t const positions ) const

Definition at line 868 of file test/csf/Peer.h.

◆ validating()

bool ripple::test::csf::Peer::validating ( ) const

Definition at line 873 of file test/csf/Peer.h.

◆ submit()

void ripple::test::csf::Peer::submit ( Tx const & tx )

Definition at line 882 of file test/csf/Peer.h.

◆ timerEntry()

void ripple::test::csf::Peer::timerEntry ( )

Heartbeat timer call.

Definition at line 894 of file test/csf/Peer.h.

◆ startRound()

void ripple::test::csf::Peer::startRound ( )

Definition at line 904 of file test/csf/Peer.h.

◆ start()

void ripple::test::csf::Peer::start ( )

Definition at line 925 of file test/csf/Peer.h.

◆ now()

NetClock::time_point ripple::test::csf::Peer::now ( ) const

Definition at line 934 of file test/csf/Peer.h.

◆ prevLedgerID()

Ledger::ID ripple::test::csf::Peer::prevLedgerID ( ) const

Definition at line 947 of file test/csf/Peer.h.

◆ injectTxs()

TxSet ripple::test::csf::Peer::injectTxs	(	Ledger	prevLedger,
		TxSet const &	src
	)

Inject non-consensus Tx.

Injects a transactionsinto the ledger following prevLedger's sequence number.

Parameters

prevLedger	The ledger we are building the new ledger on top of
src	The Consensus TxSet

Returns: Consensus TxSet with inject transactions added if prevLedger.seq matches a previously registered Tx.

Definition at line 971 of file test/csf/Peer.h.

Member Data Documentation

◆ sink

beast::WrappedSink ripple::test::csf::Peer::sink

Logging support that prefixes messages with the peer ID.

Definition at line 162 of file test/csf/Peer.h.

◆ j

beast::Journal ripple::test::csf::Peer::j

Definition at line 163 of file test/csf/Peer.h.

◆ consensus

Consensus<Peer> ripple::test::csf::Peer::consensus

Generic consensus.

Definition at line 166 of file test/csf/Peer.h.

◆ id

PeerID ripple::test::csf::Peer::id

Our unique ID.

Definition at line 169 of file test/csf/Peer.h.

◆ key

PeerKey ripple::test::csf::Peer::key

Current signing key.

Definition at line 172 of file test/csf/Peer.h.

◆ oracle

LedgerOracle& ripple::test::csf::Peer::oracle

The oracle that manages unique ledgers.

Definition at line 175 of file test/csf/Peer.h.

◆ scheduler

Scheduler& ripple::test::csf::Peer::scheduler

Scheduler of events.

Definition at line 178 of file test/csf/Peer.h.

◆ net

BasicNetwork<Peer*>& ripple::test::csf::Peer::net

Handle to network for sending messages.

Definition at line 181 of file test/csf/Peer.h.

◆ trustGraph

TrustGraph<Peer*>& ripple::test::csf::Peer::trustGraph

Handle to Trust graph of network.

Definition at line 184 of file test/csf/Peer.h.

◆ openTxs

TxSetType ripple::test::csf::Peer::openTxs

openTxs that haven't been closed in a ledger yet

Definition at line 187 of file test/csf/Peer.h.

◆ lastClosedLedger

Ledger ripple::test::csf::Peer::lastClosedLedger

The last ledger closed by this node.

Definition at line 190 of file test/csf/Peer.h.

◆ ledgers

hash_map<Ledger::ID, Ledger> ripple::test::csf::Peer::ledgers

Ledgers this node has closed or loaded from the network.

Definition at line 193 of file test/csf/Peer.h.

◆ validations

Validations<ValAdaptor> ripple::test::csf::Peer::validations

Validations from trusted nodes.

Definition at line 196 of file test/csf/Peer.h.

◆ fullyValidatedLedger

Ledger ripple::test::csf::Peer::fullyValidatedLedger

The most recent ledger that has been fully validated by the network from the perspective of this Peer.

Definition at line 200 of file test/csf/Peer.h.

◆ peerPositions

bc::flat_map<Ledger::ID, std::vector<Proposal> > ripple::test::csf::Peer::peerPositions

Map from Ledger::ID to vector of Positions with that ledger as the prior ledger.

Definition at line 208 of file test/csf/Peer.h.

◆ txSets

bc::flat_map<TxSet::ID, TxSet> ripple::test::csf::Peer::txSets

TxSet associated with a TxSet::ID.

Definition at line 210 of file test/csf/Peer.h.

◆ acquiringLedgers

bc::flat_map<Ledger::ID, SimTime> ripple::test::csf::Peer::acquiringLedgers

Definition at line 213 of file test/csf/Peer.h.

◆ acquiringTxSets

bc::flat_map<TxSet::ID, SimTime> ripple::test::csf::Peer::acquiringTxSets

Definition at line 214 of file test/csf/Peer.h.

◆ completedLedgers

int ripple::test::csf::Peer::completedLedgers = 0

The number of ledgers this peer has completed.

Definition at line 217 of file test/csf/Peer.h.

◆ targetLedgers

int ripple::test::csf::Peer::targetLedgers = std::numeric_limits<int>::max()

The number of ledgers this peer should complete before stopping to run.

Definition at line 220 of file test/csf/Peer.h.

◆ clockSkew

std::chrono::seconds ripple::test::csf::Peer::clockSkew {0}

Skew of time relative to the common scheduler clock.

Definition at line 223 of file test/csf/Peer.h.

◆ delays

ProcessingDelays ripple::test::csf::Peer::delays

Simulated delays to use for internal processing.

Definition at line 226 of file test/csf/Peer.h.

◆ runAsValidator

bool ripple::test::csf::Peer::runAsValidator = true

Whether to simulate running as validator or a tracking node.

Definition at line 229 of file test/csf/Peer.h.

◆ prevProposers

std::size_t ripple::test::csf::Peer::prevProposers = 0

Definition at line 233 of file test/csf/Peer.h.

◆ prevRoundTime

std::chrono::milliseconds ripple::test::csf::Peer::prevRoundTime

Definition at line 235 of file test/csf/Peer.h.

◆ quorum

std::size_t ripple::test::csf::Peer::quorum = 0

Definition at line 239 of file test/csf/Peer.h.

◆ trustedKeys

hash_set<NodeKey_t> ripple::test::csf::Peer::trustedKeys

Definition at line 241 of file test/csf/Peer.h.

◆ consensusParms

ConsensusParms ripple::test::csf::Peer::consensusParms

Definition at line 244 of file test/csf/Peer.h.

◆ collectors

CollectorRefs& ripple::test::csf::Peer::collectors

The collectors to report events to.

Definition at line 247 of file test/csf/Peer.h.

◆ router

Router ripple::test::csf::Peer::router

Definition at line 736 of file test/csf/Peer.h.

◆ txInjections

hash_map<Ledger::Seq, Tx> ripple::test::csf::Peer::txInjections

Definition at line 958 of file test/csf/Peer.h.

Classes

Public Types

Public Member Functions

Public Attributes

Detailed Description

Member Typedef Documentation

◆ Ledger_t

◆ NodeID_t

◆ NodeKey_t

◆ TxSet_t

◆ PeerPosition_t

◆ Result

◆ NodeKey

Constructor & Destructor Documentation

◆ Peer()

Member Function Documentation

◆ schedule()

◆ issue()

◆ trust()

◆ untrust()

◆ trusts() [1/2]

◆ trusts() [2/2]

◆ connect()

◆ disconnect()

◆ acquireLedger()

◆ acquireTxSet()

◆ hasOpenTransactions()

◆ proposersValidated()

◆ proposersFinished()

◆ onClose()

◆ onForceAccept()

◆ onAccept()

◆ earliestAllowedSeq()

◆ getPrevLedger()

◆ propose()

◆ parms()

◆ onModeChange()

◆ share() [1/2]

◆ share() [2/2]

◆ addTrustedValidation()

◆ checkFullyValidated()

◆ send()

◆ receive()

◆ handle() [1/4]

◆ handle() [2/4]

◆ handle() [3/4]

◆ handle() [4/4]

◆ haveValidated()

◆ getValidLedgerIndex()

◆ getQuorumKeys()

◆ laggards()

◆ validator()

◆ updateOperatingMode()

◆ validating()

◆ submit()

◆ timerEntry()

◆ startRound()

◆ start()

◆ now()

◆ prevLedgerID()

◆ injectTxs()

Member Data Documentation

◆ sink

◆ j

◆ consensus

◆ id

◆ key

◆ oracle

◆ scheduler

◆ net

◆ trustGraph

◆ openTxs

◆ lastClosedLedger

◆ ledgers

◆ validations

◆ fullyValidatedLedger

◆ peerPositions

◆ txSets

◆ acquiringLedgers

◆ acquiringTxSets
