xrpl::IntrusiveRefCounts Struct Reference

Implement the strong count, weak count, and bit flags for an intrusive pointer. More...

#include <IntrusiveRefCounts.h>

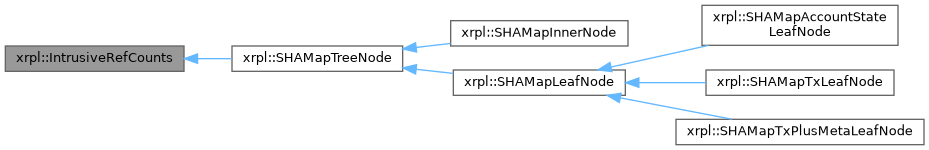

Inheritance diagram for xrpl::IntrusiveRefCounts:

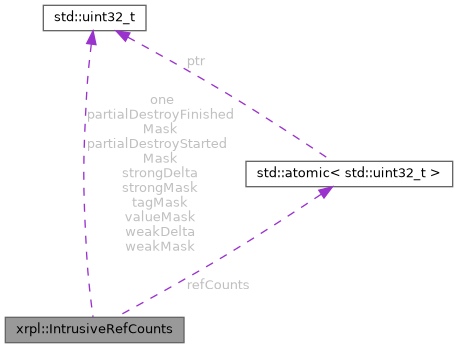

Collaboration diagram for xrpl::IntrusiveRefCounts:

Classes
struct	RefCountPair
	Unpack the count and tag fields from the packed atomic integer form. More...

Public Member Functions
virtual	~IntrusiveRefCounts () noexcept
void	addStrongRef () const noexcept
void	addWeakRef () const noexcept
ReleaseStrongRefAction	releaseStrongRef () const
ReleaseStrongRefAction	addWeakReleaseStrongRef () const
ReleaseWeakRefAction	releaseWeakRef () const
bool	checkoutStrongRefFromWeak () const noexcept
bool	expired () const noexcept
std::size_t	useCount () const noexcept

Private Types
using	CountType = std::uint16_t
using	FieldType = std::uint32_t

Private Attributes
std::atomic< FieldType >	refCounts_ {kStrongDelta}
	refCounts consists of four fields that are treated atomically:

Static Private Attributes
static constexpr size_t	kStrongCountNumBits = sizeof(CountType) * 8
static constexpr size_t	kWeakCountNumBits = kStrongCountNumBits - 2
static constexpr size_t	kFieldTypeBits = sizeof(FieldType) * 8
static constexpr FieldType	kOne = 1
static constexpr FieldType	kStrongDelta = 1
	Amount to change the strong count when adding or releasing a reference.
static constexpr FieldType	kWeakDelta = (kOne << kStrongCountNumBits)
	Amount to change the weak count when adding or releasing a reference.
static constexpr FieldType	kPartialDestroyStartedMask = (kOne << (kFieldTypeBits - 1))
	Flag that is set when the partialDestroy function has started running (or is about to start running).
static constexpr FieldType	kPartialDestroyFinishedMask = (kOne << (kFieldTypeBits - 2))
	Flag that is set when the partialDestroy function has finished running.
static constexpr FieldType	kTagMask = kPartialDestroyStartedMask | kPartialDestroyFinishedMask
	Mask that will zero out all the count bits and leave the tag bits unchanged.
static constexpr FieldType	kValueMask = ~kTagMask
	Mask that will zero out the tag bits and leave the count bits unchanged.
static constexpr FieldType	kStrongMask = ((kOne << kStrongCountNumBits) - 1) & kValueMask
	Mask that will zero out everything except the strong count.
static constexpr FieldType	kWeakMask
	Mask that will zero out everything except the weak count.

Friends
template<class T>
void	partialDestructorFinished (T **o)

Detailed Description

Implement the strong count, weak count, and bit flags for an intrusive pointer.

A class can satisfy the requirements of an xrpl::IntrusivePointer by inheriting from this class.

Definition at line 43 of file IntrusiveRefCounts.h.

Member Typedef Documentation

CountType

using xrpl::IntrusiveRefCounts::CountType = std::uint16_t

private

Definition at line 104 of file IntrusiveRefCounts.h.

FieldType

using xrpl::IntrusiveRefCounts::FieldType = std::uint32_t

private

Definition at line 107 of file IntrusiveRefCounts.h.

Constructor & Destructor Documentation

~IntrusiveRefCounts()

xrpl::IntrusiveRefCounts::~IntrusiveRefCounts ( )

virtualnoexcept

Definition at line 416 of file IntrusiveRefCounts.h.

Member Function Documentation

addStrongRef()

void xrpl::IntrusiveRefCounts::addStrongRef ( ) const

noexcept

Definition at line 246 of file IntrusiveRefCounts.h.

addWeakRef()

void xrpl::IntrusiveRefCounts::addWeakRef ( ) const

noexcept

Definition at line 252 of file IntrusiveRefCounts.h.

releaseStrongRef()

ReleaseStrongRefAction xrpl::IntrusiveRefCounts::releaseStrongRef

(

)

const

Definition at line 258 of file IntrusiveRefCounts.h.

addWeakReleaseStrongRef()

ReleaseStrongRefAction xrpl::IntrusiveRefCounts::addWeakReleaseStrongRef

(

)

const

Definition at line 306 of file IntrusiveRefCounts.h.

releaseWeakRef()

ReleaseWeakRefAction xrpl::IntrusiveRefCounts::releaseWeakRef

(

)

const

Definition at line 359 of file IntrusiveRefCounts.h.

checkoutStrongRefFromWeak()

bool xrpl::IntrusiveRefCounts::checkoutStrongRefFromWeak ( ) const

noexcept

Definition at line 386 of file IntrusiveRefCounts.h.

expired()

bool xrpl::IntrusiveRefCounts::expired ( ) const

noexcept

Definition at line 403 of file IntrusiveRefCounts.h.

useCount()

std::size_t xrpl::IntrusiveRefCounts::useCount ( ) const

noexcept

Definition at line 410 of file IntrusiveRefCounts.h.

Friends And Related Symbol Documentation

partialDestructorFinished

template<class T>

void partialDestructorFinished ( T ** o )

friend

Definition at line 467 of file IntrusiveRefCounts.h.

Member Data Documentation

kStrongCountNumBits

size_t xrpl::IntrusiveRefCounts::kStrongCountNumBits = sizeof(CountType) * 8

staticconstexprprivate

Definition at line 105 of file IntrusiveRefCounts.h.

kWeakCountNumBits

size_t xrpl::IntrusiveRefCounts::kWeakCountNumBits = kStrongCountNumBits - 2

staticconstexprprivate

Definition at line 106 of file IntrusiveRefCounts.h.

kFieldTypeBits

size_t xrpl::IntrusiveRefCounts::kFieldTypeBits = sizeof(FieldType) * 8

staticconstexprprivate

Definition at line 108 of file IntrusiveRefCounts.h.

kOne

FieldType xrpl::IntrusiveRefCounts::kOne = 1

staticconstexprprivate

Definition at line 109 of file IntrusiveRefCounts.h.

refCounts_

std::atomic<FieldType> xrpl::IntrusiveRefCounts::refCounts_ {kStrongDelta}

mutableprivate

refCounts consists of four fields that are treated atomically:

1. Strong count. This is a count of the number of shared pointers that hold a reference to this object. When the strong counts goes to zero, if the weak count is zero, the destructor is run. If the weak count is non-zero when the strong count goes to zero then the partialDestructor is run.
2. Weak count. This is a count of the number of weak pointer that hold a reference to this object. When the weak count goes to zero and the strong count is also zero, then the destructor is run.
3. Partial destroy started bit. This bit is set if the partialDestructor function has been started (or is about to be started). This is used to prevent the destructor from running concurrently with the partial destructor. This can easily happen when the last strong pointer release its reference in one thread and starts the partialDestructor, while in another thread the last weak pointer goes out of scope and starts the destructor while the partialDestructor is still running. Both a start and finished bit is needed to handle a corner-case where the last strong pointer goes out of scope, then then last weakPointer goes out of scope, but this happens before the partialDestructor bit is set. It would be possible to use a single bit if it could also be set atomically when the strong count goes to zero and the weak count is non-zero, but that would add complexity (and likely slow down common cases as well).
4. Partial destroy finished bit. This bit is set when the partialDestructor has finished running. See (3) above for more information.

Definition at line 144 of file IntrusiveRefCounts.h.

kStrongDelta

FieldType xrpl::IntrusiveRefCounts::kStrongDelta = 1

staticconstexprprivate

Amount to change the strong count when adding or releasing a reference.

Note: The strong count is stored in the low StrongCountNumBits bits of refCounts

Definition at line 152 of file IntrusiveRefCounts.h.

kWeakDelta

FieldType xrpl::IntrusiveRefCounts::kWeakDelta = (kOne << kStrongCountNumBits)

staticconstexprprivate

Amount to change the weak count when adding or releasing a reference.

Note: The weak count is stored in the high WeakCountNumBits bits of refCounts

Definition at line 160 of file IntrusiveRefCounts.h.

kPartialDestroyStartedMask

FieldType xrpl::IntrusiveRefCounts::kPartialDestroyStartedMask = (kOne << (kFieldTypeBits - 1))

staticconstexprprivate

Flag that is set when the partialDestroy function has started running (or is about to start running).

See description of the refCounts field for a fuller description of this field.

Definition at line 169 of file IntrusiveRefCounts.h.

kPartialDestroyFinishedMask

FieldType xrpl::IntrusiveRefCounts::kPartialDestroyFinishedMask = (kOne << (kFieldTypeBits - 2))

staticconstexprprivate

Flag that is set when the partialDestroy function has finished running.

See description of the refCounts field for a fuller description of this field.

Definition at line 177 of file IntrusiveRefCounts.h.

kTagMask

FieldType xrpl::IntrusiveRefCounts::kTagMask = kPartialDestroyStartedMask | kPartialDestroyFinishedMask

staticconstexprprivate

Mask that will zero out all the count bits and leave the tag bits unchanged.

Definition at line 183 of file IntrusiveRefCounts.h.

kValueMask

FieldType xrpl::IntrusiveRefCounts::kValueMask = ~kTagMask

staticconstexprprivate

Mask that will zero out the tag bits and leave the count bits unchanged.

Definition at line 189 of file IntrusiveRefCounts.h.

kStrongMask

FieldType xrpl::IntrusiveRefCounts::kStrongMask = ((kOne << kStrongCountNumBits) - 1) & kValueMask

staticconstexprprivate

Mask that will zero out everything except the strong count.

Definition at line 194 of file IntrusiveRefCounts.h.

kWeakMask

FieldType xrpl::IntrusiveRefCounts::kWeakMask

staticconstexprprivate

Initial value:

                                 =
(((kOne << kWeakCountNumBits) - 1) << kStrongCountNumBits) & kValueMask

Mask that will zero out everything except the weak count.

Definition at line 199 of file IntrusiveRefCounts.h.
