PeerFinder configuration settings. More...

#include <Config.h>

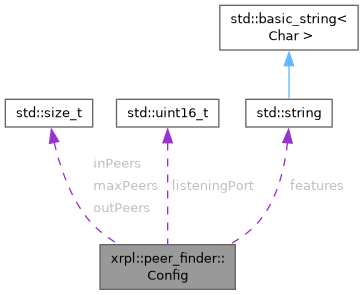

Collaboration diagram for xrpl::peer_finder::Config:

[legend]

Public Member Functions
std::size_t	calcOutPeers () const
	Returns a suitable value for outPeers according to the rules.
void	applyTuning ()
	Adjusts the values so they follow the business rules.
void	onWrite (beast::PropertyStream::Map &map) const
	Write the configuration into a property stream.

Static Public Member Functions
static Config	makeConfig (bool peerPrivate, bool standalone, PeerLimitConfig const &limits, std::uint16_t port, bool validationPublicKey, int ipLimit, bool verifyEndpoints)
	Make peer_finder::Config from peer limit and server mode parameters.

Public Attributes
std::size_t	maxPeers {tuning::kDefaultMaxPeers}
	The largest number of public peer slots to allow.
std::size_t	outPeers = calcOutPeers()
	The number of automatic outbound connections to maintain.
std::size_t	inPeers {0}
	The number of automatic inbound connections to maintain.
bool	peerPrivate = true
	true if we want our IP address kept private.
bool	wantIncoming {true}
	true if we want to accept incoming connections.
bool	autoConnect {true}
	true if we want to establish connections automatically
std::uint16_t	listeningPort {0}
	The listening port number.
std::string	features
	The set of features we advertise.
int	ipLimit {0}
	Limit how many incoming connections we allow per IP.
bool	verifyEndpoints = true
	true if we want to verify endpoints in TMEndpoints messages

Friends
bool	operator== (Config const &lhs, Config const &rhs)=default
	Compares two configurations for equality field by field.

Detailed Description

PeerFinder configuration settings.

Definition at line 24 of file include/xrpl/peerfinder/Config.h.

Member Function Documentation

◆ calcOutPeers()

std::size_t xrpl::peer_finder::Config::calcOutPeers ( ) const

nodiscard

Returns a suitable value for outPeers according to the rules.

Definition at line 13 of file libxrpl/peerfinder/Config.cpp.

◆ applyTuning()

void xrpl::peer_finder::Config::applyTuning ( )

Adjusts the values so they follow the business rules.

Definition at line 20 of file libxrpl/peerfinder/Config.cpp.

◆ onWrite()

void xrpl::peer_finder::Config::onWrite ( beast::PropertyStream::Map & map ) const

Write the configuration into a property stream.

Definition at line 39 of file libxrpl/peerfinder/Config.cpp.

◆ makeConfig()

Config xrpl::peer_finder::Config::makeConfig	(	bool	peerPrivate,
		bool	standalone,
		PeerLimitConfig const &	limits,
		std::uint16_t	port,
		bool	validationPublicKey,
		int	ipLimit,
		bool	verifyEndpoints )

static

Make peer_finder::Config from peer limit and server mode parameters.

Definition at line 52 of file libxrpl/peerfinder/Config.cpp.

◆ operator==

bool operator==	(	Config const &	lhs,
		Config const &	rhs )

friend

Compares two configurations for equality field by field.

Member Data Documentation

◆ maxPeers

std::size_t xrpl::peer_finder::Config::maxPeers {tuning::kDefaultMaxPeers}

The largest number of public peer slots to allow.

This includes both inbound and outbound, but does not include fixed peers.

Definition at line 31 of file include/xrpl/peerfinder/Config.h.

◆ outPeers

std::size_t xrpl::peer_finder::Config::outPeers = calcOutPeers()

The number of automatic outbound connections to maintain.

Outbound connections are only maintained if autoConnect is true.

Definition at line 38 of file include/xrpl/peerfinder/Config.h.

◆ inPeers

std::size_t xrpl::peer_finder::Config::inPeers {0}

The number of automatic inbound connections to maintain.

Inbound connections are only maintained if wantIncoming is true.

Definition at line 45 of file include/xrpl/peerfinder/Config.h.

◆ peerPrivate

bool xrpl::peer_finder::Config::peerPrivate = true

true if we want our IP address kept private.

Definition at line 50 of file include/xrpl/peerfinder/Config.h.

◆ wantIncoming

bool xrpl::peer_finder::Config::wantIncoming {true}

true if we want to accept incoming connections.

Definition at line 55 of file include/xrpl/peerfinder/Config.h.

◆ autoConnect

bool xrpl::peer_finder::Config::autoConnect {true}

true if we want to establish connections automatically

Definition at line 60 of file include/xrpl/peerfinder/Config.h.

◆ listeningPort

std::uint16_t xrpl::peer_finder::Config::listeningPort {0}

The listening port number.

Definition at line 65 of file include/xrpl/peerfinder/Config.h.

◆ features

std::string xrpl::peer_finder::Config::features

The set of features we advertise.

Definition at line 70 of file include/xrpl/peerfinder/Config.h.

◆ ipLimit

int xrpl::peer_finder::Config::ipLimit {0}

Limit how many incoming connections we allow per IP.

Definition at line 75 of file include/xrpl/peerfinder/Config.h.

◆ verifyEndpoints

bool xrpl::peer_finder::Config::verifyEndpoints = true

true if we want to verify endpoints in TMEndpoints messages

Definition at line 80 of file include/xrpl/peerfinder/Config.h.
