data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType > Class Template Reference

Implements BackendInterface for Cassandra/ScyllaDB/Keyspace. More...

#include <CassandraBackendFamily.hpp>

Inheritance diagram for data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >:

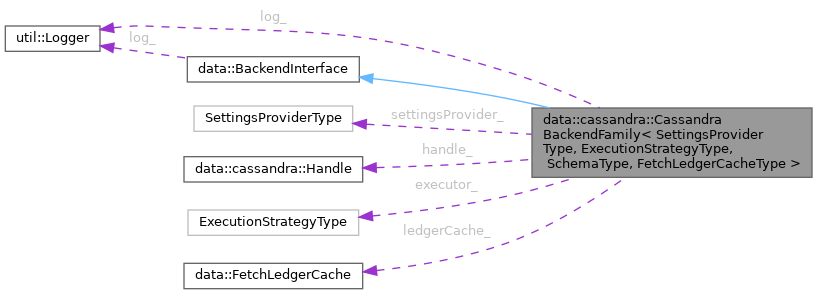

Collaboration diagram for data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >:

Public Member Functions
	CassandraBackendFamily (SettingsProviderType settingsProvider, data::LedgerCacheInterface &cache, bool readOnly)
	Create a new cassandra/scylla backend instance.
	CassandraBackendFamily (CassandraBackendFamily &&)=delete
	Move constructor is deleted because handle_ is shared by reference with executor.
TransactionsAndCursor	fetchAccountTransactions (xrpl::AccountID const &account, std::uint32_t const limit, bool forward, std::optional< TransactionsCursor > const &txnCursor, boost::asio::yield_context yield) const override
	Fetches all transactions for a specific account.
void	waitForWritesToFinish () override
	Wait for all pending writes to finish.
void	writeLedger (xrpl::LedgerHeader const &ledgerHeader, std::string &&blob) override
	Writes to a specific ledger.
std::optional< std::uint32_t >	fetchLatestLedgerSequence (boost::asio::yield_context yield) const override
	Fetches the latest ledger sequence.
std::optional< xrpl::LedgerHeader >	fetchLedgerBySequence (std::uint32_t const sequence, boost::asio::yield_context yield) const override
	Fetches a specific ledger by sequence number.
std::optional< xrpl::LedgerHeader >	fetchLedgerByHash (xrpl::uint256 const &hash, boost::asio::yield_context yield) const override
	Fetches a specific ledger by hash.
std::optional< LedgerRange >	hardFetchLedgerRange (boost::asio::yield_context yield) const override
	Fetches the ledger range from DB.
std::vector< TransactionAndMetadata >	fetchAllTransactionsInLedger (std::uint32_t const ledgerSequence, boost::asio::yield_context yield) const override
	Fetches all transactions from a specific ledger.
std::vector< xrpl::uint256 >	fetchAllTransactionHashesInLedger (std::uint32_t const ledgerSequence, boost::asio::yield_context yield) const override
	Fetches all transaction hashes from a specific ledger.
std::optional< NFT >	fetchNFT (xrpl::uint256 const &tokenID, std::uint32_t const ledgerSequence, boost::asio::yield_context yield) const override
	Fetches a specific NFT.
TransactionsAndCursor	fetchNFTTransactions (xrpl::uint256 const &tokenID, std::uint32_t const limit, bool const forward, std::optional< TransactionsCursor > const &cursorIn, boost::asio::yield_context yield) const override
	Fetches all transactions for a specific NFT.
TransactionsAndCursor	fetchMPTokenIssuanceTransactions (xrpl::uint192 const &mptIssuanceID, std::uint32_t const limit, bool const forward, std::optional< TransactionsCursor > const &cursorIn, boost::asio::yield_context yield) const override
	Fetches transactions for a particular MPTokenIssuance ID.
TransactionsAndCursor	fetchAccountMPTokenIssuanceTransactions (xrpl::uint192 const &mptIssuanceID, xrpl::AccountID const &account, std::uint32_t const limit, bool const forward, std::optional< TransactionsCursor > const &cursorIn, boost::asio::yield_context yield) const override
	Fetches transactions for a particular MPTokenIssuance ID involving a particular account.
MPTHoldersAndCursor	fetchMPTHolders (xrpl::uint192 const &mptID, std::uint32_t const limit, std::optional< xrpl::AccountID > const &cursorIn, std::uint32_t const ledgerSequence, boost::asio::yield_context yield) const override
	Fetches all holders' balances for a MPTIssuanceID.
std::optional< Blob >	doFetchLedgerObject (xrpl::uint256 const &key, std::uint32_t const sequence, boost::asio::yield_context yield) const override
	The database-specific implementation for fetching a ledger object.
std::optional< std::uint32_t >	doFetchLedgerObjectSeq (xrpl::uint256 const &key, std::uint32_t const sequence, boost::asio::yield_context yield) const override
	The database-specific implementation for fetching a ledger object sequence.
std::optional< TransactionAndMetadata >	fetchTransaction (xrpl::uint256 const &hash, boost::asio::yield_context yield) const override
	Fetches a specific transaction.
std::optional< xrpl::uint256 >	doFetchSuccessorKey (xrpl::uint256 key, std::uint32_t const ledgerSequence, boost::asio::yield_context yield) const override
	Database-specific implementation of fetching the successor key.
std::vector< TransactionAndMetadata >	fetchTransactions (std::vector< xrpl::uint256 > const &hashes, boost::asio::yield_context yield) const override
	Fetches multiple transactions.
std::vector< Blob >	doFetchLedgerObjects (std::vector< xrpl::uint256 > const &keys, std::uint32_t const sequence, boost::asio::yield_context yield) const override
	The database-specific implementation for fetching ledger objects.
std::vector< LedgerObject >	fetchLedgerDiff (std::uint32_t const ledgerSequence, boost::asio::yield_context yield) const override
	Returns the difference between ledgers.
std::optional< std::string >	fetchMigratorStatus (std::string const &migratorName, boost::asio::yield_context yield) const override
	Fetches the status of migrator by name.
std::expected< std::vector< std::pair< boost::uuids::uuid, std::string > >, std::string >	fetchClioNodesData (boost::asio::yield_context yield) const override
	Fetches the data of all nodes in the cluster.
void	doWriteLedgerObject (std::string &&key, std::uint32_t const seq, std::string &&blob) override
	Writes a ledger object to the database.
void	writeSuccessor (std::string &&key, std::uint32_t const seq, std::string &&successor) override
	Write a new successor.
void	writeAccountTransactions (std::vector< AccountTransactionsData > data) override
	Write a new set of account transactions.
void	writeAccountTransaction (AccountTransactionsData record) override
	Write a new account transaction.
void	writeNFTTransactions (std::vector< NFTTransactionsData > const &data) override
	Write NFTs transactions.
void	writeMPTokenIssuanceTransactions (std::vector< MPTokenIssuanceTransactionsData > const &data) override
	Write MPTokenIssuance transaction index rows to the mptoken_issuance_transactions table.
void	writeAccountMPTokenIssuanceTransactions (std::vector< MPTokenIssuanceTransactionsData > const &data) override
	Write MPTokenIssuance transaction index rows to the account_mptoken_issuance_transactions table.
void	writeTransaction (std::string &&hash, std::uint32_t const seq, std::uint32_t const date, std::string &&transaction, std::string &&metadata) override
	Writes a new transaction.
void	writeNFTs (std::vector< NFTsData > const &data) override
	Writes NFTs to the database.
void	writeMPTHolders (std::vector< MPTHolderData > const &data) override
	Write accounts that started holding onto a MPT.
void	startWrites () const override
	Starts a write transaction with the DB. No-op for cassandra.
void	writeMigratorStatus (std::string const &migratorName, std::string const &status) override
	Mark the migration status of a migrator as Migrated in the database.
void	writeNodeMessage (boost::uuids::uuid const &uuid, std::string message) override
	Write a node message. Used by ClusterCommunicationService.
bool	isTooBusy () const override
boost::json::object	stats () const override
Public Member Functions inherited from data::BackendInterface
	BackendInterface (LedgerCacheInterface &cache)
	Construct a new backend interface instance.
LedgerCacheInterface const &	cache () const
LedgerCacheInterface &	cache ()
void	setCorruptionDetector (etl::CorruptionDetector detector)
	Sets the corruption detector.
std::optional< LedgerRange >	fetchLedgerRange () const
	Fetch the current ledger range.
virtual std::vector< xrpl::uint256 >	fetchAccountRoots (std::uint32_t number, std::uint32_t pageSize, std::uint32_t seq, boost::asio::yield_context yield) const =0
	Fetch the specified number of account root object indexes by page, the accounts need to exist for seq.
void	updateRange (uint32_t newMax)
	Updates the range of sequences that are stored in the DB.
void	forceUpdateRange (uint32_t newMax)
	Updates the range of sequences that are stored in the DB without any checks.
void	setRange (uint32_t min, uint32_t max, bool force=false)
	Sets the range of sequences that are stored in the DB.
std::optional< xrpl::Fees >	fetchFees (std::uint32_t seq, boost::asio::yield_context yield) const
	Fetch the fees from a specific ledger sequence.
virtual NFTsAndCursor	fetchNFTsByIssuer (xrpl::AccountID const &issuer, std::optional< std::uint32_t > const &taxon, std::uint32_t ledgerSequence, std::uint32_t limit, std::optional< xrpl::uint256 > const &cursorIn, boost::asio::yield_context yield) const =0
	Fetches all NFTs issued by a given address.
std::optional< Blob >	fetchLedgerObject (xrpl::uint256 const &key, std::uint32_t sequence, boost::asio::yield_context yield) const
	Fetches a specific ledger object.
std::optional< std::uint32_t >	fetchLedgerObjectSeq (xrpl::uint256 const &key, std::uint32_t sequence, boost::asio::yield_context yield) const
	Fetches a specific ledger object sequence.
std::vector< Blob >	fetchLedgerObjects (std::vector< xrpl::uint256 > const &keys, std::uint32_t sequence, boost::asio::yield_context yield) const
	Fetches all ledger objects by their keys.
LedgerPage	fetchLedgerPage (std::optional< xrpl::uint256 > const &cursor, std::uint32_t ledgerSequence, std::uint32_t limit, bool outOfOrder, boost::asio::yield_context yield)
	Fetches a page of ledger objects, ordered by key/index.
std::optional< LedgerObject >	fetchSuccessorObject (xrpl::uint256 key, std::uint32_t ledgerSequence, boost::asio::yield_context yield) const
	Fetches the successor object.
std::optional< xrpl::uint256 >	fetchSuccessorKey (xrpl::uint256 key, std::uint32_t ledgerSequence, boost::asio::yield_context yield) const
	Fetches the successor key.
BookOffersPage	fetchBookOffers (xrpl::uint256 const &book, std::uint32_t ledgerSequence, std::uint32_t limit, boost::asio::yield_context yield) const
	Fetches book offers.
std::optional< LedgerRange >	hardFetchLedgerRange () const
	Synchronously fetches the ledger range from DB.
std::optional< LedgerRange >	hardFetchLedgerRangeNoThrow () const
	Fetches the ledger range from DB retrying until no DatabaseTimeout is thrown.
virtual void	writeLedgerObject (std::string &&key, std::uint32_t seq, std::string &&blob)
	Writes a new ledger object.
bool	finishWrites (std::uint32_t ledgerSequence)
	Tells database we finished writing all data for a specific ledger.

Protected Member Functions
bool	executeSyncUpdate (Statement statement)
	Executes statements and tries to write to DB.
TransactionsAndCursor	fetchMPTokenIssuanceTransactionsImpl (Statement const &statement, std::size_t const cursorIdx, std::size_t const limitIdx, std::uint32_t const limit, bool const forward, std::optional< TransactionsCursor > const &cursorIn, boost::asio::yield_context yield) const
	Shared implementation of the two MPTokenIssuance transaction-index fetchers.

Protected Attributes
util::Logger	log_ {"Backend"}
SettingsProviderType	settingsProvider_
SchemaType	schema_
std::atomic_uint32_t	ledgerSequence_ = 0u
Handle	handle_
ExecutionStrategyType	executor_
FetchLedgerCacheType	ledgerCache_ {}
Protected Attributes inherited from data::BackendInterface
util::Logger	log_ {"Backend"}
std::shared_mutex	rngMtx_
std::optional< LedgerRange >	range_
std::reference_wrapper< LedgerCacheInterface >	cache_
std::optional< etl::CorruptionDetector >	corruptionDetector_

Static Protected Attributes
static constexpr std::size_t	kTransactionCursorBindIndex = 1
static constexpr std::size_t	kTransactionLimitBindIndex = 2
static constexpr std::size_t	kMPTokenIssuanceTxCursorBindIndex = 1
static constexpr std::size_t	kMPTokenIssuanceTxLimitBindIndex = 2
static constexpr std::size_t	kAccountMPTokenIssuanceTxCursorBindIndex = 2
static constexpr std::size_t	kAccountMPTokenIssuanceTxLimitBindIndex = 3

Friends
class	::CacheBackendCassandraTest

Additional Inherited Members
Public Types inherited from data::BackendInterface
using	ClioNodesDataFetchResult
	Return type for fetchClioNodesData() method.

Detailed Description

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>
class data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >

Implements BackendInterface for Cassandra/ScyllaDB/Keyspace.

Note: This is a safer and more correct rewrite of the original implementation of the backend.

Template Parameters

SettingsProviderType	The settings provider type
ExecutionStrategyType	The execution strategy type
SchemaType	The Schema type
FetchLedgerCacheType	The ledger header cache type

Constructor & Destructor Documentation

CassandraBackendFamily()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::CassandraBackendFamily ( SettingsProviderType settingsProvider, data::LedgerCacheInterface & cache, bool readOnly )

inline

Create a new cassandra/scylla backend instance.

Parameters

settingsProvider	The settings provider
cache	The ledger cache
readOnly	Whether the database should be in readonly mode

Member Function Documentation

doFetchLedgerObject()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

std::optional< Blob > data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::doFetchLedgerObject ( xrpl::uint256 const & key, std::uint32_t const sequence, boost::asio::yield_context yield ) const

inlineoverridevirtual

The database-specific implementation for fetching a ledger object.

Parameters

key	The key to fetch for
sequence	The ledger sequence to fetch for
yield	The coroutine context

Returns

The object as a Blob on success; nullopt otherwise

Implements data::BackendInterface.

doFetchLedgerObjects()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

std::vector< Blob > data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::doFetchLedgerObjects ( std::vector< xrpl::uint256 > const & keys, std::uint32_t const sequence, boost::asio::yield_context yield ) const

inlineoverridevirtual

The database-specific implementation for fetching ledger objects.

Parameters

keys	The keys to fetch for
sequence	The ledger sequence to fetch for
yield	The coroutine context

Returns

A vector of Blobs representing each fetched object

Implements data::BackendInterface.

doFetchLedgerObjectSeq()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

std::optional< std::uint32_t > data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::doFetchLedgerObjectSeq ( xrpl::uint256 const & key, std::uint32_t const sequence, boost::asio::yield_context yield ) const

inlineoverridevirtual

The database-specific implementation for fetching a ledger object sequence.

Parameters

key	The key to fetch for
sequence	The ledger sequence to fetch for
yield	The coroutine context

Returns

The sequence in unit32_t on success; nullopt otherwise

Implements data::BackendInterface.

doFetchSuccessorKey()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

std::optional< xrpl::uint256 > data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::doFetchSuccessorKey ( xrpl::uint256 key, std::uint32_t const ledgerSequence, boost::asio::yield_context yield ) const

inlineoverridevirtual

Database-specific implementation of fetching the successor key.

Parameters

key	The key to fetch for
ledgerSequence	The ledger sequence to fetch for
yield	The coroutine context

Returns

The successor on success; nullopt otherwise

Implements data::BackendInterface.

doWriteLedgerObject()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

void data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::doWriteLedgerObject ( std::string && key, std::uint32_t const seq, std::string && blob )

inlineoverridevirtual

Writes a ledger object to the database.

Parameters

key	The key of the object
seq	The sequence of the ledger
blob	The data

Implements data::BackendInterface.

executeSyncUpdate()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

bool data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::executeSyncUpdate ( Statement statement )

inlineprotected

Executes statements and tries to write to DB.

Parameters

statement

statement to execute

Returns

true if successful, false if it fails

fetchAccountMPTokenIssuanceTransactions()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

TransactionsAndCursor data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::fetchAccountMPTokenIssuanceTransactions ( xrpl::uint192 const & mptIssuanceID, xrpl::AccountID const & account, std::uint32_t const limit, bool const forward, std::optional< TransactionsCursor > const & cursorIn, boost::asio::yield_context yield ) const

inlineoverridevirtual

Fetches transactions for a particular MPTokenIssuance ID involving a particular account.

Returns one page of transactions for this issuance and account, newest-first (or oldest-first when forward is set). Each row of the account_mptoken_issuance_transactions table holds only a transaction hash and its ledger position, not the transaction itself or its type. So the query cannot filter by type. When a type filter is requested, the handler looks up each full transaction by hash and drops rows whose type does not match, the same way account_tx does.

Parameters

mptIssuanceID	The 24-byte MPTokenIssuance ID.
account	The account that must be affected by the transaction.
limit	The maximum number of transactions per result page.
forward	Whether to fetch the page forwards or backwards from the given cursor.
cursorIn	The cursor to resume fetching from.
yield	The coroutine context.

Returns

Results and a cursor to resume from.

Implements data::BackendInterface.

fetchAccountTransactions()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

TransactionsAndCursor data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::fetchAccountTransactions ( xrpl::AccountID const & account, std::uint32_t const limit, bool forward, std::optional< TransactionsCursor > const & txnCursor, boost::asio::yield_context yield ) const

inlineoverridevirtual

Fetches all transactions for a specific account.

Parameters

account	The account to fetch transactions for
limit	The maximum number of transactions per result page
forward	Whether to fetch the page forwards or backwards from the given cursor
txnCursor	The cursor to resume fetching from
yield	The coroutine context

Returns

Results and a cursor to resume from

Implements data::BackendInterface.

fetchAllTransactionHashesInLedger()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

std::vector< xrpl::uint256 > data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::fetchAllTransactionHashesInLedger ( std::uint32_t const ledgerSequence, boost::asio::yield_context yield ) const

inlineoverridevirtual

Fetches all transaction hashes from a specific ledger.

Parameters

ledgerSequence	The ledger sequence to fetch for
yield	The coroutine context

Returns

Hashes as xrpl::uint256 in a vector

Implements data::BackendInterface.

fetchAllTransactionsInLedger()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

std::vector< TransactionAndMetadata > data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::fetchAllTransactionsInLedger ( std::uint32_t const ledgerSequence, boost::asio::yield_context yield ) const

inlineoverridevirtual

Fetches all transactions from a specific ledger.

Parameters

ledgerSequence	The ledger sequence to fetch for
yield	The coroutine context

Returns

Results as a vector of TransactionAndMetadata

Implements data::BackendInterface.

fetchClioNodesData()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

std::expected< std::vector< std::pair< boost::uuids::uuid, std::string > >, std::string > data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::fetchClioNodesData ( boost::asio::yield_context yield ) const

inlineoverridevirtual

Fetches the data of all nodes in the cluster.

Parameters

yield

The coroutine context

Returns

The data of all nodes in the cluster.

Implements data::BackendInterface.

fetchLatestLedgerSequence()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

std::optional< std::uint32_t > data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::fetchLatestLedgerSequence ( boost::asio::yield_context yield ) const

inlineoverridevirtual

Fetches the latest ledger sequence.

Parameters

yield

The coroutine context

Returns

Latest sequence wrapped in an optional if found; nullopt otherwise

Implements data::BackendInterface.

fetchLedgerByHash()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

std::optional< xrpl::LedgerHeader > data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::fetchLedgerByHash ( xrpl::uint256 const & hash, boost::asio::yield_context yield ) const

inlineoverridevirtual

Fetches a specific ledger by hash.

Parameters

hash	The hash to fetch for
yield	The coroutine context

Returns

The xrpl::LedgerHeader if found; nullopt otherwise

Implements data::BackendInterface.

fetchLedgerBySequence()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

std::optional< xrpl::LedgerHeader > data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::fetchLedgerBySequence ( std::uint32_t const sequence, boost::asio::yield_context yield ) const

inlineoverridevirtual

Fetches a specific ledger by sequence number.

Parameters

sequence	The sequence number to fetch for
yield	The coroutine context

Returns

The xrpl::LedgerHeader if found; nullopt otherwise

Implements data::BackendInterface.

fetchLedgerDiff()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

std::vector< LedgerObject > data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::fetchLedgerDiff ( std::uint32_t const ledgerSequence, boost::asio::yield_context yield ) const

inlineoverridevirtual

Returns the difference between ledgers.

Parameters

ledgerSequence	The ledger sequence to fetch for
yield	The coroutine context

Returns

A vector of LedgerObject representing the diff

Implements data::BackendInterface.

fetchMigratorStatus()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

std::optional< std::string > data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::fetchMigratorStatus ( std::string const & migratorName, boost::asio::yield_context yield ) const

inlineoverridevirtual

Fetches the status of migrator by name.

Parameters

migratorName	The name of the migrator
yield	The coroutine context

Returns

The status of the migrator if found; nullopt otherwise

Implements data::BackendInterface.

fetchMPTHolders()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

MPTHoldersAndCursor data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::fetchMPTHolders ( xrpl::uint192 const & mptID, std::uint32_t const limit, std::optional< xrpl::AccountID > const & cursorIn, std::uint32_t const ledgerSequence, boost::asio::yield_context yield ) const

inlineoverridevirtual

Fetches all holders' balances for a MPTIssuanceID.

Parameters

mptID	MPTIssuanceID you wish you query.
limit	Paging limit.
cursorIn	Optional cursor to allow us to pick up from where we last left off.
ledgerSequence	The ledger sequence to fetch for
yield	Currently executing coroutine.

Returns

std::vector<Blob> of MPToken balances and an optional marker

Implements data::BackendInterface.

fetchMPTokenIssuanceTransactions()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

TransactionsAndCursor data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::fetchMPTokenIssuanceTransactions ( xrpl::uint192 const & mptIssuanceID, std::uint32_t const limit, bool const forward, std::optional< TransactionsCursor > const & cursorIn, boost::asio::yield_context yield ) const

inlineoverridevirtual

Fetches transactions for a particular MPTokenIssuance ID.

Returns one page of transactions for this issuance, newest-first (or oldest-first when forward is set). Each row of the mptoken_issuance_transactions table holds only a transaction hash and its ledger position, not the transaction itself or its type. So the query cannot filter by type. When a type filter is requested, the handler looks up each full transaction by hash and drops rows whose type does not match, the same way account_tx does.

Parameters

mptIssuanceID	The 24-byte MPTokenIssuance ID.
limit	The maximum number of transactions per result page.
forward	Whether to fetch the page forwards or backwards from the given cursor.
cursorIn	The cursor to resume fetching from.
yield	The coroutine context.

Returns

Results and a cursor to resume from.

Implements data::BackendInterface.

fetchMPTokenIssuanceTransactionsImpl()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

TransactionsAndCursor data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::fetchMPTokenIssuanceTransactionsImpl ( Statement const & statement, std::size_t const cursorIdx, std::size_t const limitIdx, std::uint32_t const limit, bool const forward, std::optional< TransactionsCursor > const & cursorIn, boost::asio::yield_context yield ) const

inlineprotected

Shared implementation of the two MPTokenIssuance transaction-index fetchers.

Note

The forward path queries with an inclusive seq_idx >=, so the returned cursor's transaction index is advanced by one to avoid re-reading the last row on the next page.

Parameters

statement	The statement already bound with the partition-key columns.
cursorIdx	The bind index for the seq_idx cursor tuple.
limitIdx	The bind index for the LIMIT.
limit	The maximum number of transactions per result page.
forward	Whether the page is fetched forwards or backwards.
cursorIn	The cursor to resume fetching from.
yield	The coroutine context.

Returns

Results and a cursor to resume from.

fetchNFT()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

std::optional< NFT > data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::fetchNFT ( xrpl::uint256 const & tokenID, std::uint32_t const ledgerSequence, boost::asio::yield_context yield ) const

inlineoverridevirtual

Fetches a specific NFT.

Parameters

tokenID	The ID of the NFT
ledgerSequence	The ledger sequence to fetch for
yield	The coroutine context

Returns

NFT object on success; nullopt otherwise

Implements data::BackendInterface.

fetchNFTTransactions()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

TransactionsAndCursor data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::fetchNFTTransactions ( xrpl::uint256 const & tokenID, std::uint32_t const limit, bool const forward, std::optional< TransactionsCursor > const & cursorIn, boost::asio::yield_context yield ) const

inlineoverridevirtual

Fetches all transactions for a specific NFT.

Parameters

tokenID	The ID of the NFT
limit	The maximum number of transactions per result page
forward	Whether to fetch the page forwards or backwards from the given cursor
cursorIn	The cursor to resume fetching from
yield	The coroutine context

Returns

Results and a cursor to resume from

Implements data::BackendInterface.

fetchTransaction()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

std::optional< TransactionAndMetadata > data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::fetchTransaction ( xrpl::uint256 const & hash, boost::asio::yield_context yield ) const

inlineoverridevirtual

Fetches a specific transaction.

Parameters

hash	The hash of the transaction to fetch
yield	The coroutine context

Returns

TransactionAndMetadata if transaction is found; nullopt otherwise

Implements data::BackendInterface.

fetchTransactions()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

std::vector< TransactionAndMetadata > data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::fetchTransactions ( std::vector< xrpl::uint256 > const & hashes, boost::asio::yield_context yield ) const

inlineoverridevirtual

Fetches multiple transactions.

Parameters

hashes	A vector of hashes to fetch transactions for
yield	The coroutine context

Returns

A vector of TransactionAndMetadata matching the given hashes

Implements data::BackendInterface.

hardFetchLedgerRange()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

std::optional< LedgerRange > data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::hardFetchLedgerRange ( boost::asio::yield_context yield ) const

inlineoverridevirtual

Fetches the ledger range from DB.

Parameters

yield

The coroutine context

Returns

The ledger range if available; nullopt otherwise

Implements data::BackendInterface.

isTooBusy()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

bool data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::isTooBusy ( ) const

inlineoverridevirtual

Returns

true if database is overwhelmed; false otherwise

Implements data::BackendInterface.

startWrites()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

void data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::startWrites ( ) const

inlineoverridevirtual

Starts a write transaction with the DB. No-op for cassandra.

Note: Can potentially be deprecated and removed.

Implements data::BackendInterface.

stats()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

boost::json::object data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::stats ( ) const

inlineoverridevirtual

Returns

A JSON object containing backend usage statistics

Implements data::BackendInterface.

waitForWritesToFinish()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

void data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::waitForWritesToFinish ( )

inlineoverridevirtual

Wait for all pending writes to finish.

Implements data::BackendInterface.

writeAccountMPTokenIssuanceTransactions()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

void data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::writeAccountMPTokenIssuanceTransactions ( std::vector< MPTokenIssuanceTransactionsData > const & data )

inlineoverridevirtual

Write MPTokenIssuance transaction index rows to the account_mptoken_issuance_transactions table.

One row is written per affected account in each record.

Parameters

data	A vector of MPTokenIssuanceTransactionsData objects.

Implements data::BackendInterface.

writeAccountTransaction()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

void data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::writeAccountTransaction ( AccountTransactionsData record )

inlineoverridevirtual

Write a new account transaction.

Parameters

record

An object representing the account transaction

Implements data::BackendInterface.

writeAccountTransactions()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

void data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::writeAccountTransactions ( std::vector< AccountTransactionsData > data )

inlineoverridevirtual

Write a new set of account transactions.

Parameters

data	A vector of AccountTransactionsData objects representing the account transactions

Implements data::BackendInterface.

writeLedger()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

void data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::writeLedger ( xrpl::LedgerHeader const & ledgerHeader, std::string && blob )

inlineoverridevirtual

Writes to a specific ledger.

Parameters

ledgerHeader	Ledger header.
blob	r-value string serialization of ledger header.

Implements data::BackendInterface.

writeMigratorStatus()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

void data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::writeMigratorStatus ( std::string const & migratorName, std::string const & status )

inlineoverridevirtual

Mark the migration status of a migrator as Migrated in the database.

Parameters

migratorName	The name of the migrator
status	The status to set

Implements data::BackendInterface.

writeMPTHolders()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

void data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::writeMPTHolders ( std::vector< MPTHolderData > const & data )

inlineoverridevirtual

Write accounts that started holding onto a MPT.

Parameters

data	A vector of MPT ID and account pairs

Implements data::BackendInterface.

writeMPTokenIssuanceTransactions()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

void data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::writeMPTokenIssuanceTransactions ( std::vector< MPTokenIssuanceTransactionsData > const & data )

inlineoverridevirtual

Write MPTokenIssuance transaction index rows to the mptoken_issuance_transactions table.

Parameters

data	A vector of MPTokenIssuanceTransactionsData objects.

Implements data::BackendInterface.

writeNFTs()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

void data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::writeNFTs ( std::vector< NFTsData > const & data )

inlineoverridevirtual

Writes NFTs to the database.

Parameters

data	A vector of NFTsData objects representing the NFTs

Implements data::BackendInterface.

writeNFTTransactions()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

void data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::writeNFTTransactions ( std::vector< NFTTransactionsData > const & data )

inlineoverridevirtual

Write NFTs transactions.

Parameters

data	A vector of NFTTransactionsData objects

Implements data::BackendInterface.

writeNodeMessage()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

void data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::writeNodeMessage ( boost::uuids::uuid const & uuid, std::string message )

inlineoverridevirtual

Write a node message. Used by ClusterCommunicationService.

Parameters

uuid	The UUID of the node
message	The message to write

Implements data::BackendInterface.

writeSuccessor()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

void data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::writeSuccessor ( std::string && key, std::uint32_t const seq, std::string && successor )

inlineoverridevirtual

Write a new successor.

Parameters

key	Key of the object that the passed successor will be the successor for
seq	The ledger sequence to write for
successor	The successor data to write

Implements data::BackendInterface.

writeTransaction()

template<SomeSettingsProvider SettingsProviderType, SomeExecutionStrategy ExecutionStrategyType, typename SchemaType, typename FetchLedgerCacheType = FetchLedgerCache>

void data::cassandra::CassandraBackendFamily< SettingsProviderType, ExecutionStrategyType, SchemaType, FetchLedgerCacheType >::writeTransaction ( std::string && hash, std::uint32_t const seq, std::uint32_t const date, std::string && transaction, std::string && metadata )

inlineoverridevirtual

Writes a new transaction.

Parameters

hash	The hash of the transaction
seq	The ledger sequence to write for
date	The timestamp of the entry
transaction	The transaction data to write
metadata	The metadata to write

Implements data::BackendInterface.

---

The documentation for this class was generated from the following file:

• /__w/clio/clio/src/data/cassandra/CassandraBackendFamily.hpp
