Manages outbound peer connection attempts with comprehensive timeout handling. More...

#include <ConnectAttempt.h>

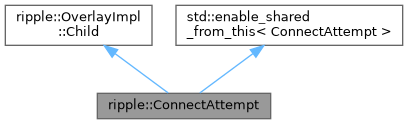

Inheritance diagram for ripple::ConnectAttempt:

[legend]

Collaboration diagram for ripple::ConnectAttempt:

[legend]

Classes
struct	StepTimeouts
	Defines timeout values for each connection step. More...

Public Member Functions
	ConnectAttempt (Application &app, boost::asio::io_context &io_context, endpoint_type const &remote_endpoint, Resource::Consumer usage, shared_context const &context, Peer::id_t id, std::shared_ptr< PeerFinder::Slot > const &slot, beast::Journal journal, OverlayImpl &overlay)
	Construct a new ConnectAttempt object.

	~ConnectAttempt ()

void	stop () override
	Stop the connection attempt.

void	run ()
	Begin the connection attempt.

T	shared_from_this (T... args)

T	weak_from_this (T... args)

Protected Attributes
OverlayImpl &	overlay_

Private Types
enum class	ConnectionStep { Init , TcpConnect , TlsHandshake , HttpWrite , HttpRead , Complete , ShutdownStarted }
	Represents the current phase of the connection establishment process. More...

using	error_code = boost::system::error_code

using	endpoint_type = boost::asio::ip::tcp::endpoint

using	request_type = boost::beast::http::request< boost::beast::http::empty_body >

using	response_type = boost::beast::http::response< boost::beast::http::dynamic_body >

using	socket_type = boost::asio::ip::tcp::socket

using	middle_type = boost::beast::tcp_stream

using	stream_type = boost::beast::ssl_stream< middle_type >

using	shared_context = std::shared_ptr< boost::asio::ssl::context >

Private Member Functions
void	setTimer (ConnectionStep step)
	Set timers for the specified connection step.

void	cancelTimer ()
	Cancel both global and step timers.

void	onTimer (error_code ec)
	Handle timer expiration events.

void	onConnect (error_code ec)

void	onHandshake (error_code ec)

void	onWrite (error_code ec)

void	onRead (error_code ec)

void	fail (std::string const &reason)

void	fail (std::string const &name, error_code ec)

void	shutdown ()

void	tryAsyncShutdown ()

void	onShutdown (error_code ec)

void	close ()

void	processResponse ()
	Process the HTTP upgrade response from peer.

Static Private Member Functions
static std::string	stepToString (ConnectionStep step)

template<class = void>
static boost::asio::ip::tcp::endpoint	parse_endpoint (std::string const &s, boost::system::error_code &ec)

Private Attributes
Application &	app_

Peer::id_t const	id_

beast::WrappedSink	sink_

beast::Journal const	journal_

endpoint_type	remote_endpoint_

Resource::Consumer	usage_

boost::asio::strand< boost::asio::io_context::executor_type >	strand_

boost::asio::basic_waitable_timer< std::chrono::steady_clock >	timer_

boost::asio::basic_waitable_timer< std::chrono::steady_clock >	stepTimer_

std::unique_ptr< stream_type >	stream_ptr_

socket_type &	socket_

stream_type &	stream_

boost::beast::multi_buffer	read_buf_

response_type	response_

std::shared_ptr< PeerFinder::Slot >	slot_

request_type	req_

bool	shutdown_ = false

bool	ioPending_ = false

ConnectionStep	currentStep_ = ConnectionStep::Init

Static Private Attributes
static constexpr std::chrono::seconds	connectTimeout {25}

Detailed Description

Manages outbound peer connection attempts with comprehensive timeout handling.

The ConnectAttempt class handles the complete lifecycle of establishing an outbound connection to a peer in the XRPL network. It implements a sophisticated dual-timer system that provides both global timeout protection and per-step timeout diagnostics.

The connection establishment follows these steps:

TCP Connect: Establish basic network connection
TLS Handshake: Negotiate SSL/TLS encryption
HTTP Write: Send peer handshake request
HTTP Read: Receive and validate peer response
Complete: Connection successfully established

Uses a hybrid timeout approach:

Global Timer: Hard limit (20s) for entire connection process
Step Timers: Individual timeouts for each connection phase
All errors result in connection termination

All operations are serialized using boost::asio::strand to ensure thread safety. The class is designed to be used exclusively within the ASIO event loop.

Note: This class should not be used directly. It is managed by OverlayImpl as part of the peer discovery and connection management system.

Definition at line 60 of file ConnectAttempt.h.

Member Typedef Documentation

◆ error_code

using ripple::ConnectAttempt::error_code = boost::system::error_code

private

Definition at line 64 of file ConnectAttempt.h.

◆ endpoint_type

using ripple::ConnectAttempt::endpoint_type = boost::asio::ip::tcp::endpoint

private

Definition at line 65 of file ConnectAttempt.h.

◆ request_type

using ripple::ConnectAttempt::request_type = boost::beast::http::request<boost::beast::http::empty_body>

private

Definition at line 66 of file ConnectAttempt.h.

◆ response_type

using ripple::ConnectAttempt::response_type = boost::beast::http::response<boost::beast::http::dynamic_body>

private

Definition at line 68 of file ConnectAttempt.h.

◆ socket_type

using ripple::ConnectAttempt::socket_type = boost::asio::ip::tcp::socket

private

Definition at line 70 of file ConnectAttempt.h.

◆ middle_type

using ripple::ConnectAttempt::middle_type = boost::beast::tcp_stream

private

Definition at line 71 of file ConnectAttempt.h.

◆ stream_type

using ripple::ConnectAttempt::stream_type = boost::beast::ssl_stream<middle_type>

private

Definition at line 72 of file ConnectAttempt.h.

◆ shared_context

using ripple::ConnectAttempt::shared_context = std::shared_ptr<boost::asio::ssl::context>

private

Definition at line 73 of file ConnectAttempt.h.

Member Enumeration Documentation

◆ ConnectionStep

enum class ripple::ConnectAttempt::ConnectionStep

strongprivate

Represents the current phase of the connection establishment process.

Used for tracking progress and providing detailed timeout diagnostics. Each step has its own timeout value defined in StepTimeouts.

Enumerator
Init
TcpConnect
TlsHandshake
HttpWrite
HttpRead
Complete
ShutdownStarted

Definition at line 83 of file ConnectAttempt.h.

Constructor & Destructor Documentation

◆ ConnectAttempt()

ripple::ConnectAttempt::ConnectAttempt	(	Application &	app,
		boost::asio::io_context &	io_context,
		endpoint_type const &	remote_endpoint,
		Resource::Consumer	usage,
		shared_context const &	context,
		Peer::id_t	id,
		std::shared_ptr< PeerFinder::Slot > const &	slot,
		beast::Journal	journal,
		OverlayImpl &	overlay
	)

Construct a new ConnectAttempt object.

Parameters

app	Application context providing configuration and services
io_context	ASIO I/O context for async operations
remote_endpoint	Target peer endpoint to connect to
usage	Resource usage tracker for rate limiting
context	Shared SSL context for encryption
id	Unique peer identifier for this connection attempt
slot	PeerFinder slot representing this connection
journal	Logging interface for diagnostics
overlay	Parent overlay manager

Note: The constructor only initializes the object. Call run() to begin the actual connection attempt.

Definition at line 31 of file ConnectAttempt.cpp.

◆ ~ConnectAttempt()

ripple::ConnectAttempt::~ConnectAttempt ( )

Definition at line 60 of file ConnectAttempt.cpp.

Member Function Documentation

◆ stop()

void ripple::ConnectAttempt::stop ( )

overridevirtual

Stop the connection attempt.

This method is thread-safe and can be called from any thread.

Implements ripple::OverlayImpl::Child.

Definition at line 69 of file ConnectAttempt.cpp.

◆ run()

void ripple::ConnectAttempt::run ( )

Begin the connection attempt.

This method is thread-safe and posts to the strand if needed.

Definition at line 84 of file ConnectAttempt.cpp.

◆ setTimer()

void ripple::ConnectAttempt::setTimer ( ConnectionStep step )

private

Set timers for the specified connection step.

Parameters

step	The connection step to set timers for

Sets both the step-specific timer and the global timer (if not already set).

Definition at line 212 of file ConnectAttempt.cpp.

◆ cancelTimer()

void ripple::ConnectAttempt::cancelTimer ( )

private

Cancel both global and step timers.

Used during cleanup and when connection completes successfully. Exceptions from timer cancellation are safely ignored.

Definition at line 283 of file ConnectAttempt.cpp.

◆ onTimer()

void ripple::ConnectAttempt::onTimer ( error_code ec )

private

Handle timer expiration events.

Parameters

ec	Error code from timer operation

Determines which timer expired (global vs step) and logs appropriate diagnostic information before terminating the connection.

Definition at line 297 of file ConnectAttempt.cpp.

◆ onConnect()

void ripple::ConnectAttempt::onConnect ( error_code ec )

private

Definition at line 337 of file ConnectAttempt.cpp.

◆ onHandshake()

void ripple::ConnectAttempt::onHandshake ( error_code ec )

private

Definition at line 376 of file ConnectAttempt.cpp.

◆ onWrite()

void ripple::ConnectAttempt::onWrite ( error_code ec )

private

Definition at line 435 of file ConnectAttempt.cpp.

◆ onRead()

void ripple::ConnectAttempt::onRead ( error_code ec )

private

Definition at line 467 of file ConnectAttempt.cpp.

◆ fail() [1/2]

void ripple::ConnectAttempt::fail ( std::string const & reason )

private

Definition at line 198 of file ConnectAttempt.cpp.

◆ fail() [2/2]

void ripple::ConnectAttempt::fail	(	std::string const &	name,
		error_code	ec
	)

private

Definition at line 205 of file ConnectAttempt.cpp.

◆ shutdown()

void ripple::ConnectAttempt::shutdown ( )

private

Definition at line 110 of file ConnectAttempt.cpp.

◆ tryAsyncShutdown()

void ripple::ConnectAttempt::tryAsyncShutdown ( )

private

Definition at line 126 of file ConnectAttempt.cpp.

◆ onShutdown()

void ripple::ConnectAttempt::onShutdown ( error_code ec )

private

Definition at line 155 of file ConnectAttempt.cpp.

◆ close()

void ripple::ConnectAttempt::close ( )

private

Definition at line 183 of file ConnectAttempt.cpp.

◆ processResponse()

void ripple::ConnectAttempt::processResponse ( )

private

Process the HTTP upgrade response from peer.

Validates the peer's response, extracts protocol information, verifies handshake, and either creates a PeerImp or handles redirect responses.

Definition at line 496 of file ConnectAttempt.cpp.

◆ stepToString()

static std::string ripple::ConnectAttempt::stepToString ( ConnectionStep step )

staticprivate

Definition at line 255 of file ConnectAttempt.h.

◆ parse_endpoint()

template<class = void>

static boost::asio::ip::tcp::endpoint ripple::ConnectAttempt::parse_endpoint	(	std::string const &	s,
		boost::system::error_code &	ec
	)

staticprivate

Definition at line 279 of file ConnectAttempt.h.

Member Data Documentation

◆ connectTimeout

constexpr std::chrono::seconds ripple::ConnectAttempt::connectTimeout {25}

staticconstexprprivate

Definition at line 94 of file ConnectAttempt.h.

◆ app_

Application& ripple::ConnectAttempt::app_

private

Definition at line 118 of file ConnectAttempt.h.

◆ id_

Peer::id_t const ripple::ConnectAttempt::id_

private

Definition at line 119 of file ConnectAttempt.h.

◆ sink_

beast::WrappedSink ripple::ConnectAttempt::sink_

private

Definition at line 120 of file ConnectAttempt.h.

◆ journal_

beast::Journal const ripple::ConnectAttempt::journal_

private

Definition at line 121 of file ConnectAttempt.h.

◆ remote_endpoint_

endpoint_type ripple::ConnectAttempt::remote_endpoint_

private

Definition at line 122 of file ConnectAttempt.h.

◆ usage_

Resource::Consumer ripple::ConnectAttempt::usage_

private

Definition at line 123 of file ConnectAttempt.h.

◆ strand_

boost::asio::strand<boost::asio::io_context::executor_type> ripple::ConnectAttempt::strand_

private

Definition at line 125 of file ConnectAttempt.h.

◆ timer_

boost::asio::basic_waitable_timer<std::chrono::steady_clock> ripple::ConnectAttempt::timer_

private

Definition at line 126 of file ConnectAttempt.h.

◆ stepTimer_

boost::asio::basic_waitable_timer<std::chrono::steady_clock> ripple::ConnectAttempt::stepTimer_

private

Definition at line 127 of file ConnectAttempt.h.

◆ stream_ptr_

std::unique_ptr<stream_type> ripple::ConnectAttempt::stream_ptr_

private

Definition at line 129 of file ConnectAttempt.h.

◆ socket_

socket_type& ripple::ConnectAttempt::socket_

private

Definition at line 130 of file ConnectAttempt.h.

◆ stream_

stream_type& ripple::ConnectAttempt::stream_

private

Definition at line 131 of file ConnectAttempt.h.

◆ read_buf_

boost::beast::multi_buffer ripple::ConnectAttempt::read_buf_

private

Definition at line 132 of file ConnectAttempt.h.

◆ response_

response_type ripple::ConnectAttempt::response_

private

Definition at line 134 of file ConnectAttempt.h.

◆ slot_

std::shared_ptr<PeerFinder::Slot> ripple::ConnectAttempt::slot_

private

Definition at line 135 of file ConnectAttempt.h.

◆ req_

request_type ripple::ConnectAttempt::req_

private

Definition at line 136 of file ConnectAttempt.h.

◆ shutdown_

bool ripple::ConnectAttempt::shutdown_ = false

private

Definition at line 138 of file ConnectAttempt.h.

◆ ioPending_

bool ripple::ConnectAttempt::ioPending_ = false

private

Definition at line 139 of file ConnectAttempt.h.

◆ currentStep_

ConnectionStep ripple::ConnectAttempt::currentStep_ = ConnectionStep::Init

private

Definition at line 140 of file ConnectAttempt.h.

◆ overlay_

OverlayImpl& ripple::OverlayImpl::Child::overlay_

protectedinherited

Definition at line 68 of file OverlayImpl.h.

Classes

Public Member Functions

Protected Attributes

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Typedef Documentation

◆ error_code

◆ endpoint_type

◆ request_type

◆ response_type

◆ socket_type

◆ middle_type

◆ stream_type

◆ shared_context

Member Enumeration Documentation

◆ ConnectionStep

Constructor & Destructor Documentation

◆ ConnectAttempt()

◆ ~ConnectAttempt()

Member Function Documentation

◆ stop()

◆ run()

◆ setTimer()

◆ cancelTimer()

◆ onTimer()

◆ onConnect()

◆ onHandshake()

◆ onWrite()

◆ onRead()

◆ fail() [1/2]

◆ fail() [2/2]

◆ shutdown()

◆ tryAsyncShutdown()

◆ onShutdown()

◆ close()

◆ processResponse()

◆ stepToString()

◆ parse_endpoint()

Member Data Documentation

◆ connectTimeout

◆ app_

◆ id_

◆ sink_

◆ journal_

◆ remote_endpoint_

◆ usage_

◆ strand_

◆ timer_

◆ stepTimer_

◆ stream_ptr_

◆ socket_

◆ stream_

◆ read_buf_

◆ response_

◆ slot_

◆ req_

◆ shutdown_

◆ ioPending_

◆ currentStep_

◆ overlay_
