This class manages established peer-to-peer connections, handles message exchange, monitors connection health, and graceful shutdown. More...

#include <PeerImp.h>

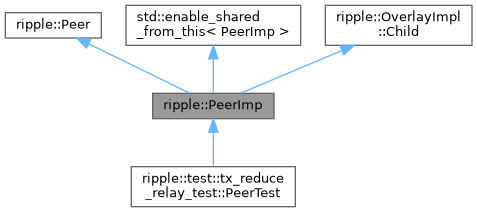

Inheritance diagram for ripple::PeerImp:

[legend]

Collaboration diagram for ripple::PeerImp:

[legend]

Classes
struct	ChargeWithContext

class	Metrics

Public Types
enum class	Tracking { diverged , unknown , converged }
	Whether the peer's view of the ledger converges or diverges from ours. More...

using	ptr = std::shared_ptr< Peer >

using	id_t = std::uint32_t
	Uniquely identifies a peer.

Public Member Functions
	PeerImp (PeerImp const &)=delete

PeerImp &	operator= (PeerImp const &)=delete

	PeerImp (Application &app, id_t id, std::shared_ptr< PeerFinder::Slot > const &slot, http_request_type &&request, PublicKey const &publicKey, ProtocolVersion protocol, Resource::Consumer consumer, std::unique_ptr< stream_type > &&stream_ptr, OverlayImpl &overlay)
	Create an active incoming peer from an established ssl connection.

template<class Buffers >
	PeerImp (Application &app, std::unique_ptr< stream_type > &&stream_ptr, Buffers const &buffers, std::shared_ptr< PeerFinder::Slot > &&slot, http_response_type &&response, Resource::Consumer usage, PublicKey const &publicKey, ProtocolVersion protocol, id_t id, OverlayImpl &overlay)
	Create outgoing, handshaked peer.

virtual	~PeerImp ()

beast::Journal const &	pjournal () const

std::shared_ptr< PeerFinder::Slot > const &	slot ()

virtual void	run ()

void	stop () override

void	send (std::shared_ptr< Message > const &m) override

void	sendTxQueue () override
	Send aggregated transactions' hashes.

void	addTxQueue (uint256 const &hash) override
	Add transaction's hash to the transactions' hashes queue.

void	removeTxQueue (uint256 const &hash) override
	Remove transaction's hash from the transactions' hashes queue.

template<class FwdIt , class = typename std::enable_if_t<std::is_same< typename std::iterator_traits<FwdIt>::value_type, PeerFinder::Endpoint>::value>>
void	sendEndpoints (FwdIt first, FwdIt last)
	Send a set of PeerFinder endpoints as a protocol message.

beast::IP::Endpoint	getRemoteAddress () const override

void	charge (Resource::Charge const &fee, std::string const &context) override
	Adjust this peer's load balance based on the type of load imposed.

Peer::id_t	id () const override

bool	crawl () const
	Returns `true` if this connection will publicly share its IP address.

bool	cluster () const override
	Returns `true` if this connection is a member of the cluster.

void	checkTracking (std::uint32_t validationSeq)
	Check if the peer is tracking.

void	checkTracking (std::uint32_t seq1, std::uint32_t seq2)

PublicKey const &	getNodePublic () const override

std::string	getVersion () const
	Return the version of rippled that the peer is running, if reported.

clock_type::duration	uptime () const

Json::Value	json () override

bool	supportsFeature (ProtocolFeature f) const override

std::optional< std::size_t >	publisherListSequence (PublicKey const &pubKey) const override

void	setPublisherListSequence (PublicKey const &pubKey, std::size_t const seq) override

uint256 const &	getClosedLedgerHash () const override

bool	hasLedger (uint256 const &hash, std::uint32_t seq) const override

void	ledgerRange (std::uint32_t &minSeq, std::uint32_t &maxSeq) const override

bool	hasTxSet (uint256 const &hash) const override

void	cycleStatus () override

bool	hasRange (std::uint32_t uMin, std::uint32_t uMax) override

int	getScore (bool haveItem) const override

bool	isHighLatency () const override

bool	compressionEnabled () const override

bool	txReduceRelayEnabled () const override

void	onMessageUnknown (std::uint16_t type)

void	onMessageBegin (std::uint16_t type, std::shared_ptr<::google::protobuf::Message > const &m, std::size_t size, std::size_t uncompressed_size, bool isCompressed)

void	onMessageEnd (std::uint16_t type, std::shared_ptr<::google::protobuf::Message > const &m)

void	onMessage (std::shared_ptr< protocol::TMManifests > const &m)

void	onMessage (std::shared_ptr< protocol::TMPing > const &m)

void	onMessage (std::shared_ptr< protocol::TMCluster > const &m)

void	onMessage (std::shared_ptr< protocol::TMEndpoints > const &m)

void	onMessage (std::shared_ptr< protocol::TMTransaction > const &m)

void	onMessage (std::shared_ptr< protocol::TMGetLedger > const &m)

void	onMessage (std::shared_ptr< protocol::TMLedgerData > const &m)

void	onMessage (std::shared_ptr< protocol::TMProposeSet > const &m)

void	onMessage (std::shared_ptr< protocol::TMStatusChange > const &m)

void	onMessage (std::shared_ptr< protocol::TMHaveTransactionSet > const &m)

void	onMessage (std::shared_ptr< protocol::TMValidatorList > const &m)

void	onMessage (std::shared_ptr< protocol::TMValidatorListCollection > const &m)

void	onMessage (std::shared_ptr< protocol::TMValidation > const &m)

void	onMessage (std::shared_ptr< protocol::TMGetObjectByHash > const &m)

void	onMessage (std::shared_ptr< protocol::TMHaveTransactions > const &m)

void	onMessage (std::shared_ptr< protocol::TMTransactions > const &m)

void	onMessage (std::shared_ptr< protocol::TMSquelch > const &m)

void	onMessage (std::shared_ptr< protocol::TMProofPathRequest > const &m)

void	onMessage (std::shared_ptr< protocol::TMProofPathResponse > const &m)

void	onMessage (std::shared_ptr< protocol::TMReplayDeltaRequest > const &m)

void	onMessage (std::shared_ptr< protocol::TMReplayDeltaResponse > const &m)

T	shared_from_this (T... args)

T	weak_from_this (T... args)

Private Types
using	clock_type = std::chrono::steady_clock

using	error_code = boost::system::error_code

using	socket_type = boost::asio::ip::tcp::socket

using	middle_type = boost::beast::tcp_stream

using	stream_type = boost::beast::ssl_stream< middle_type >

using	address_type = boost::asio::ip::address

using	endpoint_type = boost::asio::ip::tcp::endpoint

using	waitable_timer = boost::asio::basic_waitable_timer< std::chrono::steady_clock >

using	Compressed = compression::Compressed

Private Member Functions
void	fail (std::string const &name, error_code ec)
	Handles a failure associated with a specific error code.

void	fail (std::string const &reason)
	Handles a failure described by a reason string.

void	shutdown ()
	Initiates the peer disconnection sequence.

void	tryAsyncShutdown ()
	Attempts to perform a graceful SSL shutdown if conditions are met.

void	onShutdown (error_code ec)
	Handles the completion of the asynchronous SSL shutdown.

void	close ()
	Forcibly closes the underlying socket connection.

void	setTimer (std::chrono::seconds interval)
	Sets and starts the peer timer.

void	onTimer (error_code const &ec)
	Handles the expiration of the peer activity timer.

void	cancelTimer () noexcept
	Cancels any pending wait on the peer activity timer.

void	doAccept ()

std::string	name () const

std::string	domain () const

void	doProtocolStart ()

void	onReadMessage (error_code ec, std::size_t bytes_transferred)

void	onWriteMessage (error_code ec, std::size_t bytes_transferred)

void	handleTransaction (std::shared_ptr< protocol::TMTransaction > const &m, bool eraseTxQueue, bool batch)
	Called from onMessage(TMTransaction(s)).

void	handleHaveTransactions (std::shared_ptr< protocol::TMHaveTransactions > const &m)
	Handle protocol message with hashes of transactions that have not been relayed by an upstream node down to its peers - request transactions, which have not been relayed to this peer.

std::string const &	fingerprint () const override

std::string const &	prefix () const

void	addLedger (uint256 const &hash, std::lock_guard< std::mutex > const &lockedRecentLock)

void	doFetchPack (std::shared_ptr< protocol::TMGetObjectByHash > const &packet)

void	onValidatorListMessage (std::string const &messageType, std::string const &manifest, std::uint32_t version, std::vector< ValidatorBlobInfo > const &blobs)

void	doTransactions (std::shared_ptr< protocol::TMGetObjectByHash > const &packet)
	Process peer's request to send missing transactions.

void	checkTransaction (HashRouterFlags flags, bool checkSignature, std::shared_ptr< STTx const > const &stx, bool batch)

void	checkPropose (bool isTrusted, std::shared_ptr< protocol::TMProposeSet > const &packet, RCLCxPeerPos peerPos)

void	checkValidation (std::shared_ptr< STValidation > const &val, uint256 const &key, std::shared_ptr< protocol::TMValidation > const &packet)

void	sendLedgerBase (std::shared_ptr< Ledger const > const &ledger, protocol::TMLedgerData &ledgerData)

std::shared_ptr< Ledger const >	getLedger (std::shared_ptr< protocol::TMGetLedger > const &m)

std::shared_ptr< SHAMap const >	getTxSet (std::shared_ptr< protocol::TMGetLedger > const &m) const

void	processLedgerRequest (std::shared_ptr< protocol::TMGetLedger > const &m)

Static Private Member Functions
static std::string	makePrefix (std::string const &fingerprint)

Private Attributes
Application &	app_

id_t const	id_

std::string	fingerprint_

std::string	prefix_

beast::WrappedSink	sink_

beast::WrappedSink	p_sink_

beast::Journal const	journal_

beast::Journal const	p_journal_

std::unique_ptr< stream_type >	stream_ptr_

socket_type &	socket_

stream_type &	stream_

boost::asio::strand< boost::asio::executor >	strand_

waitable_timer	timer_

beast::IP::Endpoint const	remote_address_

OverlayImpl &	overlay_

bool const	inbound_

ProtocolVersion	protocol_

std::atomic< Tracking >	tracking_

clock_type::time_point	trackingTime_

PublicKey const	publicKey_

std::string	name_

std::shared_mutex	nameMutex_

LedgerIndex	minLedger_ = 0

LedgerIndex	maxLedger_ = 0

uint256	closedLedgerHash_

uint256	previousLedgerHash_

boost::circular_buffer< uint256 >	recentLedgers_ {128}

boost::circular_buffer< uint256 >	recentTxSets_ {128}

std::optional< std::chrono::milliseconds >	latency_

std::optional< std::uint32_t >	lastPingSeq_

clock_type::time_point	lastPingTime_

clock_type::time_point const	creationTime_

reduce_relay::Squelch< UptimeClock >	squelch_

std::mutex	recentLock_

protocol::TMStatusChange	last_status_

Resource::Consumer	usage_

ChargeWithContext	fee_

std::shared_ptr< PeerFinder::Slot > const	slot_

boost::beast::multi_buffer	read_buffer_

http_request_type	request_

http_response_type	response_

boost::beast::http::fields const &	headers_

std::queue< std::shared_ptr< Message > >	send_queue_

bool	shutdown_ = false

bool	shutdownStarted_ = false

bool	readPending_ = false

bool	writePending_ = false

int	large_sendq_ = 0

std::unique_ptr< LoadEvent >	load_event_

hash_map< PublicKey, std::size_t >	publisherListSequences_

Compressed	compressionEnabled_ = Compressed::Off

hash_set< uint256 >	txQueue_

bool	txReduceRelayEnabled_ = false

bool	ledgerReplayEnabled_ = false

LedgerReplayMsgHandler	ledgerReplayMsgHandler_

struct {

Metrics sent

Metrics recv

}	metrics_

Friends
class	OverlayImpl

Detailed Description

This class manages established peer-to-peer connections, handles message exchange, monitors connection health, and graceful shutdown.

The PeerImp shutdown mechanism is a multi-stage process designed to ensure graceful connection termination while handling ongoing I/O operations safely. The shutdown can be initiated from multiple points and follows a deterministic state machine.

The shutdown process can be triggered from several entry points:

External requests: stop() method called by overlay management
Error conditions: fail(error_code) or fail(string) on protocol violations
Timer expiration: Various timeout scenarios (ping timeout, large send queue)
Connection health: Peer tracking divergence or unknown state timeouts

The shutdown follows this progression:

Normal Operation → shutdown() → tryAsyncShutdown() → onShutdown() → close() ↓ ↓ ↓ ↓ Set shutdown_ SSL graceful Timer cancel Socket close Cancel timer shutdown start & cleanup & metrics 5s safety timer Set shutdownStarted_ update

Two primary flags coordinate the shutdown process:

shutdown_: Set when shutdown is requested
shutdownStarted_: Set when SSL shutdown begins

The shutdown mechanism carefully coordinates with ongoing read/write operations:

**Read Operations (onReadMessage)**:

Checks shutdown_ flag after processing each message batch
If shutdown initiated during processing, calls tryAsyncShutdown()

**Write Operations (onWriteMessage)**:

Checks shutdown_ flag before queuing new writes
Calls tryAsyncShutdown() when shutdown flag detected

Multiple timers require coordination during shutdown:

Peer Timer: Regular ping/pong timer cancelled immediately in shutdown()
Shutdown Timer: 5-second safety timer ensures shutdown completion
Operation Cancellation: All pending async operations are cancelled

The shutdown implements fallback mechanisms:

Graceful Path: SSL shutdown → Socket close → Cleanup
Forced Path: If SSL shutdown fails or times out, proceeds to socket close
Safety Timer: 5-second timeout prevents hanging shutdowns

All shutdown operations are serialized through the boost::asio::strand to ensure thread safety. The strand guarantees that shutdown state changes and I/O operation callbacks are executed sequentially.

Note: This class requires careful coordination between async operations, timer management, and shutdown procedures to ensure no resource leaks or hanging connections in high-throughput networking scenarios.

Definition at line 115 of file PeerImp.h.

Member Typedef Documentation

◆ clock_type

using ripple::PeerImp::clock_type = std::chrono::steady_clock

private

Definition at line 124 of file PeerImp.h.

◆ error_code

using ripple::PeerImp::error_code = boost::system::error_code

private

Definition at line 125 of file PeerImp.h.

◆ socket_type

using ripple::PeerImp::socket_type = boost::asio::ip::tcp::socket

private

Definition at line 126 of file PeerImp.h.

◆ middle_type

using ripple::PeerImp::middle_type = boost::beast::tcp_stream

private

Definition at line 127 of file PeerImp.h.

◆ stream_type

using ripple::PeerImp::stream_type = boost::beast::ssl_stream<middle_type>

private

Definition at line 128 of file PeerImp.h.

◆ address_type

using ripple::PeerImp::address_type = boost::asio::ip::address

private

Definition at line 129 of file PeerImp.h.

◆ endpoint_type

using ripple::PeerImp::endpoint_type = boost::asio::ip::tcp::endpoint

private

Definition at line 130 of file PeerImp.h.

◆ waitable_timer

using ripple::PeerImp::waitable_timer = boost::asio::basic_waitable_timer<std::chrono::steady_clock>

private

Definition at line 131 of file PeerImp.h.

◆ Compressed

using ripple::PeerImp::Compressed = compression::Compressed

private

Definition at line 133 of file PeerImp.h.

◆ ptr

using ripple::Peer::ptr = std::shared_ptr<Peer>

inherited

Definition at line 46 of file xrpld/overlay/Peer.h.

◆ id_t

using ripple::Peer::id_t = std::uint32_t

inherited

Uniquely identifies a peer.

This can be stored in tables to find the peer later. Callers can discover if the peer is no longer connected and make adjustments as needed.

Definition at line 53 of file xrpld/overlay/Peer.h.

Member Enumeration Documentation

◆ Tracking

enum class ripple::PeerImp::Tracking

strong

Whether the peer's view of the ledger converges or diverges from ours.

Enumerator
diverged
unknown
converged

Definition at line 121 of file PeerImp.h.

Constructor & Destructor Documentation

◆ PeerImp() [1/3]

ripple::PeerImp::PeerImp ( PeerImp const & )

delete

◆ PeerImp() [2/3]

ripple::PeerImp::PeerImp	(	Application &	app,
		id_t	id,
		std::shared_ptr< PeerFinder::Slot > const &	slot,
		http_request_type &&	request,
		PublicKey const &	publicKey,
		ProtocolVersion	protocol,
		Resource::Consumer	consumer,
		std::unique_ptr< stream_type > &&	stream_ptr,
		OverlayImpl &	overlay
	)

Create an active incoming peer from an established ssl connection.

Definition at line 72 of file PeerImp.cpp.

◆ PeerImp() [3/3]

template<class Buffers >

ripple::PeerImp::PeerImp	(	Application &	app,
		std::unique_ptr< stream_type > &&	stream_ptr,
		Buffers const &	buffers,
		std::shared_ptr< PeerFinder::Slot > &&	slot,
		http_response_type &&	response,
		Resource::Consumer	usage,
		PublicKey const &	publicKey,
		ProtocolVersion	protocol,
		id_t	id,
		OverlayImpl &	overlay
	)

Create outgoing, handshaked peer.

Definition at line 835 of file PeerImp.h.

◆ ~PeerImp()

ripple::PeerImp::~PeerImp ( )

virtual

Definition at line 140 of file PeerImp.cpp.

Member Function Documentation

◆ operator=()

PeerImp & ripple::PeerImp::operator= ( PeerImp const & )

delete

◆ pjournal()

beast::Journal const & ripple::PeerImp::pjournal ( ) const

Definition at line 345 of file PeerImp.h.

◆ slot()

std::shared_ptr< PeerFinder::Slot > const & ripple::PeerImp::slot ( )

Definition at line 351 of file PeerImp.h.

◆ run()

void ripple::PeerImp::run ( )

virtual

Reimplemented in ripple::test::tx_reduce_relay_test::PeerTest.

Definition at line 163 of file PeerImp.cpp.

◆ stop()

void ripple::PeerImp::stop ( )

overridevirtual

Implements ripple::OverlayImpl::Child.

Definition at line 221 of file PeerImp.cpp.

◆ send()

void ripple::PeerImp::send ( std::shared_ptr< Message > const & m )

overridevirtual

Implements ripple::Peer.

Reimplemented in ripple::test::tx_reduce_relay_test::PeerTest.

Definition at line 241 of file PeerImp.cpp.

◆ sendTxQueue()

void ripple::PeerImp::sendTxQueue ( )

overridevirtual

Send aggregated transactions' hashes.

Implements ripple::Peer.

Definition at line 308 of file PeerImp.cpp.

◆ addTxQueue()

void ripple::PeerImp::addTxQueue ( uint256 const & hash )

overridevirtual

Add transaction's hash to the transactions' hashes queue.

Parameters

hash	transaction's hash

Implements ripple::Peer.

Reimplemented in ripple::test::tx_reduce_relay_test::PeerTest.

Definition at line 327 of file PeerImp.cpp.

◆ removeTxQueue()

void ripple::PeerImp::removeTxQueue ( uint256 const & hash )

overridevirtual

Remove transaction's hash from the transactions' hashes queue.

Parameters

hash	transaction's hash

Implements ripple::Peer.

Definition at line 344 of file PeerImp.cpp.

◆ sendEndpoints()

template<class FwdIt , class >

void ripple::PeerImp::sendEndpoints	(	FwdIt	first,
		FwdIt	last
	)

Send a set of PeerFinder endpoints as a protocol message.

Definition at line 909 of file PeerImp.h.

◆ getRemoteAddress()

beast::IP::Endpoint ripple::PeerImp::getRemoteAddress ( ) const

overridevirtual

Implements ripple::Peer.

Definition at line 397 of file PeerImp.h.

◆ charge()

void ripple::PeerImp::charge	(	Resource::Charge const &	fee,
		std::string const &	context
	)

overridevirtual

Adjust this peer's load balance based on the type of load imposed.

Implements ripple::Peer.

Definition at line 356 of file PeerImp.cpp.

◆ id()

Peer::id_t ripple::PeerImp::id ( ) const

overridevirtual

Implements ripple::Peer.

Definition at line 410 of file PeerImp.h.

◆ crawl()

bool ripple::PeerImp::crawl ( ) const

Returns true if this connection will publicly share its IP address.

Definition at line 370 of file PeerImp.cpp.

◆ cluster()

bool ripple::PeerImp::cluster ( ) const

overridevirtual

Returns true if this connection is a member of the cluster.

Implements ripple::Peer.

Definition at line 379 of file PeerImp.cpp.

◆ checkTracking() [1/2]

void ripple::PeerImp::checkTracking ( std::uint32_t validationSeq )

Check if the peer is tracking.

Parameters

validationSeq The ledger sequence of a recently-validated ledger

Definition at line 2066 of file PeerImp.cpp.

◆ checkTracking() [2/2]

void ripple::PeerImp::checkTracking	(	std::uint32_t	seq1,
		std::uint32_t	seq2
	)

Definition at line 2085 of file PeerImp.cpp.

◆ getNodePublic()

PublicKey const & ripple::PeerImp::getNodePublic ( ) const

overridevirtual

Implements ripple::Peer.

Definition at line 432 of file PeerImp.h.

◆ getVersion()

std::string ripple::PeerImp::getVersion ( ) const

Return the version of rippled that the peer is running, if reported.

Definition at line 385 of file PeerImp.cpp.

◆ uptime()

clock_type::duration ripple::PeerImp::uptime ( ) const

Definition at line 443 of file PeerImp.h.

◆ json()

Json::Value ripple::PeerImp::json ( )

overridevirtual

Implements ripple::Peer.

Definition at line 393 of file PeerImp.cpp.

◆ supportsFeature()

bool ripple::PeerImp::supportsFeature ( ProtocolFeature f ) const

overridevirtual

Implements ripple::Peer.

Definition at line 511 of file PeerImp.cpp.

◆ publisherListSequence()

std::optional< std::size_t > ripple::PeerImp::publisherListSequence ( PublicKey const & pubKey ) const

overridevirtual

Implements ripple::Peer.

Definition at line 455 of file PeerImp.h.

◆ setPublisherListSequence()

void ripple::PeerImp::setPublisherListSequence	(	PublicKey const &	pubKey,
		std::size_t const	seq
	)

overridevirtual

Implements ripple::Peer.

Definition at line 466 of file PeerImp.h.

◆ getClosedLedgerHash()

uint256 const & ripple::PeerImp::getClosedLedgerHash ( ) const

overridevirtual

Implements ripple::Peer.

Definition at line 479 of file PeerImp.h.

◆ hasLedger()

bool ripple::PeerImp::hasLedger	(	uint256 const &	hash,
		std::uint32_t	seq
	)		const

overridevirtual

Implements ripple::Peer.

Definition at line 528 of file PeerImp.cpp.

◆ ledgerRange()

void ripple::PeerImp::ledgerRange	(	std::uint32_t &	minSeq,
		std::uint32_t &	maxSeq
	)		const

overridevirtual

Implements ripple::Peer.

Definition at line 543 of file PeerImp.cpp.

◆ hasTxSet()

bool ripple::PeerImp::hasTxSet ( uint256 const & hash ) const

overridevirtual

Implements ripple::Peer.

Definition at line 552 of file PeerImp.cpp.

◆ cycleStatus()

void ripple::PeerImp::cycleStatus ( )

overridevirtual

Implements ripple::Peer.

Definition at line 560 of file PeerImp.cpp.

◆ hasRange()

bool ripple::PeerImp::hasRange	(	std::uint32_t	uMin,
		std::uint32_t	uMax
	)

overridevirtual

Implements ripple::Peer.

Definition at line 570 of file PeerImp.cpp.

◆ getScore()

int ripple::PeerImp::getScore ( bool haveItem ) const

overridevirtual

Implements ripple::Peer.

Definition at line 3563 of file PeerImp.cpp.

◆ isHighLatency()

bool ripple::PeerImp::isHighLatency ( ) const

overridevirtual

Implements ripple::Peer.

Definition at line 3601 of file PeerImp.cpp.

◆ compressionEnabled()

bool ripple::PeerImp::compressionEnabled ( ) const

overridevirtual

Implements ripple::Peer.

Definition at line 507 of file PeerImp.h.

◆ txReduceRelayEnabled()

bool ripple::PeerImp::txReduceRelayEnabled ( ) const

overridevirtual

Implements ripple::Peer.

Definition at line 513 of file PeerImp.h.

◆ fail() [1/2]

void ripple::PeerImp::fail	(	std::string const &	name,
		error_code	ec
	)

private

Handles a failure associated with a specific error code.

This function is called when an operation fails with an error code. It logs the warning message and gracefully shutdowns the connection.

The function will do nothing if the connection is already closed or if a shutdown is already in progress.

Parameters

name	The name of the operation that failed (e.g., "read", "write").
ec	The error code associated with the failure.

Note: This function must be called from within the object's strand.

Definition at line 580 of file PeerImp.cpp.

◆ fail() [2/2]

void ripple::PeerImp::fail ( std::string const & reason )

private

Handles a failure described by a reason string.

This overload is used for logical errors or protocol violations not associated with a specific error code. It logs a warning with the given reason, then initiates a graceful shutdown.

The function will do nothing if the connection is already closed or if a shutdown is already in progress.

Parameters

reason A descriptive string explaining the reason for the failure.

Note: This function must be called from within the object's strand.

Definition at line 595 of file PeerImp.cpp.

◆ shutdown()

void ripple::PeerImp::shutdown ( )

private

Initiates the peer disconnection sequence.

This is the primary entry point to start closing a peer connection. It marks the peer for shutdown and cancels any outstanding asynchronous operations. This cancellation allows the graceful shutdown to proceed once the handlers for the cancelled operations have completed.

Note: This method must be called on the peer's strand.

Definition at line 643 of file PeerImp.cpp.

◆ tryAsyncShutdown()

void ripple::PeerImp::tryAsyncShutdown ( )

private

Attempts to perform a graceful SSL shutdown if conditions are met.

This helper function checks if the peer is in a state where a graceful SSL shutdown can be performed (i.e., shutdown has been requested and no I/O operations are currently in progress).

Note: This method must be called on the peer's strand.

Definition at line 619 of file PeerImp.cpp.

◆ onShutdown()

void ripple::PeerImp::onShutdown ( error_code ec )

private

Handles the completion of the asynchronous SSL shutdown.

This function is the callback for the async_shutdown operation started in shutdown(). Its first action is to cancel the timer. It then inspects the error code to determine the outcome.

Regardless of the result, this function proceeds to call close() to ensure the underlying socket is fully closed.

Parameters

ec	The error code resulting from the `async_shutdown` operation.

Definition at line 660 of file PeerImp.cpp.

◆ close()

void ripple::PeerImp::close ( )

private

Forcibly closes the underlying socket connection.

This function provides the final, non-graceful shutdown of the peer connection. It ensures any pending timers are cancelled and then immediately closes the TCP socket, bypassing the SSL shutdown handshake.

After closing, it notifies the overlay manager of the disconnection.

Note: This function must be called from within the object's strand.

Definition at line 686 of file PeerImp.cpp.

◆ setTimer()

void ripple::PeerImp::setTimer ( std::chrono::seconds interval )

private

Sets and starts the peer timer.

This function starts timer, which is used to detect inactivity and prevent stalled connections. It sets the timer to expire after the predefined peerTimerInterval.

Note: This function will terminate the connection in case of any errors.

Definition at line 712 of file PeerImp.cpp.

◆ onTimer()

void ripple::PeerImp::onTimer ( error_code const & ec )

private

Handles the expiration of the peer activity timer.

This callback is invoked when the timer set by setTimer expires. It watches the peer connection, checking for various timeout and health conditions.

Parameters

ec	The error code associated with the timer's expiration. `operation_aborted` is expected if the timer was cancelled.

Definition at line 741 of file PeerImp.cpp.

◆ cancelTimer()

void ripple::PeerImp::cancelTimer ( )

privatenoexcept

Cancels any pending wait on the peer activity timer.

This function is called to stop the timer. It gracefully manages any errors that might occur during the cancellation process.

Definition at line 808 of file PeerImp.cpp.

◆ makePrefix()

std::string ripple::PeerImp::makePrefix ( std::string const & fingerprint )

staticprivate

Definition at line 733 of file PeerImp.cpp.

◆ doAccept()

void ripple::PeerImp::doAccept ( )

private

Definition at line 822 of file PeerImp.cpp.

◆ name()

std::string ripple::PeerImp::name ( ) const

private

Definition at line 892 of file PeerImp.cpp.

◆ domain()

std::string ripple::PeerImp::domain ( ) const

private

Definition at line 899 of file PeerImp.cpp.

◆ doProtocolStart()

void ripple::PeerImp::doProtocolStart ( )

private

Definition at line 909 of file PeerImp.cpp.

◆ onReadMessage()

void ripple::PeerImp::onReadMessage	(	error_code	ec,
		std::size_t	bytes_transferred
	)

private

Definition at line 951 of file PeerImp.cpp.

◆ onWriteMessage()

void ripple::PeerImp::onWriteMessage	(	error_code	ec,
		std::size_t	bytes_transferred
	)

private

Definition at line 1042 of file PeerImp.cpp.

◆ handleTransaction()

void ripple::PeerImp::handleTransaction	(	std::shared_ptr< protocol::TMTransaction > const &	m,
		bool	eraseTxQueue,
		bool	batch
	)

private

Called from onMessage(TMTransaction(s)).

Parameters

m	Transaction protocol message
eraseTxQueue	is true when called from onMessage(TMTransaction) and is false when called from onMessage(TMTransactions). If true then the transaction hash is erased from txQueue_. Don't need to erase from the queue when called from onMessage(TMTransactions) because this message is a response to the missing transactions request and the queue would not have any of these transactions.
batch	is false when called from onMessage(TMTransaction) and is true when called from onMessage(TMTransactions). If true, then the transaction is part of a batch, and should not be charged an extra fee.

Definition at line 1358 of file PeerImp.cpp.

◆ handleHaveTransactions()

void ripple::PeerImp::handleHaveTransactions ( std::shared_ptr< protocol::TMHaveTransactions > const & m )

private

Handle protocol message with hashes of transactions that have not been relayed by an upstream node down to its peers - request transactions, which have not been relayed to this peer.

Parameters

m	protocol message with transactions' hashes

Definition at line 2710 of file PeerImp.cpp.

◆ fingerprint()

std::string const & ripple::PeerImp::fingerprint ( ) const

overrideprivatevirtual

Implements ripple::Peer.

Definition at line 695 of file PeerImp.h.

◆ prefix()

std::string const & ripple::PeerImp::prefix ( ) const

private

Definition at line 701 of file PeerImp.h.

◆ onMessageUnknown()

void ripple::PeerImp::onMessageUnknown ( std::uint16_t type )

Definition at line 1108 of file PeerImp.cpp.

◆ onMessageBegin()

void ripple::PeerImp::onMessageBegin	(	std::uint16_t	type,
		std::shared_ptr<::google::protobuf::Message > const &	m,
		std::size_t	size,
		std::size_t	uncompressed_size,
		bool	isCompressed
	)

Definition at line 1114 of file PeerImp.cpp.

◆ onMessageEnd()

void ripple::PeerImp::onMessageEnd	(	std::uint16_t	type,
		std::shared_ptr<::google::protobuf::Message > const &	m
	)

Definition at line 1157 of file PeerImp.cpp.

◆ onMessage() [1/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMManifests > const & m )

Definition at line 1166 of file PeerImp.cpp.

◆ onMessage() [2/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMPing > const & m )

Definition at line 1186 of file PeerImp.cpp.

◆ onMessage() [3/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMCluster > const & m )

Definition at line 1223 of file PeerImp.cpp.

◆ onMessage() [4/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMEndpoints > const & m )

Definition at line 1295 of file PeerImp.cpp.

◆ onMessage() [5/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMTransaction > const & m )

Definition at line 1352 of file PeerImp.cpp.

◆ onMessage() [6/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMGetLedger > const & m )

Definition at line 1480 of file PeerImp.cpp.

◆ onMessage() [7/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMLedgerData > const & m )

Definition at line 1679 of file PeerImp.cpp.

◆ onMessage() [8/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMProposeSet > const & m )

Definition at line 1770 of file PeerImp.cpp.

◆ onMessage() [9/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMStatusChange > const & m )

Definition at line 1891 of file PeerImp.cpp.

◆ onMessage() [10/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMHaveTransactionSet > const & m )

Definition at line 2107 of file PeerImp.cpp.

◆ onMessage() [11/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMValidatorList > const & m )

Definition at line 2342 of file PeerImp.cpp.

◆ onMessage() [12/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMValidatorListCollection > const & m )

Definition at line 2370 of file PeerImp.cpp.

◆ onMessage() [13/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMValidation > const & m )

Definition at line 2410 of file PeerImp.cpp.

◆ onMessage() [14/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMGetObjectByHash > const & m )

Definition at line 2535 of file PeerImp.cpp.

◆ onMessage() [15/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMHaveTransactions > const & m )

Definition at line 2691 of file PeerImp.cpp.

◆ onMessage() [16/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMTransactions > const & m )

Definition at line 2760 of file PeerImp.cpp.

◆ onMessage() [17/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMSquelch > const & m )

Definition at line 2784 of file PeerImp.cpp.

◆ onMessage() [18/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMProofPathRequest > const & m )

Definition at line 1569 of file PeerImp.cpp.

◆ onMessage() [19/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMProofPathResponse > const & m )

Definition at line 1608 of file PeerImp.cpp.

◆ onMessage() [20/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMReplayDeltaRequest > const & m )

Definition at line 1624 of file PeerImp.cpp.

◆ onMessage() [21/21]

void ripple::PeerImp::onMessage ( std::shared_ptr< protocol::TMReplayDeltaResponse > const & m )

Definition at line 1663 of file PeerImp.cpp.

◆ addLedger()

void ripple::PeerImp::addLedger	(	uint256 const &	hash,
		std::lock_guard< std::mutex > const &	lockedRecentLock
	)

private

Definition at line 2830 of file PeerImp.cpp.

◆ doFetchPack()

void ripple::PeerImp::doFetchPack ( std::shared_ptr< protocol::TMGetObjectByHash > const & packet )

private

Definition at line 2846 of file PeerImp.cpp.

◆ onValidatorListMessage()

void ripple::PeerImp::onValidatorListMessage	(	std::string const &	messageType,
		std::string const &	manifest,
		std::uint32_t	version,
		std::vector< ValidatorBlobInfo > const &	blobs
	)

private

Definition at line 2133 of file PeerImp.cpp.

◆ doTransactions()

void ripple::PeerImp::doTransactions ( std::shared_ptr< protocol::TMGetObjectByHash > const & packet )

private

Process peer's request to send missing transactions.

The request is sent in response to TMHaveTransactions.

Parameters

packet protocol message containing missing transactions' hashes.

Definition at line 2880 of file PeerImp.cpp.

◆ checkTransaction()

void ripple::PeerImp::checkTransaction	(	HashRouterFlags	flags,
		bool	checkSignature,
		std::shared_ptr< STTx const > const &	stx,
		bool	batch
	)

private

Definition at line 2935 of file PeerImp.cpp.

◆ checkPropose()

void ripple::PeerImp::checkPropose	(	bool	isTrusted,
		std::shared_ptr< protocol::TMProposeSet > const &	packet,
		RCLCxPeerPos	peerPos
	)

private

Definition at line 3073 of file PeerImp.cpp.

◆ checkValidation()

void ripple::PeerImp::checkValidation	(	std::shared_ptr< STValidation > const &	val,
		uint256 const &	key,
		std::shared_ptr< protocol::TMValidation > const &	packet
	)

private

Definition at line 3116 of file PeerImp.cpp.

◆ sendLedgerBase()

void ripple::PeerImp::sendLedgerBase	(	std::shared_ptr< Ledger const > const &	ledger,
		protocol::TMLedgerData &	ledgerData
	)

private

Definition at line 3213 of file PeerImp.cpp.

◆ getLedger()

std::shared_ptr< Ledger const > ripple::PeerImp::getLedger ( std::shared_ptr< protocol::TMGetLedger > const & m )

private

Definition at line 3253 of file PeerImp.cpp.

◆ getTxSet()

std::shared_ptr< SHAMap const > ripple::PeerImp::getTxSet ( std::shared_ptr< protocol::TMGetLedger > const & m ) const

private

Definition at line 3349 of file PeerImp.cpp.

◆ processLedgerRequest()

void ripple::PeerImp::processLedgerRequest ( std::shared_ptr< protocol::TMGetLedger > const & m )

private

Definition at line 3384 of file PeerImp.cpp.

Friends And Related Symbol Documentation

◆ OverlayImpl

friend class OverlayImpl

friend

Definition at line 275 of file PeerImp.h.

Member Data Documentation

◆ app_

Application& ripple::PeerImp::app_

private

Definition at line 135 of file PeerImp.h.

◆ id_

id_t const ripple::PeerImp::id_

private

Definition at line 136 of file PeerImp.h.

◆ fingerprint_

std::string ripple::PeerImp::fingerprint_

private

Definition at line 137 of file PeerImp.h.

◆ prefix_

std::string ripple::PeerImp::prefix_

private

Definition at line 138 of file PeerImp.h.

◆ sink_

beast::WrappedSink ripple::PeerImp::sink_

private

Definition at line 139 of file PeerImp.h.

◆ p_sink_

beast::WrappedSink ripple::PeerImp::p_sink_

private

Definition at line 140 of file PeerImp.h.

◆ journal_

beast::Journal const ripple::PeerImp::journal_

private

Definition at line 141 of file PeerImp.h.

◆ p_journal_

beast::Journal const ripple::PeerImp::p_journal_

private

Definition at line 142 of file PeerImp.h.

◆ stream_ptr_

std::unique_ptr<stream_type> ripple::PeerImp::stream_ptr_

private

Definition at line 143 of file PeerImp.h.

◆ socket_

socket_type& ripple::PeerImp::socket_

private

Definition at line 144 of file PeerImp.h.

◆ stream_

stream_type& ripple::PeerImp::stream_

private

Definition at line 145 of file PeerImp.h.

◆ strand_

boost::asio::strand<boost::asio::executor> ripple::PeerImp::strand_

private

Definition at line 146 of file PeerImp.h.

◆ timer_

waitable_timer ripple::PeerImp::timer_

private

Definition at line 149 of file PeerImp.h.

◆ remote_address_

beast::IP::Endpoint const ripple::PeerImp::remote_address_

private

Definition at line 153 of file PeerImp.h.

◆ overlay_

OverlayImpl& ripple::PeerImp::overlay_

private

Definition at line 157 of file PeerImp.h.

◆ inbound_

bool const ripple::PeerImp::inbound_

private

Definition at line 158 of file PeerImp.h.

◆ protocol_

ProtocolVersion ripple::PeerImp::protocol_

private

Definition at line 161 of file PeerImp.h.

◆ tracking_

std::atomic<Tracking> ripple::PeerImp::tracking_

private

Definition at line 163 of file PeerImp.h.

◆ trackingTime_

clock_type::time_point ripple::PeerImp::trackingTime_

private

Definition at line 164 of file PeerImp.h.

◆ publicKey_

PublicKey const ripple::PeerImp::publicKey_

private

Definition at line 166 of file PeerImp.h.

◆ name_

std::string ripple::PeerImp::name_

private

Definition at line 167 of file PeerImp.h.

◆ nameMutex_

std::shared_mutex ripple::PeerImp::nameMutex_

mutableprivate

Definition at line 168 of file PeerImp.h.

◆ minLedger_

LedgerIndex ripple::PeerImp::minLedger_ = 0

private

Definition at line 172 of file PeerImp.h.

◆ maxLedger_

LedgerIndex ripple::PeerImp::maxLedger_ = 0

private

Definition at line 173 of file PeerImp.h.

◆ closedLedgerHash_

uint256 ripple::PeerImp::closedLedgerHash_

private

Definition at line 174 of file PeerImp.h.

◆ previousLedgerHash_

uint256 ripple::PeerImp::previousLedgerHash_

private

Definition at line 175 of file PeerImp.h.

◆ recentLedgers_

boost::circular_buffer<uint256> ripple::PeerImp::recentLedgers_ {128}

private

Definition at line 177 of file PeerImp.h.

◆ recentTxSets_

boost::circular_buffer<uint256> ripple::PeerImp::recentTxSets_ {128}

private

Definition at line 178 of file PeerImp.h.

◆ latency_

std::optional<std::chrono::milliseconds> ripple::PeerImp::latency_

private

Definition at line 180 of file PeerImp.h.

◆ lastPingSeq_

std::optional<std::uint32_t> ripple::PeerImp::lastPingSeq_

private

Definition at line 181 of file PeerImp.h.

◆ lastPingTime_

clock_type::time_point ripple::PeerImp::lastPingTime_

private

Definition at line 182 of file PeerImp.h.

◆ creationTime_

clock_type::time_point const ripple::PeerImp::creationTime_

private

Definition at line 183 of file PeerImp.h.

◆ squelch_

reduce_relay::Squelch<UptimeClock> ripple::PeerImp::squelch_

private

Definition at line 185 of file PeerImp.h.

◆ recentLock_

std::mutex ripple::PeerImp::recentLock_

mutableprivate

Definition at line 234 of file PeerImp.h.

◆ last_status_

protocol::TMStatusChange ripple::PeerImp::last_status_

private

Definition at line 235 of file PeerImp.h.

◆ usage_

Resource::Consumer ripple::PeerImp::usage_

private

Definition at line 236 of file PeerImp.h.

◆ fee_

ChargeWithContext ripple::PeerImp::fee_

private

Definition at line 237 of file PeerImp.h.

◆ slot_

std::shared_ptr<PeerFinder::Slot> const ripple::PeerImp::slot_

private

Definition at line 238 of file PeerImp.h.

◆ read_buffer_

boost::beast::multi_buffer ripple::PeerImp::read_buffer_

private

Definition at line 239 of file PeerImp.h.

◆ request_

http_request_type ripple::PeerImp::request_

private

Definition at line 240 of file PeerImp.h.

◆ response_

http_response_type ripple::PeerImp::response_

private

Definition at line 241 of file PeerImp.h.

◆ headers_

boost::beast::http::fields const& ripple::PeerImp::headers_

private

Definition at line 242 of file PeerImp.h.

◆ send_queue_

std::queue<std::shared_ptr<Message> > ripple::PeerImp::send_queue_

private

Definition at line 243 of file PeerImp.h.

◆ shutdown_

bool ripple::PeerImp::shutdown_ = false

private

Definition at line 246 of file PeerImp.h.

◆ shutdownStarted_

bool ripple::PeerImp::shutdownStarted_ = false

private

Definition at line 249 of file PeerImp.h.

◆ readPending_

bool ripple::PeerImp::readPending_ = false

private

Definition at line 252 of file PeerImp.h.

◆ writePending_

bool ripple::PeerImp::writePending_ = false

private

Definition at line 255 of file PeerImp.h.

◆ large_sendq_

int ripple::PeerImp::large_sendq_ = 0

private

Definition at line 257 of file PeerImp.h.

◆ load_event_

std::unique_ptr<LoadEvent> ripple::PeerImp::load_event_

private

Definition at line 258 of file PeerImp.h.

◆ publisherListSequences_

hash_map<PublicKey, std::size_t> ripple::PeerImp::publisherListSequences_

private

Definition at line 261 of file PeerImp.h.

◆ compressionEnabled_

Compressed ripple::PeerImp::compressionEnabled_ = Compressed::Off

private

Definition at line 263 of file PeerImp.h.

◆ txQueue_

hash_set<uint256> ripple::PeerImp::txQueue_

private

Definition at line 268 of file PeerImp.h.

◆ txReduceRelayEnabled_

bool ripple::PeerImp::txReduceRelayEnabled_ = false

private

Definition at line 270 of file PeerImp.h.

◆ ledgerReplayEnabled_

bool ripple::PeerImp::ledgerReplayEnabled_ = false

private

Definition at line 272 of file PeerImp.h.

◆ ledgerReplayMsgHandler_

LedgerReplayMsgHandler ripple::PeerImp::ledgerReplayMsgHandler_

private

Definition at line 273 of file PeerImp.h.

◆ sent

Metrics ripple::PeerImp::sent

Definition at line 306 of file PeerImp.h.

◆ recv

Metrics ripple::PeerImp::recv

Definition at line 307 of file PeerImp.h.

◆ [struct]

struct { ... } ripple::PeerImp::metrics_

Classes

Public Types

Public Member Functions

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ clock_type

◆ error_code

◆ socket_type

◆ middle_type

◆ stream_type

◆ address_type

◆ endpoint_type

◆ waitable_timer

◆ Compressed

◆ ptr

◆ id_t

Member Enumeration Documentation

◆ Tracking

Constructor & Destructor Documentation

◆ PeerImp() [1/3]

◆ PeerImp() [2/3]

◆ PeerImp() [3/3]

◆ ~PeerImp()

Member Function Documentation

◆ operator=()

◆ pjournal()

◆ slot()

◆ run()

◆ stop()

◆ send()

◆ sendTxQueue()

◆ addTxQueue()

◆ removeTxQueue()

◆ sendEndpoints()

◆ getRemoteAddress()

◆ charge()

◆ id()

◆ crawl()

◆ cluster()

◆ checkTracking() [1/2]

◆ checkTracking() [2/2]

◆ getNodePublic()

◆ getVersion()

◆ uptime()

◆ json()

◆ supportsFeature()

◆ publisherListSequence()

◆ setPublisherListSequence()

◆ getClosedLedgerHash()

◆ hasLedger()

◆ ledgerRange()

◆ hasTxSet()

◆ cycleStatus()

◆ hasRange()

◆ getScore()

◆ isHighLatency()

◆ compressionEnabled()

◆ txReduceRelayEnabled()

◆ fail() [1/2]

◆ fail() [2/2]

◆ shutdown()

◆ tryAsyncShutdown()

◆ onShutdown()

◆ close()

◆ setTimer()

◆ onTimer()

◆ cancelTimer()

◆ makePrefix()

◆ doAccept()

◆ name()

◆ domain()

◆ doProtocolStart()

◆ onReadMessage()

◆ onWriteMessage()

◆ handleTransaction()
