Inheritance diagram for ripple::DirectStepI< TDerived >:

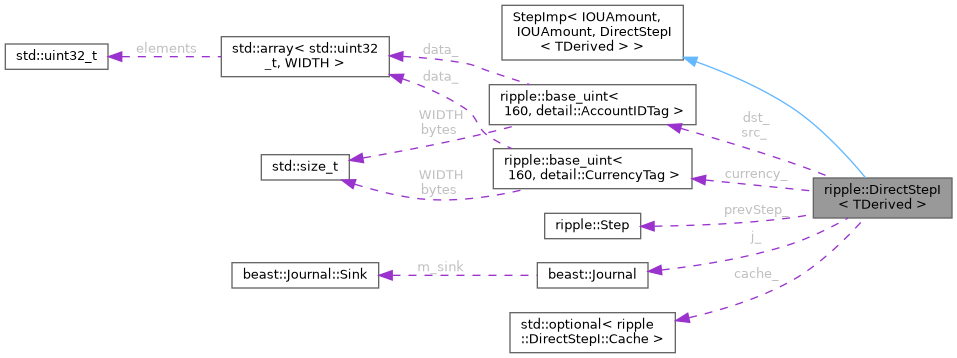

Collaboration diagram for ripple::DirectStepI< TDerived >:

[legend]

Classes
struct	Cache

Public Member Functions
	DirectStepI (StrandContext const &ctx, AccountID const &src, AccountID const &dst, Currency const &c)

AccountID const &	src () const

AccountID const &	dst () const

Currency const &	currency () const

std::optional< EitherAmount >	cachedIn () const override

std::optional< EitherAmount >	cachedOut () const override

std::optional< AccountID >	directStepSrcAcct () const override

std::optional< std::pair< AccountID, AccountID > >	directStepAccts () const override

DebtDirection	debtDirection (ReadView const &sb, StrandDirection dir) const override

std::uint32_t	lineQualityIn (ReadView const &v) const override

std::pair< std::optional< Quality >, DebtDirection >	qualityUpperBound (ReadView const &v, DebtDirection dir) const override

std::pair< IOUAmount, IOUAmount >	revImp (PaymentSandbox &sb, ApplyView &afView, boost::container::flat_set< uint256 > &ofrsToRm, IOUAmount const &out)

std::pair< IOUAmount, IOUAmount >	fwdImp (PaymentSandbox &sb, ApplyView &afView, boost::container::flat_set< uint256 > &ofrsToRm, IOUAmount const &in)

std::pair< bool, EitherAmount >	validFwd (PaymentSandbox &sb, ApplyView &afView, EitherAmount const &in) override

TER	check (StrandContext const &ctx) const

void	setCacheLimiting (IOUAmount const &fwdIn, IOUAmount const &fwdSrcToDst, IOUAmount const &fwdOut, DebtDirection srcDebtDir)

Protected Member Functions
std::pair< IOUAmount, DebtDirection >	maxPaymentFlow (ReadView const &sb) const

std::pair< std::uint32_t, std::uint32_t >	qualitiesSrcRedeems (ReadView const &sb) const

std::pair< std::uint32_t, std::uint32_t >	qualitiesSrcIssues (ReadView const &sb, DebtDirection prevStepDebtDirection) const

std::pair< std::uint32_t, std::uint32_t >	qualities (ReadView const &sb, DebtDirection srcDebtDir, StrandDirection strandDir) const

std::string	logStringImpl (char const *name) const

Protected Attributes
AccountID	src_

AccountID	dst_

Currency	currency_

Step const *const	prevStep_ = nullptr

bool const	isLast_

beast::Journal const	j_

std::optional< Cache >	cache_

Private Member Functions
bool	equal (Step const &rhs) const override

Friends
bool	operator== (DirectStepI const &lhs, DirectStepI const &rhs)

bool	operator!= (DirectStepI const &lhs, DirectStepI const &rhs)

Detailed Description

template<class TDerived>
class ripple::DirectStepI< TDerived >

Definition at line 38 of file DirectStep.cpp.

Constructor & Destructor Documentation

◆ DirectStepI()

template<class TDerived >

ripple::DirectStepI< TDerived >::DirectStepI	(	StrandContext const &	ctx,
		AccountID const &	src,
		AccountID const &	dst,
		Currency const &	c
	)

Definition at line 93 of file DirectStep.cpp.

Member Function Documentation

◆ maxPaymentFlow()

template<class TDerived >

std::pair< IOUAmount, DebtDirection > ripple::DirectStepI< TDerived >::maxPaymentFlow ( ReadView const & sb ) const

protected

Definition at line 476 of file DirectStep.cpp.

◆ qualitiesSrcRedeems()

template<class TDerived >

std::pair< std::uint32_t, std::uint32_t > ripple::DirectStepI< TDerived >::qualitiesSrcRedeems ( ReadView const & sb ) const

protected

Definition at line 768 of file DirectStep.cpp.

◆ qualitiesSrcIssues()

template<class TDerived >

std::pair< std::uint32_t, std::uint32_t > ripple::DirectStepI< TDerived >::qualitiesSrcIssues	(	ReadView const &	sb,
		DebtDirection	prevStepDebtDirection
	)		const

protected

Definition at line 785 of file DirectStep.cpp.

◆ qualities()

template<class TDerived >

std::pair< std::uint32_t, std::uint32_t > ripple::DirectStepI< TDerived >::qualities	(	ReadView const &	sb,
		DebtDirection	srcDebtDir,
		StrandDirection	strandDir
	)		const

protected

Definition at line 811 of file DirectStep.cpp.

◆ src()

template<class TDerived >

AccountID const & ripple::DirectStepI< TDerived >::src ( ) const

Definition at line 108 of file DirectStep.cpp.

◆ dst()

template<class TDerived >

AccountID const & ripple::DirectStepI< TDerived >::dst ( ) const

Definition at line 113 of file DirectStep.cpp.

◆ currency()

template<class TDerived >

Currency const & ripple::DirectStepI< TDerived >::currency ( ) const

Definition at line 118 of file DirectStep.cpp.

◆ cachedIn()

template<class TDerived >

std::optional< EitherAmount > ripple::DirectStepI< TDerived >::cachedIn ( ) const

override

Definition at line 124 of file DirectStep.cpp.

◆ cachedOut()

template<class TDerived >

std::optional< EitherAmount > ripple::DirectStepI< TDerived >::cachedOut ( ) const

override

Definition at line 132 of file DirectStep.cpp.

◆ directStepSrcAcct()

template<class TDerived >

std::optional< AccountID > ripple::DirectStepI< TDerived >::directStepSrcAcct ( ) const

override

Definition at line 140 of file DirectStep.cpp.

◆ directStepAccts()

template<class TDerived >

std::optional< std::pair< AccountID, AccountID > > ripple::DirectStepI< TDerived >::directStepAccts ( ) const

override

Definition at line 146 of file DirectStep.cpp.

◆ debtDirection()

template<class TDerived >

DebtDirection ripple::DirectStepI< TDerived >::debtDirection	(	ReadView const &	sb,
		StrandDirection	dir
	)		const

override

Definition at line 492 of file DirectStep.cpp.

◆ lineQualityIn()

template<class TDerived >

std::uint32_t ripple::DirectStepI< TDerived >::lineQualityIn ( ReadView const & v ) const

override

Definition at line 833 of file DirectStep.cpp.

◆ qualityUpperBound()

template<class TDerived >

std::pair< std::optional< Quality >, DebtDirection > ripple::DirectStepI< TDerived >::qualityUpperBound	(	ReadView const &	v,
		DebtDirection	dir
	)		const

override

Definition at line 841 of file DirectStep.cpp.

◆ revImp()

template<class TDerived >

std::pair< IOUAmount, IOUAmount > ripple::DirectStepI< TDerived >::revImp	(	PaymentSandbox &	sb,
		ApplyView &	afView,
		boost::container::flat_set< uint256 > &	ofrsToRm,
		IOUAmount const &	out
	)

Definition at line 506 of file DirectStep.cpp.

◆ fwdImp()

template<class TDerived >

std::pair< IOUAmount, IOUAmount > ripple::DirectStepI< TDerived >::fwdImp	(	PaymentSandbox &	sb,
		ApplyView &	afView,
		boost::container::flat_set< uint256 > &	ofrsToRm,
		IOUAmount const &	in
	)

Definition at line 634 of file DirectStep.cpp.

◆ validFwd()

template<class TDerived >

std::pair< bool, EitherAmount > ripple::DirectStepI< TDerived >::validFwd	(	PaymentSandbox &	sb,
		ApplyView &	afView,
		EitherAmount const &	in
	)

override

Definition at line 714 of file DirectStep.cpp.

◆ check()

template<class TDerived >

TER ripple::DirectStepI< TDerived >::check ( StrandContext const & ctx ) const

Definition at line 864 of file DirectStep.cpp.

◆ setCacheLimiting()

template<class TDerived >

void ripple::DirectStepI< TDerived >::setCacheLimiting	(	IOUAmount const &	fwdIn,
		IOUAmount const &	fwdSrcToDst,
		IOUAmount const &	fwdOut,
		DebtDirection	srcDebtDir
	)

Definition at line 592 of file DirectStep.cpp.

◆ logStringImpl()

template<class TDerived >

std::string ripple::DirectStepI< TDerived >::logStringImpl ( char const * name ) const

protected

Definition at line 205 of file DirectStep.cpp.

◆ equal()

template<class TDerived >

bool ripple::DirectStepI< TDerived >::equal ( Step const & rhs ) const

overrideprivate

Definition at line 215 of file DirectStep.cpp.

Friends And Related Symbol Documentation

◆ operator==

template<class TDerived >

bool operator==	(	DirectStepI< TDerived > const &	lhs,
		DirectStepI< TDerived > const &	rhs
	)

friend

Definition at line 191 of file DirectStep.cpp.

◆ operator!=

template<class TDerived >

bool operator!=	(	DirectStepI< TDerived > const &	lhs,
		DirectStepI< TDerived > const &	rhs
	)

friend

Definition at line 198 of file DirectStep.cpp.

Member Data Documentation

◆ src_

template<class TDerived >

AccountID ripple::DirectStepI< TDerived >::src_

protected

Definition at line 41 of file DirectStep.cpp.

◆ dst_

template<class TDerived >

AccountID ripple::DirectStepI< TDerived >::dst_

protected

Definition at line 42 of file DirectStep.cpp.

◆ currency_

template<class TDerived >

Currency ripple::DirectStepI< TDerived >::currency_

protected

Definition at line 43 of file DirectStep.cpp.

◆ prevStep_

template<class TDerived >

Step const* const ripple::DirectStepI< TDerived >::prevStep_ = nullptr

protected

Definition at line 46 of file DirectStep.cpp.

◆ isLast_

template<class TDerived >

bool const ripple::DirectStepI< TDerived >::isLast_

protected

Definition at line 47 of file DirectStep.cpp.

◆ j_

template<class TDerived >

beast::Journal const ripple::DirectStepI< TDerived >::j_

protected

Definition at line 48 of file DirectStep.cpp.

◆ cache_

template<class TDerived >

std::optional<Cache> ripple::DirectStepI< TDerived >::cache_

protected

Definition at line 67 of file DirectStep.cpp.
