ripple::HashRouter Class Reference

Routing table for objects identified by hash. More...

#include <HashRouter.h>

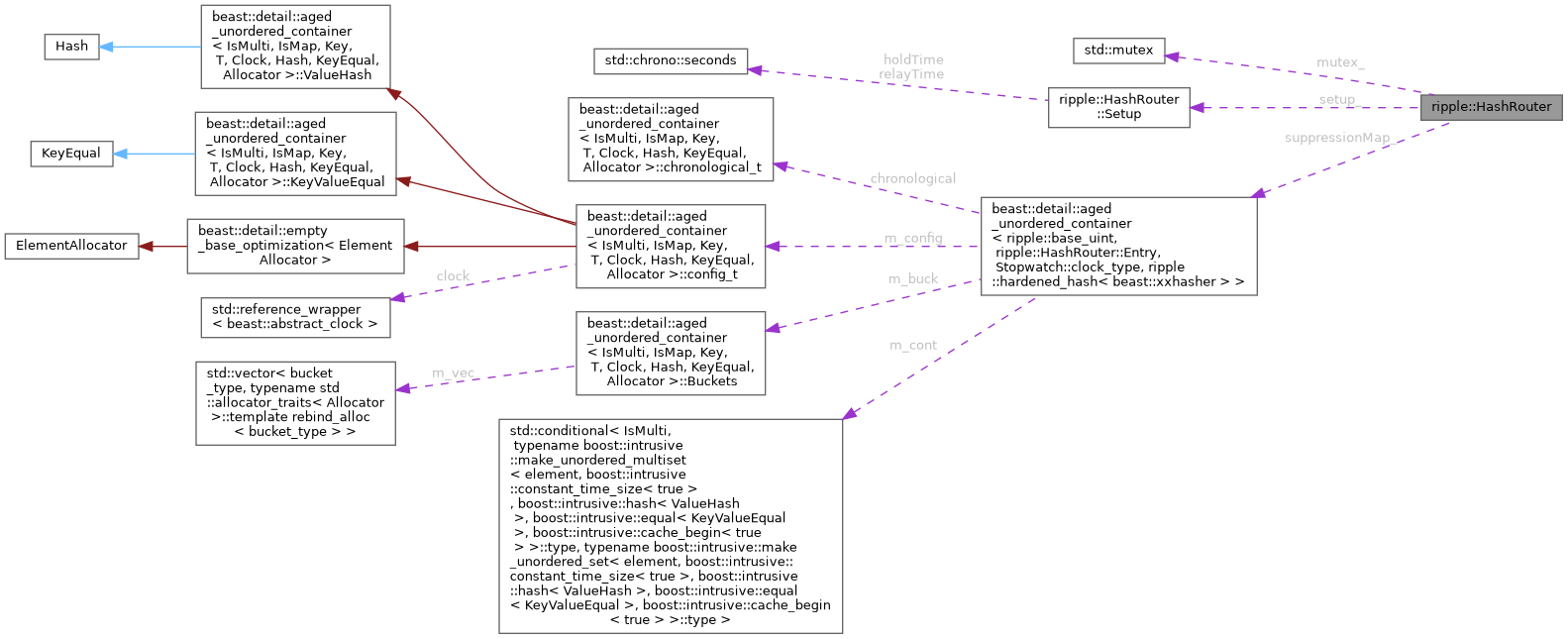

Collaboration diagram for ripple::HashRouter:

Classes
class	Entry
	An entry in the routing table. More...
struct	Setup
	Structure used to customize HashRouter behavior. More...

Public Types
using	PeerShortID = std::uint32_t

Public Member Functions
	HashRouter (Setup const &setup, Stopwatch &clock)
HashRouter &	operator= (HashRouter const &)=delete
virtual	~HashRouter ()=default
void	addSuppression (uint256 const &key)
bool	addSuppressionPeer (uint256 const &key, PeerShortID peer)
std::pair< bool, std::optional< Stopwatch::time_point > >	addSuppressionPeerWithStatus (uint256 const &key, PeerShortID peer)
	Add a suppression peer and get message's relay status.
bool	addSuppressionPeer (uint256 const &key, PeerShortID peer, HashRouterFlags &flags)
bool	shouldProcess (uint256 const &key, PeerShortID peer, HashRouterFlags &flags, std::chrono::seconds tx_interval)
bool	setFlags (uint256 const &key, HashRouterFlags flags)
	Set the flags on a hash.
HashRouterFlags	getFlags (uint256 const &key)
std::optional< std::set< PeerShortID > >	shouldRelay (uint256 const &key)
	Determines whether the hashed item should be relayed.

Private Member Functions
std::pair< Entry &, bool >	emplace (uint256 const &)

Private Attributes
std::mutex	mutex_
Setup const	setup_
beast::aged_unordered_map< uint256, Entry, Stopwatch::clock_type, hardened_hash< strong_hash > >	suppressionMap_

Detailed Description

Routing table for objects identified by hash.

This table keeps track of which hashes have been received by which peers. It is used to manage the routing and broadcasting of messages in the peer to peer overlay.

Definition at line 96 of file HashRouter.h.

Member Typedef Documentation

PeerShortID

using ripple::HashRouter::PeerShortID = std::uint32_t

Definition at line 100 of file HashRouter.h.

Constructor & Destructor Documentation

HashRouter()

ripple::HashRouter::HashRouter	(	Setup const &	setup,
		Stopwatch &	clock
	)

Definition at line 205 of file HashRouter.h.

~HashRouter()

virtual ripple::HashRouter::~HashRouter ( )

virtualdefault

Member Function Documentation

operator=()

HashRouter & ripple::HashRouter::operator= ( HashRouter const &  )

delete

addSuppression()

void ripple::HashRouter::addSuppression

(

uint256 const &

key

)

Definition at line 44 of file HashRouter.cpp.

addSuppressionPeer() [1/2]

bool ripple::HashRouter::addSuppressionPeer	(	uint256 const &	key,
		PeerShortID	peer
	)

Definition at line 52 of file HashRouter.cpp.

addSuppressionPeerWithStatus()

std::pair< bool, std::optional< Stopwatch::time_point > > ripple::HashRouter::addSuppressionPeerWithStatus	(	uint256 const &	key,
		PeerShortID	peer
	)

Add a suppression peer and get message's relay status.

Return pair: element 1: true if the peer is added. element 2: optional is seated to the relay time point or is unseated if has not relayed yet.

Definition at line 58 of file HashRouter.cpp.

addSuppressionPeer() [2/2]

bool ripple::HashRouter::addSuppressionPeer	(	uint256 const &	key,
		PeerShortID	peer,
		HashRouterFlags &	flags
	)

Definition at line 68 of file HashRouter.cpp.

shouldProcess()

bool ripple::HashRouter::shouldProcess	(	uint256 const &	key,
		PeerShortID	peer,
		HashRouterFlags &	flags,
		std::chrono::seconds	tx_interval
	)

Definition at line 82 of file HashRouter.cpp.

setFlags()

bool ripple::HashRouter::setFlags	(	uint256 const &	key,
		HashRouterFlags	flags
	)

Set the flags on a hash.

Returns

true if the flags were changed. false if unchanged.

Definition at line 106 of file HashRouter.cpp.

getFlags()

HashRouterFlags ripple::HashRouter::getFlags

(

uint256 const &

key

)

Definition at line 98 of file HashRouter.cpp.

shouldRelay()

auto ripple::HashRouter::shouldRelay

(

uint256 const &

key

)

Determines whether the hashed item should be relayed.

Effects:

If the item should be relayed, this function will not
return a seated optional again until the relay time has expired.
The internal set of peers will also be reset.

Returns

A std::optional set of peers which do not need to be relayed to. If the result is unseated, the item should not be relayed.

Definition at line 123 of file HashRouter.cpp.

emplace()

auto ripple::HashRouter::emplace ( uint256 const &  key )

private

Definition at line 26 of file HashRouter.cpp.

Member Data Documentation

mutex_

std::mutex ripple::HashRouter::mutex_

mutableprivate

Definition at line 275 of file HashRouter.h.

setup_

Setup const ripple::HashRouter::setup_

private

Definition at line 278 of file HashRouter.h.

suppressionMap_

beast::aged_unordered_map< uint256, Entry, Stopwatch::clock_type, hardened_hash<strong_hash> > ripple::HashRouter::suppressionMap_

private

Definition at line 286 of file HashRouter.h.
