ripple::HashRouter::Entry Class Reference

An entry in the routing table. More...

Inheritance diagram for ripple::HashRouter::Entry:

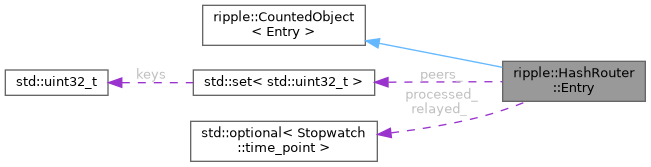

Collaboration diagram for ripple::HashRouter::Entry:

Public Member Functions
	Entry ()
void	addPeer (PeerShortID peer)
HashRouterFlags	getFlags (void) const
void	setFlags (HashRouterFlags flagsToSet)
std::set< PeerShortID >	releasePeerSet ()
	Return set of peers we've relayed to and reset tracking.
std::optional< Stopwatch::time_point >	relayed () const
	Return seated relay time point if the message has been relayed.
bool	shouldRelay (Stopwatch::time_point const &now, std::chrono::seconds relayTime)
	Determines if this item should be relayed.
bool	shouldProcess (Stopwatch::time_point now, std::chrono::seconds interval)

Static Private Member Functions
static auto &	getCounter () noexcept

Private Attributes
HashRouterFlags	flags_ = HashRouterFlags::UNDEFINED
std::set< PeerShortID >	peers_
std::optional< Stopwatch::time_point >	relayed_
std::optional< Stopwatch::time_point >	processed_

Detailed Description

An entry in the routing table.

Definition at line 110 of file HashRouter.h.

Constructor & Destructor Documentation

Entry()

ripple::HashRouter::Entry::Entry

(

)

Definition at line 113 of file HashRouter.h.

Member Function Documentation

addPeer()

void ripple::HashRouter::Entry::addPeer

(

PeerShortID

peer

)

Definition at line 118 of file HashRouter.h.

getFlags()

HashRouterFlags ripple::HashRouter::Entry::getFlags

(

void

)

const

Definition at line 125 of file HashRouter.h.

setFlags()

void ripple::HashRouter::Entry::setFlags

(

HashRouterFlags

flagsToSet

)

Definition at line 131 of file HashRouter.h.

releasePeerSet()

std::set< PeerShortID > ripple::HashRouter::Entry::releasePeerSet

(

)

Return set of peers we've relayed to and reset tracking.

Definition at line 138 of file HashRouter.h.

relayed()

std::optional< Stopwatch::time_point > ripple::HashRouter::Entry::relayed

(

)

const

Return seated relay time point if the message has been relayed.

Definition at line 145 of file HashRouter.h.

shouldRelay()

bool ripple::HashRouter::Entry::shouldRelay	(	Stopwatch::time_point const &	now,
		std::chrono::seconds	relayTime
	)

Determines if this item should be relayed.

Checks whether the item has been recently relayed. If it has, return false. If it has not, update the last relay timestamp and return true.

Definition at line 157 of file HashRouter.h.

shouldProcess()

bool ripple::HashRouter::Entry::shouldProcess	(	Stopwatch::time_point	now,
		std::chrono::seconds	interval
	)

Definition at line 168 of file HashRouter.h.

getCounter()

static auto & ripple::CountedObject< Entry >::getCounter ( )

staticprivatenoexceptinherited

Definition at line 110 of file CountedObject.h.

Member Data Documentation

flags_

HashRouterFlags ripple::HashRouter::Entry::flags_ = HashRouterFlags::UNDEFINED

private

Definition at line 177 of file HashRouter.h.

peers_

std::set<PeerShortID> ripple::HashRouter::Entry::peers_

private

Definition at line 178 of file HashRouter.h.

relayed_

std::optional<Stopwatch::time_point> ripple::HashRouter::Entry::relayed_

private

Definition at line 181 of file HashRouter.h.

processed_

std::optional<Stopwatch::time_point> ripple::HashRouter::Entry::processed_

private

Definition at line 182 of file HashRouter.h.
