ripple::NodeStore::BatchWriter Class Reference

Batch-writing assist logic. More...

#include <BatchWriter.h>

Inheritance diagram for ripple::NodeStore::BatchWriter:

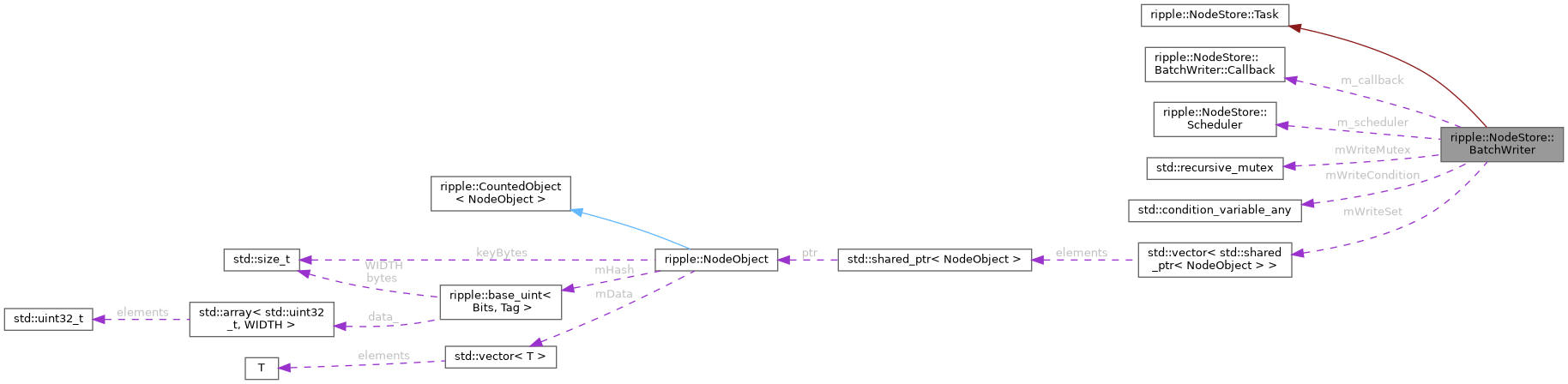

Collaboration diagram for ripple::NodeStore::BatchWriter:

Classes
struct	Callback
	This callback does the actual writing. More...

Public Member Functions
	BatchWriter (Callback &callback, Scheduler &scheduler)
	Create a batch writer.
	~BatchWriter ()
	Destroy a batch writer.
void	store (std::shared_ptr< NodeObject > const &object)
	Store the object.
int	getWriteLoad ()
	Get an estimate of the amount of writing I/O pending.

Private Types
using	LockType = std::recursive_mutex
using	CondvarType = std::condition_variable_any

Private Member Functions
void	performScheduledTask () override
	Performs the task.
void	writeBatch ()
void	waitForWriting ()

Private Attributes
Callback &	m_callback
Scheduler &	m_scheduler
LockType	mWriteMutex
CondvarType	mWriteCondition
int	mWriteLoad
bool	mWritePending
Batch	mWriteSet

Detailed Description

Batch-writing assist logic.

The batch writes are performed with a scheduled task. Use of the class it not required. A backend can implement its own write batching, or skip write batching if doing so yields a performance benefit.

See also

Scheduler

Definition at line 22 of file BatchWriter.h.

Member Typedef Documentation

LockType

using ripple::NodeStore::BatchWriter::LockType = std::recursive_mutex

private

Definition at line 68 of file BatchWriter.h.

CondvarType

using ripple::NodeStore::BatchWriter::CondvarType = std::condition_variable_any

private

Definition at line 69 of file BatchWriter.h.

Constructor & Destructor Documentation

BatchWriter()

ripple::NodeStore::BatchWriter::BatchWriter	(	Callback &	callback,
		Scheduler &	scheduler
	)

Create a batch writer.

Definition at line 6 of file BatchWriter.cpp.

~BatchWriter()

ripple::NodeStore::BatchWriter::~BatchWriter

(

)

Destroy a batch writer.

Anything pending in the batch is written out before this returns.

Definition at line 15 of file BatchWriter.cpp.

Member Function Documentation

store()

void ripple::NodeStore::BatchWriter::store

(

std::shared_ptr< NodeObject > const &

object

)

Store the object.

This will add to the batch and initiate a scheduled task to write the batch out.

Definition at line 21 of file BatchWriter.cpp.

getWriteLoad()

int ripple::NodeStore::BatchWriter::getWriteLoad

(

)

Get an estimate of the amount of writing I/O pending.

Definition at line 41 of file BatchWriter.cpp.

performScheduledTask()

void ripple::NodeStore::BatchWriter::performScheduledTask ( )

overrideprivatevirtual

Performs the task.

The call may take place on a foreign thread.

Implements ripple::NodeStore::Task.

Definition at line 49 of file BatchWriter.cpp.

writeBatch()

void ripple::NodeStore::BatchWriter::writeBatch ( )

private

Definition at line 55 of file BatchWriter.cpp.

waitForWriting()

void ripple::NodeStore::BatchWriter::waitForWriting ( )

private

Definition at line 96 of file BatchWriter.cpp.

Member Data Documentation

m_callback

Callback& ripple::NodeStore::BatchWriter::m_callback

private

Definition at line 71 of file BatchWriter.h.

m_scheduler

Scheduler& ripple::NodeStore::BatchWriter::m_scheduler

private

Definition at line 72 of file BatchWriter.h.

mWriteMutex

LockType ripple::NodeStore::BatchWriter::mWriteMutex

private

Definition at line 73 of file BatchWriter.h.

mWriteCondition

CondvarType ripple::NodeStore::BatchWriter::mWriteCondition

private

Definition at line 74 of file BatchWriter.h.

mWriteLoad

int ripple::NodeStore::BatchWriter::mWriteLoad

private

Definition at line 75 of file BatchWriter.h.

mWritePending

bool ripple::NodeStore::BatchWriter::mWritePending

private

Definition at line 76 of file BatchWriter.h.

mWriteSet

Batch ripple::NodeStore::BatchWriter::mWriteSet

private

Definition at line 77 of file BatchWriter.h.
